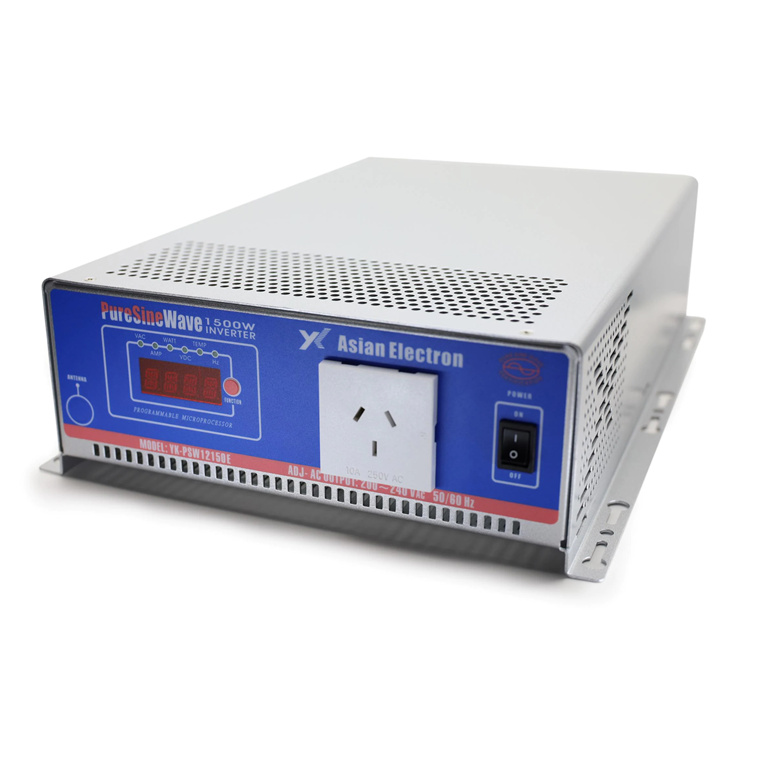

Asian Electron YK-PSW12150E 12VDC 1500watt Pure Sine Wave Inverter
Asian Electron YK-PSW12150E 12VDC 1500watt Pure Sine Wave Inverter
- Brand: Asian Electron
- MPN: YK-PSW12150E
- Part #: BATAET1003
- UPC:
- Brand: Asian Electron
- MPN: YK-PSW12150E
- Part #: BATAET1003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Batteries & Chargers
Asian Electron YK-PSW12150E 12VDC 1500watt Pure Sine Wave Inverter
- Brand: Asian Electron
- MPN: YK-PSW12150E
- Part #: BATAET1003
Product URL: https://www.pbtech.co.nz/product/BATAET1003/Asian-Electron-YK-PSW12150E-12VDC-1500watt-Pure-Si
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Asian Electron YK-PSW12150E 12VDC 1500watt Pure Sine Wave Inverter
Inverter Features:
-Pure sine wave output (THD < 3%) R Load
-Output frequency: 50 / 60Hz switch
-Remote control port / wire connection to PC
-Wired remote control
-Loading controlled cooling fan
-Advanced microprocessor
Protection:
-Input undervoltage
-Overload
-Short circuit
-Low battery alarm
-Input overvoltage
-Over temperature
Specifications
Continuous Output Power
1500W
Maximum Output Power (3mins)
1650W
Surge Rating
3000W
Input Voltage
12V
Input Voltage Range
10-16 VDC
Output Voltage
200 / 220 / 230 / 240V +/- 2%
Frequency (Switch Selectable)
50/60Hz +/- 0.05%
Peak Output Current
11A
Efficiency (full load)
87%
No Load Current Draw
1.6A
Stand by Current Draw
?1.5W Power Saving Mode
Output Waveform
Pure Sine Wave <3% THD (R Load)
Output Voltage adjustment
200 ~ 240V (Tune VR)
Protection
Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under Input Voltage, Over Temperature.
Digital Display
OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz
Safety
Meet EN60950-1
EMC
EN55022: A2:2003 (class B)
EN55024: 2003
EN61000-3-2: 2000
EN61000-3-3: 1995/A1:2001
IEC 61000-4-2:A2:2003
IEC61000-4-3:2002/A1:2002
IEC61000-4-4:2004
IEC61000-4-6:A1:2004
IEC61000-4-8:A1:2000
Power Saving Recovery Time
3 Minutes
Interface Control Port
RS-232C With Baud Rate 2400, 4800,9600,19200 (Switch Selectable)
Remote Control Unit
Optional (RF Remote Control) or (wire Control)
Operating Temperature Range
-30 to 60C
Storage Temperature Range
-30 to 70C
Dimensions
413 mm (L) x 278 mm (W) x 102 mm (H)
Cooling
Thermostatically controlled cooling fan
Weight
7.2 kgs
