CTEK 40-100 MXTS 40 12/24V 40/20AMP Lead Acid Battery Charger
Out of stock
CTEK 40-100 MXTS 40 12/24V 40/20AMP Lead Acid Battery Charger
- Brand: CTEK
- MPN: 40-100
- Part #: BATCTK4100
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Excellent Product, does just what it says it will. Easy for end user to understand. Good connectors included."
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Battery Chargers
CTEK 40-100 MXTS 40 12/24V 40/20AMP Lead Acid Battery Charger
- Brand: CTEK
- MPN: 40-100
- Part #: BATCTK4100
Product URL: https://www.pbtech.co.nz/product/BATCTK4100/CTEK-40-100-MXTS-40-1224V-4020AMP-Lead-Acid-Batter?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
12V and 24V charging station for workshops and showrooms.
The MXTS 40 is the all in one battery charging, maintenance and support station that's essential equipment for 12V and 24V vehicle workshops and showrooms. It's easy to use and electronically safe, with rapid charging for all types of batteries.

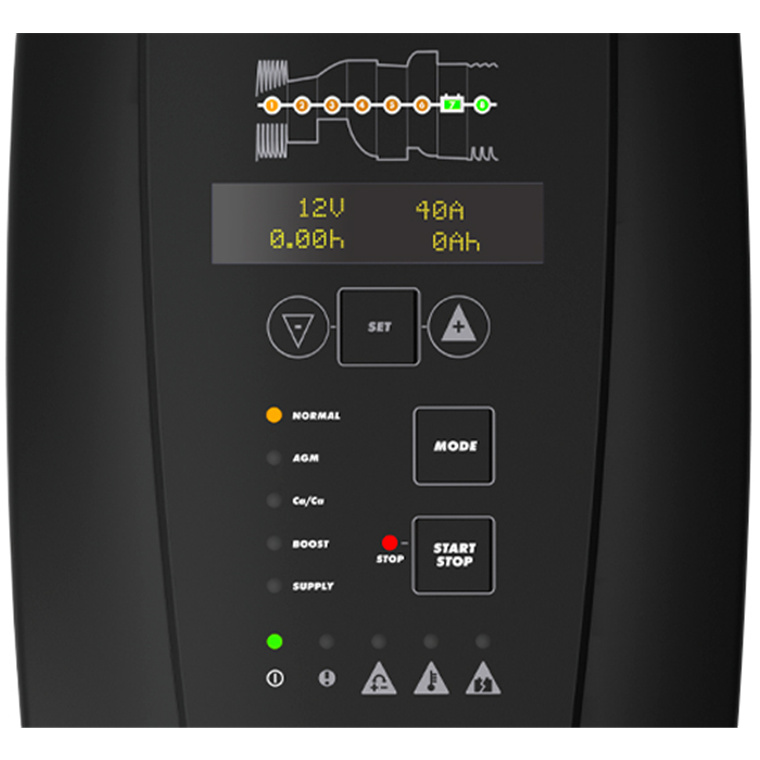

The MXTS 40 has both 40A/12V and 20A/24V output, and provides selectable constant voltage settings to avoid ECU damage due to voltage fluctuation during programming. As well as the 8 step charge progress display, the MXTS 40 also has an easy to read OLED display to give you clear readouts of key charge parameters, including current, voltage and amps charged. It has a Recond mode for reconditioning deeply discharged batteries and a temperature sensor for optimised charging regardless of weather conditions. The MXTS 40 has been designed to protect vehicle electronics and is housed in heavy duty polycarbonate for rough environments. It can be used with the optional Wall Hanger Pro and Trolley Pro for secure storage and maximum portability.
Product Features:
- Electronically safe multi step rapid charging
- 40A/12V and 20A/24V output
- IP20 classified
- Safe spark free operation
- Reverse polarity protected
- Short circuit proof
Specifications
Battery capacity
10-1200 Ah
Charging category
AC charging
Back current drain*
Corresponding to less than 1 Ah/month
Back Current Drain TEXT
*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
Battery voltage
12 V; 24 V
Battery chemistry
Lead acid (AGM, GEL, EFB, MF, CaCa)
Ambient operating temperature
-20 °C to +50 °C (- 4 °F to +122 °F)
Cooling
Fan
Input
220-240 VAC, 50-60 Hz, 3.0 A
Output
14.4 V, 40 A/12 V or 20 A/24 V
Start voltage
2.0 V
Ripple**
Less than 4 %
Ripple TEXT
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
Battery types
12 V:; 24 V:; WET; MF; Ca/Ca; AGM; GEL
Temperature compensation
Temperature compensation and battery reconditioning functions.
Ingress protection
IP20
Weight
1.3 kg withought charge cable
