Features
Mini V Mount Battery System
- Mobile Fast Charging
- Empowering Your Endless Creativity
Intelligent Chip for High-Power Fast Charging
The BMS intelligent control chip adopts customized system and supports multi-protocol fast-charging*.Supports high-power USB-C bi-directional PD fast-charging up to 45W (VB50 mini V Mount Battery) / 65W (VB99 mini V Mount Battery & VB155 mini V Mount Battery)
*Supports PD/QC/SCP/PPS/APPLE-2.4A and other quick charge protocols
High-Capacity Battery for Outstanding Performance
Features built-in 3500mAh high-capacity per lithium battery pack*,provides high-rate charge &discharge,excellent cycle performance,and powerful output while adding less weight to the camera setup.
*The product has passed
CE/ROHS/FCC/UKCA/ISED/RCM/MSDS/UN38.3/IEC62133/UL2054/UL62368 and other safety certifications
Reliable Protection
for Safe Droduction
1. Features MJ1 power cell,making the cycle charging and discharging more stable
2. Adopts BMS intelligent control system for adaptive boost & buck /current adjustment
3. Made of PC heat-resistant and fireproof material, provides safe protection while charging
Multiple Interfaces for Wider Compatibility

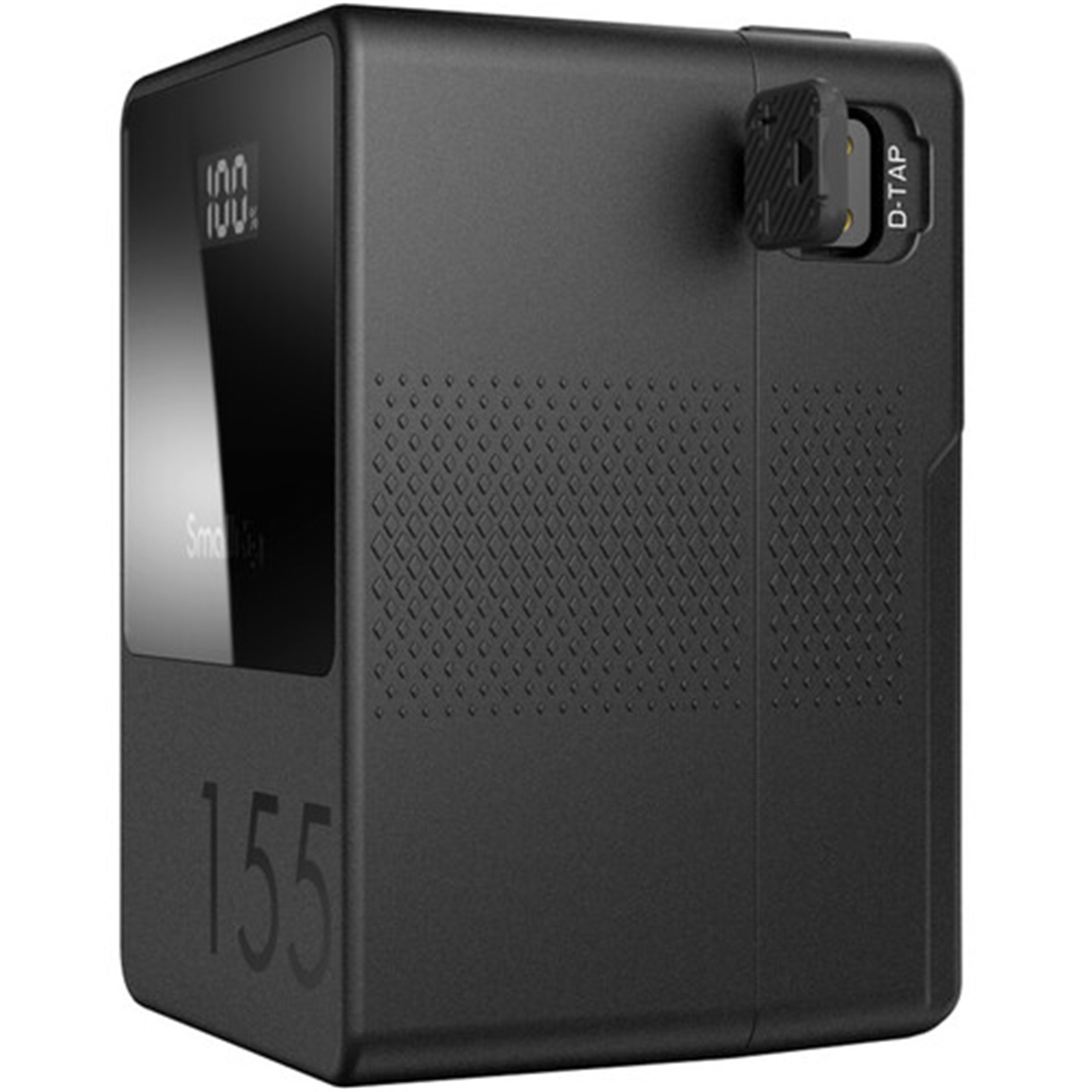

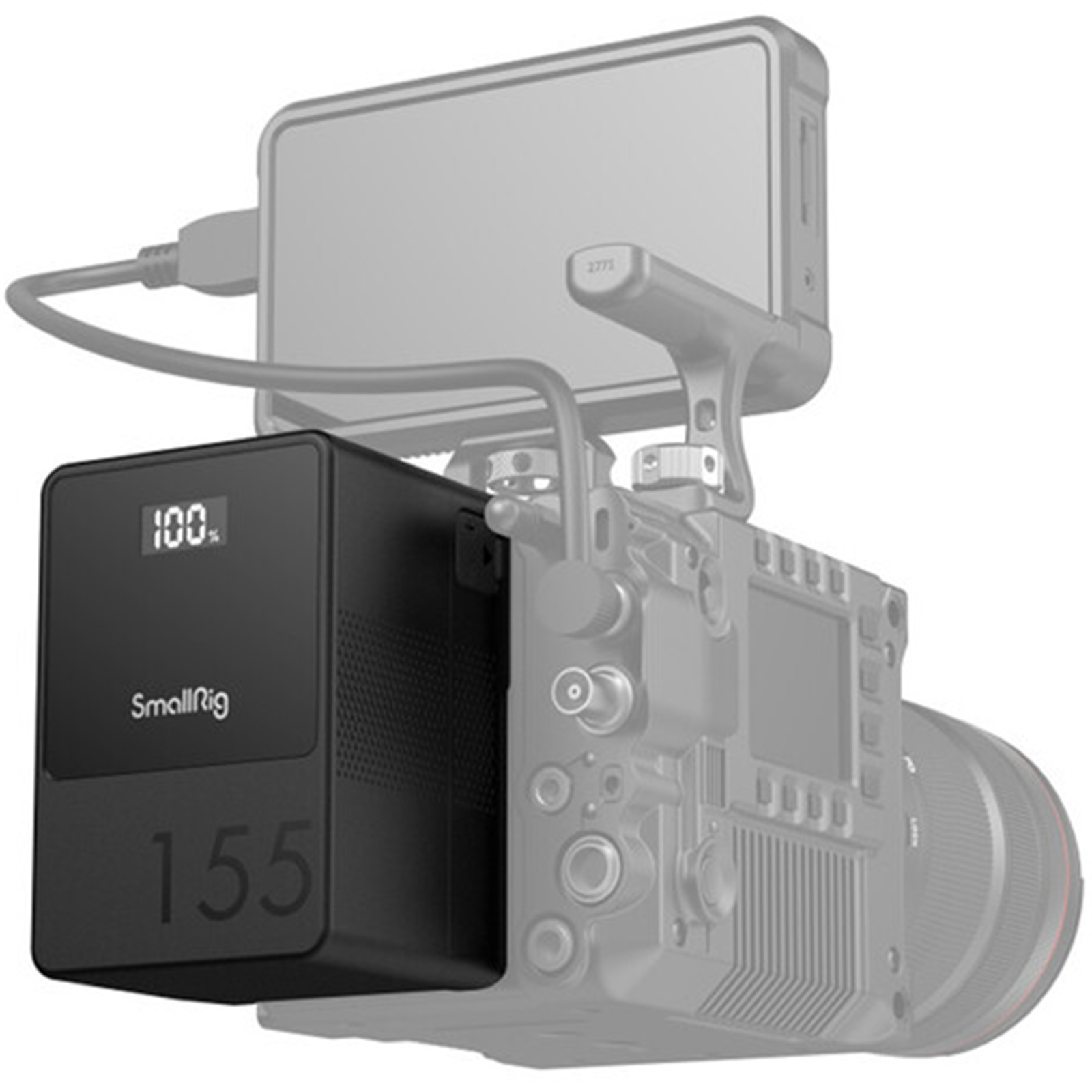

* The battery comes with built-in USB-A / USB-C/ D-TAP / DC 8V / DC 12V / V Mount and other interfaces, which can be directly connected to camera/video camera/monitor/image transmitter/video light/mobile phone/laptop or other devices without the need for attaching V Mount battery adapter plate.
Lightweight and Portable
Compared with other batteries of the same capacity and power, the mini V Mount Battery System is about 30% smaller in size, lightweight and portable

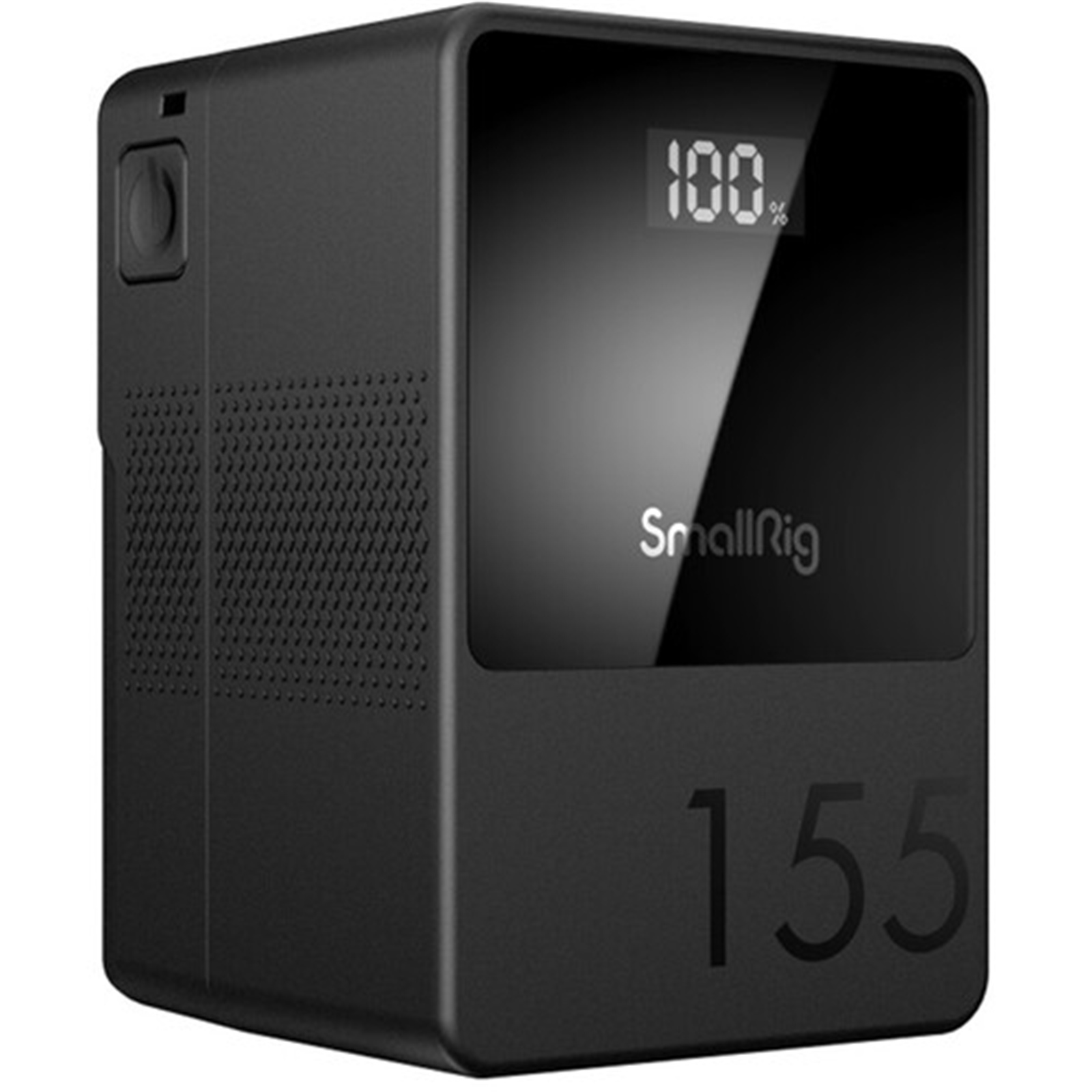

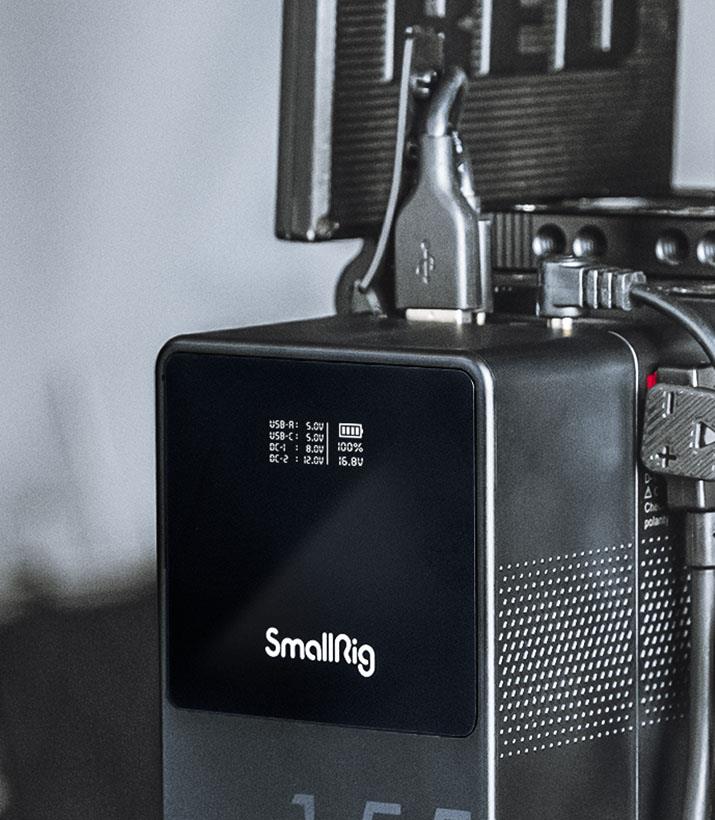

OLED Digital Display
The BMS chip has a built-in 16bit ADC/voltage monitoring system, and is matched with the main control MCU and OLED digital display to accurately check the working status of the battery
Specifications
Material
Fireproof PC Material
Capacity
14.8V 10.5Ah 155Wh
Rated Total Power
Discharge:155W
Charge: 65W
V Mount / D-TAP Iinput
8A (Max)
V Mount / D-TAP Output
14.8V/ 14A(Max)
USB-A Output (Support QC2.0/QC3.0/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A)
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A,12V / 2A
QC3.0: 4.2-9V / 3A, 9-12V / 2A
SCP: 4.5V / 5A, 5V / 4.5A
DCP-1.5A: 5V / 1.5A
APPLE-2.4A: 5V / 2.4A
USB-C Input/Output (Supports PD3.0/QC2.0/QC3.0/PPS /AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A)
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A
QC3.0: 4.2-9V / 2A, 9-12V / 2A
SCP: 4.5V / 5A, 5V / 4.5A
DCP-1.5A: 5V / 1.5A
PPS: 3.3-21V / 3A
APPLE-2.4A: 5V / 2.4A
DC1 Output
8.0V / Max3A
DC2 Output
12V / Max3A
Discharge Cut-Off Voltage
11V
Optional Charging Methods
16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
Product Dimension
107.0x73.0x71.0 mm
Product Weight
770 g±10g
