Features

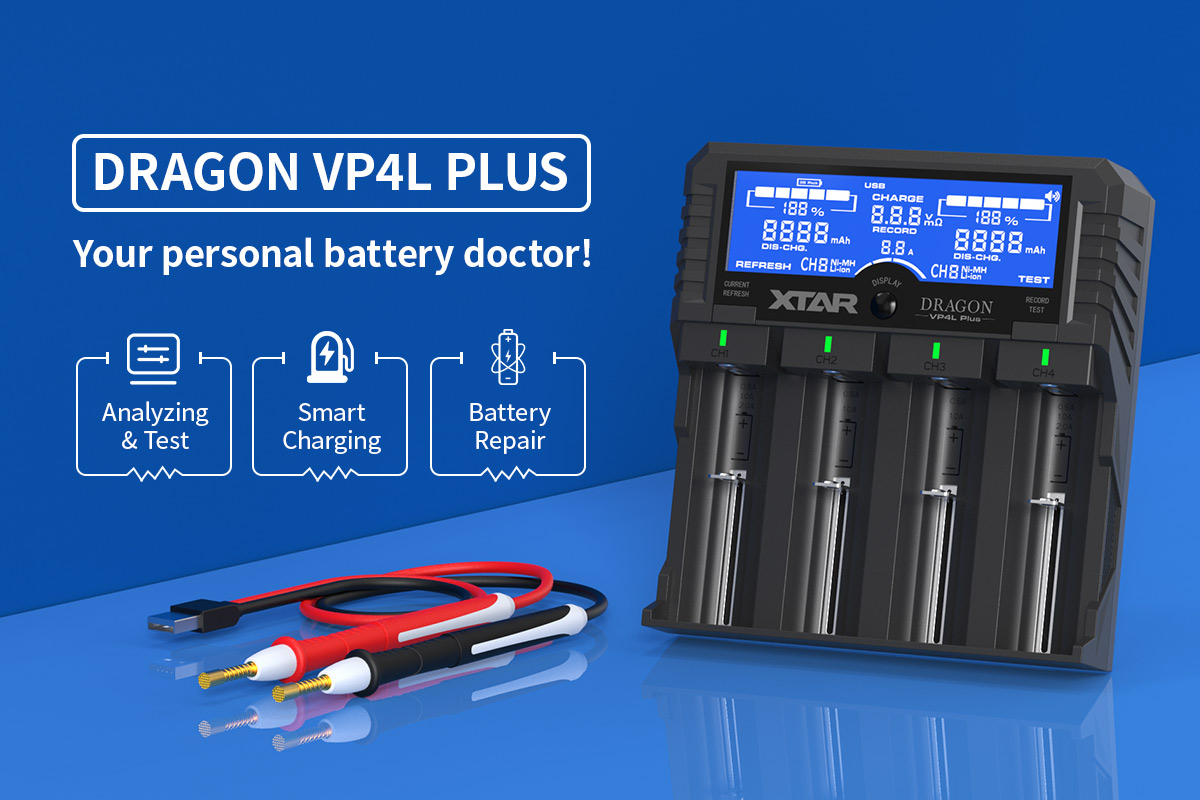

Upgrade version of the Dragon VP4 PLUS - your personal battery doctor
- Works as an analyzer and tester for 3.6/3.7V Li-ion and NiMH batteries, offering far higher accuracy than typical multi-slot chargers.

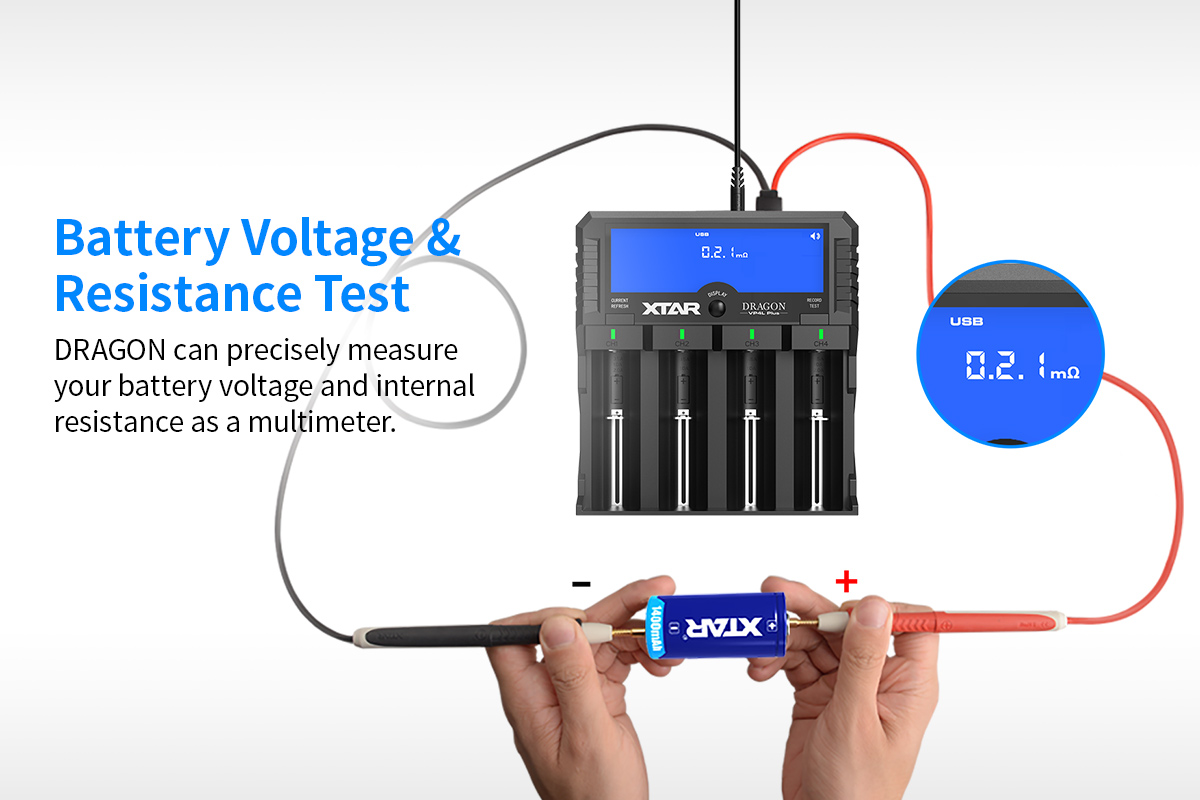

- Measures battery voltage and internal resistance with precision similar to a multimeter.

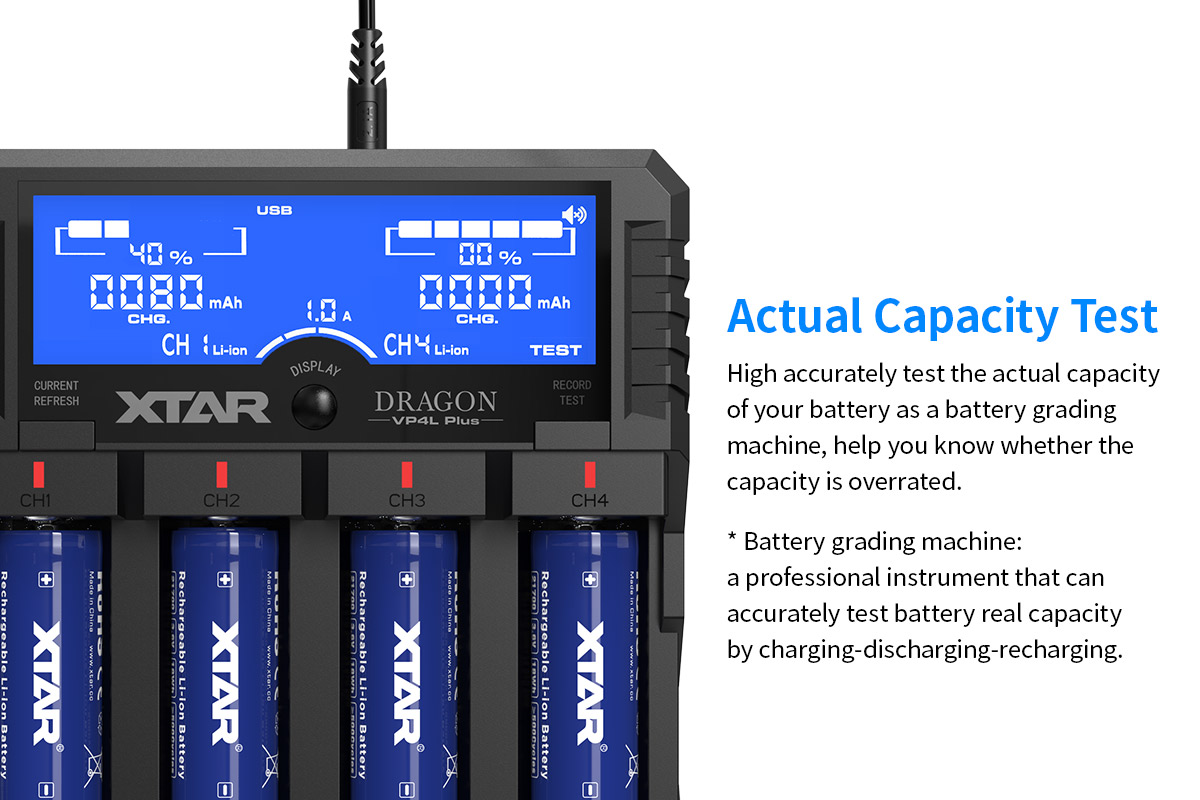

- Performs actual capacity testing like a compact grading machine.

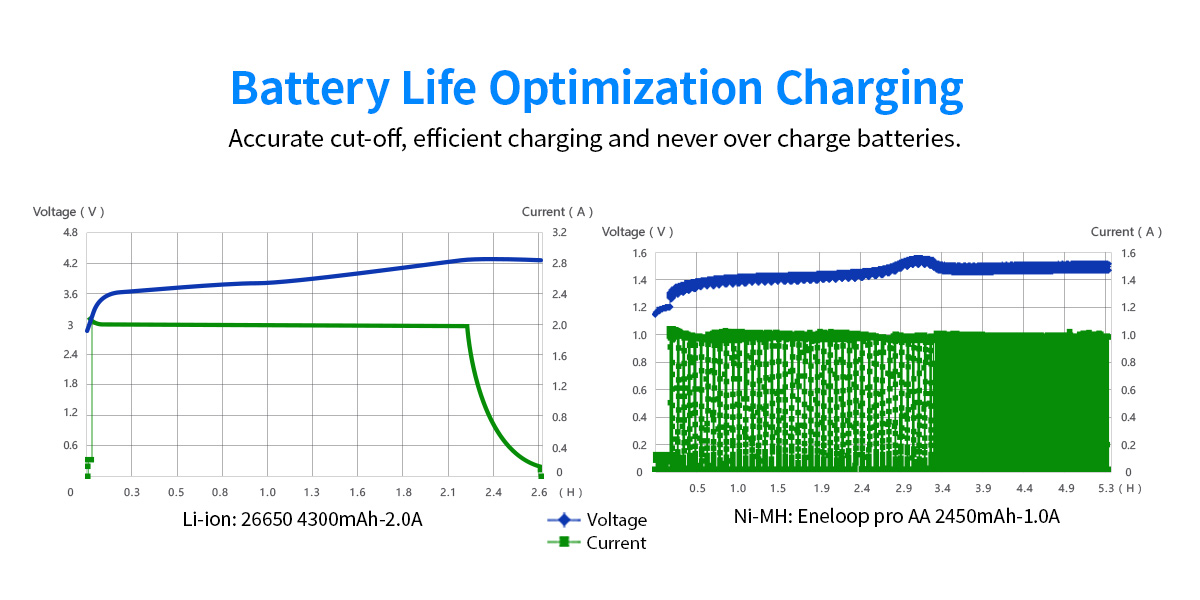

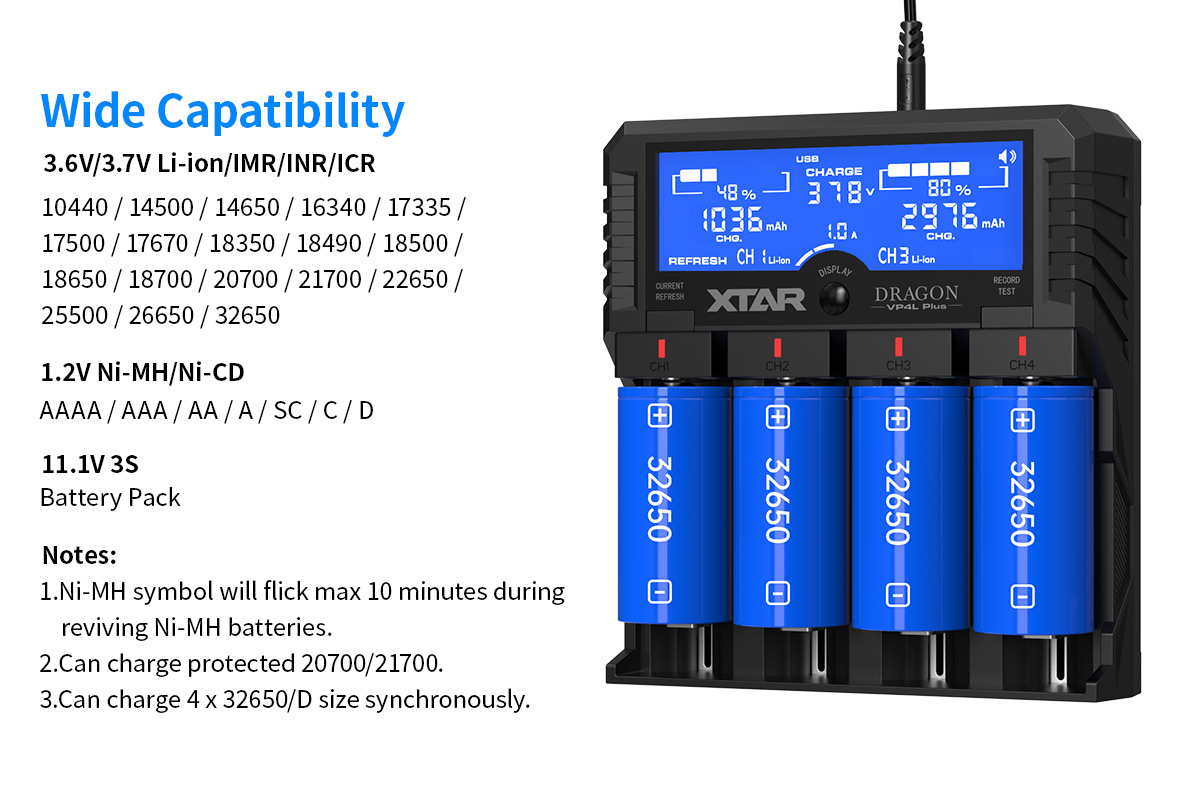

- Functions as a smart charger with wide battery compatibility, adjustable charge currents, battery-life optimization modes and multiple built-in safety protections.

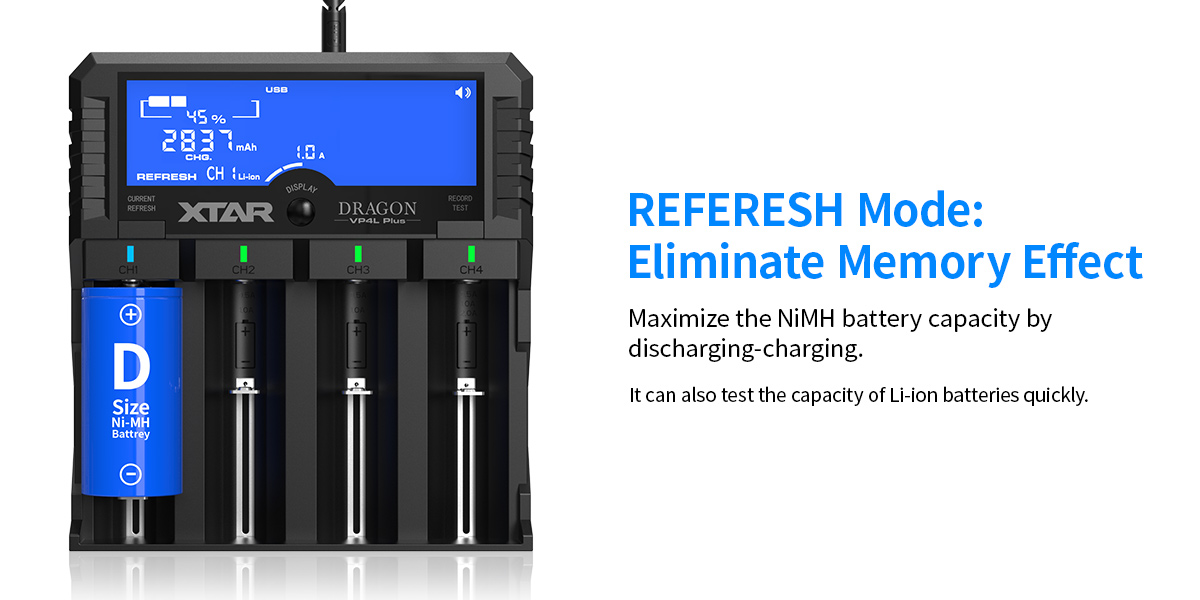

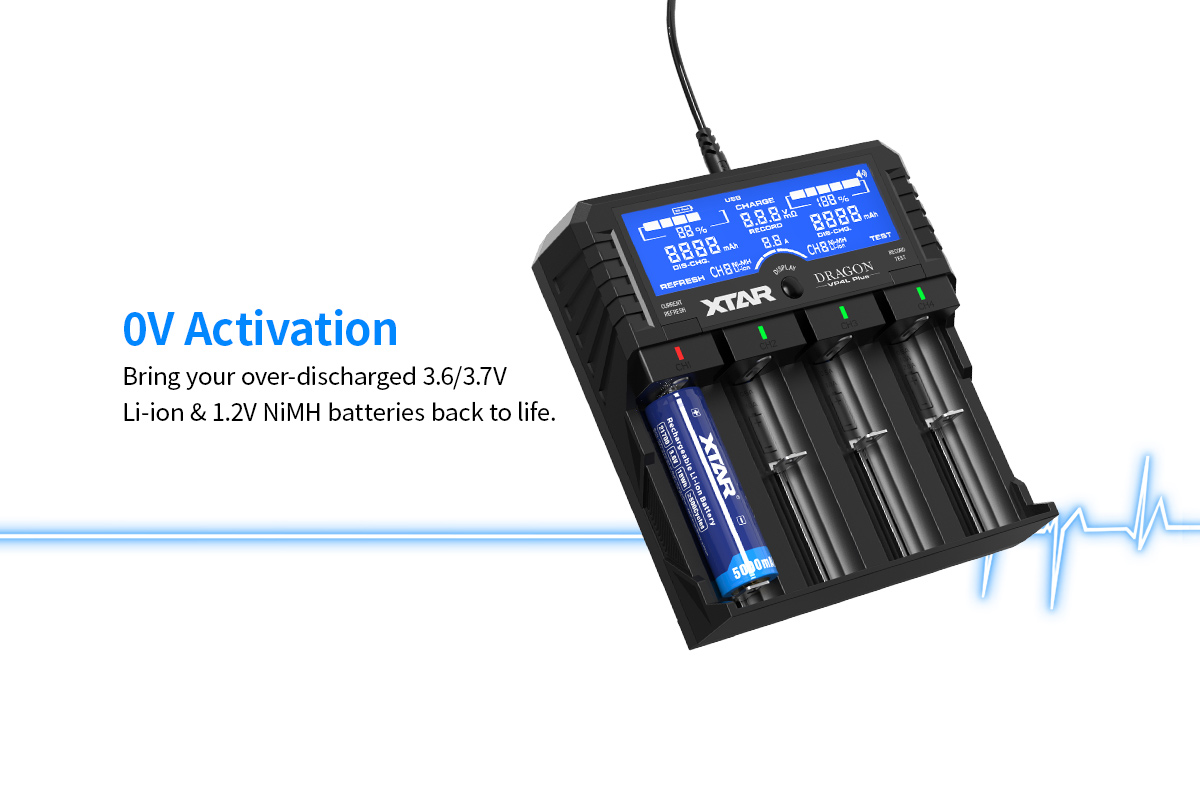

- Includes battery repair features such as 0V activation and memory-effect elimination.

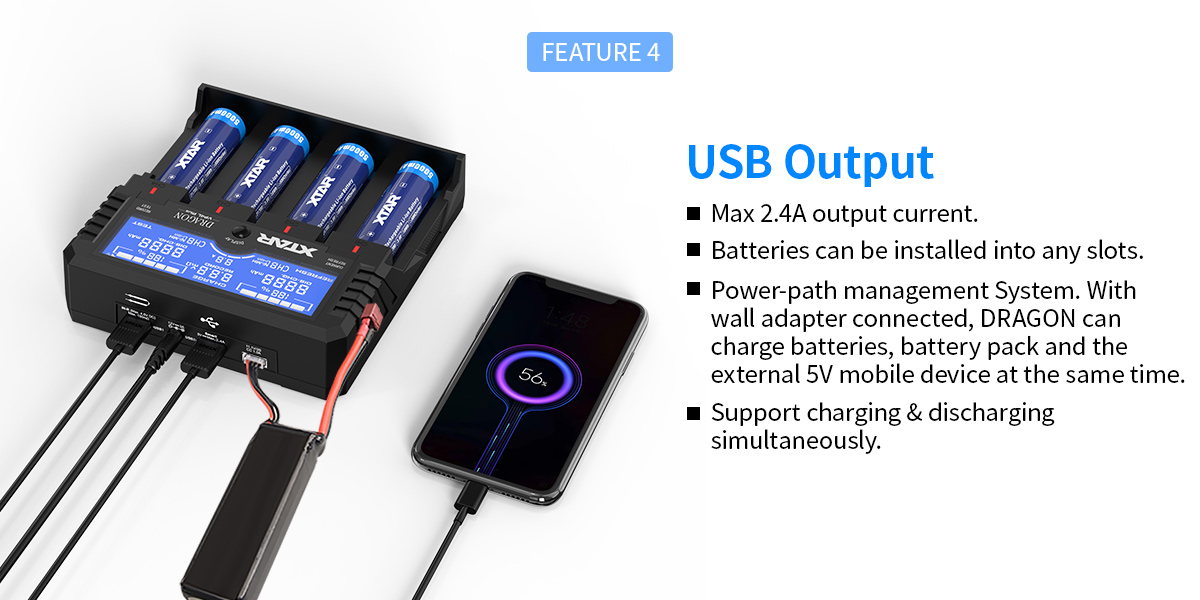

- Supports USB output with a power-path management system for stable power delivery.

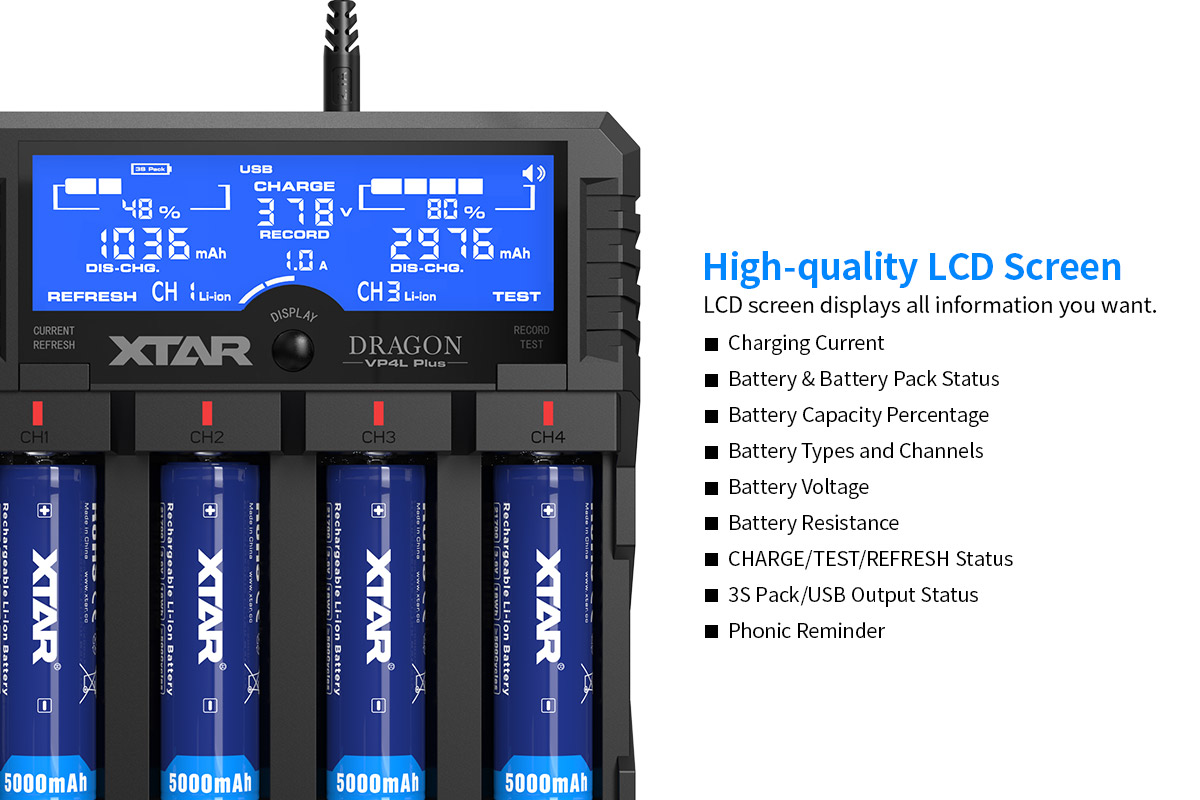

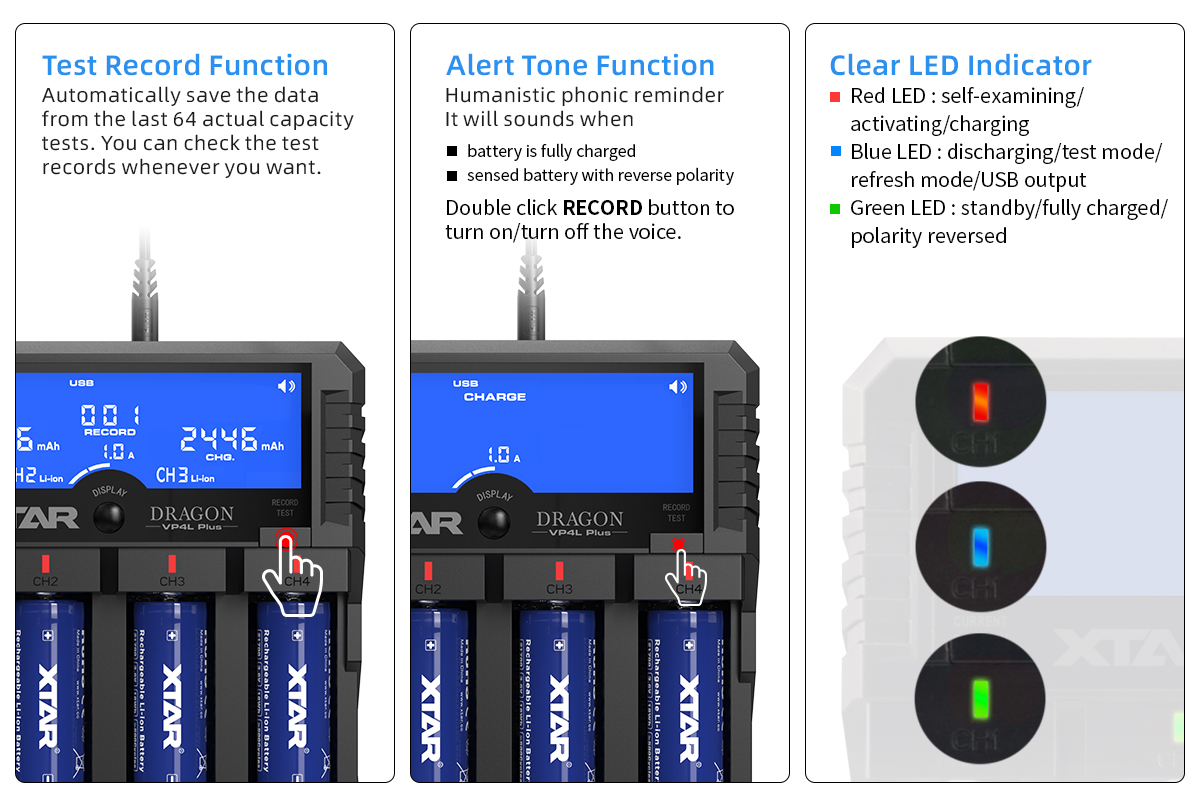

- Designed for convenience with test record storage and a clear LCD display.

















Specifications
Model
VP4L Plus
Input
DC 12V 3A

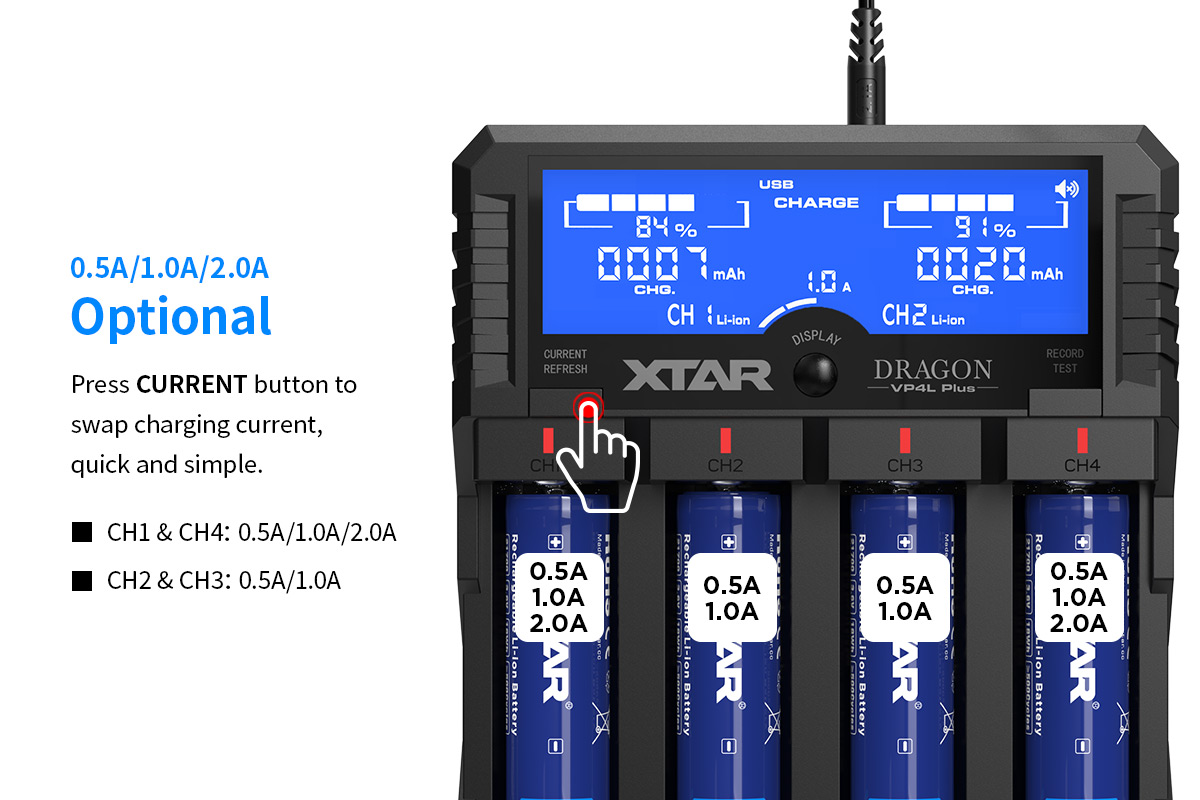

Charge current options (Constant current)
0.5A: 500 ± 50mA
1.0A: 1000+ 80mA
2.0A: 2000 120mA
End of charge Voltage
4.20 ± 0.05V / 1.45 ± 0.1V
End of Charge Current
0.5A: <60mA
1.0A: <100mA
2.0A: <120mA
Activation current
100mA
Trickle charge current
0.5A: 50 ± 10mA
1.0A: 100+ 20mA
2.0A: 200+ 20mA
Automatic recharge voltage
3.90 ± 0.15V
OV activation voltage range
0-2.0V
Operating Temperature
0-40°C
Open-circuit voltage
4.80 ± 0.20V
Size
L158mm x W147mm x H40mm
Net Weight
365g
