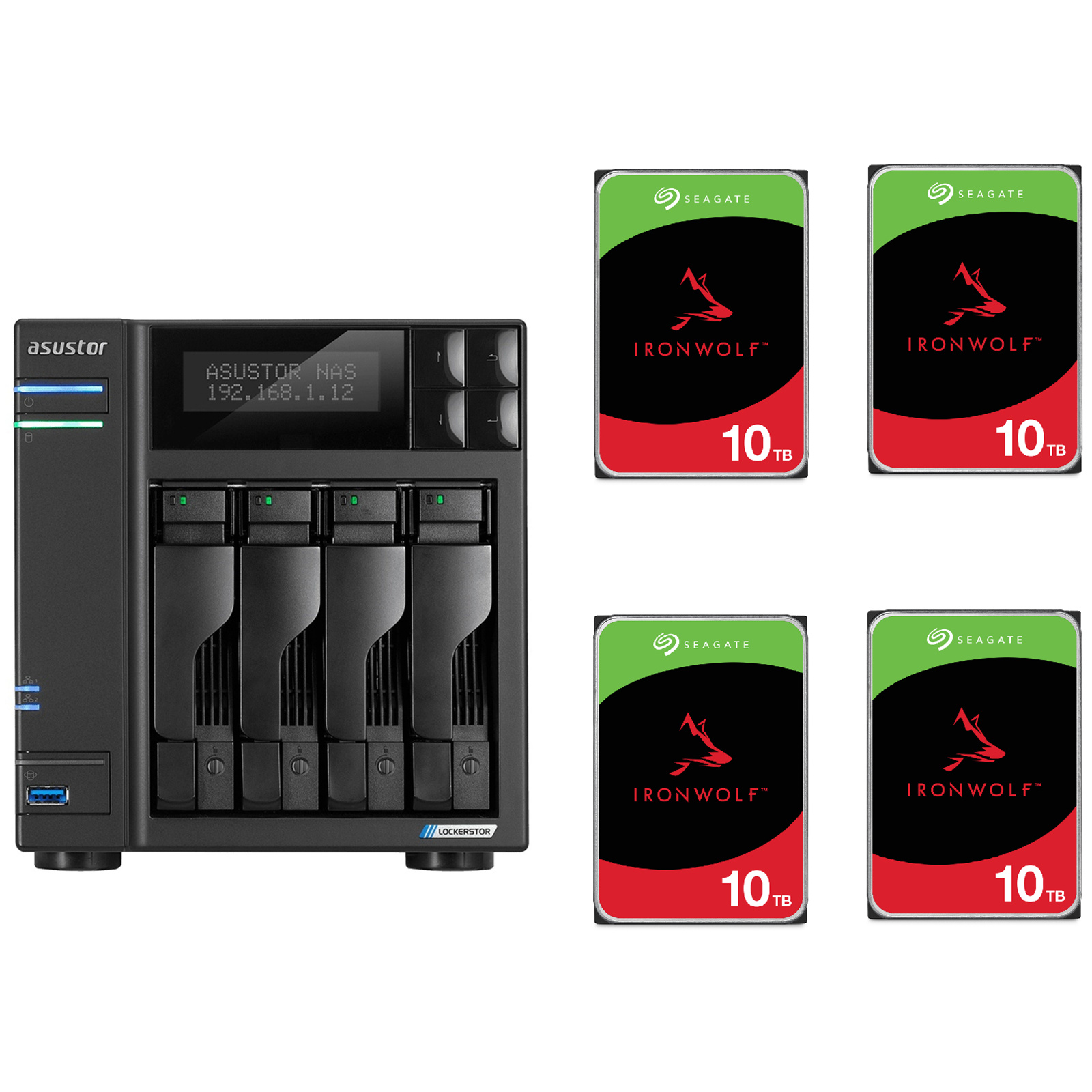

Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS With 4x 10TB NAS HDD Bundle
Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS With 4x 10TB NAS HDD Bundle
- Brand: Asustor
- MPN: BDLAST67047
- Part #: BDLAST67047
- UPC:
- Brand: Asustor
- MPN: BDLAST67047
- Part #: BDLAST67047
- UPC:
Features
Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel's newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that's not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
PCIe 3.0 - Doubled SSD Performance
PCIe 3.0 is supported by the Lockerstor Gen2 series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.
USB 3.2 Gen 2 - A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen 1 at up to 10 Gbps.
Removing your Storage Constraints
Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.
Adobe and ASUSTOR - A Winning Combination
Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.
Creativity Knows no Bounds
Your ASUSTOR NAS can work as a hybrid cloud that enables data accessibility both locally and through public cloud providers, ensuring easy collaboration regardless of location.
More Efficient than Ever Before
Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.
24/7 Reliability and Durability
All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Seagate IronWolf 10TB NAS Internal HDD
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (CMR) from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, air drive design, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS and Storage Bundles
Asustor Flashstor 6 FS6706T 6- Bay Flash NAS With 4x 2 TB M.2...
Asustor Flashstor 6 FS6706T 6- Bay Flash NAS With 4x 4 TB M.2...
Asustor Drivestor 2 Pro AS3302T v2 2 - Bay NAS With 2x 4 TB NAS...
Asustor Drivestor 2 Lite AS1102TL 2- Bay NAS With 2x 4 TB NAS HDD...
Asustor Drivestor 2 Pro AS3302T v2 2 - Bay NAS With 2x 8 TB NAS...
Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS With 4x 10TB NAS HDD Bundle
- Brand: Asustor
- MPN: BDLAST67047
- Part #: BDLAST67047
Product URL: https://www.pbtech.co.nz/product/BDLAST67047/Asustor-Lockerstor-4-Gen-2-AS6704T-4-Bay-NAS-With
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 3 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel's newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that's not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
PCIe 3.0 - Doubled SSD Performance
PCIe 3.0 is supported by the Lockerstor Gen2 series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.
USB 3.2 Gen 2 - A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen 1 at up to 10 Gbps.
Removing your Storage Constraints
Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.
Adobe and ASUSTOR - A Winning Combination
Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.
Creativity Knows no Bounds
Your ASUSTOR NAS can work as a hybrid cloud that enables data accessibility both locally and through public cloud providers, ensuring easy collaboration regardless of location.
More Efficient than Ever Before
Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.
24/7 Reliability and Durability
All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Seagate IronWolf 10TB NAS Internal HDD
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (CMR) from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, air drive design, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Specifications
Asustor Lockerstor 4 Gen 2 AS6704T 4-Bay NAS
CPU
CPU Model
Intel Celeron N5105
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory
4GB SO-DIMM DDR4
Memory Module Pre-installed
4GB (1x 4GB)
Total Memory Slots
2
Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Flash Memory
8GB eMMC
Storage
Drive Bays
4
M.2 Drive Slots
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit
12
External Ports
Expansion
2x USB 3.2 Gen 2x1
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots
1x for optional expansion 10 GbE card
HDMI Output
1x HDMI 2.0b
Others
System Fan
1x 120mm
LCD Panel
Infrared Receiver
Yes
Power Supply Unit / Adapter
90W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
Power Consumption
35 W (Operation);
17.3 W (Disk Hibernation);
0.88 W (Sleep Mode)
Noise Level
17.6dB (HDD idle)
Operation Temperature
0°C~40°C (32°F~104°F)
Humidity
5% to 95% RH
Size and Weight
Size
185.5(H) x 170(W) x 230(D) mm
Weight
2.94 kg / 6.48 lb
Seagate IronWolf 10TB NAS Internal HDD
Formatted (512 bytes/sector)
10TB
Heads
10
Discs
5
Bytes per logical sector
512
Bytes per physical sector
4096
Recording density, KBPI (Kb/in max)
2499
Track density, KTPI (ktracks/in, 0 skew)
487
Areal density, (Gb/in2, @ 0 skew mid-disk)
1215
Spindle speed (RPM)
7200
Internal data transfer rate (Mb/s max)
2169
Sustained data transfer rate OD (MiB/s max)
200 (210MB/s max)
I/O data-transfer rate (MB/s max)
600
ATA data-transfer modes supported
- PIO modes 0-4
- Multiword DMA modes 0-2
- Ultra DMA modes 0-6
Cache buffer
256MB (262,144KB)
Weight (maximum)
720g (1.587 lb)
Average latency
4.16ms
Power-on to ready (sec) (typ/max)
23/30
Standby to ready (sec) (typ/max)
23/30
Startup current (typical) 12V (peak)
1.8A
Voltage tolerance (including noise)
- 5V ±5%
- 12V ±10%
Operating ambient temperature (min °C)
0°C (Ambient)
Operating temperature (max °C)
65°C (Drive Reported Temperature) †
Non-Operating temperature
-40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.10)
Temperature gradient (°C per hour max)
- 20°C (operating)
- 20°C (nonoperating)
Relative humidity
- 5% to 95% (operating)
- 5% to 95% (nonoperating)
Relative humidity gradient
20% per hour max
Altitude, operating
- -304.8 m to 3,048 m
- (-1000 ft to 10,000+ ft)
Altitude, nonoperating (below mean sea level, max)
- -304.8 m to 12,192 m
- (-1000 ft to 40,000+ ft)
Operational Shock (max at 2 ms - typical)
Read 70 Gs / Write 40 Gs
Non-Operational Shock (max at 2 ms - typical)
300 Gs
Linear Random Operating Vibration
10-500 Hz: 1.04Grms
Random Rotary Operating Vibration
20-1500Hz: 12.5 rads/s²
Linear Random Non-Operating Vibration
10-500 Hz: 2.0 Grms ref
Idle
- 2.8 (typical)
- 3.0 (max)
- During periods of drive idle, some offline activity may occur according to the
SMART specification, which may increase acoustic and power to operational levels
Performance seek 3.2 (typical)
3.4 (max)
Nonrecoverable read errors
1 sector per 10 bits read
Annualized Failure Rate (AFR)
0.87% based on 8760 POH
Maximum Rated Workload
- Maximum rate of <180TB/year
- Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on
hours. Workload Rate = TB transferred * (8760 / recorded power on hours).
Load-unload cycles (command controlled)
600,000
Supports Hotplug operation per Serial ATA Revision 3.3 specification
Yes
