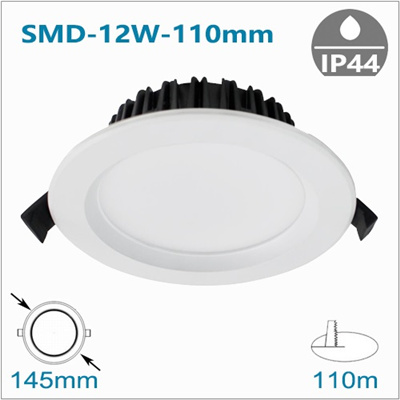

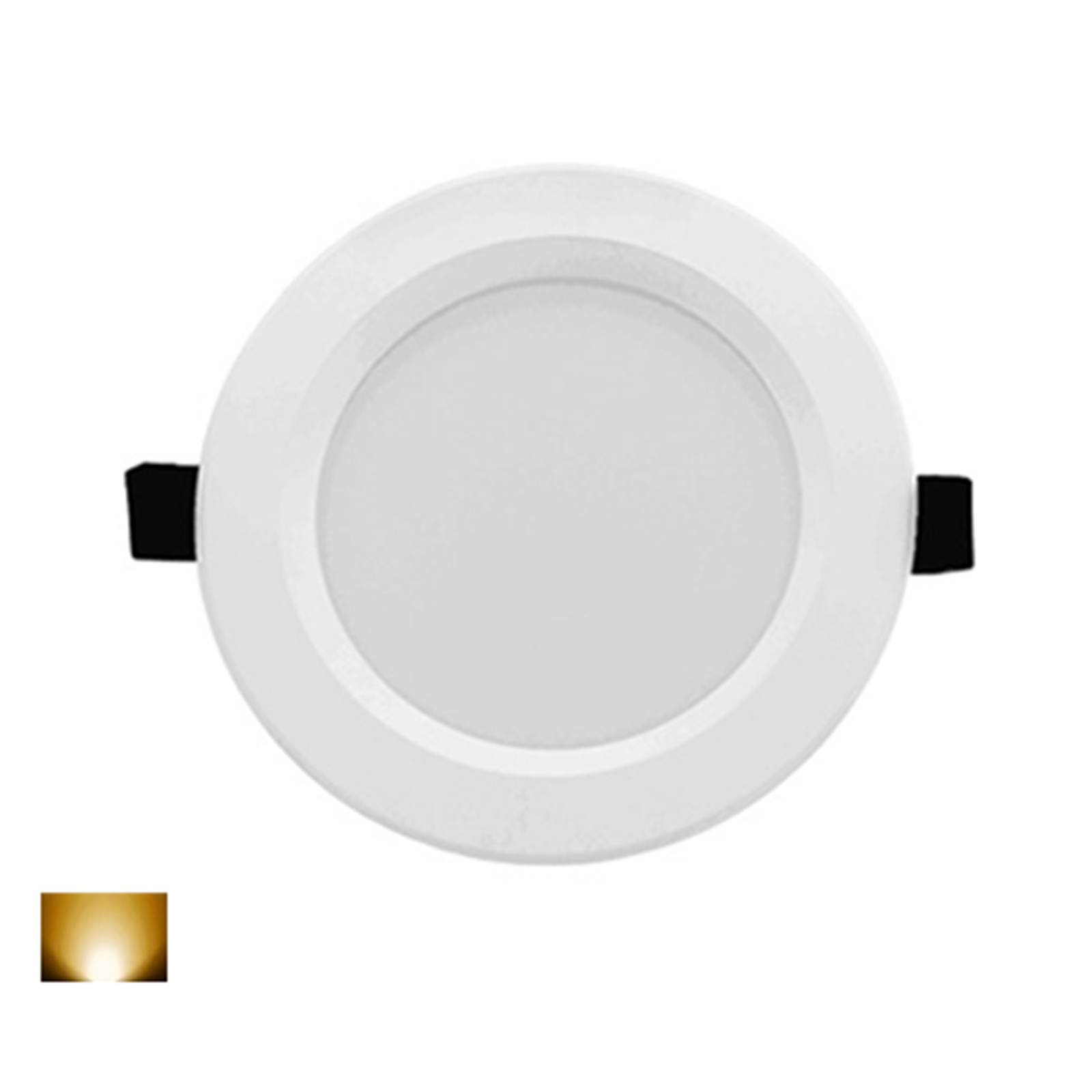

FSL RAV1201-CL112-30K LED Downlight LFS SMD-12W-110mm, Warm White 3000K, Dimmable IP44, Cut 115mm

PB Tech price
PB Tech price
$ 19 .08
 +GST
$ 21 .94
 inc GST
$19.08  +GST
$21.94

FSL RAV1201-CL112-30K LED Downlight LFS SMD-12W-110mm, Warm White 3000K, Dimmable IP44, Cut 115mm

  • Brand: FSL
  • MPN: RAV1201-CL112-30K
  • Part #: BULLFS1201003
  • UPC:
4
PB Tech price
$ 19 .08 $ 21 .94
 +GST  inc GST


Click & Collect: Available from 11 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$19.08  +GST
$21.94
  • Brand: FSL
  • MPN: RAV1201-CL112-30K
  • Part #: BULLFS1201003
  • UPC:

Base

N/A

Colour Temperature

3000K - Warm White

Dimmable

Dimmable

Wattage

12 W

LED Warranty

3 Year

Lens

N/A

Length (Tube)

N/A

Beam Angle

N/A

What PB Tech customers are saying about this product...

See More Reviews

"I bought 18 of these. All work fine. The tricky part about installing was because I was replacing units with screw terminals which have a large internal diameter. The wires I was i ...view more"

BN
By: BillN4 11/09/25

"Great price, Easy in install, the only negative is the drivers have sit above the insulation but that’s not a deal breaker."

G
By: Guest 24/08/23

"This is the only 110mm cut-out 12W aluminum-made LED IP44 downlight below $20. All other plastic-made lights from Bunnings/Mitre 10 are either more expensive or with quite a few n ...view more"

YG
By: YangWang 25/12/22
Verified Owner

Features

SPACE SAVING

At only 45mm, this is an ultra slim model that's perfect for when space is at a premium.

LESS POWER & MORE LIGHT

Consuming just 12W and still offering up to 1050 lumens, this slim LED ceiling light cuts down on energy consumption without compromising on light output.

A BETTER QUALITY OF LIGHT

Thanks to the frosted diffuser lens, the starkness of the light is reduced to produce a softer, more subtle glow with a wide 120-degree beam angle.

QUALITY ASSURED

Made with the finest components, the 12W SMD DOWNLIGHT has been designed to give you 30,000 hours of service.
And, as with all our bulbs and spotlights, it comes with an enhanced 5 years warranty.

INSTALLATION INFORMATION

You will need recess this light into your ceiling/wall using a 110mm cut out. Please note that this light can't be surface mounted.
It comes complete with an LED driver which uses a simple 'male to female' connection for ease of installation.

MAXI-WH 12W

3000K Dimmable
IP44, Cut.115mm

Specifications

Rated Voltage

AC110V ~ AC265V

Power Factor

>0.9

Rated Power

12W

Replacement Power

100W

Luminous Flux

900 lm

Color Rendering Index

CRI = 80

Color Temperature

3,000K

Dimmable

YES

IP Rate

IP44

IC Rate

IC-F

Life span

35,000 hours

Operation Temperature

-20ºC~+50ºC

Material (LED device)

Cover: Plastic  /  Heat sink: Aluminum

Dimension

145mm(Diameter) x 40mm(H)

Manufacturer Part No:
RAV1201-CL112-30K
Brand:
FSL
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
BULLFS1201003
Product Model:
RAV1201-CL112-30K
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

3.8 out of 5 Stars Based on 4 reviews
5 Stars
1
4 Stars
2
3 Stars
0
2 Stars
1
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Good, but a bit fiddly to install

I bought 18 of these. All work fine. The tricky part about installing was because I was replacing units with screw terminals which have a large internal diameter. The wires I was installing onto were already stripped mid-wire (there's a length of unbroken copper with insulation at both ends), and I didn't want to cut the copper. I had to expose more copper and really flatten the copper fold to get it to fit into the terminals.

BN
By: BillN4 11/09/25
0 out of 0 users found this review helpful
Did you find it helpful?

Great lights, bad connectors

Nothing against PBTech, you guys are legends and I'll keep coming back. The lights are a shocker though, these same lights used to have a regular screw connectors for the drivers - now this batch seems to have been changed to a "screw-less" type. This might be great for some wiring, but plenty of houses still have old single-core wires which dont fit, or only just. When you're in the ceiling soaking in sweat, trying to line up the original 1990s wiring with this screwless connector its a bloody nightmare. Please, next time you're ordering these lights, switch back to the regular connectors with screws.

AS
By: AnthonyS3 05/04/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Good light

Great price, Easy in install, the only negative is the drivers have sit above the insulation but that’s not a deal breaker.

G
By: Guest 24/08/23
0 out of 0 users found this review helpful
Did you find it helpful?

Perfect LED downlight retrofit for 110mm cut out

This is the only 110mm cut-out 12W aluminum-made LED IP44 downlight below $20. All other plastic-made lights from Bunnings/Mitre 10 are either more expensive or with quite a few negative reviews. There is a 1-sec delay in lighting up, but it is normal for SMD LED. I have used LEDFOCUS's FSL LED bulbs including MR16, GU10, E27, B22, and PAR38 for years, all 10/10. Simply a quality and affordable trustworthy brand.

YG
By: YangWang 25/12/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

FSL RAV1201-CL112-30K LED Downlight LFS SMD-12W-110mm, Warm White 3000K, Dimmable IP44, Cut 115mm

  • Brand: FSL
  • MPN: RAV1201-CL112-30K
  • Part #: BULLFS1201003
PB Tech price $19.08 Excluding GST PB Tech price $21.94 Including GST

Date Created: 14:22, 18-09-2025
Product URL: https://www.pbtech.co.nz/product/BULLFS1201003
Branch New Stock On Display
Auckland - Albany 2
Auckland - Glenfield 0
Auckland - Queen Street 0
Auckland - Auckland Uni 0
Auckland - Newmarket 0
Auckland - Westgate 3
Auckland - Penrose 6
Auckland - Henderson (Express) 0
Auckland - St Lukes 5
Auckland - Manukau 8
Hamilton 4
Tauranga 6
New Plymouth 0
Palmerston North 40
Petone 4
Wellington 0
Auckland - Head Office 5
Auckland - East Tamaki Warehouse 0
Christchurch - Hornby 2
Christchurch - Christchurch Central 3
Dunedin 0

Features

SPACE SAVING

At only 45mm, this is an ultra slim model that's perfect for when space is at a premium.

LESS POWER & MORE LIGHT

Consuming just 12W and still offering up to 1050 lumens, this slim LED ceiling light cuts down on energy consumption without compromising on light output.

A BETTER QUALITY OF LIGHT

Thanks to the frosted diffuser lens, the starkness of the light is reduced to produce a softer, more subtle glow with a wide 120-degree beam angle.

QUALITY ASSURED

Made with the finest components, the 12W SMD DOWNLIGHT has been designed to give you 30,000 hours of service.
And, as with all our bulbs and spotlights, it comes with an enhanced 5 years warranty.

INSTALLATION INFORMATION

You will need recess this light into your ceiling/wall using a 110mm cut out. Please note that this light can't be surface mounted.
It comes complete with an LED driver which uses a simple 'male to female' connection for ease of installation.

MAXI-WH 12W

3000K Dimmable
IP44, Cut.115mm

Specifications

Rated Voltage

AC110V ~ AC265V

Power Factor

>0.9

Rated Power

12W

Replacement Power

100W

Luminous Flux

900 lm

Color Rendering Index

CRI = 80

Color Temperature

3,000K

Dimmable

YES

IP Rate

IP44

IC Rate

IC-F

Life span

35,000 hours

Operation Temperature

-20ºC~+50ºC

Material (LED device)

Cover: Plastic  /  Heat sink: Aluminum

Dimension

145mm(Diameter) x 40mm(H)
