DJI Ronin RS 5 Combo
- Brand: DJI
- MPN: CP-RN-00000497
- Part #: CAADJI0502
- UPC:
Features
DJI RS 5 features touchscreen subject selection with the new tracking module [1], smooth balancing from fine-tuning knobs, and direct control via the new briefcase handle [2]-all backed by faster charging and extended battery life [3].
- Enhanced Intelligent Tracking and Composition [1]
- Briefcase Handle With Gimbal & Camera Control [2]
- 1-Hour Full Charge, 15% Extended Runtime [3]
- Fine-Tuning Knobs and Teflon™ Enhanced Balancing
- New Z-Axis Indicator
- 2nd-Gen Automated Axis Locks
RS Enhanced Intelligent Tracking Module
The module [1] lets you frame and track any subject [1] from the gimbal's touchscreen, keeping it precisely positioned. And when tracking a person, it offers a range of up to 10 meters and can reacquire the subject if they temporarily leave the frame.
Next-Gen Algorithm, Enhanced Torque
Peak motor torque is up by 50% over the previous model, offering stability in fast-moving scenes. The 5th-Gen RS Stabilization Algorithm further enhances stabilization for walking, running, and vertical shooting, striking an ideal balance between stability and control.
Compact Body With up to 3kg Payload
The gimbal weighs just 1.46 kg with battery grip and quick-release plates, and switches to vertical shooting without extra accessories. With a robust 3 kg (6.6 lbs) payload capacity, it can carry mainstream mirrorless camera and lens combinations [4] with ease.
New Electronic Briefcase Handle [2]
The new Electronic Briefcase Handle [2] offers intuitive, effortless single‑handed operation, featuring a joystick and buttons that control the gimbal and camera for more creative angles.

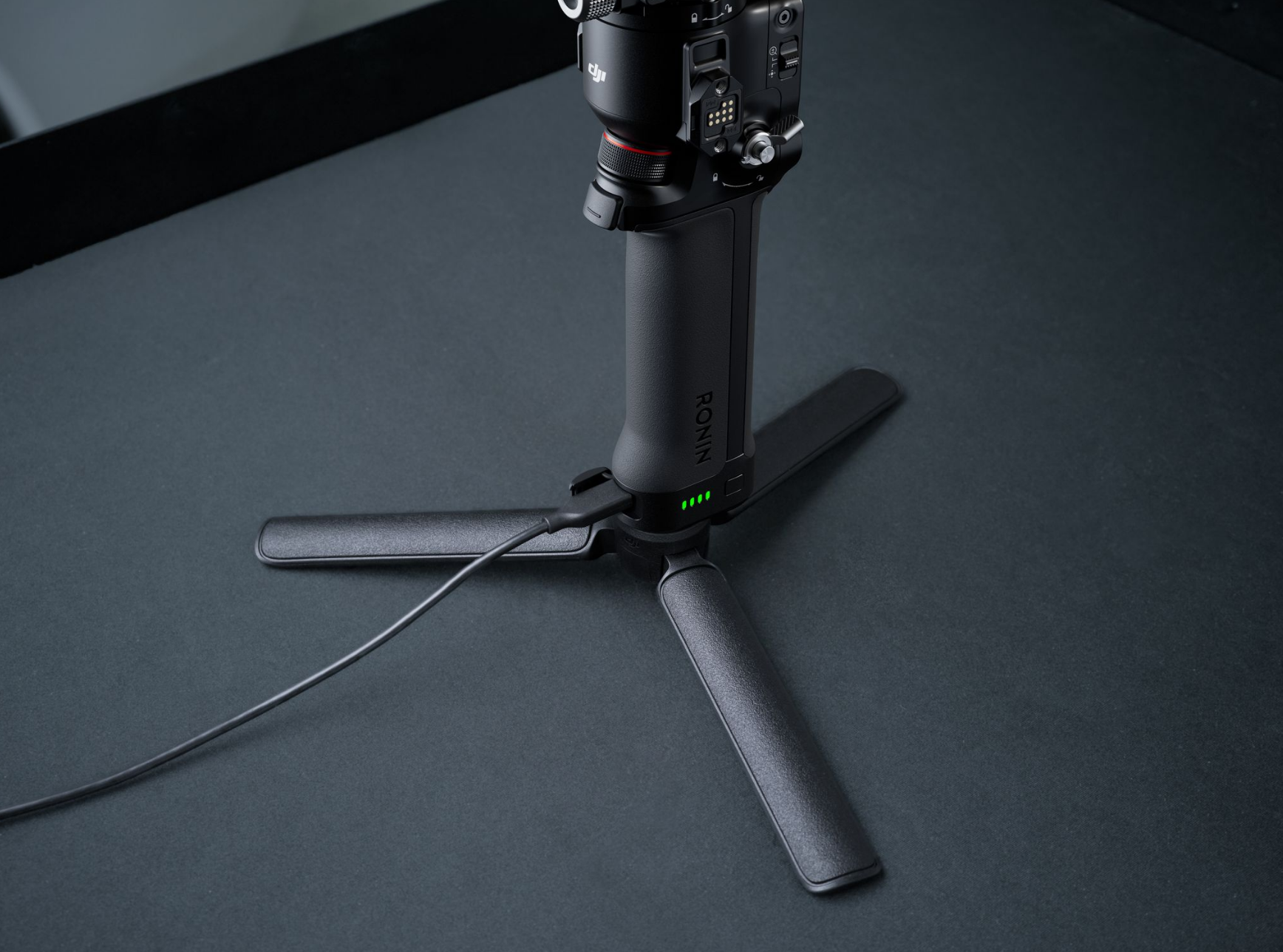

Longer Runtime, Fully Charged in 1 Hour [3]
Fully charge DJI RS 5 in just one hour-a 60% increase in speed. The standard battery delivers approximately 14 hours of standby time, a 15% improvement [3].
DJI RS BG70 High-Capacity Battery Grip
The new BG70 High-Capacity Battery Grip [5] can extend RS 5's battery standby time to 30 hours [6].

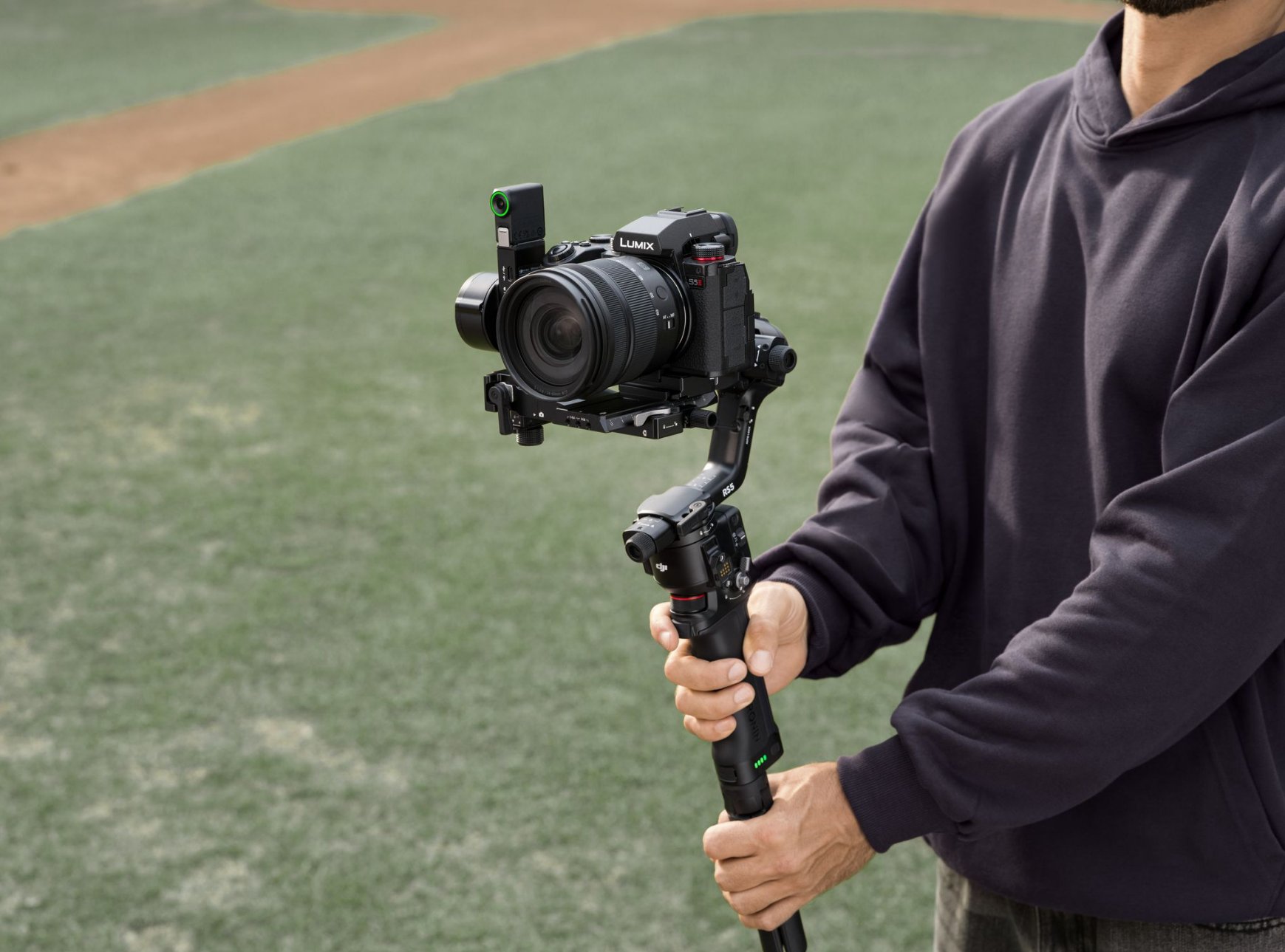

New Bluetooth Shutter Support for Panasonic & Fujifilm
In addition to cameras from Sony, Canon, and Nikon, the RS 5's Bluetooth shutter now supports specific Panasonic and Fujifilm cameras [7], enabling wireless control of shutter, zoom, and Clear Image Zoom with no cables required.
Z-Axis Indicator
The new Z‑Axis Indicator gives you instant feedback to fine‑tune your footsteps for steadier, more professional shots.
Smooth & Precise Balancing
Fine-tuning knobs on each axis arm enable quick, precise balancing through a leadscrew mechanism. Combined with Teflon™ interlayers, RS 5 delivers smooth and precise balancing even with heavier professional setups.
2nd-Gen Automated Axis Locks
The 2nd-Gen Automated Axis Locks automatically lock the gimbal upon power-off or sleep for easier transitions and storage. They unlock just as quickly upon power-on, getting you ready to film in an instant for those critical moments.

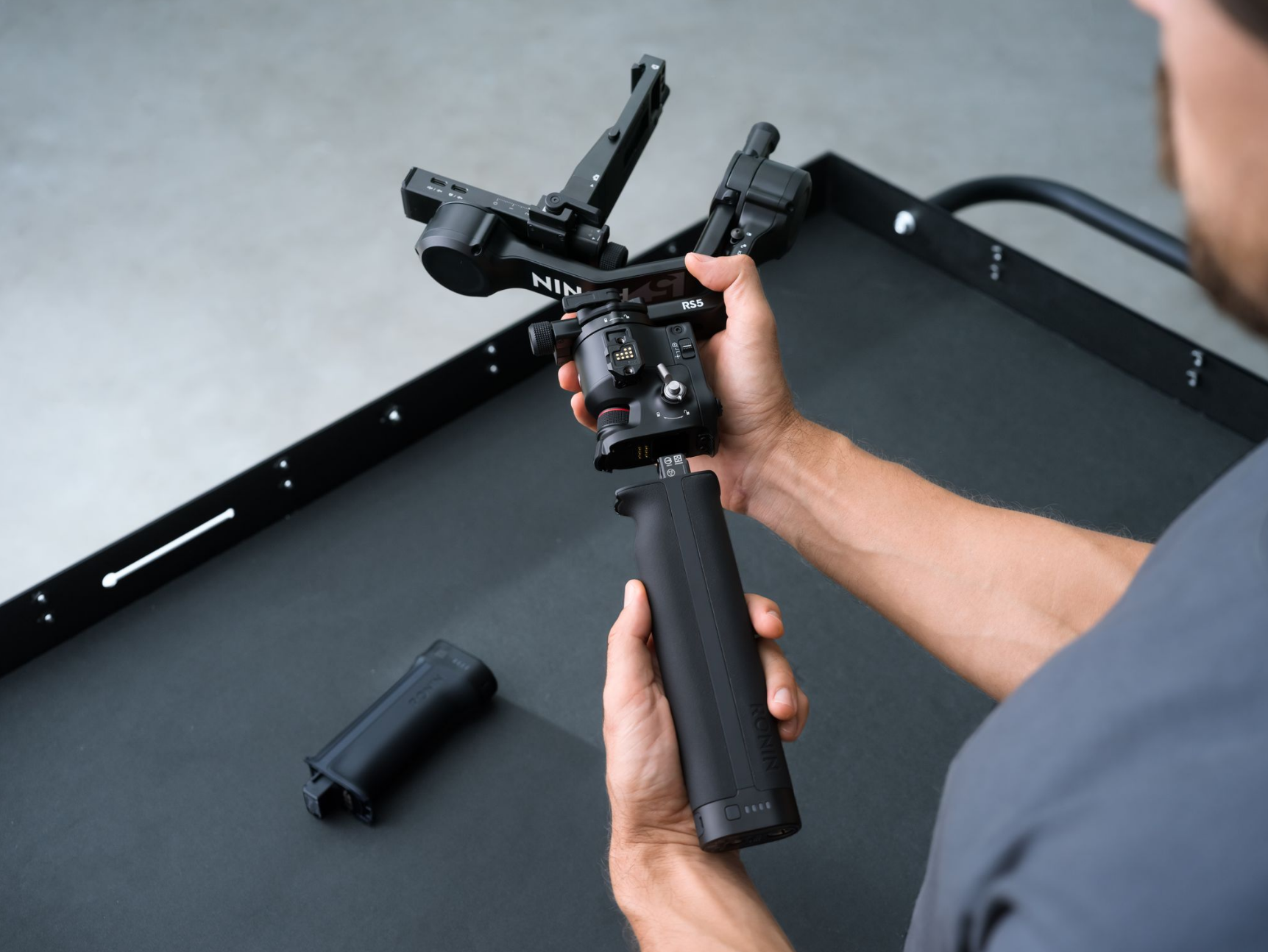

3rd-Gen Native Vertical Shooting
To switch to vertical shooting, simply loosen and press the single-side knob, remove the gimbal's horizontal plate, rotate it 90°, and then tighten it back in place [8]-all in just a few seconds.
Dual-Layered Quick-Release Plates
The Arca-Swiss upper plate and Manfrotto lower plate allow quick switching between gimbal and tripod without rebalancing, thanks to position memory. In addition, the upper plate adds an adjustable guide for secure camera mounting.
Support for DJI Focus Pro Motor
When paired with two Focus Pro Motors [5], RS 5 allows cinematographers to adjust the lens zoom via the joystick and precisely control the focus via the dial, facilitating smooth and effortless lens control.
Support for DJI SDR Transmission
Both independent cinematographers and small crews can utilize the DJI SDR Transmission [5] for high-definition live feeds, remote gimbal and camera control, Force Mobile, and more.

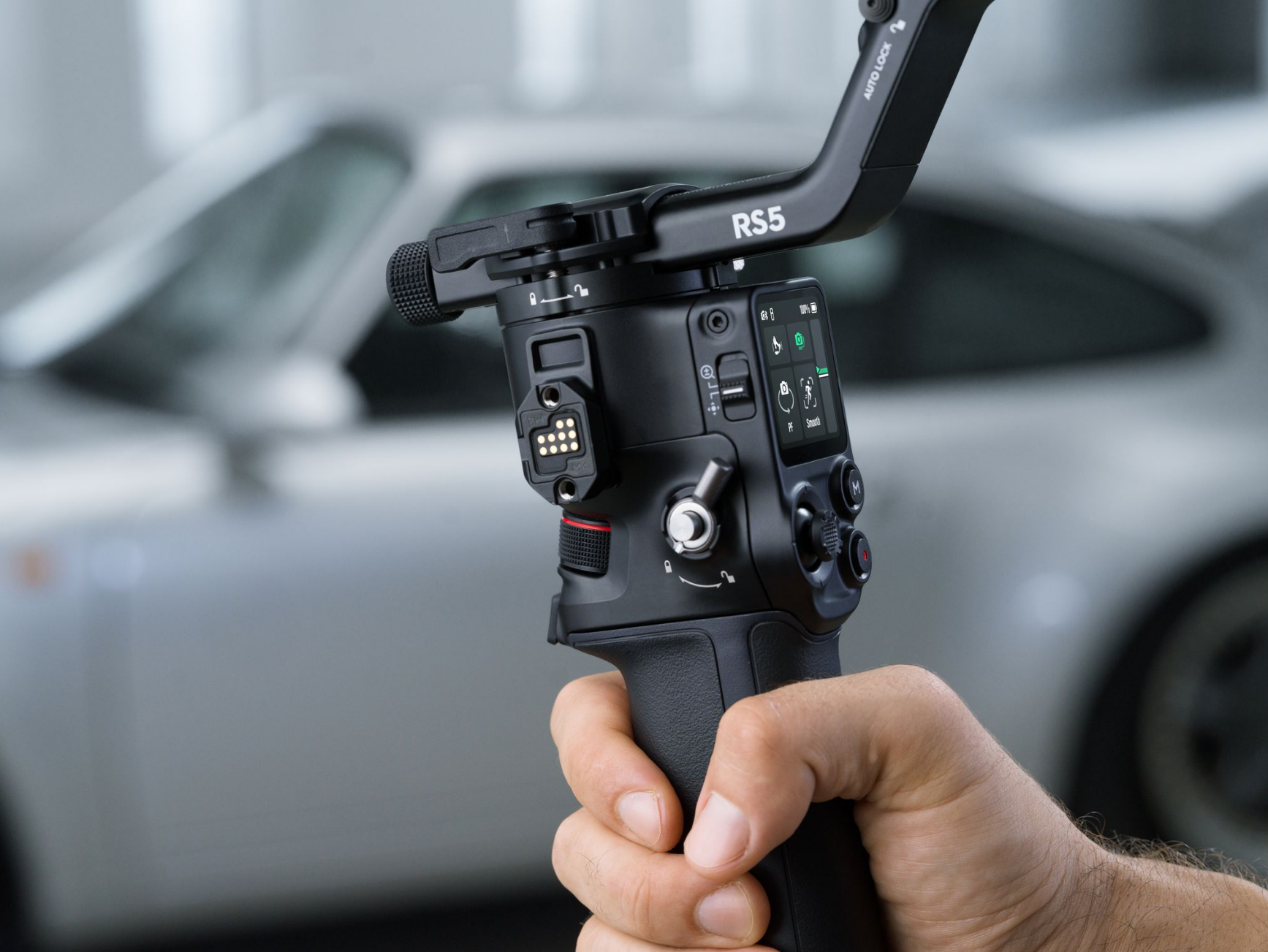

RSA Communication Port
The RSA port connects to the Electronic Briefcase Handle, RS Tethered Control Handle [5], and remote-control ring handles [5]. The open RS SDK also lets third-party developers create custom functions.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Stabilisers & Rigs
GoPro Floating Hand Grip AFHGM-003 Mount Compatible with GoPro
Insta360 Ace Pro 2/ Ace Pro Xplorer Grip Kit - Dark Grey
ZHIYUN CRANE 2S Handheld Gimbal Stabilizer
Insta360 Ace Pro 2/ Ace Pro Xplorer Grip Pro Kit
SmallRig Thumb Grip for FUJIFILM X100VI/X100V - Black
DJI Ronin RS 5 Combo
- Brand: DJI
- MPN: CP-RN-00000497
- Part #: CAADJI0502
Product URL: https://www.pbtech.co.nz/product/CAADJI0502/DJI-Ronin-RS-5-Combo
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
DJI RS 5 features touchscreen subject selection with the new tracking module [1], smooth balancing from fine-tuning knobs, and direct control via the new briefcase handle [2]-all backed by faster charging and extended battery life [3].
- Enhanced Intelligent Tracking and Composition [1]
- Briefcase Handle With Gimbal & Camera Control [2]
- 1-Hour Full Charge, 15% Extended Runtime [3]
- Fine-Tuning Knobs and Teflon™ Enhanced Balancing
- New Z-Axis Indicator
- 2nd-Gen Automated Axis Locks

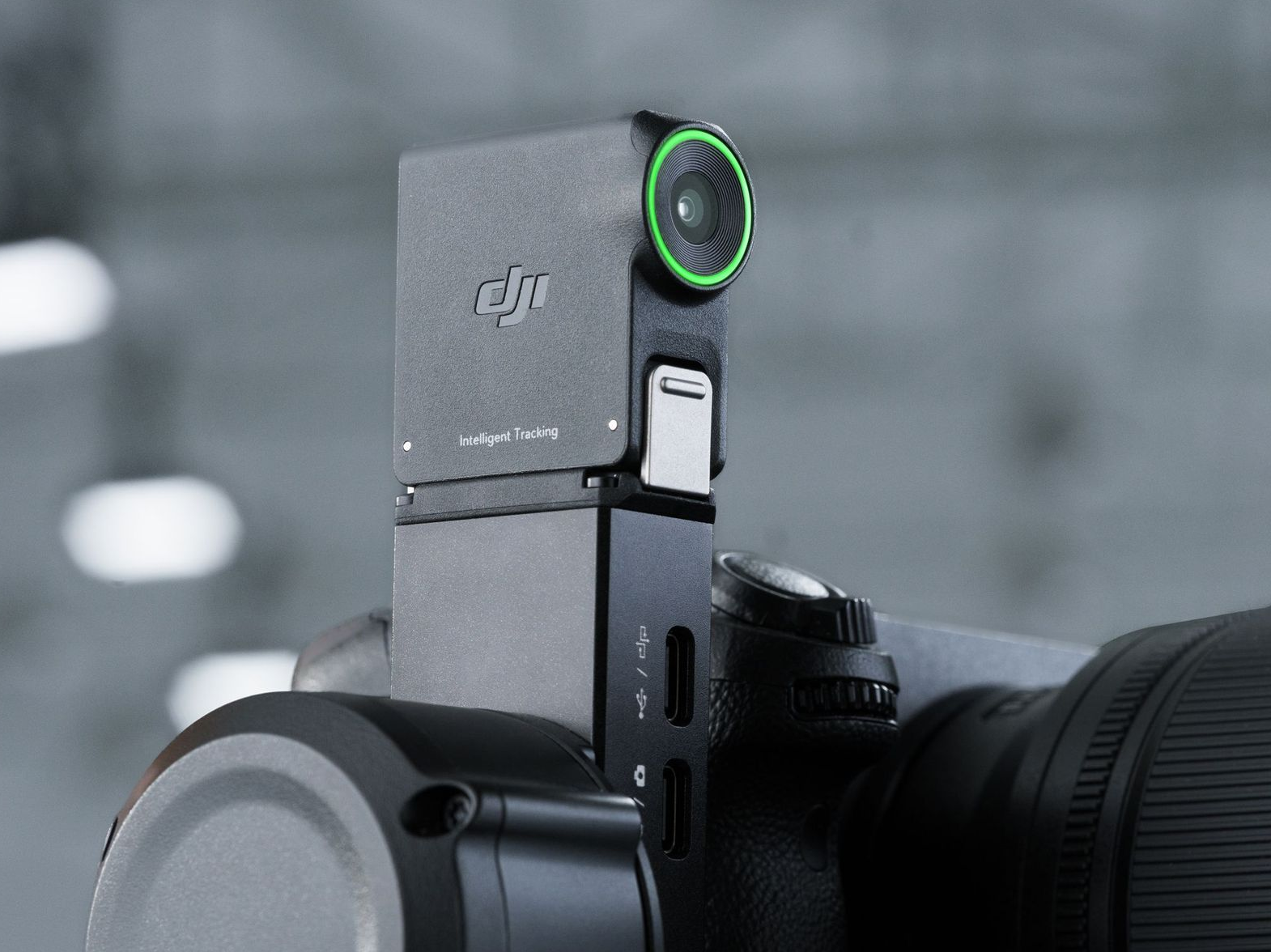

RS Enhanced Intelligent Tracking Module
The module [1] lets you frame and track any subject [1] from the gimbal's touchscreen, keeping it precisely positioned. And when tracking a person, it offers a range of up to 10 meters and can reacquire the subject if they temporarily leave the frame.
Next-Gen Algorithm, Enhanced Torque
Peak motor torque is up by 50% over the previous model, offering stability in fast-moving scenes. The 5th-Gen RS Stabilization Algorithm further enhances stabilization for walking, running, and vertical shooting, striking an ideal balance between stability and control.
Compact Body With up to 3kg Payload
The gimbal weighs just 1.46 kg with battery grip and quick-release plates, and switches to vertical shooting without extra accessories. With a robust 3 kg (6.6 lbs) payload capacity, it can carry mainstream mirrorless camera and lens combinations [4] with ease.
New Electronic Briefcase Handle [2]
The new Electronic Briefcase Handle [2] offers intuitive, effortless single‑handed operation, featuring a joystick and buttons that control the gimbal and camera for more creative angles.
Longer Runtime, Fully Charged in 1 Hour [3]
Fully charge DJI RS 5 in just one hour-a 60% increase in speed. The standard battery delivers approximately 14 hours of standby time, a 15% improvement [3].
DJI RS BG70 High-Capacity Battery Grip
The new BG70 High-Capacity Battery Grip [5] can extend RS 5's battery standby time to 30 hours [6].
New Bluetooth Shutter Support for Panasonic & Fujifilm
In addition to cameras from Sony, Canon, and Nikon, the RS 5's Bluetooth shutter now supports specific Panasonic and Fujifilm cameras [7], enabling wireless control of shutter, zoom, and Clear Image Zoom with no cables required.
Z-Axis Indicator
The new Z‑Axis Indicator gives you instant feedback to fine‑tune your footsteps for steadier, more professional shots.
Smooth & Precise Balancing

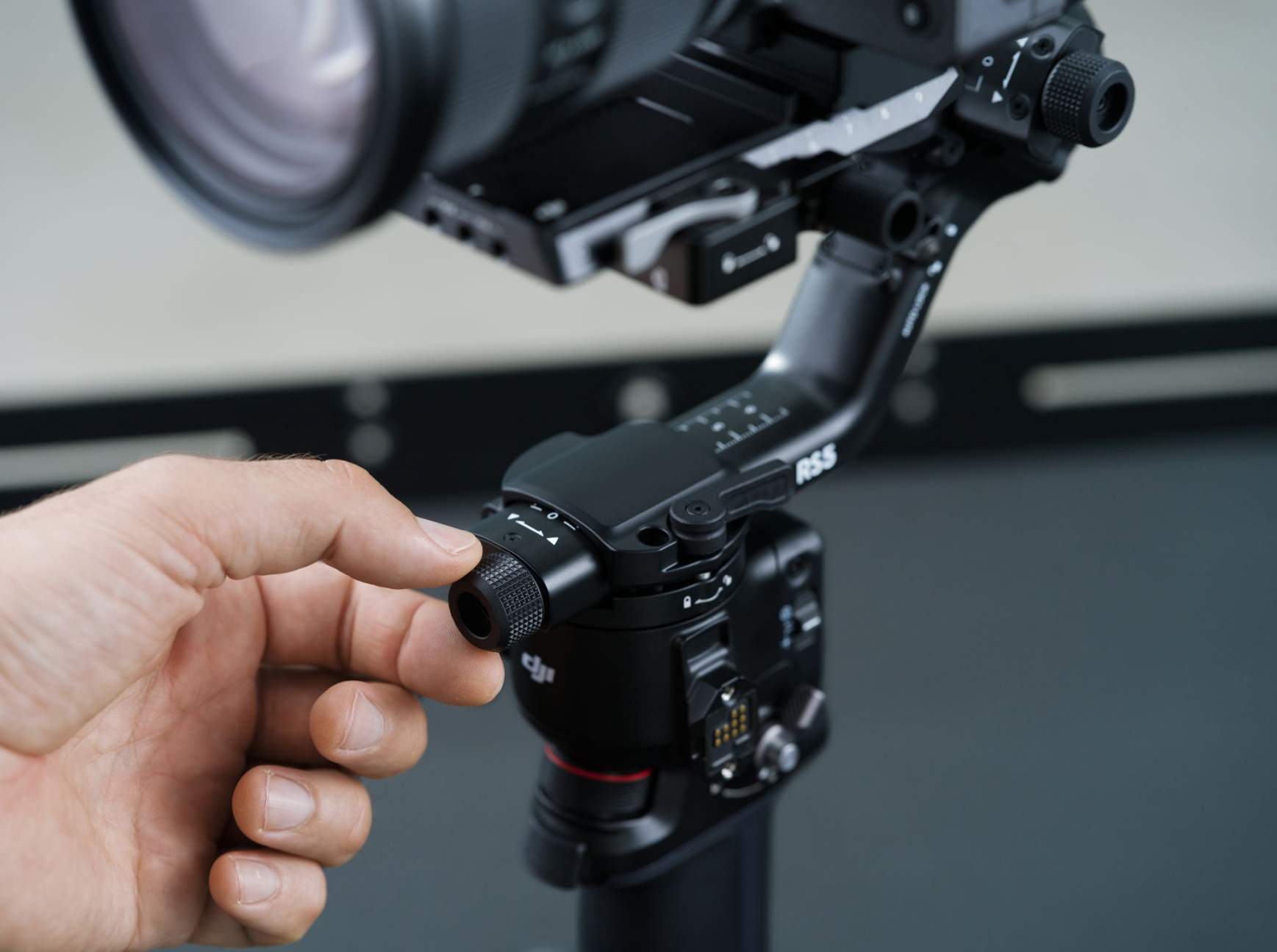

Fine-tuning knobs on each axis arm enable quick, precise balancing through a leadscrew mechanism. Combined with Teflon™ interlayers, RS 5 delivers smooth and precise balancing even with heavier professional setups.
2nd-Gen Automated Axis Locks
The 2nd-Gen Automated Axis Locks automatically lock the gimbal upon power-off or sleep for easier transitions and storage. They unlock just as quickly upon power-on, getting you ready to film in an instant for those critical moments.
3rd-Gen Native Vertical Shooting
To switch to vertical shooting, simply loosen and press the single-side knob, remove the gimbal's horizontal plate, rotate it 90°, and then tighten it back in place [8]-all in just a few seconds.

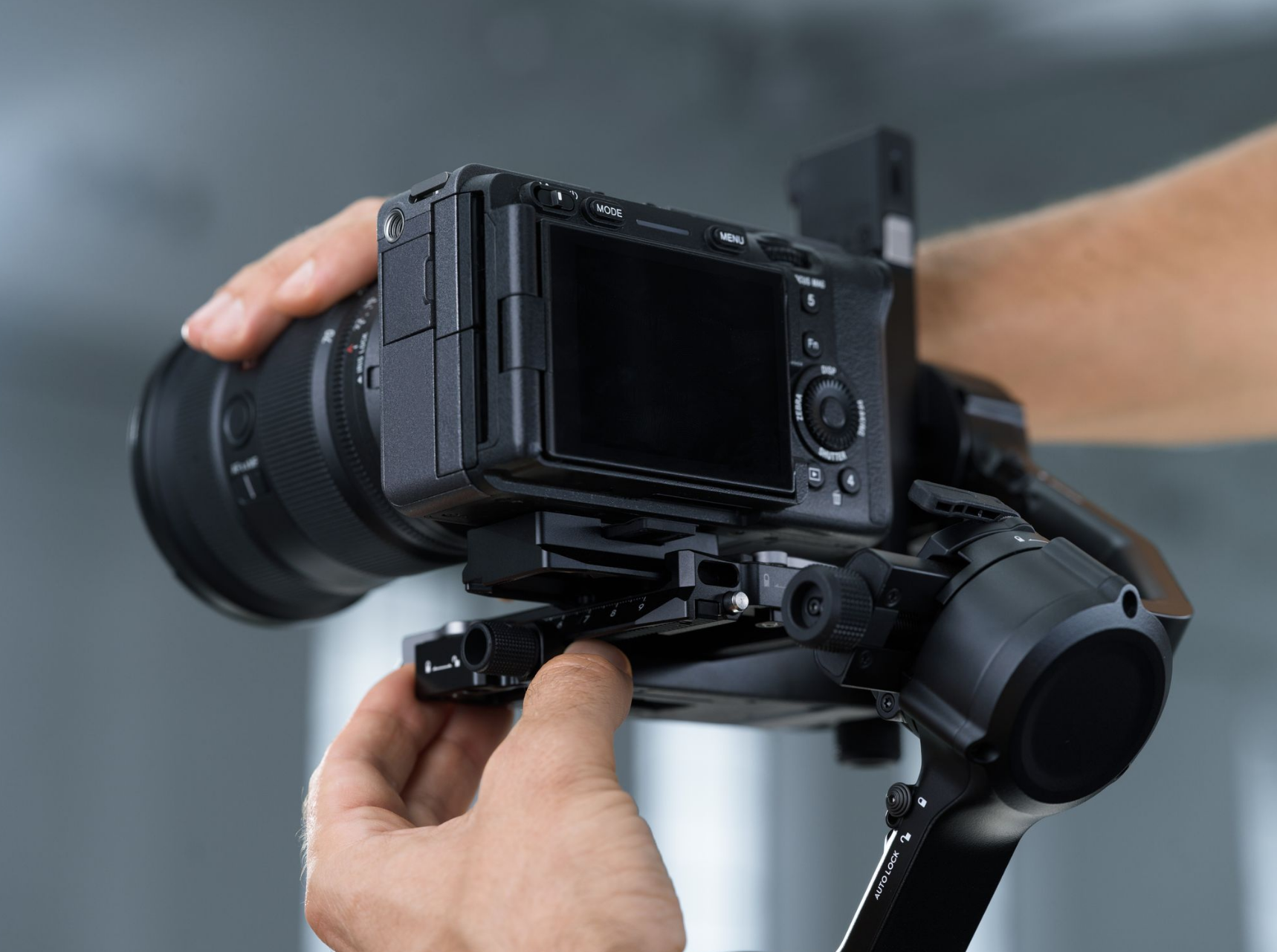

Dual-Layered Quick-Release Plates
The Arca-Swiss upper plate and Manfrotto lower plate allow quick switching between gimbal and tripod without rebalancing, thanks to position memory. In addition, the upper plate adds an adjustable guide for secure camera mounting.
Support for DJI Focus Pro Motor
When paired with two Focus Pro Motors [5], RS 5 allows cinematographers to adjust the lens zoom via the joystick and precisely control the focus via the dial, facilitating smooth and effortless lens control.

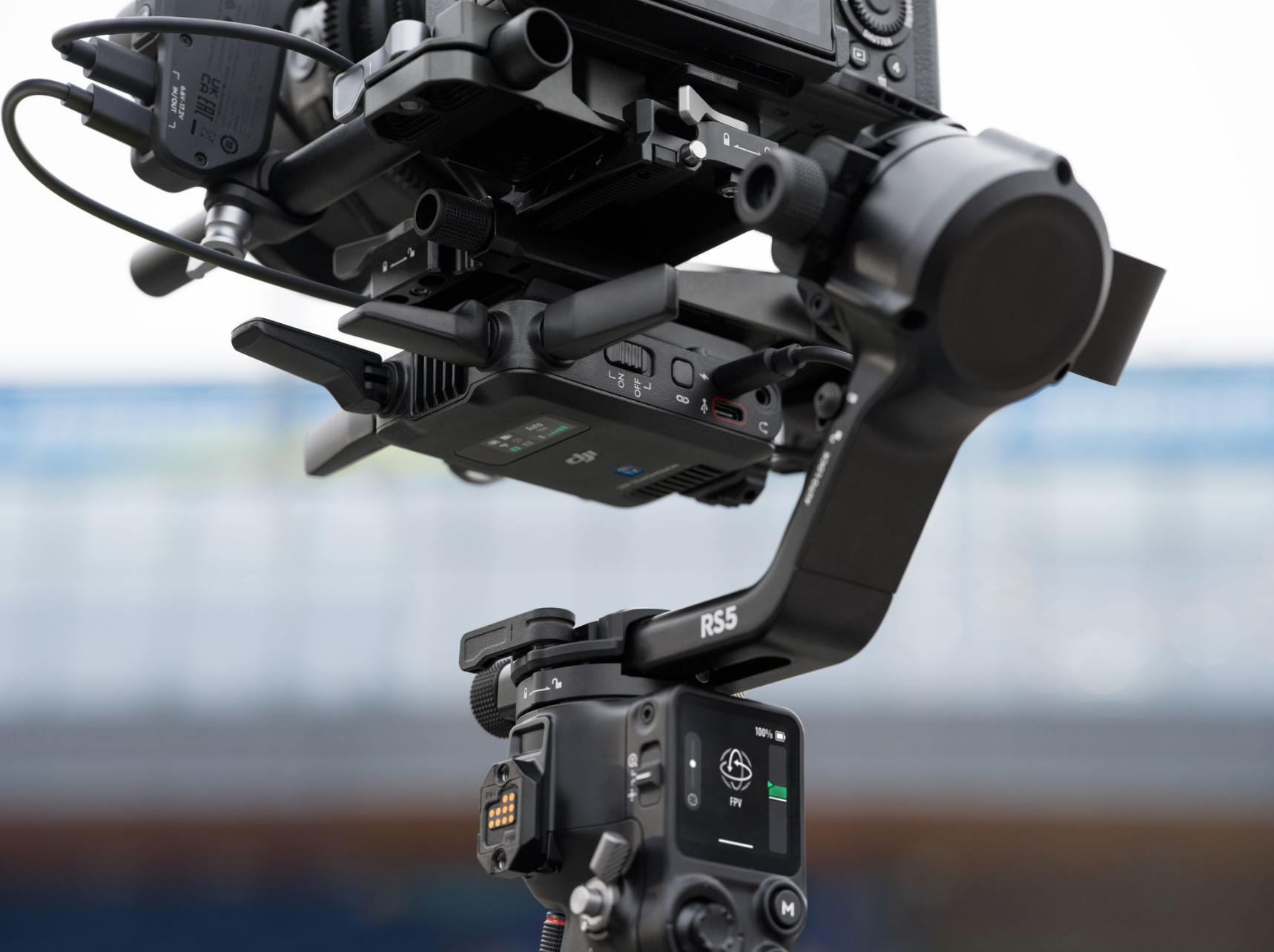

Support for DJI SDR Transmission
Both independent cinematographers and small crews can utilize the DJI SDR Transmission [5] for high-definition live feeds, remote gimbal and camera control, Force Mobile, and more.
RSA Communication Port
The RSA port connects to the Electronic Briefcase Handle, RS Tethered Control Handle [5], and remote-control ring handles [5]. The open RS SDK also lets third-party developers create custom functions.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Peripheral
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Camera Control Port (USB-C)
Multifunctional Port (USB-C)
Battery
Model: BHX715-2150-15.48
Type: LiPo 4S
Capacity: 2150 mAh
Energy: 33.29 Wh
Voltage: 11.2 V to 17.8 V
USB Input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A
Max Standby Time: Approx. 14 hours*
Charging Time: Approx. 1 hour**
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.0
USB-C Charging Port
Ronin App Requirements
iOS 14.0 or above
Android 9.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
3.0 kg (6.6 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°
Axis Lock
Auto
Vertical Shooting
Supported
Mechanical & Electrical Properties
Operating Frequency
2.4000-2.4835 GHz
Bluetooth Transmitter Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1193 g (2.63 lbs) (including the Upper and Lower Quick-Release Plates and screws)
Grip: Approx. 274 g (0.6 lbs)
Quick-Open Tripod: Approx. 149 g (0.3 lbs)
Upper and Lower Quick-Release Plates: Approx. 93 g (0.21 lbs) (including screws)
Dimensions
Folded: 247.4×115.7×258.7 mm (L×W×H, excluding camera, grip, and Quick-Open Tripod)
Unfolded: 223.2×192.2×418.8 mm (L×W×H, including grip, excluding camera and Quick-Open Tripod)
Accessories
DJI RS Enhanced Intelligent Tracking Module
Weight: Approx. 19 g (0.04 lbs)
Dimensions: 35.9×17.5×38.5 mm (L×W×H)
Tracking Distance: 0.5-10 m
Operating Environment: Illuminance > 20 lux
Trigger Modes: Gimbal trigger, gesture, gimbal touchscreen
Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment
Power Consumption: Approx. 1 W
Operating Temperature: -10° to 45° C (14° to 113° F)
Mounting Method: Magnetic attachment
Electronic Briefcase Handle
Weight: Approx. 149 g (0.33 lbs)
Dimensions: 60×197.5×79.5 mm (L×W×H)
Standby Power Consumption: Approx. 0.2 W
Operating Temperature: -20° to 45° C (-4° to 113° F)
