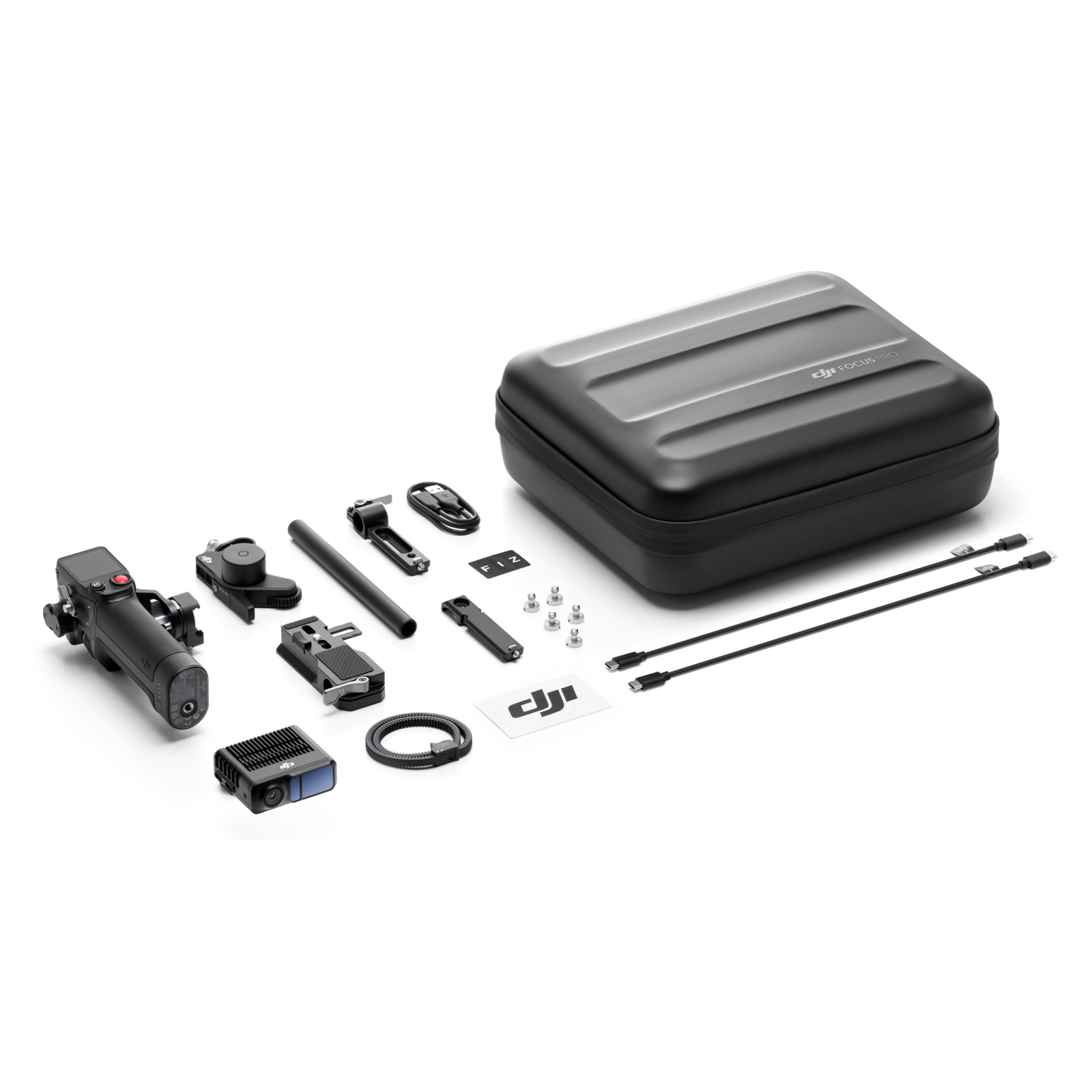

DJI Focus Pro Creator Combo

Feel the Focus AMF Lens Control System

DJI Focus Pro, DJI's first independent Automated Manual Focus (AMF) lens control system, provides cinematographers with a robust and comprehensive focus solution, ushering in a new era of human-machine collaborative focus control.

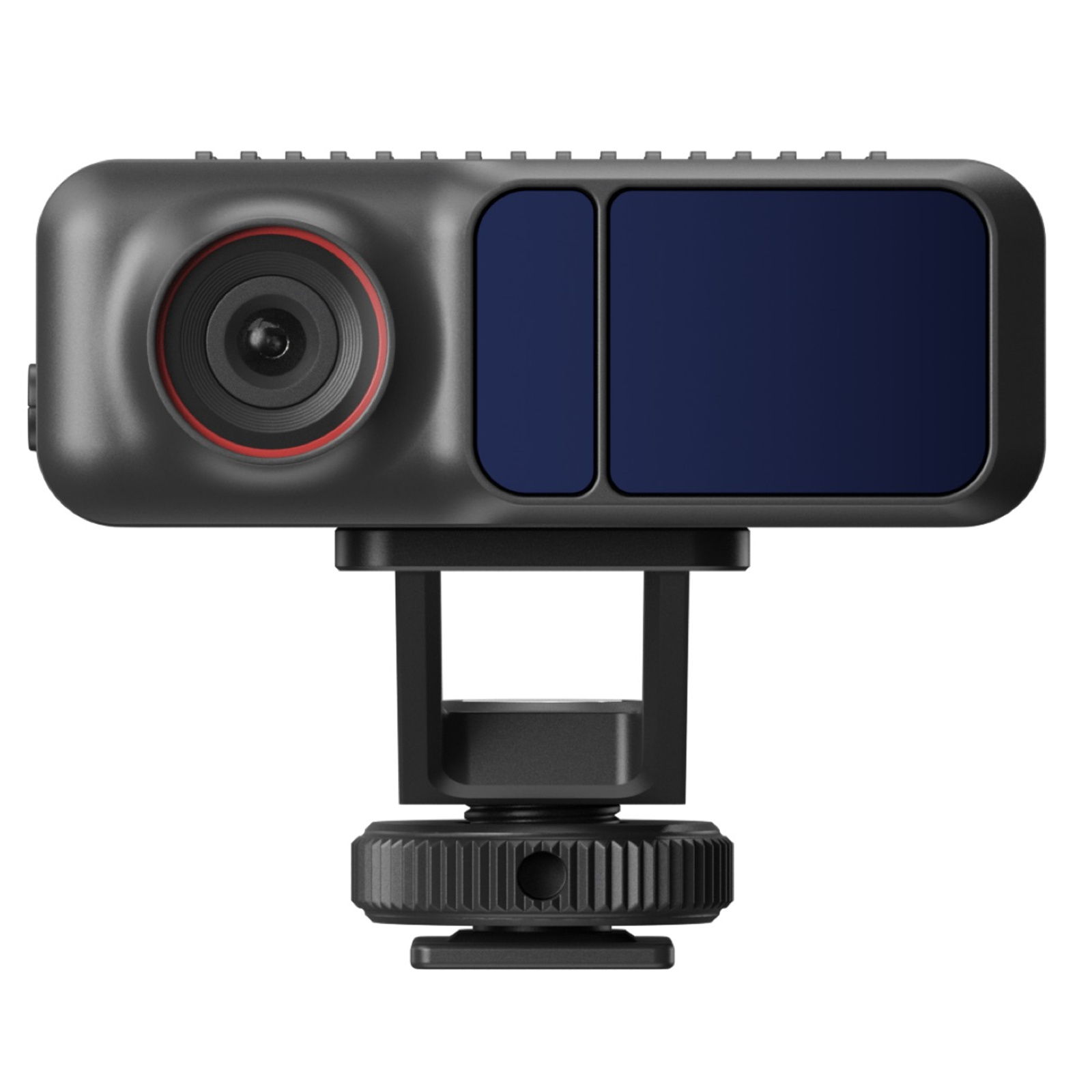

LiDAR Focusing, Now Accessible to All

For the first time, DJI introduces a LiDAR focus system as an independent product, allowing an extensive user base to experience the freedom of creative focusing possibilities.

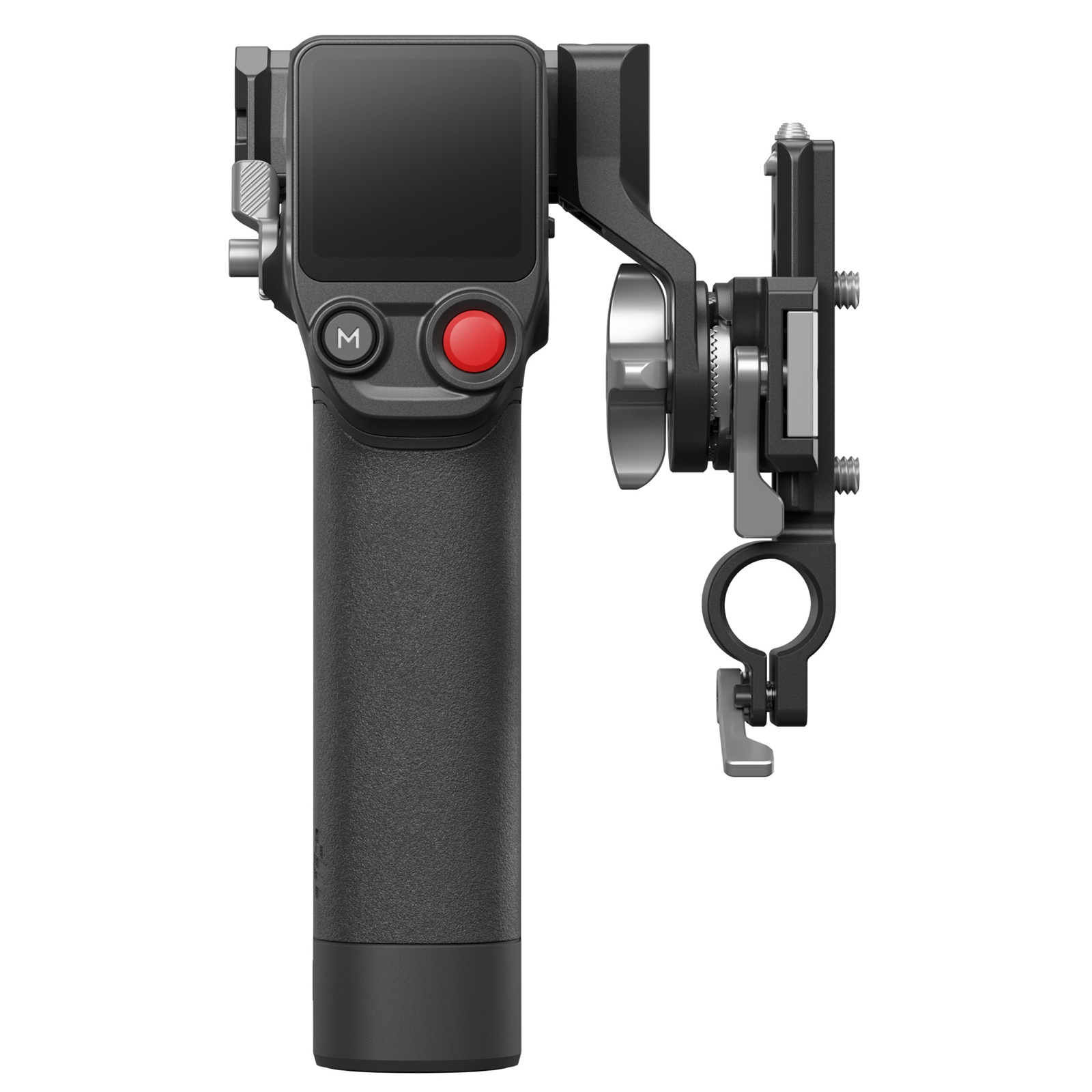

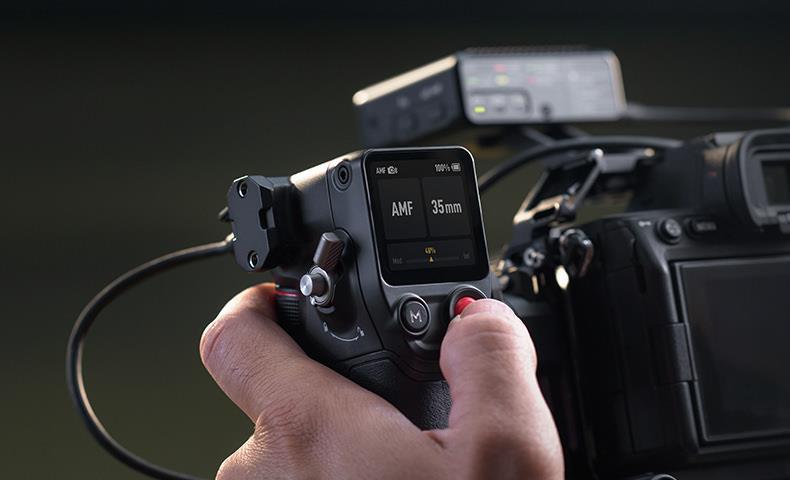

All-New Grip, All-Around Capability

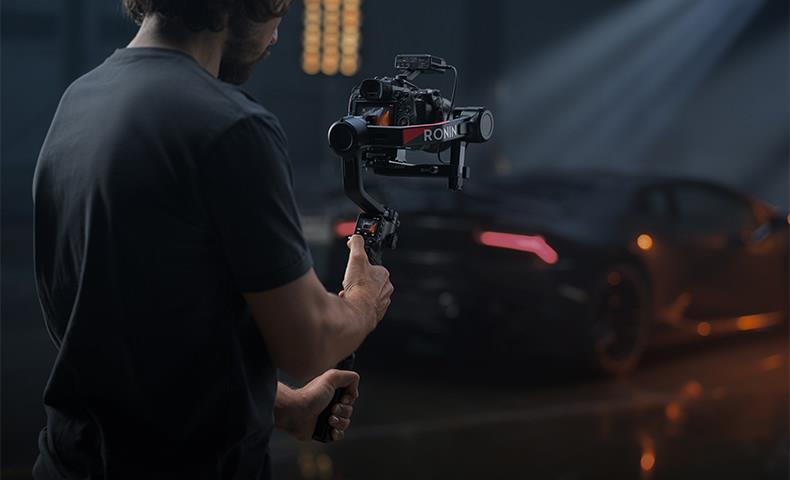

The newly designed DJI Focus Pro Grip features a 2.5-hour system power supply, intuitive screen operations, auto-calibration and data storage for 15 lenses, Bluetooth start/stop recording, and handheld shooting capabilities, offering an exceptional LiDAR focusing experience, even without a Ronin stabiliser.

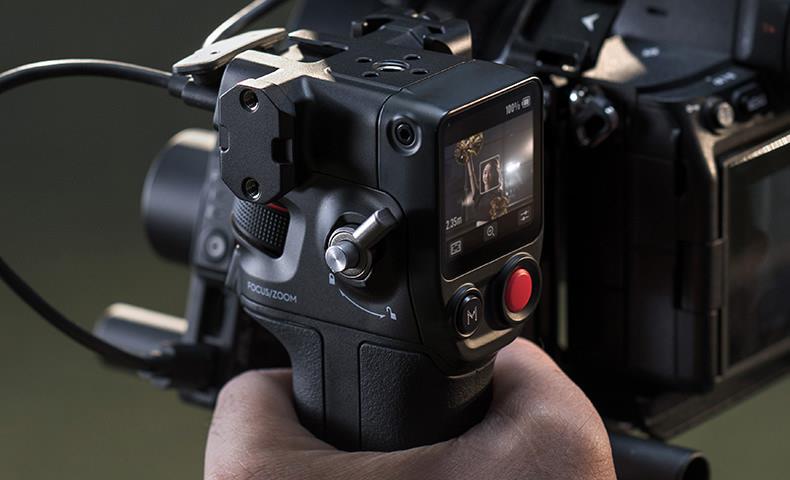

Touchscreen Parameter Adjustments, LiDAR View Synchronisation

The Grip, equipped with a full-colour touchscreen, supports the adjustment of LiDAR and motor parameters and can present a real-time view from the LiDAR's perspective, granting operators complete awareness during use.

Auto Calibration, Efficient and Convenient

The DJI Ronin app features built-in lens data that can be imported into the Focus Pro Motor via Bluetooth connection to the Grip. A single Motor can store data for up to 15 lenses.

Bluetooth Connectivity, Wireless Control

The Grip can directly connect to mirrorless cameras via Bluetooth for wireless start/stop recording. It can also pair with the DJI Ronin app over Bluetooth to complete the calibration of manual lenses. [1]

2.5-Hour Operating Time, Use While Charging

The Grip supports a 2.5-hour power supply for both the LiDAR and focus motor. It also allows for continuous use while charging through third-party PD fast-charging batteries.

Advanced Autofocus, A Leap Ahead

?Further and Wider Focusing

LiDAR human-subject focus distance is now extended to 20 metres, [2] approximately three times that of the previous generation, [3] effortlessly ? handling shooting with telephoto lenses.
?A super-wide focus FOV of 70° easily accommodates edge compositions and close-up shots, significantly enhancing creative freedom.

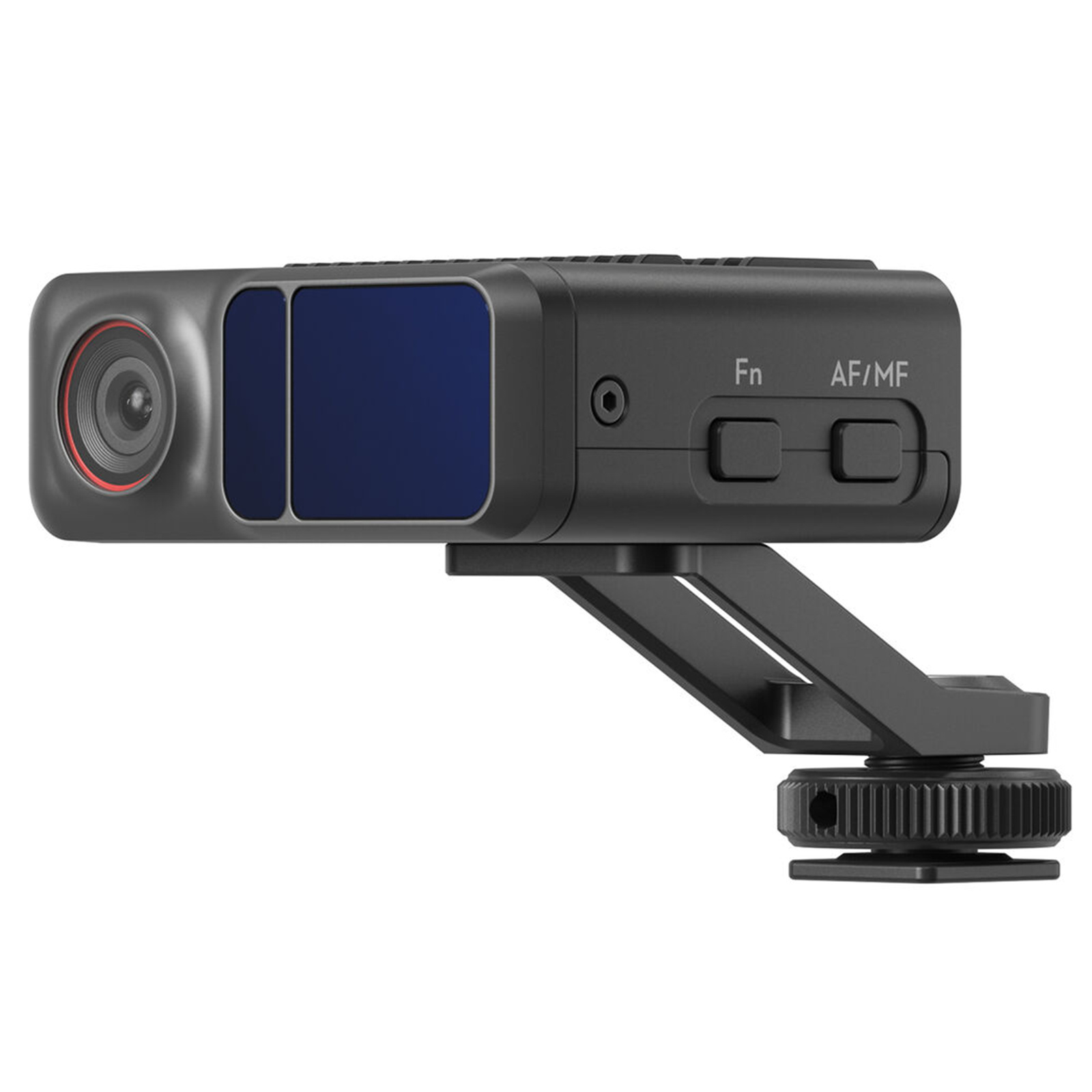

More Accurate and Stable Focusing

The upgraded LiDAR now boasts 76,800 ranging points, a leap of 77% over the previous generation, [3] sharpening human-subject edge detection while effectively reducing focus hunting. In addition, with a LiDAR refresh rate of 30 Hz, focus reliably locks on even when the subject is moving quickly.

More Intelligent Focusing

AF Subject Recognition and Tracking

With the assistance of new AI algorithms, more reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.

AF Subject Switching

In multiple-subject scenarios, focus can be quickly transitioned among various subjects.

Adjustable AF Focus Speed

The autofocus speed is adjustable across five levels. Lower levels produce a softer focus effect, while higher levels enable quicker, more sensitive focusing.

Selectable ?AF Focus Area

Two focus area modes, Wide and Flex Spot, are available. In Wide mode, the LiDAR can automatically detect and focus on human subjects and vehicles. In Flex Spot mode, users have the freedom to manually select any object to focus on.

Flexible Combinations for Diverse Scenarios

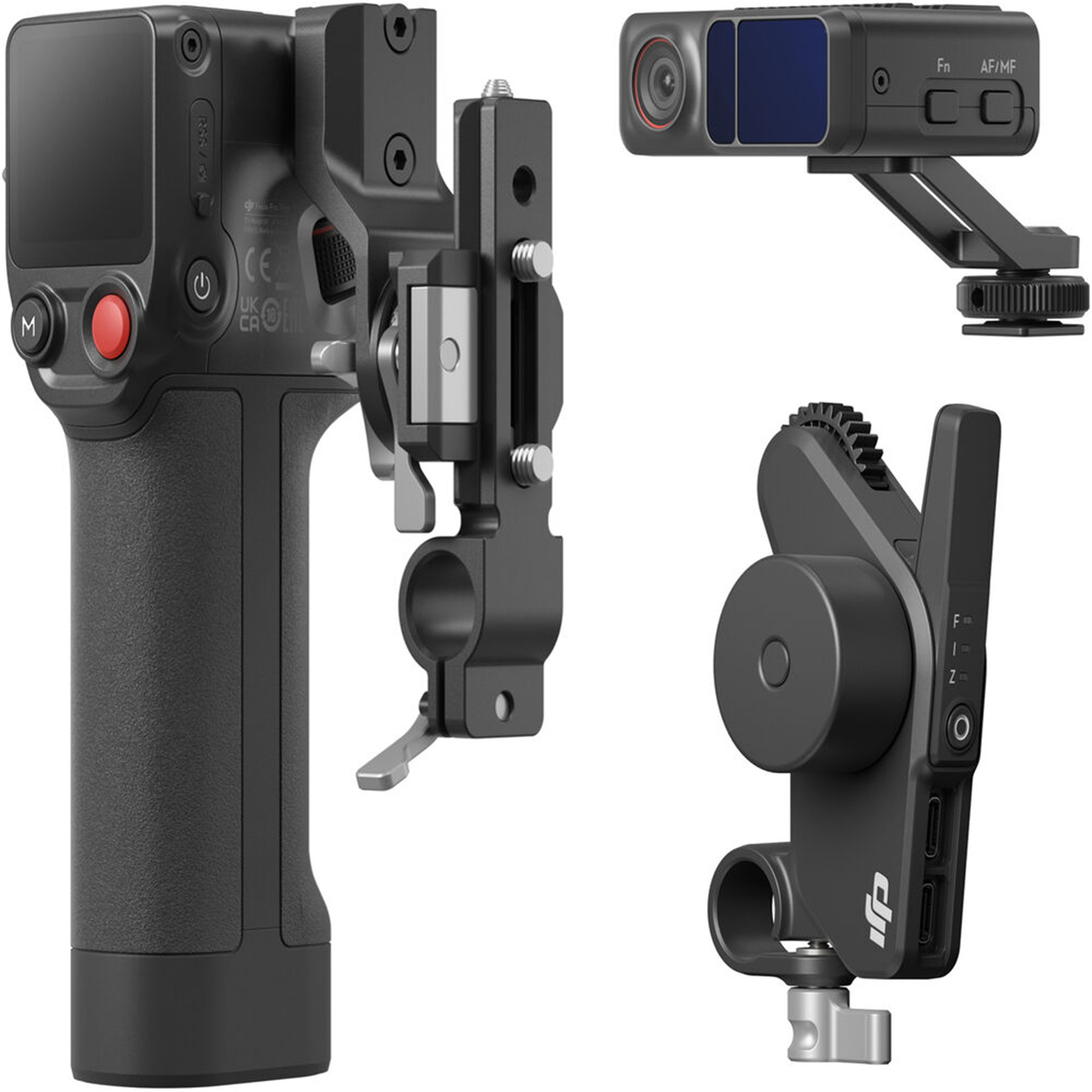

Focus Pro consists of four major modules: LiDAR, Motor, Grip, and Hand Unit. Cinematographers can flexibly combine these modules based on different shooting demands.

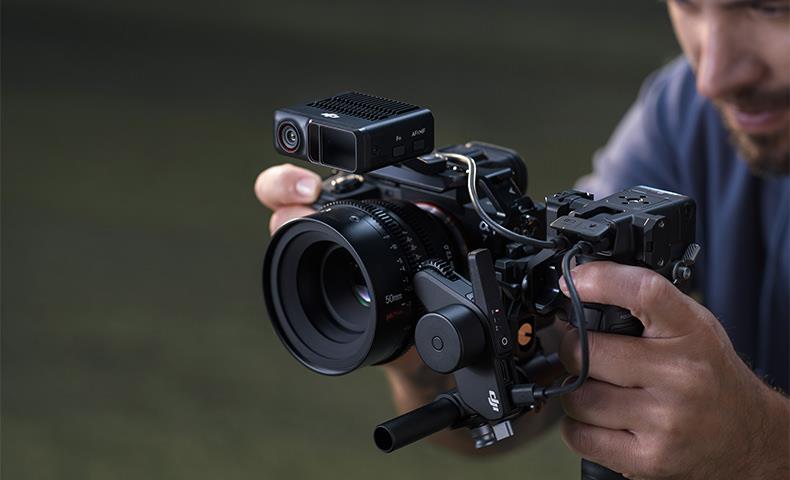

Solo cinematographers can utilise LiDAR autofocus to significantly improve shooting efficiency, ensuring standout creative results. Collaborative teams can bring depth to their visual storytelling through precise focus control with the Hand Unit. Focus Pro boasts robust capabilities, accommodating a diverse array of shooting scenarios and genres.

AMF, Human-Machine Collaboration

With the groundbreaking AMF mode applied for the first time in both the Hand Unit and the Grip, DJI Focus Pro sets a new standard for human-machine collaboration in focus control, catering to a diverse range of creative demands.

Focus You Can Feel

In AMF mode, as the autofocus operates, the front dial on the Grip (or the focus knob on the Hand Unit) rotates simultaneously. This allows cinematographers to both visually observe the focus status on the monitor and to intuitively perceive the autofocus logic through tactile feedback from their fingertips, enabling prompt decisions on when to manually intervene.

Millisecond-Level Switching between Manual and Auto

Focus control is always at your fingertips. In AMF mode, manual focus control can be engaged and disengaged in milliseconds. This not only captures the operator's intent with enhanced precision, ensuring coherent visual storytelling, but also significantly boosts on-set efficiency by reducing disruptions due to focus mode changes.

Dynamic Focus, Best of Both Worlds

The innovative AMF feature enables limitless creative possibilities. In AMF mode, the LiDAR, together with human intervention, yields a focus experience that's as elegant and dynamic as it is efficient and convenient. It is a seamless hybrid experience that combines the power and reliability of technology with the intuition and creativity of human operators.

Rotate the dial to achieve AMF focus transition, ideal for narrative scenes.
Press and hold the dial steady to achieve AMF focus lock, ideal for scenes with foreground obstructions.

Focus Assistance with a Bird's-Eye View

Empowered by the DJI Focus Pro LiDAR, cinematographers can gain a more intuitive understanding of a subject's spatial position and utilise the LiDAR Waveform focus assistance [4] through the DJI High-Bright Remote Monitor, achieving a bird's-eye view of the entire scene.

In addition, LiDAR Waveform offers supplementary information like subject position, a real-time focal plane reference line, and distance scale, which help evaluate the autofocus status and anticipate the optimum moment for manual intervention.

FIZ Lens Control, Master the Scene

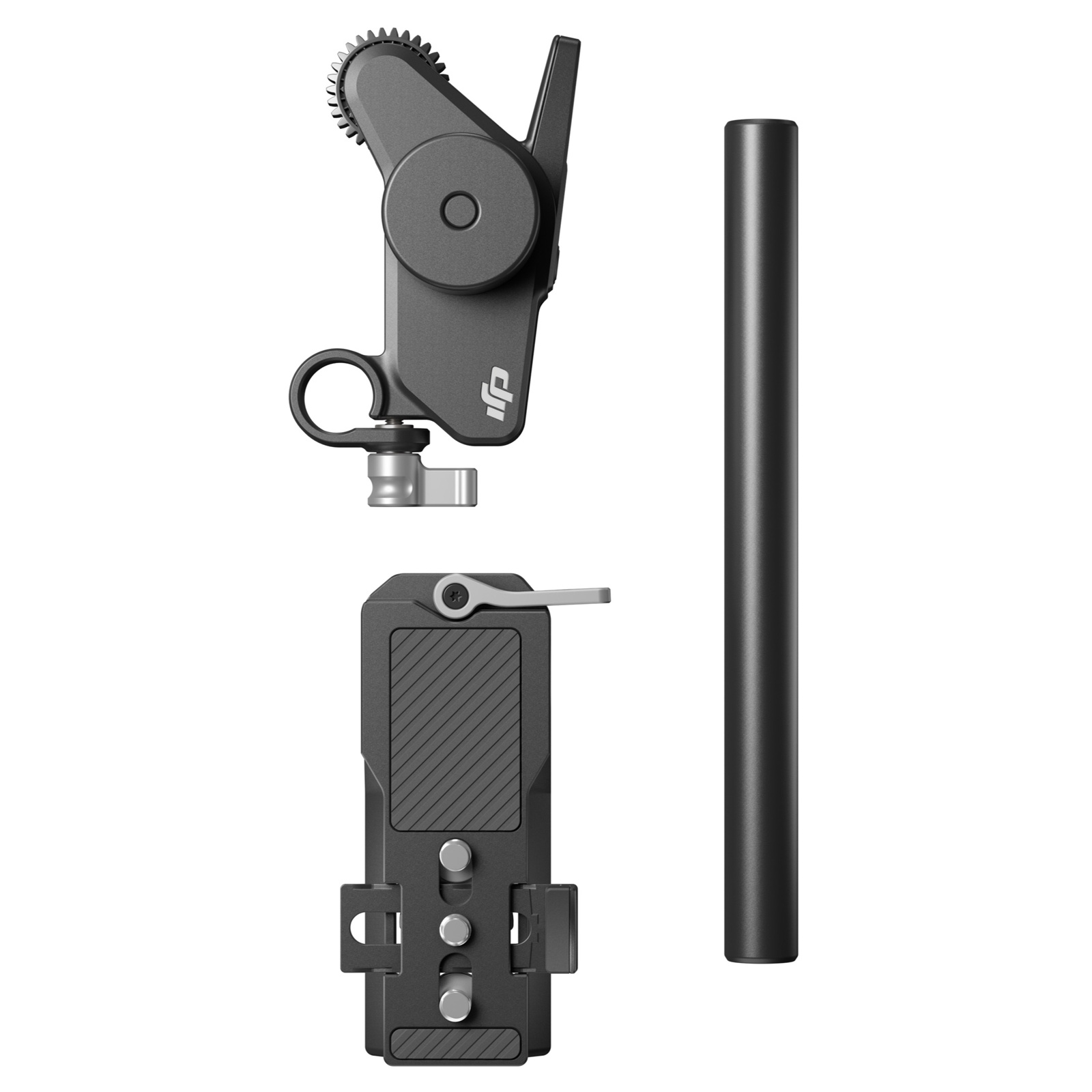

FIZ Motor

Motor performance has significantly improved, offering more precise control for professionals and more versatile cinematic language opportunities.

One-Button Linking

It supports one-button linking with the Hand Unit, eliminating the manual linking process for quicker startup and use.

10ms Low Latency

The motor speed is approximately 30% faster than the previous generation, [6] with a response latency of just 10 milliseconds.

Three-Level Adjustable Torque

Motor torque can be adjusted to match the focus gear ring tightness of different lenses, ensuring a smoother operation.

Adjustable Rotation Direction

Motor rotation direction can be adjusted flexibly according to different mounting positions.

Compatible With 15mm Rods

More versatile in size for more convenient mounting.

Magnetic Damping Grip

One operator can embody an entire team. Cinematographers can smoothly switch between focus and zoom control for an intuitive and effective control experience.

Focus Control

Focus can be easily adjusted by operating the front dial of the Grip. Dial speed can be set from 1 to 100 to tailor the rotational range as needed.

Zoom Control

The front dial can be switched to zoom control, facilitating rapid manipulation of the lens's focal length to achieve more dynamic lens operation.

Magnetic Damping Tactile Feedback

In Focus mode, the damping coefficient is adjustable. In Zoom mode, the dial shifts from a damping feel to a spring-back feel.

Notes:

1.For more compatibility information, click Camera & Lens Compatibility in the navigation bar of this page.
2.Requires enabling the 2x zoom display function on the DJI Focus Pro Grip screen.
3.Compared with the DJI LiDAR Range Finder (RS). Data was measured in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
4.Requires the DJI Focus Pro LiDAR to DJI Transmission Cable Hub, as well as DJI Transmission (High-Bright Monitor Combo).
5.Measured with FCC compliance in an open, unobstructed environment without interference. This data is for reference only. Actual transmission distance may vary depending on the environment.
6.Compared with the DJI RS Focus Motor (2022). The motor speed may vary depending on the lens damping. Please refer to the actual experience. Data was measured in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
7.Setting up the shooting solution requires one or more accessories that are sold separately.
8.The LiDAR Waveform focus assistance feature is only available in single-motor scenarios.
