Insta360 Electric Suction Cup Mount

Insta360 Electric Suction Cup Mount

- Strong suction mount for epic car shots. One touch locks it instantly, and the automatic sensor maintains strong and steady suction.
- Built to stay secure on bumpy roads, proven to handle 800G impacts.
- Lasts up to 120 hours on a single charge.
- Handles extreme environments, high altitudes and freezing cold temps down to 5ºF (-15ºC).
- Compatible with NATO rails and the Insta360 Dual/Triple Suction Cup Car Mount to unlock more cinematic angles.
- Flexible double ball head to nail any shooting angle.

Drive with confidence.

Electronic pump automatically removes air with a built-in sensor for strong, steady suction. Rigorously tested to handle bumpy off-road drives and winding mountain adventures.

Under lab conditions, the suction cup can achieve a maximum holding force of 50kg when attached vertically to a flat surface, and maintain a minimum holding force of 30kg during continuous use.

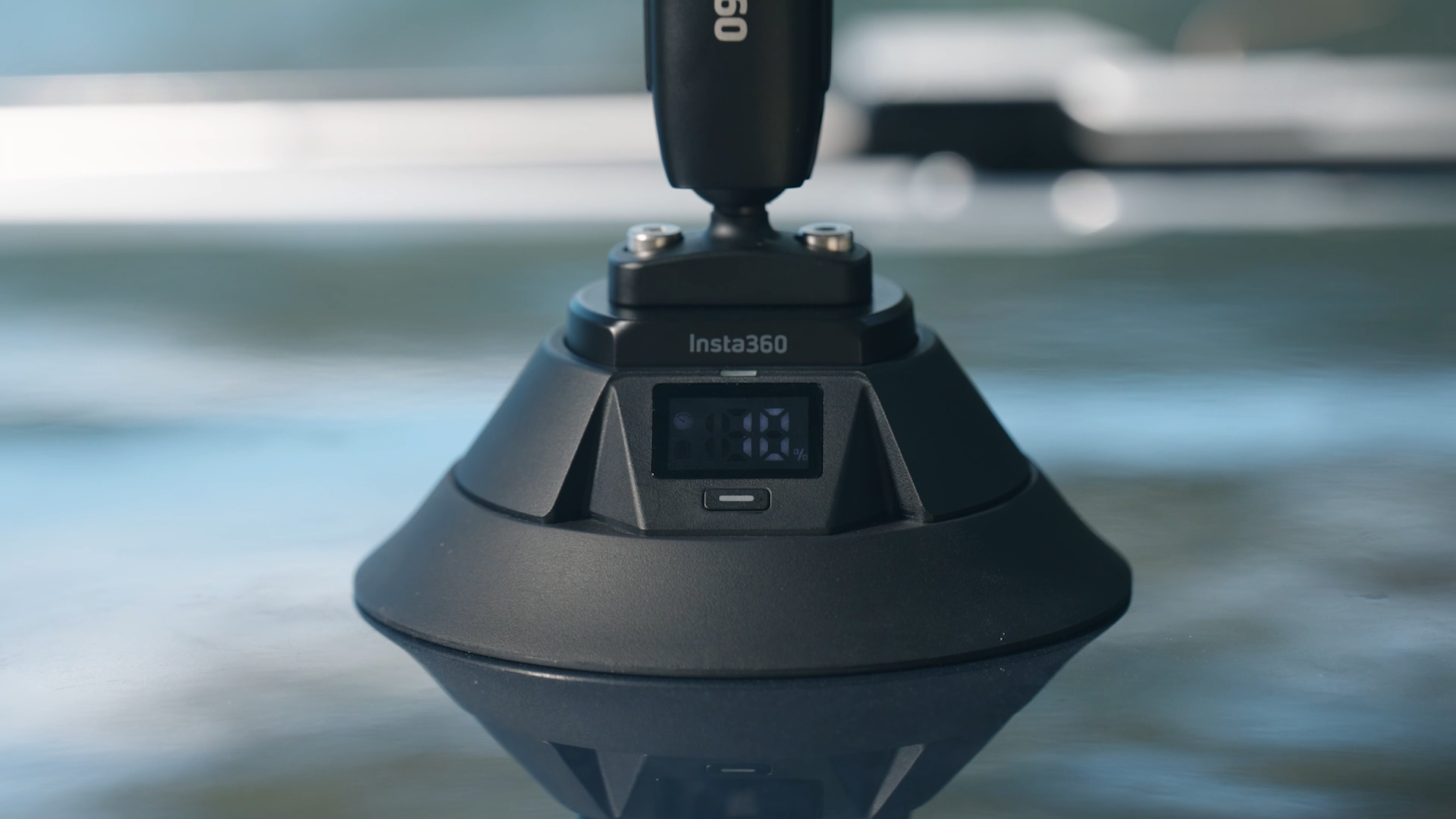

One-touch suction.

Press once and the mount locks instantly. The sensor keeps checking suction strength so your camera stays safe while you keep your eyes on the road.

Stick once, shoot all day.

Long-lasting battery offers up to 120 hours* of power with up to 5 days of suction on a full charge-ideal for road trips.

*Run time based on the mount refreshing its suction once every hour. Actual run time may vary depending on the smoothness of the surface and intensity of vibrations.

Shoot from any angle.

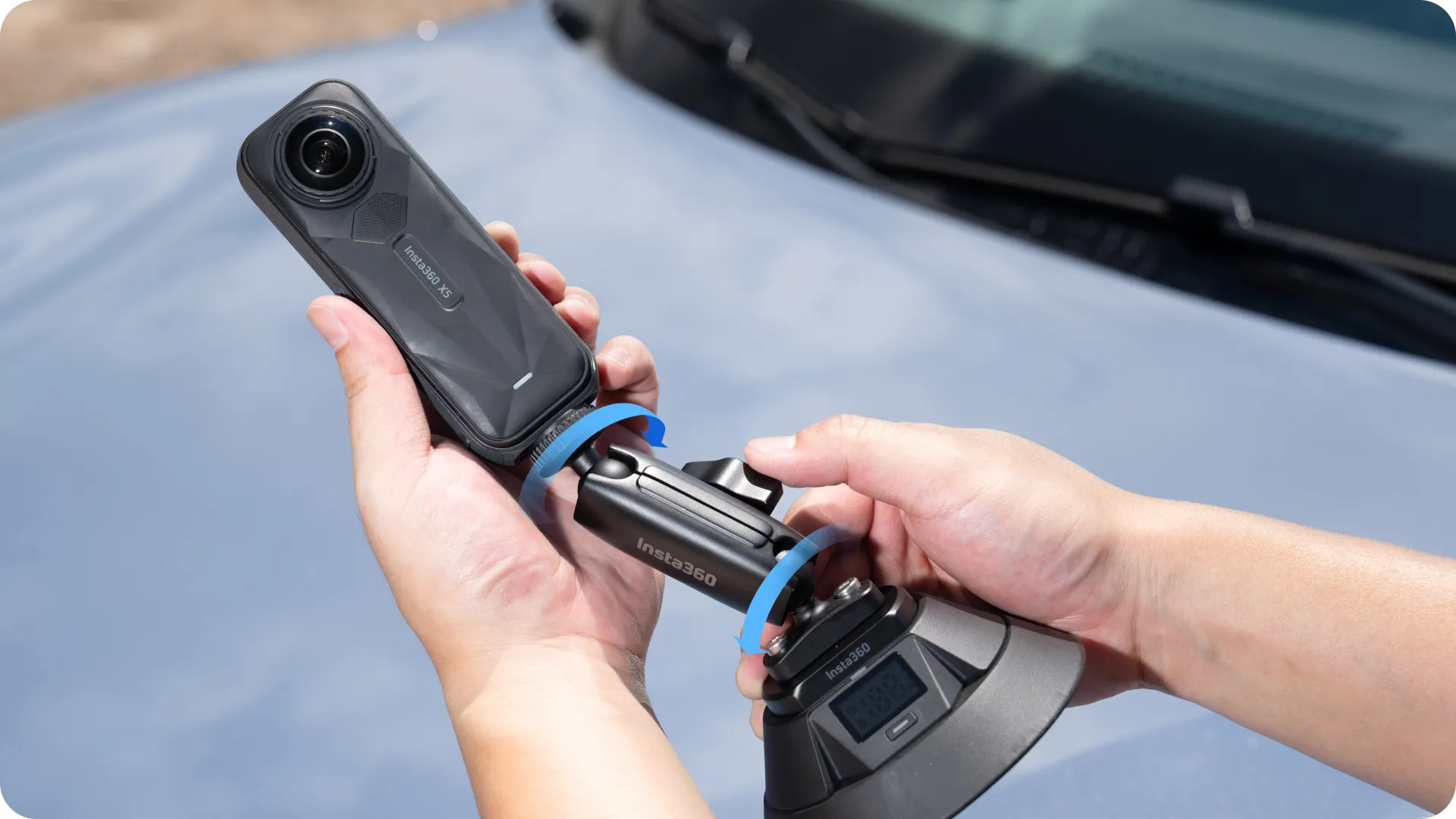

Double ball head rotates a full 360 degrees to nail any angle from your roof, hood or trunk. Compatible with Insta360 Ace, X and GO Series cameras.

More shots, more fun.

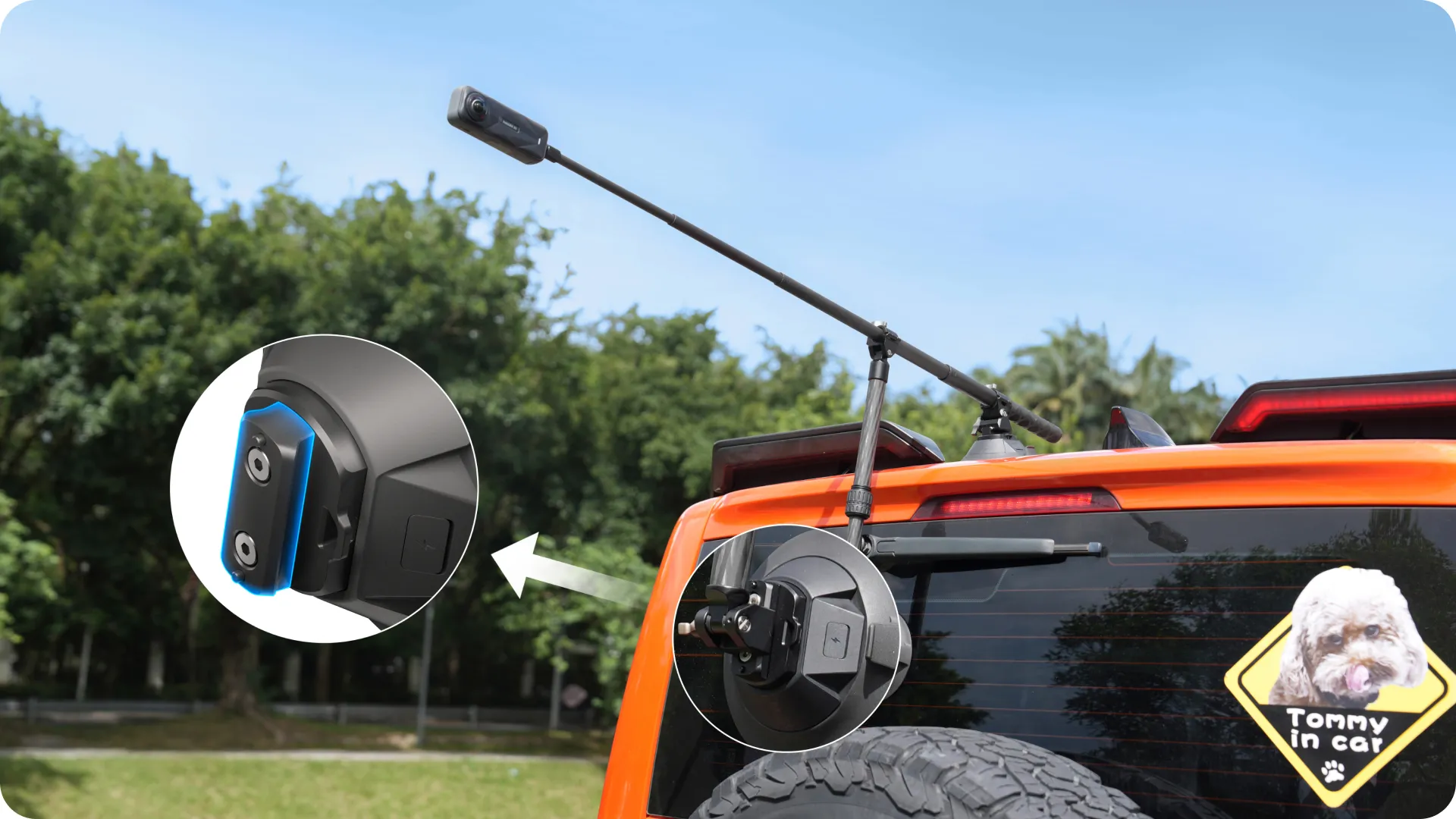

Compatible with NATO rails and the Insta360 Dual/Triple Suction Cup Car Mount* to unlock more cinematic angles.

*sold separately

Double security.

Safety rope hole lets you attach a cord, so even on steep hills or at high speeds, your camera stays put.

*Safety rope sold separately.

How to Use

1. When powered off, press the button once to check the current battery level on the screen.
2. When powered off, press and hold the button for 2 seconds to power on the Electric Suction Cup Mount. It will automatically begin removing air to create suction.
Press the mount firmly against the surface until the suction percentage begins to increase on the screen.
If the battery is below 10%, the mount will beep every 5 seconds to remind you to charge it.
While suction is in progress, the indicator light flashes green, and the screen shows the current suction level. If no suction is detected within 10 seconds, the mount will automatically power off.
When suction is complete, the indicator light turns solid green. You can gently shake the mount to confirm it's securely attached.
The Electric Suction Cup Mount has a built-in pressure sensor that continuously monitors suction. If the pressure drops below a set threshold, it will automatically restart suction.
3. During or after suction, double-press the button to release air. The screen will flash, and the indicator light will flash yellow while releasing air.
4. During or after suction, you can also pull the handle to remove the mount. The mount will automatically restart suction. To power off, press and hold the button or wait 10 seconds for auto shut-off.
5. When air has been released, press the button once to start suction again.

Notes

1. Do not drop, hit, or throw the mount to avoid damage.
2. Do not use the mount in the rain.
3. Do not expose the product to grease or chemical solvents for a long period, as this may weaken the suction.
4. Before installing the mount, ensure that the surface of the car or area is smooth and clean.
5. Before starting suction, press the mount fully against the surface and adjust the angle if needed.
6. Keep the white filter cotton at the bottom of the suction cup to prevent sand or dirt
from entering.
7. When not charging, keep the USB-C port's silicone plug sealed to prevent water or dust from entering.
8. Clean the suction cup after use to maintain suction power.
9. When attached to a vehicle, check the battery level while the vehicle is parked. If the battery is below 10%, remove and charge fully before using it again. It is suggested to gently shake the suction cup every 6 hours to ensure it remains secure.
10. If the mount is not used for a long time (e.g., 3 months), recharge the battery. 11. Please assemble and use the Suction Cup Mount according to the instructions above and do not use it with any other accessories, such as a selfie stick. If malfunction or damage is caused by failure to follow the instructions in this document, the warranty will be void.
