Generating Print Page

FS 2m (7ft) Fiber Patch Cable, 2 Fibers, LC UPC Duplex to LC UPC Duplex,

Multimode (OM4), Riser (OFNR), 2.0mm, Tight-Buffered, Aqua

PB Tech price
PB Tech price
$ 14 .92
 +GST
$ 17 .16
 inc GST
$14.92  +GST
$17.16

FS 2m (7ft) Fiber Patch Cable, 2 Fibers, LC UPC Duplex to LC UPC Duplex,

Multimode (OM4), Riser (OFNR), 2.0mm, Tight-Buffered, Aqua

  • Brand: FS
  • MPN: FS-40220
  • Part #: CABFS40220
  • UPC: 840278921597
PB Tech price
$ 14 .92 $ 17 .16
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 05 Mar When will I receive it?
$14.92  +GST
$17.16

Four payments of $4.33 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: FS
  • MPN: FS-40220
  • Part #: CABFS40220
  • UPC: 840278921597

Cable Length

2m

Colour

Aqua

Connector 1

Fibre Optic

Connector 2

Fibre Optic

Braided

No

HDMI Version

N/A

Similar in-stock products available at PB Tech right now

Features

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centres, and at the desk.

This OM4 fibre patch cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers, etc. for 10/40/100G Ethernet connections and is the preferred fibre specification for 40/100G applications.

The bend insensitive fibre patch cable has less attenuation when bent or twisted compared with traditional optical fibre cables and this will make the installation and maintenance of the fibre optic cables more efficient.

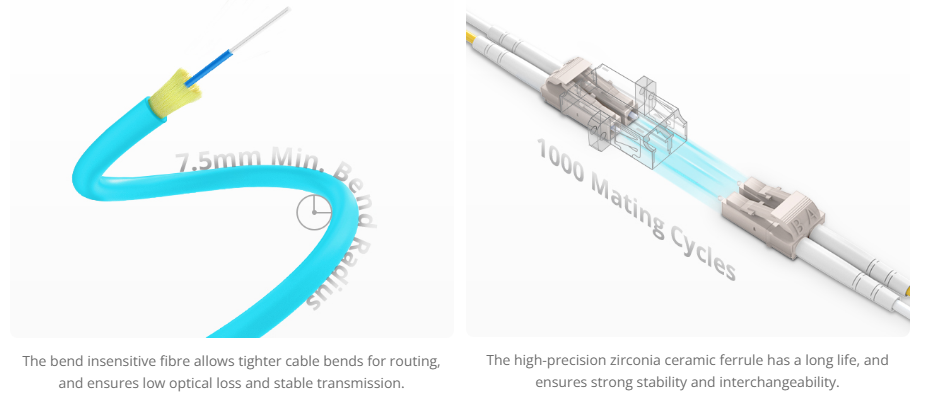

- Bend Insensitive Fiber with 7.5mm Min. Bend Radius
- Precision Zirconia Ferrule Connectors Ensure Low Loss
- Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
- Color-Coded Cable Jacket for Easy Identification
- Duplex Zipcord Construction Reduces Risk of Damage from Crimping
- Pre-terminated Cable Allows for Implementing Plug & Play Solutions
- Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting

Build a Stable and Robust Fiber Optic Network

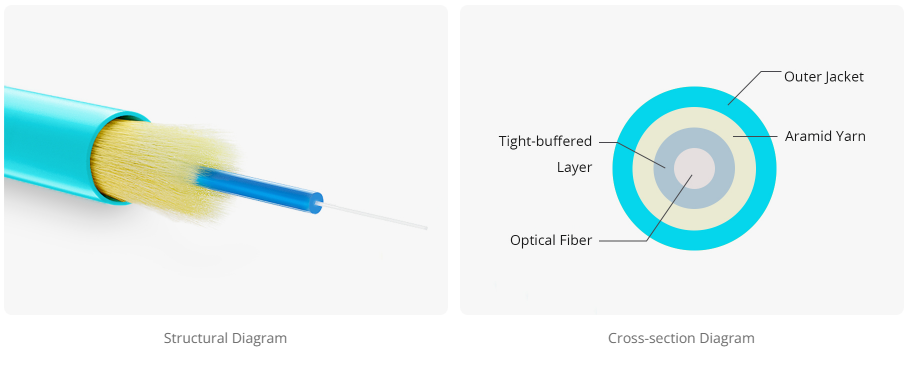

High-quality tight-buffered cable protects the fibre optic core, and increases the strength and durability of the fibre.

Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

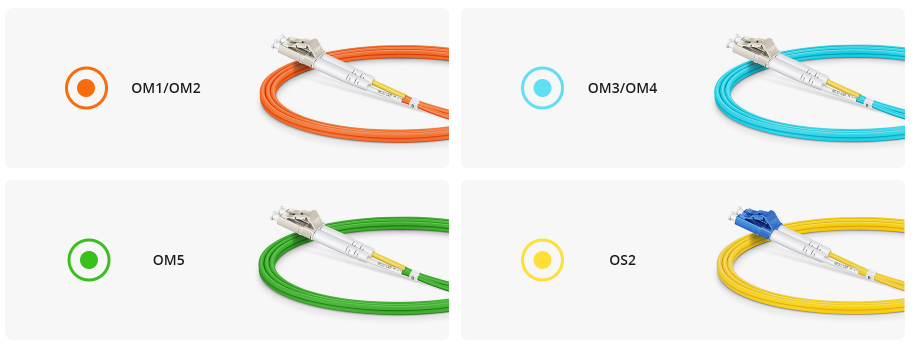

Color-Coded Cable Jacket for Easy Identification

A fibre cable's jacket colour is typically defined by the fibre type, and can differ based on mode and performance level.

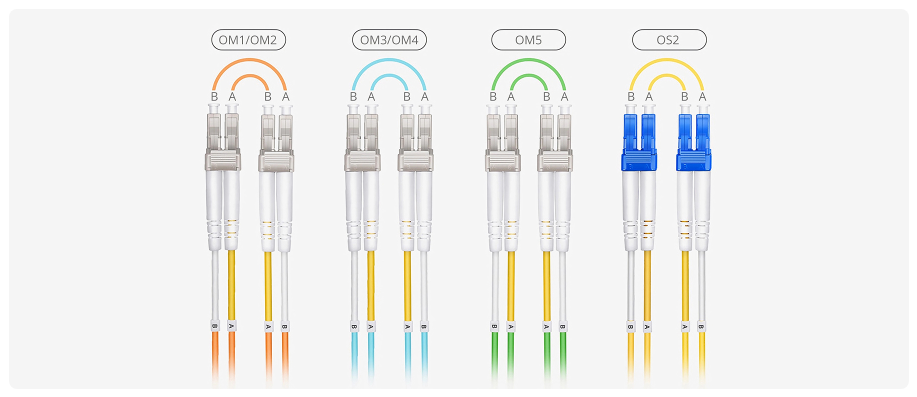

A-to-B Fiber Polarity Commonly Used in Fiber Applications

To help the industry select and install the right components to maintain proper polarity, TIA-568-C standards recommend the A-B polarity scenario for duplex patch cords.

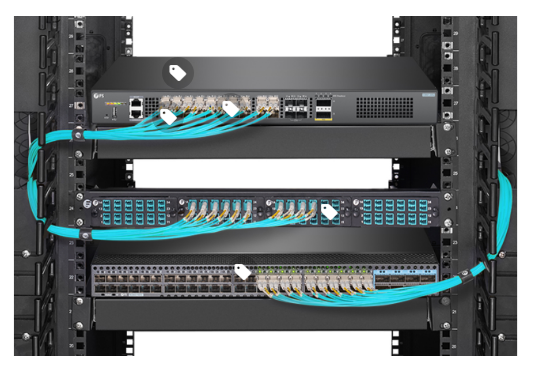

Provide Interconnect and Cross-connect of Application

Designed for high-density applications in entrance facilities, telecommunications rooms, data centres, at the desk, and network applications.

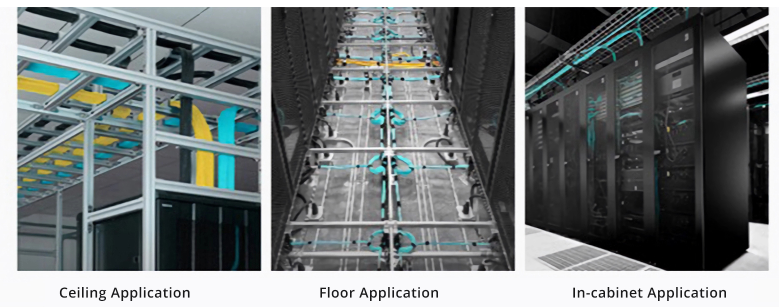

Meet the Various Indoor Installation Needs

Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data centre.

Spine-Leaf Architecture Achieve Larger Network Scale

Reduce latency times of east-west traffic and provide a redundant path.

Specifications

Cable Length

2m (7ft)

Connector A

LC UPC Duplex

Connector B

LC UPC Duplex

Fiber Count

2 Fibers

Fiber Grade

Bend Insensitive

Fiber Mode

OM4 50/125μm

Wavelength

850/1300nm

Polarity

A (Tx) to B (Rx)

Cable Type

Tight-Buffered

Cable Outside Diametre (OD)

2.0mm

Flame Rating

Riser (OFNR)

Min. Bend Radius (Optical Fiber)

7.5mm

Min. Bend Radius (Fiber Cable)

20/10D (Dynamic/Static)

Connector Durability

1000 times

Tensile Strength

90/150N (Long/Short Term)

Insertion Loss

≤0.3dB

Return Loss

≥30dB

Attenuation at 850nm

3.5dB/km

Attenuation at 1300nm

1.5dB/km

Operating Temperature

-10 to 70°C (14 to 158℉)

Storage Temperature

-20 to 70°C (-4 to 158℉)

Manufacturer Part No:
FS-40220
Brand:
FS
Product Type:
-
UPC
840278921597
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
CABFS40220
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
