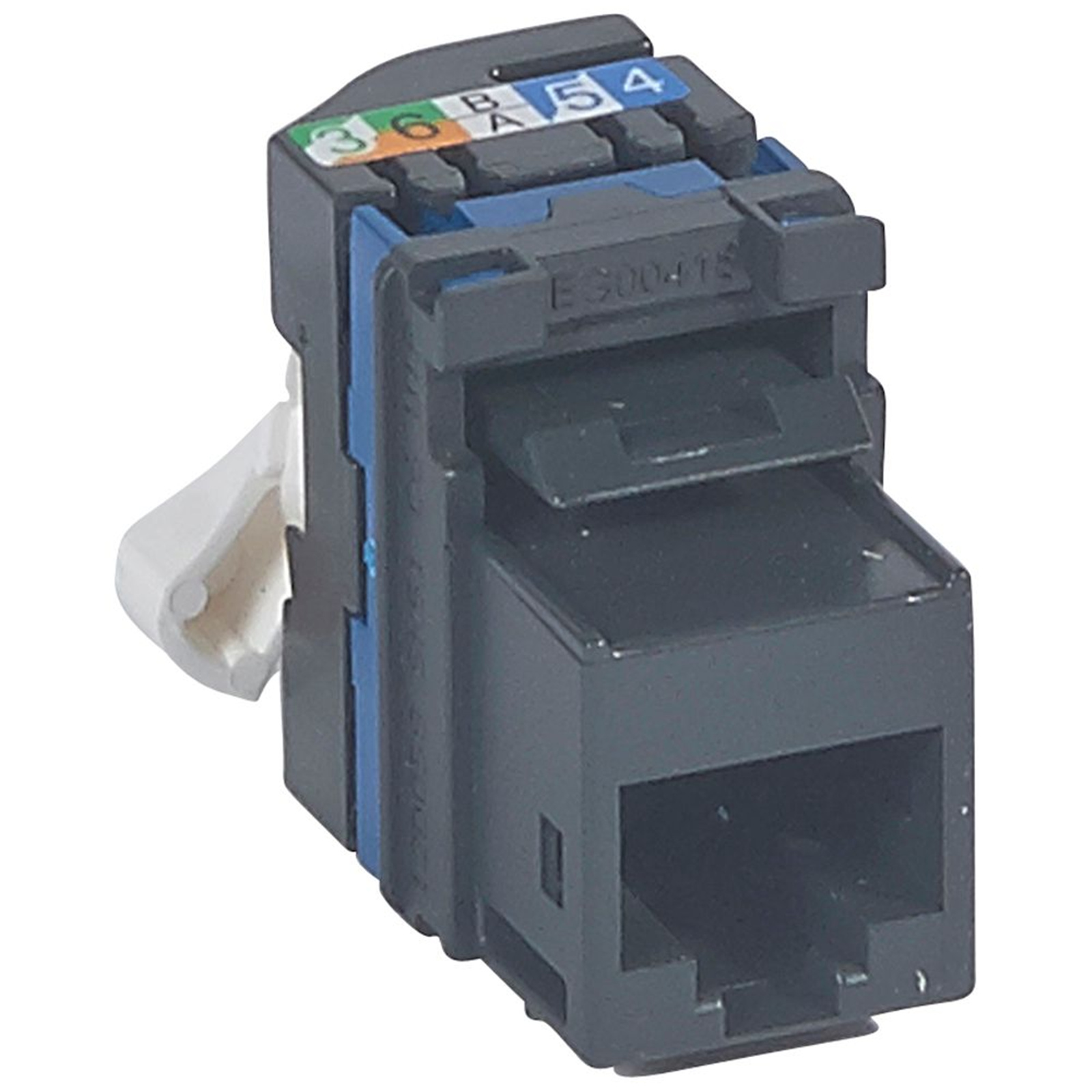

Legrand 33181 Cat6 RJ45 Keystone Socket - LCS2 - Black
UTP - Fast Connect
Legrand 33181 Cat6 RJ45 Keystone Socket - LCS2 - Black
UTP - Fast Connect
- Brand: Legrand
- MPN: 033181
- Part #: CABLGD33181
- UPC:
- Brand: Legrand
- MPN: 033181
- Part #: CABLGD33181
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Cables





Legrand 33181 Cat6 RJ45 Keystone Socket - LCS2 - Black UTP - Fast Connect
- Brand: Legrand
- MPN: 033181
- Part #: CABLGD33181

Product URL: https://www.pbtech.co.nz/product/CABLGD33181/Legrand-33181-Cat6-RJ45-Keystone-Socket---LCS2---B
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
LCS² - Keystone RJ 45 socket category 6 UTP fast crimping connection
RJ45 connector equipped with a rotating locking system. Suitable for category 6 U/UTP AWG 22 single-core cables up to AWG 26 and AWG multicore cables. It enables high speed data transmission.
- Category 6 UTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds. Unshielded cable
- With fast crimping connection
- Accepts the following cable connectors : RJ11 (4 contacts), RJ12 (6 contacts), RJ45 (9 contacts).
Recommendation / Restriction
Max. number of connections and disconnections: 5 without refreshing the cable. Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C
Installation
The RJ45 connectors are equipped with a rotating locking system that does not require special tools and enables rewiring in the event of error. Can be integrated in several supports : Axolute, Living Light, Light Tech, Matix.
Usage
High reliability : 2500 movements (plug insertion/withdrawal)
Specifications
Surface mounting
Yes
Flush-mounted installation
No
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Basic element
Type of connector
RJ45 8(8)
Suitable for number of connectors
1
Category
6
Colour
Black
Connection type
Other
Shielded buses
No
Shielded housing
No
Separate earthing connection
No
With label space
No
Compatible with third-party covers
No
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
No
With terminal resistor
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
Yes
Device width
18 mm
Device height
27 mm
Device depth
30 mm
Built-in depth
40 mm
Degree of impact strength (IK)
IK03
Operating / setting temperature
-10-60 °C
Storage temperature
-10-70 °C
Terminal marking indication
Yes
Halogen free
Yes
Antimicrobial treatment
No
