Panorama LPM2-7-27-2SP Ultra Low Profile 2x2 MiMo 4G LTE Antenna IK10 IP69K 2x SMA
- Brand: Panorama
- MPN: LPM2-7-27-2SP
- Part #: CABPNM10036

Product URL: https://www.pbtech.co.nz/product/CABPNM10036/Panorama-LPM2-7-27-2SP-Ultra-Low-Profile-2x2-MiMo
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

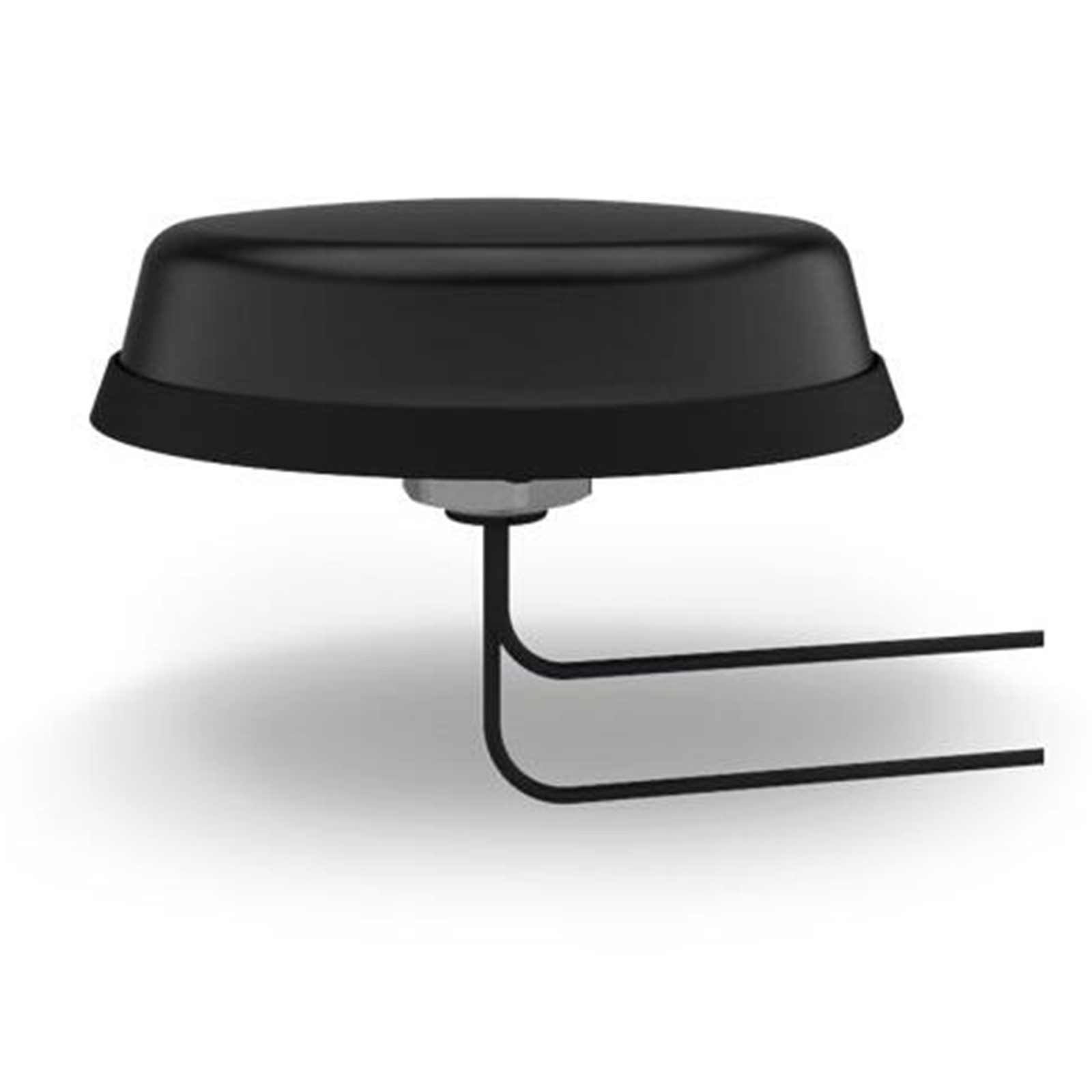

The LPM2-7-27-[X] range has been designed to promote MiMo 4G/LTE coverage in an ultra-low profile package. The compact and robust housing is weatherproof and contains two antenna elements with effective isolation and low correlation coefficient covering 698-960/1427-27000MHz frequency bands.
The antenna is designed to be panel mounted. Supplied with integrated flame retardant RG174 (compliant to UN ECE 118.03) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different routers and modems.
The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.
- Low Visual Impact
- 4x4 MiMo 4G/5G
- Frequency 698-960/1427-27000MHz
- 7dBi Directional Peak Gain
- Wall or Mast Mount
- 2x 2m cable with SMA male for connection to 4G routers
Specifications
ELECTRICAL DATA
Pattern
Omnidirectional
Max Input Power(W)
5
Typical VSWR
<2.5:1
Frequency Range | Gain
698 - 960MHz | 2dBi; 1427 - 2700MHz | 5dBi
Cellular LTE Elements
2 x 2 MIMO
WIFI Elements
No
UHF Elements
No
GPS DATA
Number of GPS Elements
No
MECHANICAL DATA
Colour
Black
Height
32 (mm) | 1.26 (in)
Diameter
123 (mm) | 4.84 (in)
Operating Temperature
-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length - LTE
2 (m) | 6.56 (ft)
Cable Type (LTE)
FR RG174
TERMINATION DATA
Connector (LTE)
SMA (m)
MOUNTING DATA
Mounting Type Fixed
Panel
Mounting Methods
Panel
APPROVALS DATA
IP Rating
IK10; IP69K
TECHNOLOGY DATA
Technology
4G/5G; 2G/3G; 2G/3G/4G
