StarTech.com PEX8S1050LP 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux
StarTech.com PEX8S1050LP 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux
- Brand: StarTech.com
- MPN: PEX8S1050LP
- Part #: CABSTT4687939
- UPC:
- Brand: StarTech.com
- MPN: PEX8S1050LP
- Part #: CABSTT4687939
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Serial Cards





StarTech.com PEX8S1050LP 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux
- Brand: StarTech.com
- MPN: PEX8S1050LP
- Part #: CABSTT4687939

Product URL: https://www.pbtech.co.nz/product/CABSTT4687939/StarTechcom-PEX8S1050LP-8-Port-PCI-Express-RS232-S
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

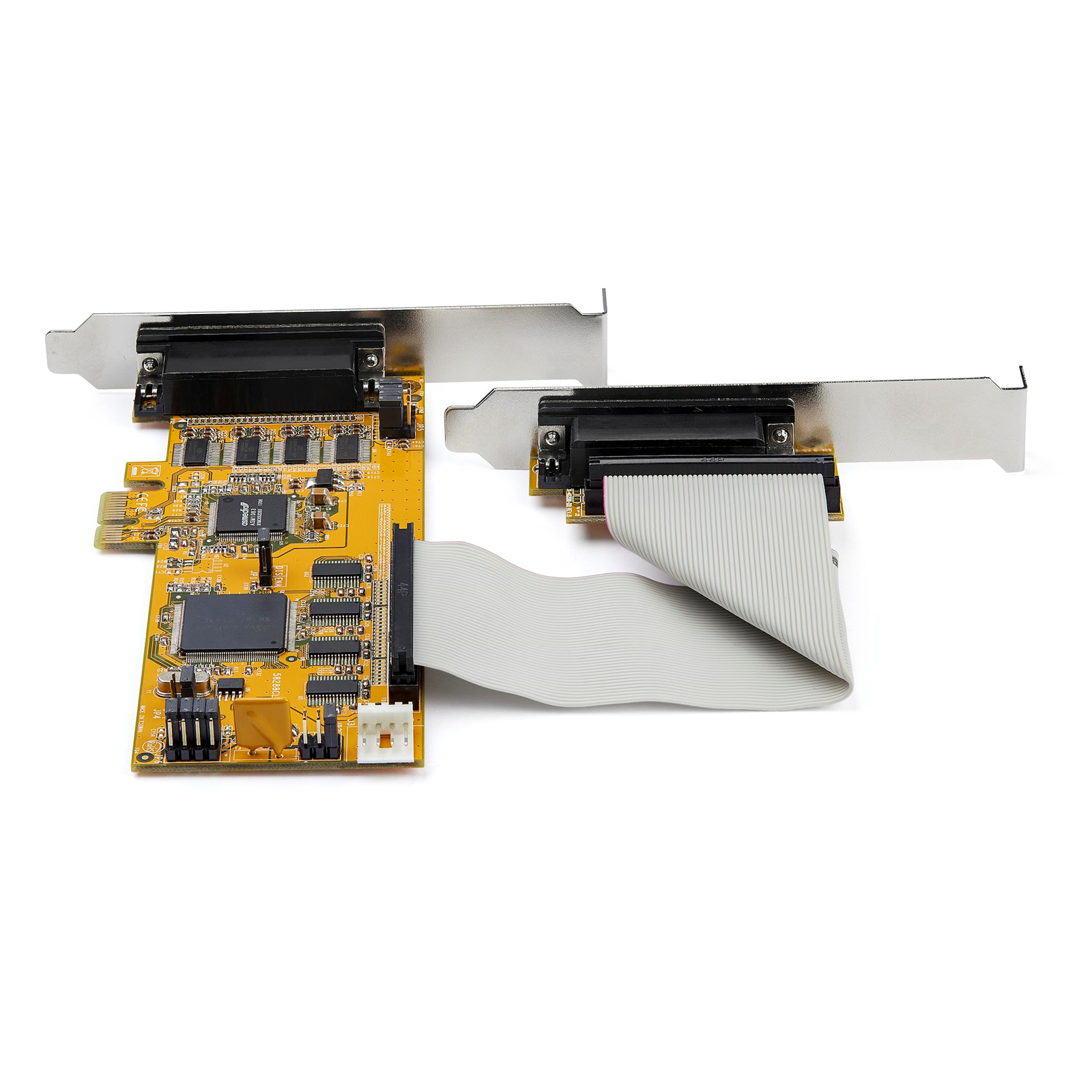

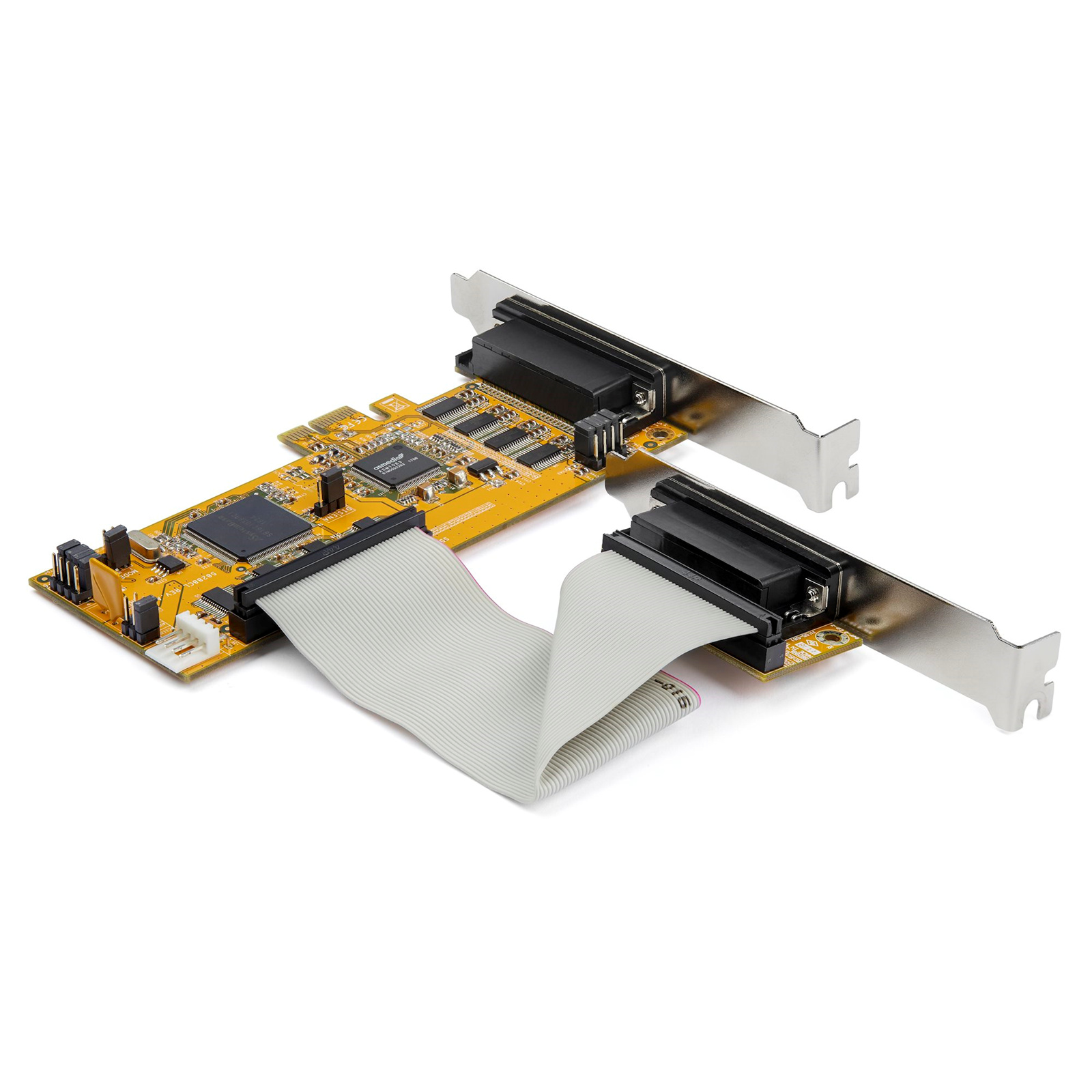

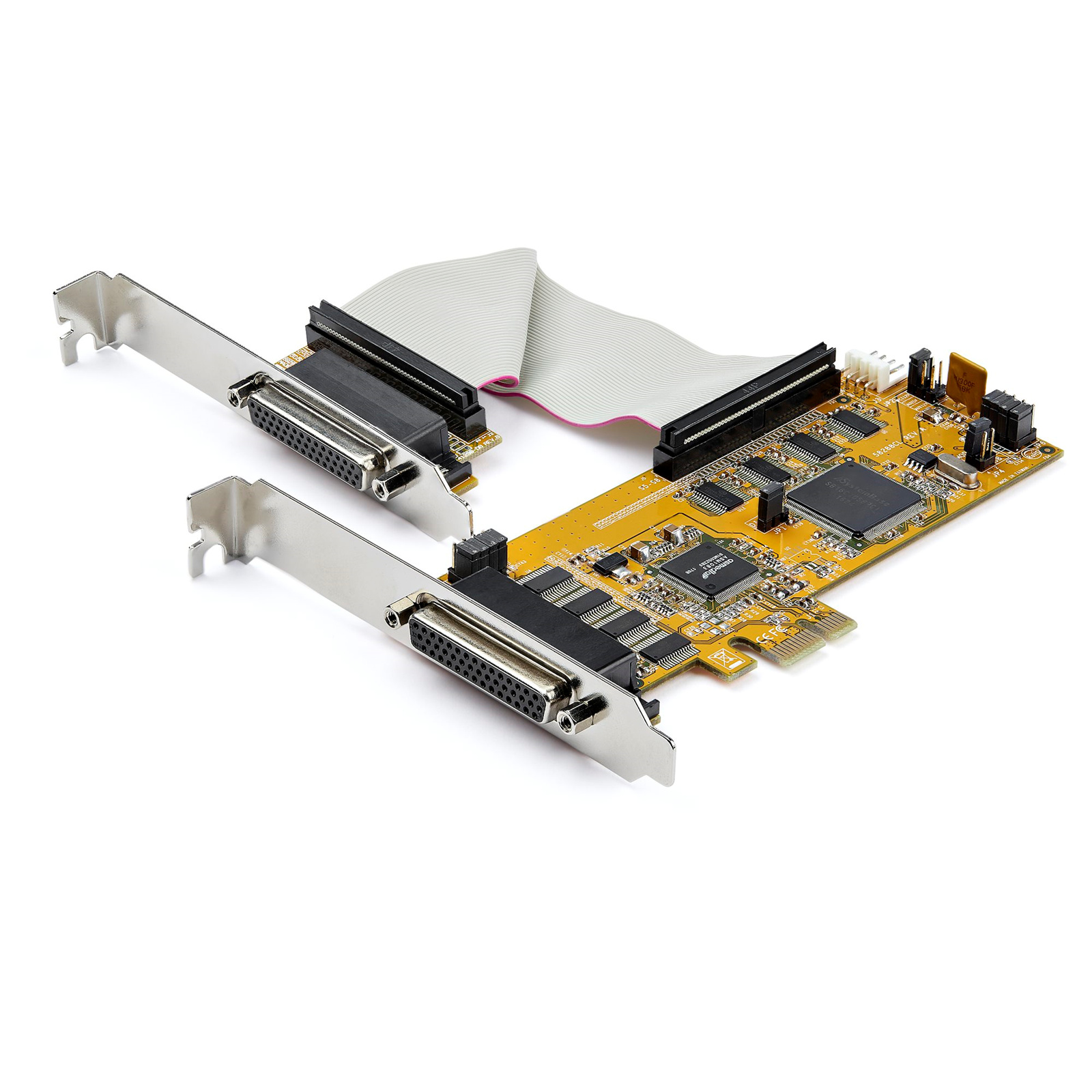

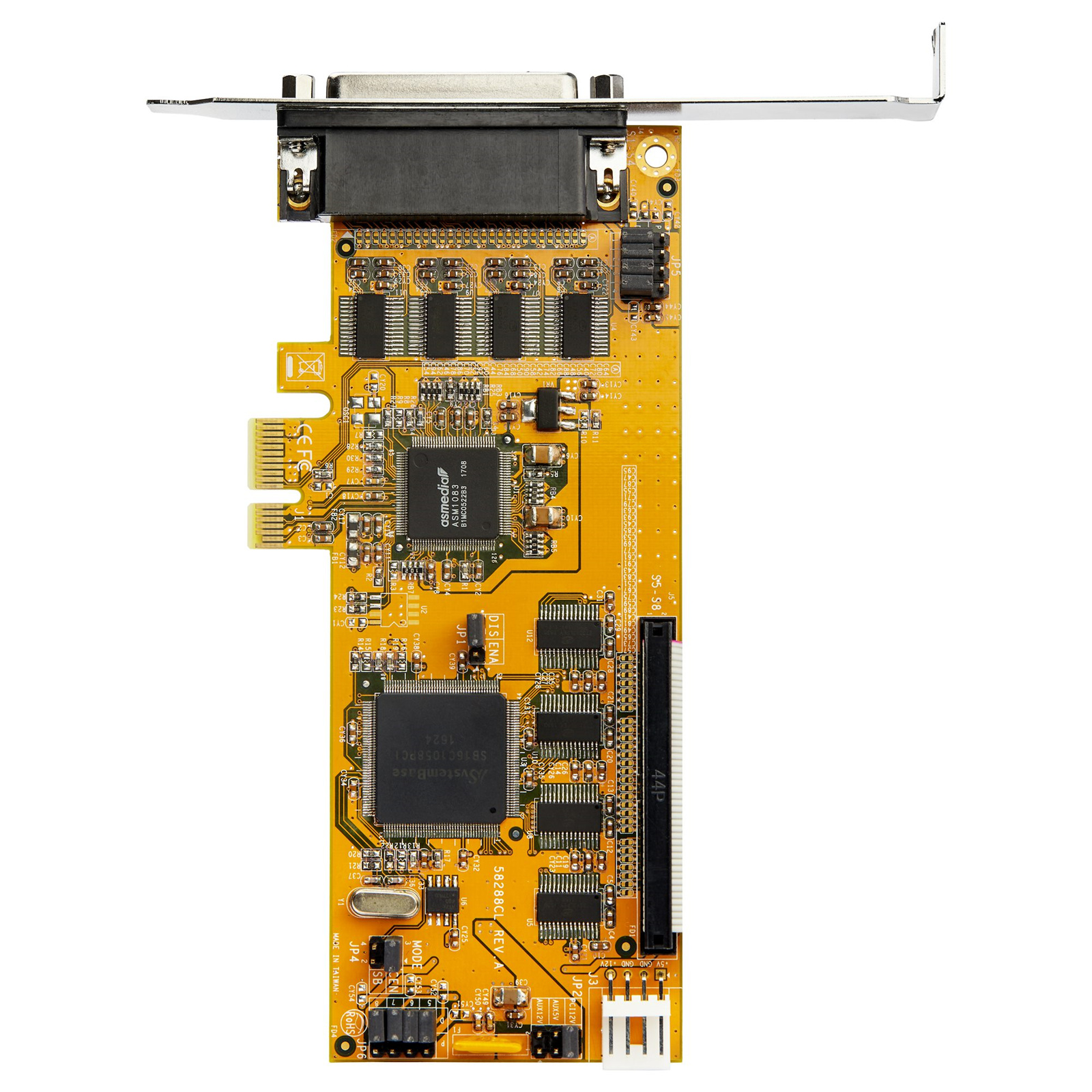

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
Versatile Use

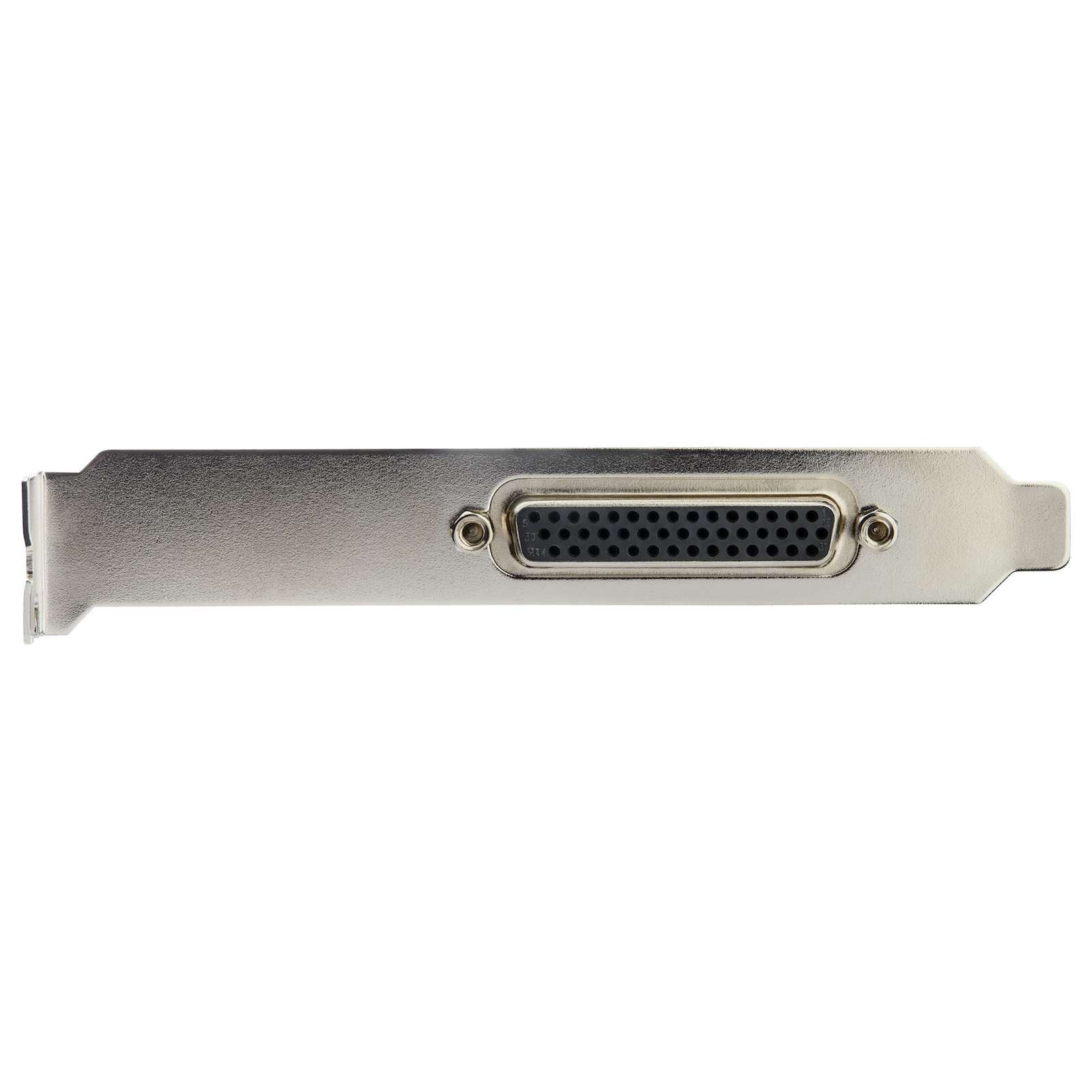

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
Specifications
Connector(s)
1 - Connector Type(s)
PCI Express x1
1 - Internal Ports
SP4 (4 pin, Small Drive Power)
8 - External Ports
DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5~95% RH
Hardware
Ports
8
Interface
Serial
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Port Style
Dongle (Included)
Chipset ID
ASMEDIA - ASM1083
SYSTEMBASE - SB16C1058PCI
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8
FIFO
256 Bytes
Flow Control
RTS/CTS, XON/XOFF
Parity
None, Even, Odd, 1, 0
Stop Bits
1, 1.5, 2
Physical Characteristics
Color
Yellow
Product Height
2.4 in [6 cm]
Product Length
5.7 in [14.5 cm]
Weight of Product
4.1 oz [116 g]
Product Width
0.9 in [2.2 cm]
Material
Steel
Cable Length
11.8 in [30 cm]
Software
OS Compatibility
Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
Linux 2.4.x to 4.11.x LTS Versions only
