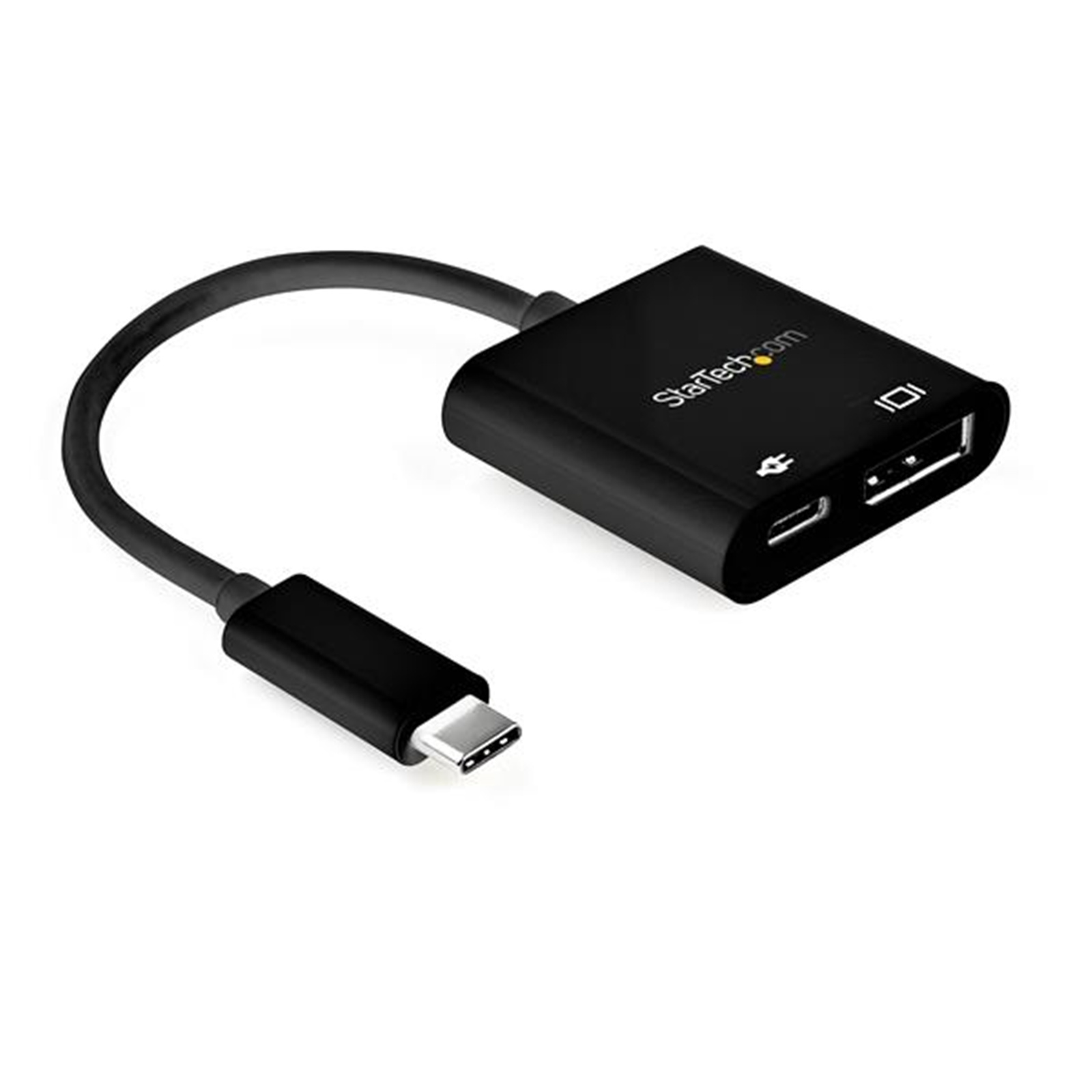

StarTech.com CDP2DP14UCPB USB-C to DisplayPort Adapter 8K 30Hz - HBR3 - Power Delivery DP 1.4 - USB-C to DP

PB Tech price
PB Tech price
$ 71 .29
 +GST
$ 81 .98
 inc GST
$71.29  +GST
$81.98

StarTech.com CDP2DP14UCPB USB-C to DisplayPort Adapter 8K 30Hz - HBR3 - Power Delivery DP 1.4 - USB-C to DP

  • Brand: StarTech.com
  • MPN: CDP2DP14UCPB
  • Part #: CABSTT4802780
  • UPC: 065030883641
1
PB Tech price
$ 71 .29 $ 81 .98
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 06 Oct When will I receive it?
$71.29  +GST
$81.98
  • Brand: StarTech.com
  • MPN: CDP2DP14UCPB
  • Part #: CABSTT4802780
  • UPC: 065030883641

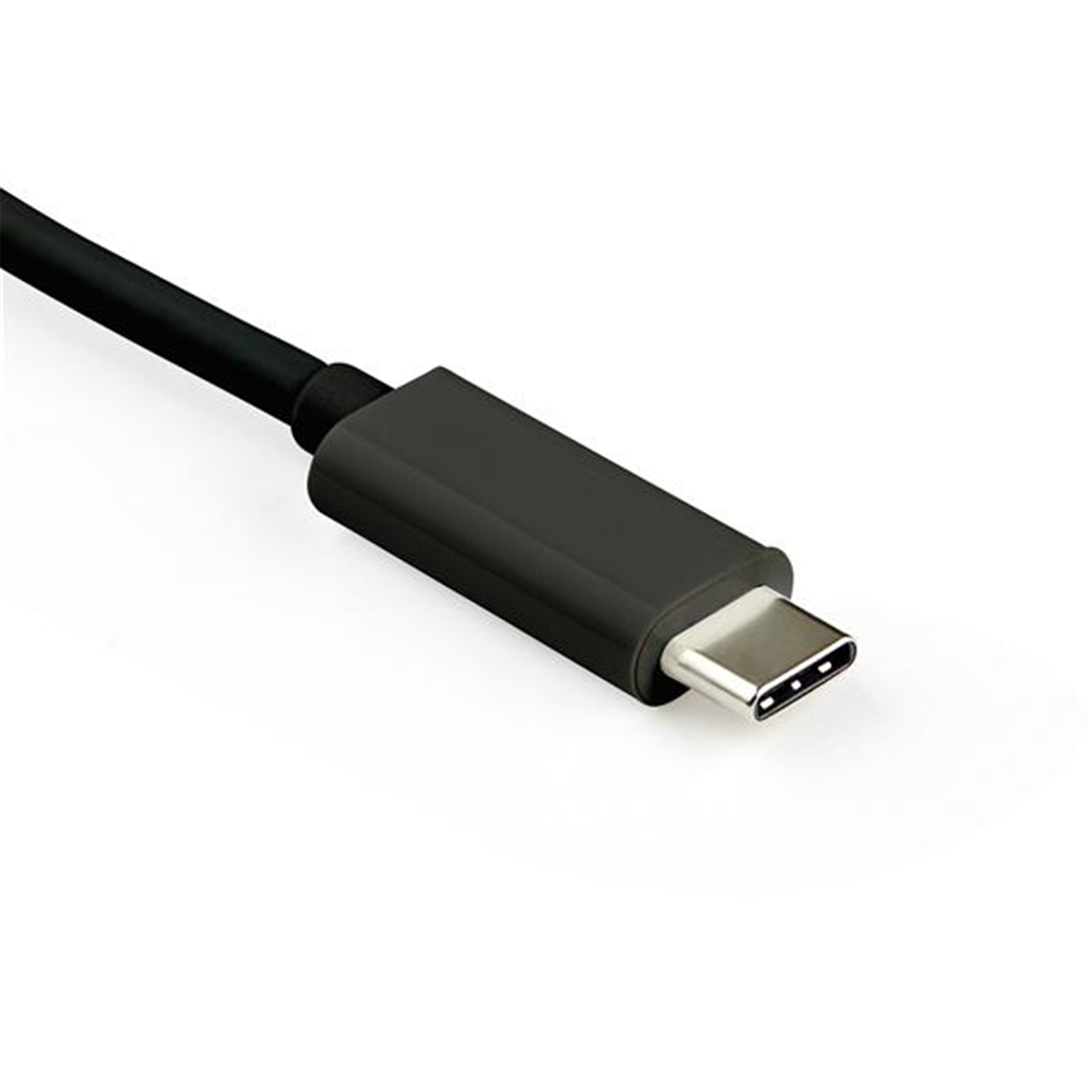

Input Connector

USB-C (Male)

Output Connector

DisplayPort (Female)

Features

DisplayPort™ 1.4 Adapter | Thunderbolt™ 3 Compatible | HBR3 | 60W PD

High Bit Rate 3 (HBR3) capabilities, providing bandwidths up to 32.4Gbps

Cutting-edge video quality with support for UHD video resolutions up to 8K 30Hz

Charge your USB-C device while connecting a DisplayPort display with 60W Power Delivery

Power & Video with USB Power Delivery

This USB-C display adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port so you can charge your laptop or tablet using its USB-C power adapter.

Incredible 8K Picture Quality

Delivering cutting-edge picture quality, this 8K DisplayPort 1.4 adapter supports UHD resolutions up to 7680x4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.

Ideal for Travel

This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.

Note:

Your USB-C device must support DisplayPort Alternate Mode to work with this adapter.

To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

Specifications

Color

Black

Power Delivery

60W

System and Cable Requirements

Your USB-C port must support DisplayPort over USB-C (DP Alt Mode) in order to work with this adapter.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.

Connector A

1 - USB-C (24 pin) DisplayPort Alt Mode Male Input

Connector B

1 - DisplayPort (20 pin) Female Output

Audio Specifications

DisplayPort - 7.1 Channel Audio
Bandwidth
HBR3

Maximum Cable Distance To Display

 2 m

Maximum Digital Resolutions

7680×4320 @ 30Hz

Supported Resolutions

1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
4096x2160 (DCI 4K)
7680x4320 (Ultra HD 8K)

Manufacturer Part No:
CDP2DP14UCPB
Brand:
Product Type:
USB-C to DisplayPort Adapter
UPC
065030883641
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
CABSTT4802780
Product Model:
CDP2DP14UCPB
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
