StarTech.com 1P3FFCNB-USB-SERIAL USB to Serial Cable - 1m (3ft)
Null Modem
StarTech.com 1P3FFCNB-USB-SERIAL USB to Serial Cable - 1m (3ft)
Null Modem
- Brand: StarTech.com
- MPN: 1P3FFCNB-USB-SERIAL
- Part #: CABSTT6145369
- UPC:
- Brand: StarTech.com
- MPN: 1P3FFCNB-USB-SERIAL
- Part #: CABSTT6145369
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Serial & Parallel Cables





StarTech.com 1P3FFCNB-USB-SERIAL USB to Serial Cable - 1m (3ft) Null Modem
- Brand: StarTech.com
- MPN: 1P3FFCNB-USB-SERIAL
- Part #: CABSTT6145369

Product URL: https://www.pbtech.co.nz/product/CABSTT6145369/StarTechcom-1P3FFCNB-USB-SERIAL-USB-to-Serial-Cabl
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
3.3ft (1m) USB to Null Modem Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a null modem RS232 port to a computer using a USB-A port
- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign; Resolve DCE/DTE conflicts without using cross-wired cables/adapters
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C
- TECH SPECS: 3.3ft (1m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
Serial Port Expansion

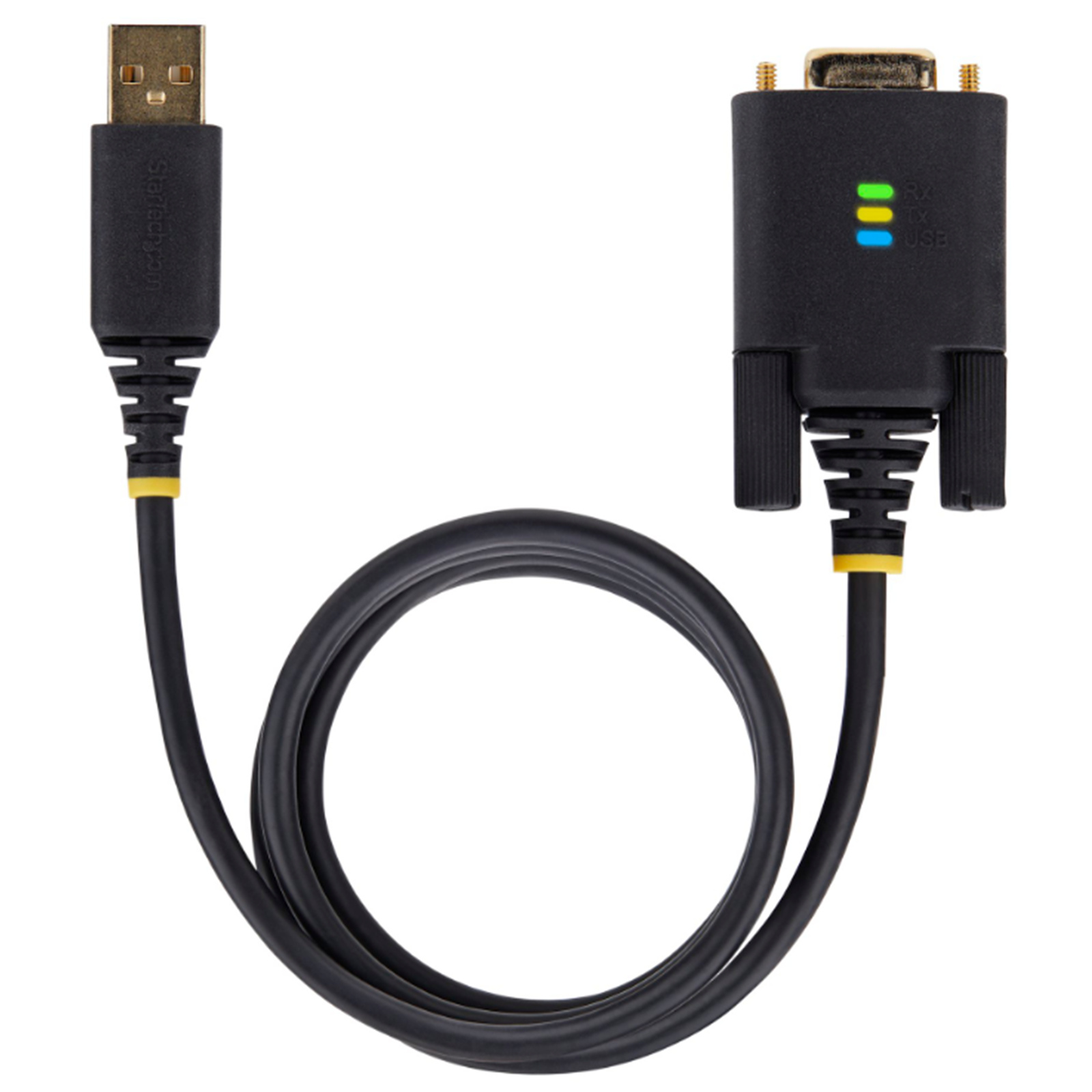

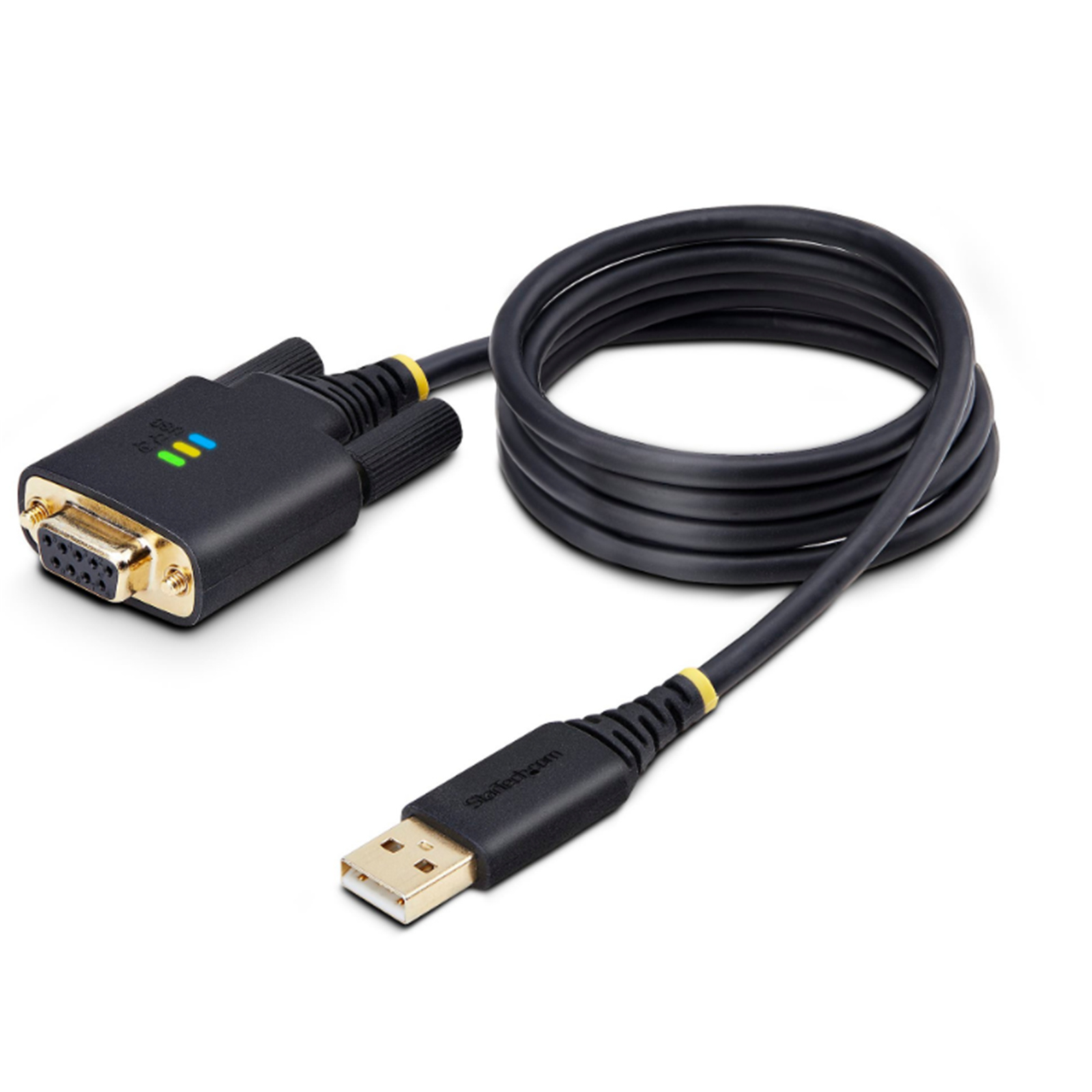

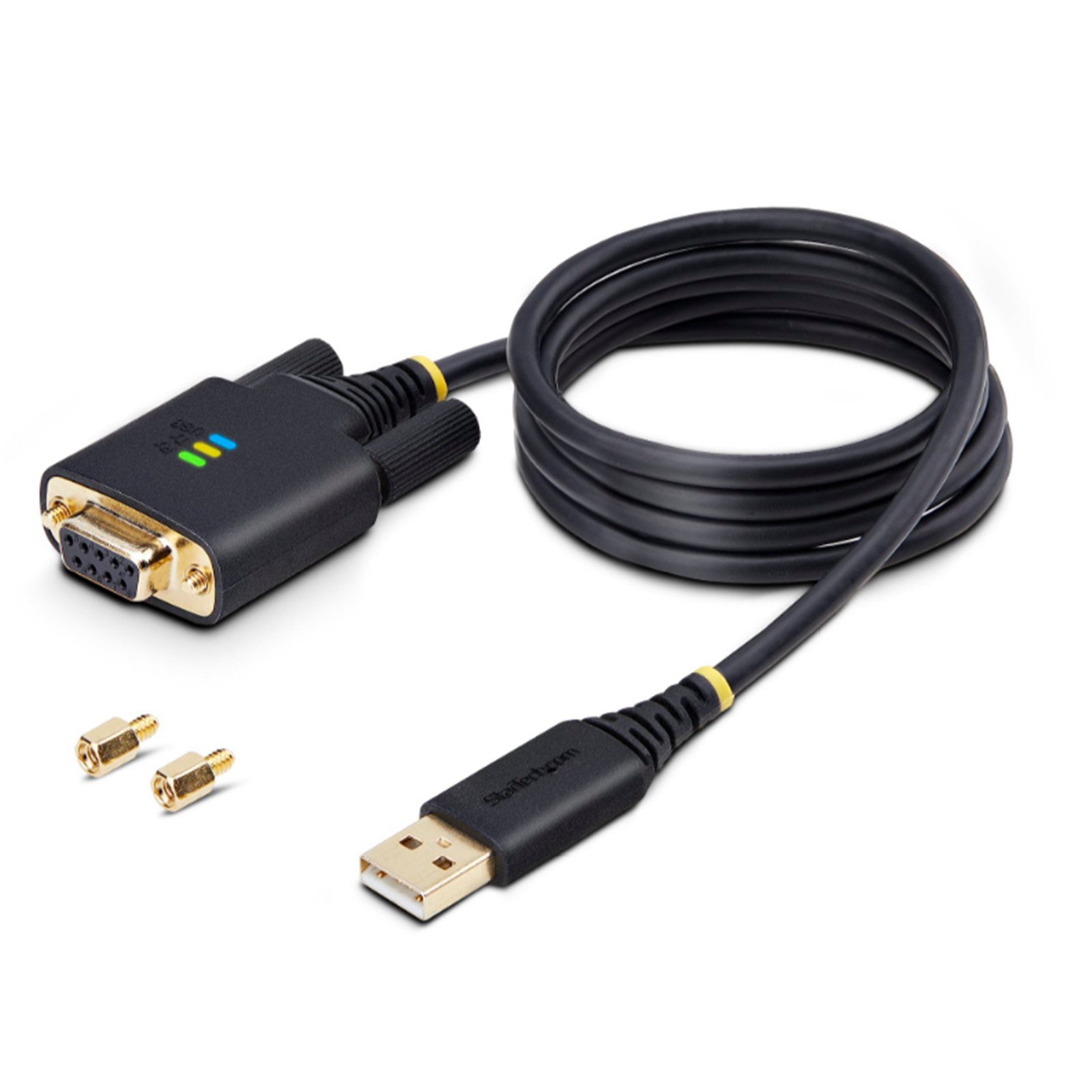

The 3.3ft (1m) Null Modem USB Serial Adapter adds an RS-232 serial DB/DE-9 (female) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.
LED Indicators
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
Specifications
Connector(s)
Connector A
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Connector B
1 - 9 pin D-Sub (DB-9) Female
Environmental
Operating Temperature
-40°C to 80°C (-40°F to 176°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
0% ~ 95% RH (non-condensing)
Hardware
Ports
1
Interface
Serial
Bus Type
USB 2.0
Port Style
Cable Adapters
Industry Standards
USB 2.0/1.1
RS-232
Chipset ID
FTDI - FT232R
Indicators
LED Indicators
1 - Data Receive LED: Flashes Green to indicate activity
1 - Data Transmit LED: Flashes Yellow to indicate activity
1 - USB LED: Solid Blue to indicate driver has been installed, and USB connection enumerated
Packaging Information
Package Height
1.0 in [2.5 cm]
Package Length
7.9 in [20.0 cm]
Shipping (Package) Weight
3.0 oz [84.0 g]
Package Width
8.7 in [22.0 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
7, 8
FIFO
128 Byte RX Buffer
256 Byte TX Buffer
Parity
Even, Odd, None, Space, and Mark
Stop Bits
1, 2
Physical Characteristics
Color
Black
Product Height
0.6 in [1.6 cm]
Product Length
3.3 ft [1.0 m]
Weight of Product
1.9 oz [55.0 g]
Product Width
1.3 in [3.4 cm]
Cable Length
3.3 ft [1 m]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows 7, 8/8.1, 10, 10 ARM, 11, 11 ARM
Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
Linux 4.15.x and up - LTS Versions only
Chrome OS
Special Notes / Requirements
System and Cable Requirements
Computer with a USB Type-A Port version 1.1 or greater
What's in the Box
Included in Package
1 - USB to Serial Adapter
2 - DB9 Nuts
1 - Quick-Start Guide
