Canon XA70 XA70 4K Camcorder
- Brand: Canon
- MPN: XA70
- Part #: CAMCNP222394
- UPC:
Features
Shoot, Record, Document, Stream
Shoot high quality 4K UHD video with the compact XA70. The camcorder delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD livestreaming with UVC1 via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats.
Compact Professional 4K UHD Camcorder
Capture stunning 4K UHD and Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

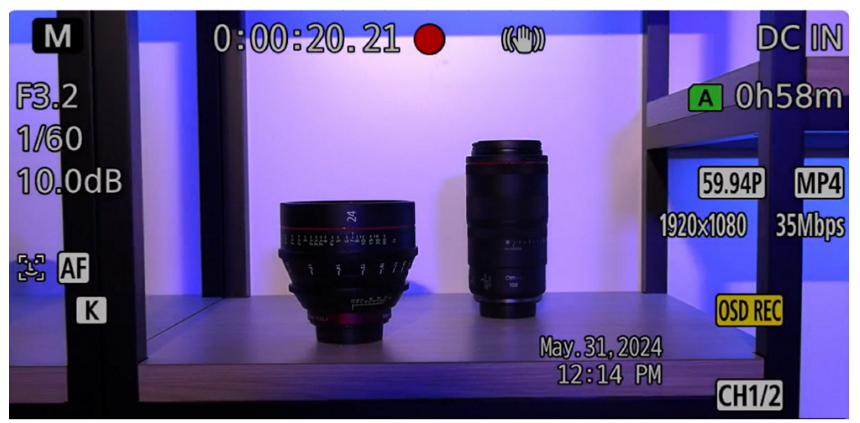

On-Screen Display (OSD) "Time Stamp" Recording
The OSD recording feature embeds date, time, timecode and other data into the original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers. For projects that require the date and time to be visible in the image, the camera will be able to include that information in the on-screen display while recording.
4K 15x Optical Zoom Lens
The XA70's lens covers a 25.5 - 382mm (35mm equivalent) range. Digital zoom boosts the 15x optical zoom to 600x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization.
Fast, Precise Focusing with Face Detection
Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
Professional Input and Output
Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Camcorders
DJI OSMO Pocket 3 4K Handheld Camera Creator Combo 3-Axis Gimbal ...
Insta360 X3 360 Waterproof Action Camera 5.7K Dual-Lens - 360...
Insta360 X5 360° Waterproof 8K Action Camera Essentials Bundle...
DJI OSMO Pocket 3 4K Handheld Camera 3-Axis Gimbal - 4K Video at...
Insta360 GO 3S Action Camera - Midnight Black 128GB Edition -...
Canon XA70 XA70 4K Camcorder
- Brand: Canon
- MPN: XA70
- Part #: CAMCNP222394
Product URL: https://www.pbtech.co.nz/product/CAMCNP222394/Canon-XA70-XA70-4K-Camcorder
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 2 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Shoot, Record, Document, Stream
Shoot high quality 4K UHD video with the compact XA70. The camcorder delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD livestreaming with UVC1 via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats.
Compact Professional 4K UHD Camcorder
Capture stunning 4K UHD and Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
On-Screen Display (OSD) "Time Stamp" Recording
The OSD recording feature embeds date, time, timecode and other data into the original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers. For projects that require the date and time to be visible in the image, the camera will be able to include that information in the on-screen display while recording.
4K 15x Optical Zoom Lens
The XA70's lens covers a 25.5 - 382mm (35mm equivalent) range. Digital zoom boosts the 15x optical zoom to 600x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization.
Fast, Precise Focusing with Face Detection
Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
Professional Input and Output
Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
Specifications
Image Sensor
Sensor
1 inch-type CMOS Sensor
Filter
RGB Primary Colour Filter
Total Pixels
Approx.13.4MP
Effective Pixels per Sensor
Approx. 8.29 MP (3840 x 2160)
Subject Illumination Range
Approx. 0.1 lx to 100,000 lx
Minimum Illumination (PAL)
Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec.
Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On
Image Processor
Type
DIGIC DV 6
Colour Sampling
YCC 4:2:0 8bit
Lens
Zoom Ratio
15 x optical
Focal Length (35mm Equivalent)
Approx. 25.5 - 382.5mm Standard IS/IS Off
Minimum Focus Distance
1 cm at wide end, 60 cm across entire zooming range
Max. Aperture
f/2.8 - 4.5
Aperture Blades
9 blades
Filter Diameter
58mm
Image Stabilization System
Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
ND Filter
3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.
Zoom Control
Zoom rockers on body and handle;
Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens;
Selectable High Speed and Soft Zoom modes available.
Zoom Speed
Variable (body rocker only) or Constant speed (body and handle rocker;
Fast/Normal/Slow, 16 speed level settings in each)
Focus Control
MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject
Focus System
Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
AF Modes
Continuous, AF-Boosted MF Face Detection and Tracking, Face Only AF.
Manual Focus Assist
Dual Pixel Focus Guide, Peaking, Magnification
Iris Control
Touchscreen, Auto
Digital Zoom/Teleconverter
20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available. Digital zoom not available in AUTO mode.
2x Digital Teleconverter (Not available when using Digital Zoom)
Recording
Video Storage Media
SD/SDHC/SDXC card (2 card slots)
Type
U3 Class recommended for all recording conditions * UHS-II not supported.
Recording Time
MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
Recording File System
FAT32/exFAT
Internal Recording Format (PAL)
XF-AVC:
3840 x 2160 / 25.00P (160 Mbps)
1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
MP4:
3840 x 2160 / 25.00P(150 Mbps)
1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
External Recording Output
HDMI output (When Shooting):
UHD recording mode:
1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode:
1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
Slow/Fast Motion (PAL)
3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 25.00P: x0.5
Pre-Record Function
Yes. 3 seconds
Still Photos
JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
Photo Storage Media
SD Card
System

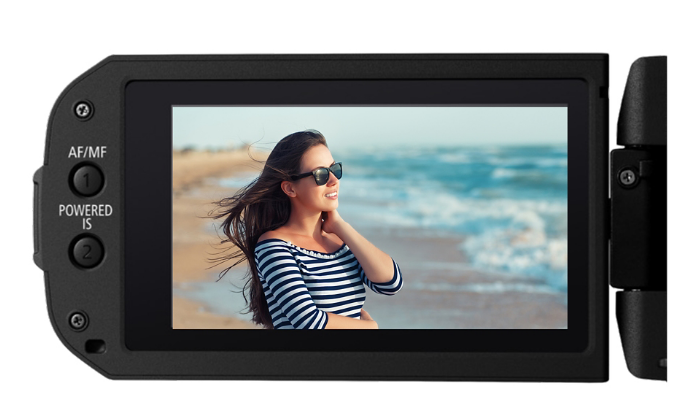

Display Type
Capacitive LCD touch panel
Size
3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
Wave Form Monitor
No
Focus Assist
Peaking / Magnify
Peaking
Selectable Peaking Colour: Red / Blue / Yellow
Zebra
70% or 100% reference level
Markers
Grid (white/grey), Level (white/grey), 4:3 (white/grey)
EVF
Size
0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
Correction Lens
+2.0 to -5.5 dioptre
Inputs / Outputs
Audio Input
XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic
Headphone Output
3.5mm stereo mini jack
HDMI Output
HDMITM mini connector. Timecode can be superimposed onto HDMI output
USB
Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
SDI Output
No
Time Code
Rec Run / Free Run
Genlock
No
LAN
No
AV Terminal
No
DC Input
USB-C
Remote Control Terminal
2.5mm mini jack
Miscellaneous
Tally Lamp
Yes, in detachable Handle Unit
Colour Bars (PAL)
Yes. SMPTE, ARIB or EBU, with 1KHz Tone
Accessory Shoe
Yes (cold shoe)
Assignable Buttons
5 assignable Buttons
Custom Dial
Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off

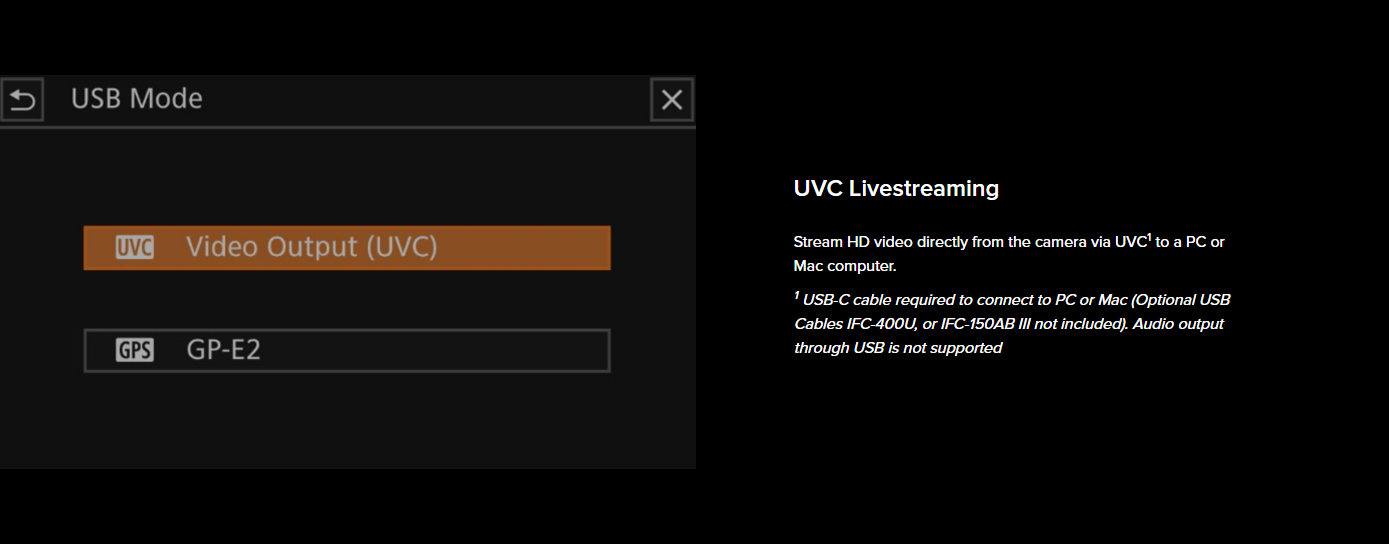

Video Output (UVC)
Recording system: Motion JPEG Resolutions: 1920×1080 (when main resolution is not 1280×720) 1280×720 (when main resolution is 1280×720) Frame rates: 25 fps (best effort)
Exposure
Exposure Metering
Center-weighted average metering
AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
Segment evaluative metering
Night Scene, Snow, Beach, Sunset, Spotlight modes
No metering in Fireworks mode: Exposure constant
Exposure Compensation
Highlight AE, Normal, Exposure lock, Auto backlight compensation.
Exposure Lock
Yes.
Auto ISO / Auto Gain Control Setting
Auto / Manual
Auto Gain Control Limit
0 - 38dB (1dB increments)
Wide DR Mode: 9 -38dB (1dB increments)
Shutter Speed
Control Modes
Auto, P, Tv, Manual
Shutter Speed (PAL)
1/6 - 1/2000 sec
(1/2 - 1/500 sec in Low Light mode)
Shutter Speed range available dependent on shooting mode
Slow Shutter (SLS)
50.00P:
Auto slow shutter On: 1/25 to 1/500 sec.
Auto slow shutter Off: 1/50 to 1/500 sec.
25.00P:
Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12)
Auto slow shutter Off: 1/25 to 1/500 sec.
Clear Scan (PAL)
No
Streaming, Wi-Fi, & GPS Specifications
Wi-Fi
No
GPS Information (Optional Accessory)
Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
(requires the optional GPS Receiver GP-E2)
White Balance
Auto
Yes
Preset
Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
Manual Setting
Colour Temperature range: 2,000-15,000K
Default value for Set 1 and Set 2: 5,600K
Shooting Modes
Custom Picture Menu
C1: Normal (BT.709 Normal / BT.709)
C2: Wide DR (BT.709 Wide DR / BT.709)
C3: LOG3 (Canon Log 3 / BT.709)
C4: EOS Std. (EOS Standard / BT.709)
C5 to C6: USER05 to USER06 (same as C1)
Look Settings
Standard
Neutral
Wide DR
Monochrome
Infrared Shooting Mode
Yes
Built-in IR Lamp
Yes, in detachable Handle Unit.
Wavelength: 850nm (near-Infrared)
Audio
Recording Format
MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio Control
Manual/Auto
Independent 2ch Line/Mic/Mic+48V input;
Independent level control per channel (-8 to +18 dB);
Independent audio limiters (2 ch);
Input mic trimming
Reference Tone
1KHz, -12dB / -18dB / -20dB / Off
Microphone Attenuation
On/Off (20dB)
Microphone Level Meter
Yes
Accessories
Supplied
Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
Power Source
Power Supply (Battery)
Canon Battery Pack BP-820 (supplied), BP-828 (optional)
Power Consumption
MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.1W
Recording Time
MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 145 mins, typical 80 mins (BP-820)
Physical Specifications
Dimensions
Approx. 110 x 91 x 214 mm (main body only)
Approx. 140 x 216 x 265 mm
(Including lens hood, BP-820, mic holder unit, and handle unit)
Weight (Body Only)
990g
Weight (Accessories)
1465g
Operating Temperature Range
0ºC to +40ºC, 85% relative humidity
