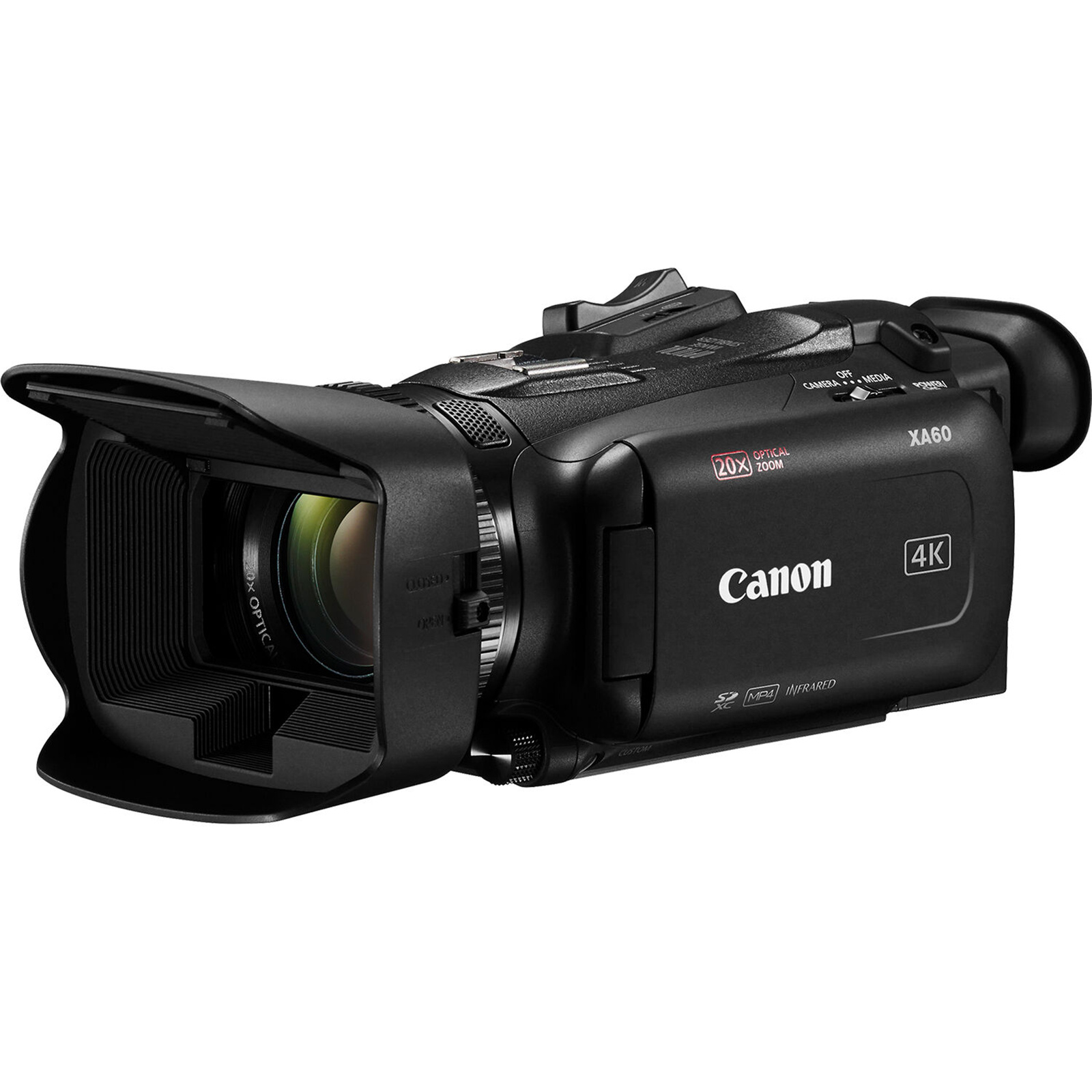

Canon XA60 Professional Camcorder
UHD 4K30 with 1/2.3" CMOS Sensor - Integrated 20x Optical Zoom Lens - Dual XLR and Mic / Line Audio Input
Canon XA60 Professional Camcorder
UHD 4K30 with 1/2.3" CMOS Sensor - Integrated 20x Optical Zoom Lens - Dual XLR and Mic / Line Audio Input
- Brand: Canon
- MPN: XA60
- Part #: CAMCNP90060
- UPC:
- Brand: Canon
- MPN: XA60
- Part #: CAMCNP90060
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
.webp)
Related Hardwired Articles
Popular Camcorders
Insta360 X4 360° Waterproof 8K Action Camera 8K30/5.7K60 Dual...
Insta360 X3 360 Waterproof Action Camera 5.7K Dual-Lens - 360...
DJI Pocket 3 4K Handheld Camera 3-Axis Gimbal - 4K Video at...
Insta360 GO 3S Action Camera - Midnight Black 128GB Edition -...
Insta360 Go 3 Action Camera 128GB Edition - Recording up to 2.7K...
_20240917123351.webp)
Canon XA60 Professional Camcorder UHD 4K30 with 1/2.3" CMOS Sensor - Integrated 20x Optical Zoom Lens - Dual XLR and Mic / Line Audio Input
- Brand: Canon
- MPN: XA60
- Part #: CAMCNP90060
Product URL: https://www.pbtech.co.nz/product/CAMCNP90060/Canon-XA60-Professional-Camcorder-UHD-4K30-with-12
| Branch | New Stock | On Display |
|---|---|---|
| Albany | - | |
| Glenfield | - | |
| Queen Street | - | |
| Auckland Uni | - | |
| Newmarket | - | |
| Westgate | - | |
| Penrose | - | |
| Henderson (Express) | - | |
| St Lukes | - | |
| Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Head Office | - | |
| Hornby | - | |
| Christchurch Central | - |
Features
The Canon XA60 Professional UHD 4K Camcorder is a compact, lightweight camera that features many similarities to its XA45 predecessor, including UHD 4K capture, a 1/2.3" CMOS sensor, two XLR audio inputs, and one mini-HDMI output, making it suitable for the ENG category for documentary or journalism-style productions. This streamlined model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, XF-AVC, and MP4 recording formats, OSD metadata recording, and fast USB-C video-only output with UVC support for livestreaming to a computer.
The lens optics include an integrated 20x 4K/HD optical zoom and an eight-bladed circular iris for more natural highlights. The camera's pro-style features include Hybrid, Normal, Face Only, Manual Focus, Instant, and Canon's Medium autofocus; fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and it outputs to a mini-HDMI port. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI output. On the audio side, the XA60 features up to four channels of LPCM audio in 720p mode with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.
Canon 4K Sensor
A 4K sensor and DIGIC DV6 image processor deliver crisp, sharp UHD images, and an 8-blade iris achieves cinema-style out-of-focus highlights. Frame your shot with the ultrabright 3.5" LCD or use the built-in OLED electronic viewfinder (EVF).
On-Screen Display (OSD) "Time Stamp" Recording
OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.
UVC Livestreaming
Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.
Professional Audio Controls
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.
4K 20x Optical Zoom Lens
The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization with dynamic mode, resulting in clear, sharp motion video.
Fast, Precise Focusing with Face Detection
The X65 features adjustable focusing speeds, and an advanced Hybrid AF system provides fast and precise focusing. Use the ultrabright high-resolution 3.5" LCD to set focus by touching the AF point on the screen. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.
Professional Input and Output
Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Specifications
Imaging
Image Sensor
1/2.3"-Type CMOS
Image Stabilization
Optical in Integrated Lens
Digital
Capture Type
Video Only
Exposure Control
Shutter Type
Electronic Global Shutter
Shutter Speed
1/2000 to 1 Second
Gain
0 to 24 dB (Native)
Signal-to-Noise Ratio
3 dB
Minimum Illumination
5 Lux at 1/30 Shutter Speed
0.3 Lux at 1/2 Shutter Speed
White Balance
2000 to 15,000K
Lens
Focal Length
3.6 to 73.4mm (35mm Equivalent: 29.3 to 627mm)
Optical Zoom Ratio
20x
Maximum Aperture
f/1.8 to 2.8
Minimum Focus Distance
Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Control Rings
Focus
Zoom
Focus Control
Autofocus
Manual Focus
Video Capture
Internal Recording Modes
H.264/MP4/XF-AVC
3840 x 2160 at 23.98/24.00/29.97 fps [150 Mb/s]
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [17 to 35 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
Fast-/Slow-Motion Support
Yes
Broadcast Output
NTSC
Built-In Microphone Type
Stereo
Audio Recording
MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
1 x Mini-HDMI 2.0 Output
Audio I/O
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Input
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1 x USB-C Input
Other I/O
1 x USB-C
Wireless
None
Mobile App Compatible
No
Monitor
Size
3.5"
Resolution
2,760,000 Dot
Display Type
Articulating Touchscreen LCD
Viewfinder
Type
Built-In Electronic (LCD)
Size
0.36"
Resolution
1,770,000 Dot
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Manual Focus
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature
23 to 113°F / -5 to 45°C
Operating Humidity
85%
Storage Humidity
60%
General
Battery Type
Canon BP-8 Series
Tripod Mounting Thread
1/4"-20 Female
Accessory Mount
1 x Cold Shoe Mount on Included Handle
Dimensions (W x H x D)
7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions)
Weight
1.6 lb / 740 g (Body Only)
2.5 lb / 1135 g (With Battery, Handle, Recording Media)
