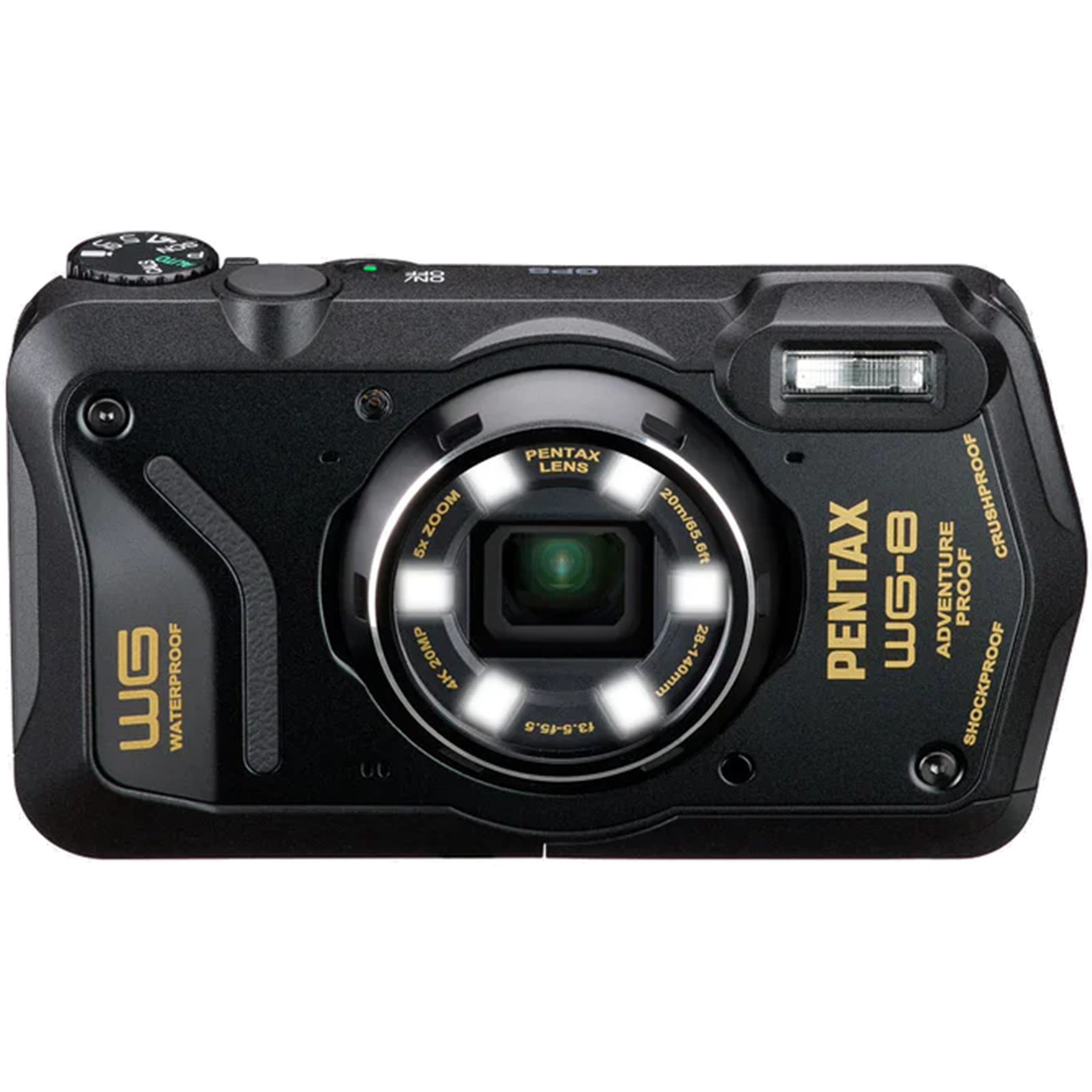

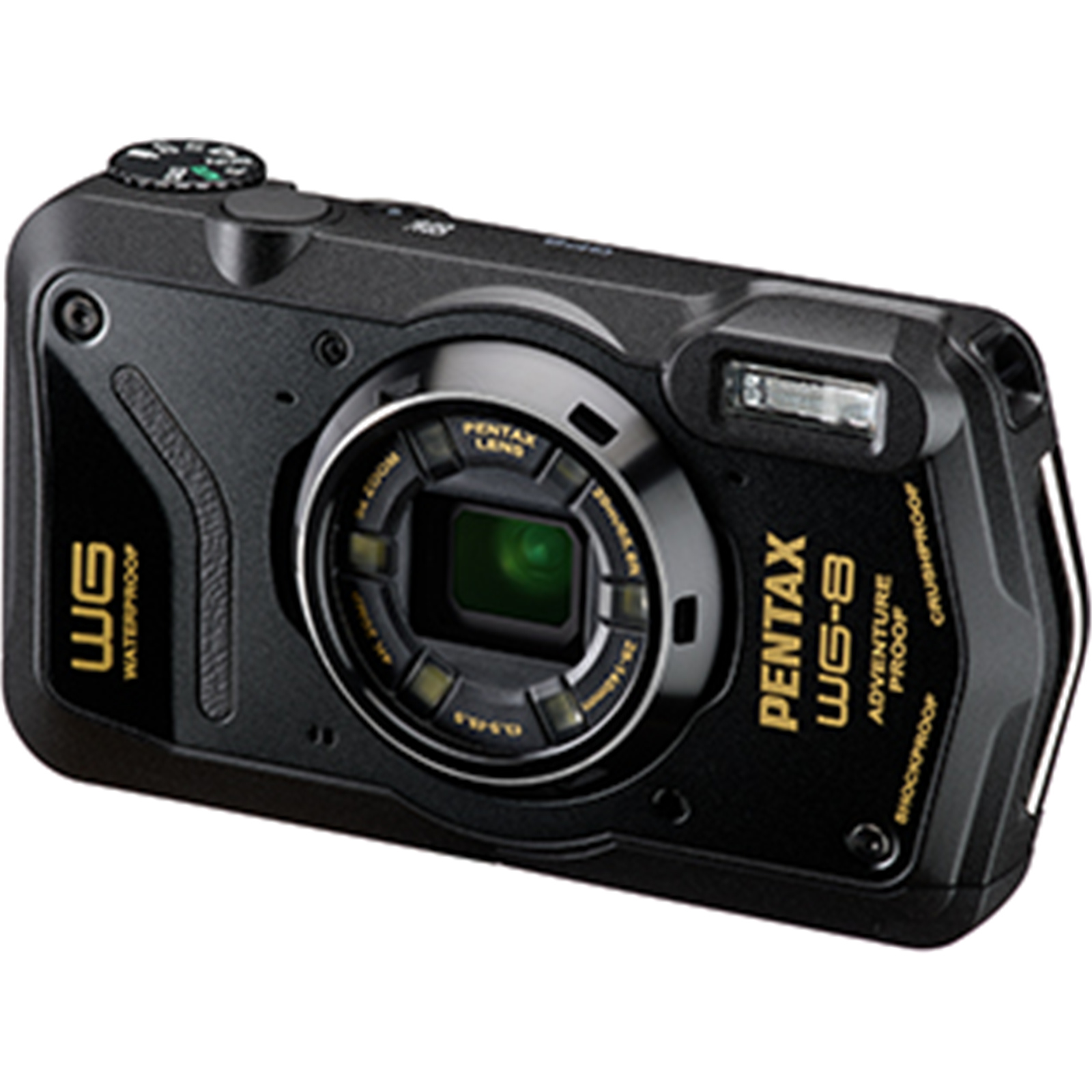

Pentax WG-8 Digital Camera - Black

An all-weather digital compact camera highly dependable in harsh conditions

Heavy-duty construction with outstanding protection against water, dust, shock and freeze, perfect for shooting at demanding locations including underwater and in the rain

The PENTAX WG-8's solid, airtight body is not only waterproof to a depth of 20 meters and for up to two hours of continuous underwater operation*1 and dustproof against dirt and dust*2 but it's also shockproof against a fall from heights of up to 2.1 meters*3 crushproof against weights of up to 100kgf (kilogram force)*4 and cold-resistant to temperatures as low as -10°C*5 Thanks to this heavy-duty construction, the WG-8 performs superbly and dependably in harsh, demanding locations, such as in the snow-covered mountains and under water.

*1 Equivalent to IPX8 or JIS Class 8
*2 Equivalent to IPX6 or JIS Class 6
*3 Measured using RICOH IMAGING-original testing standards, including a drop from a height of 2.1 meters onto a surface of 5cm-thick plywood, with the camera's power on, conforming to Method 516-5-Shock of the MIL-Standard 810F.
*4 Measured using RICOH IMAGING-original testing standards.
*5 The number of images that can be captured may be lower when the camera is operated at lower temperatures.

Aperture:F5, Shutter speed: 1/125 sec, Exposure compensation: 0.0EV, Sensitivity: ISO 125, White balance: Auto
Photographed by Kiyotaka Kitajima

Sharp, high-resolution images with approximately 20 effective megapixels and low-noise, high-dynamic-range characteristics

The combination of a state-of-the-art back-illuminated CMOS image sensor with approximately 20 effective megapixels and outstanding light receiving efficiency and a high-performance imaging engine mean that the WG-8 can deliver high-resolution, low-noise images that retain excellent resolution even when they are cropped and enlarged.

Within the compact, lightweight body, the WG-8 features a five-times optical zoom lens with an angle-of-view coverage from 5mm to 25mm (equivalent to approximately 28mm to 140mm in the 35mm format), covering a wide range of applications from wide-angle shooting of sweeping landscapes to telephoto shooting of distant subjects.

4K-resolution movie recording

The WG-8 provides 4K-resolution movie recording (at 3840 x 2160 pixels).* In addition to the conventional Movie SR (Shake Reduction) mode, it also features the Movie SR+ mode in the HD and Full HD movie recording modes to assure natural, flawless movie clips free of camera shake and distortion.

* The maximum recording length or image size of a single movie file is 25 minutes or 4GB.

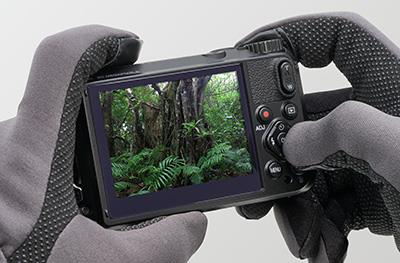

Outdoor-friendly design, providing easy operation even with a gloved hand

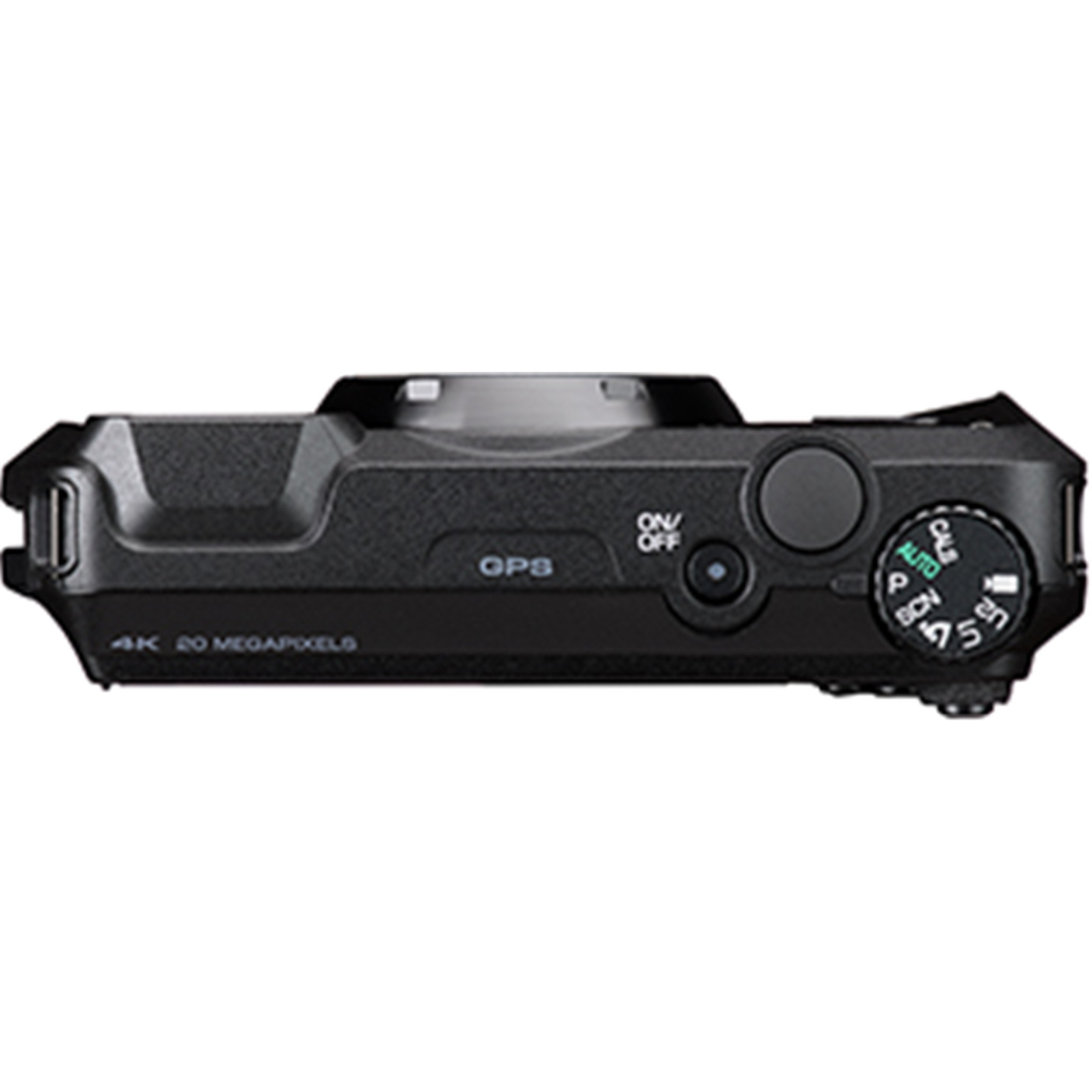

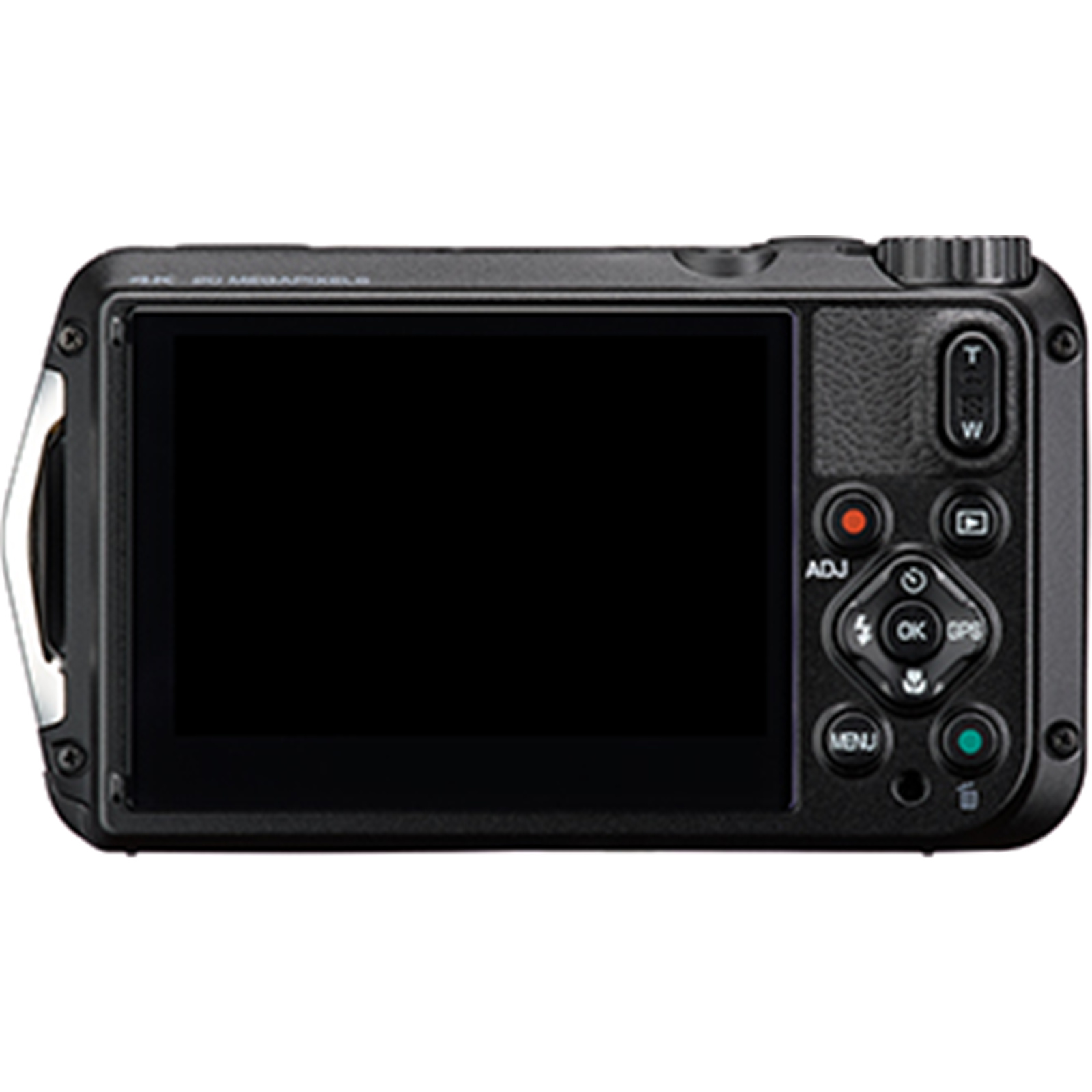

The WG-8 is designed for swift, flawless operation even in harsh shooting conditions. Encased in a solid body made from a high-rigidity aluminum panel, it allows you to shift the shooting mode with a simple turn of the mode dial, while the vertical zoom button makes zooming operation easier. The control buttons positioned on its back panel are widely spaced, making it easy to operate them even with a gloved hand.

Note: The LCD monitor image is simulated.

Designed for comfortable, speedy operation

The WG-8 allows you to change default settings of the Green and ADJ (adjustment) buttons to desired functions (such as exposure compensation in still-image photography, image size, aspect ratio, ISO sensitivity, and white balance). By customizing these settings, you can personalize camera operation and react more swiftly to ever-changing shooting conditions.

The WG-8 also lets you program frequently used shooting modes and/or exposure-compensation settings to the U1 and U2 positions of the mode dial.

3.0-inch LCD monitor with Outdoor View Setting for easy viewing during outdoor shooting

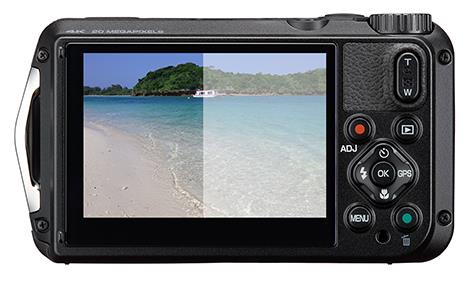

The WG-8 is equipped with a large, high-resolution 3.0-inch LCD monitor (3:2 proportions and approximately 1,040,000 dots). The advanced AR (Anti-Reflection) coating has been applied to its protective cover to minimize annoying glare and reflections during outdoor shooting. To optimize the visibility of the on-screen image, it also features the Outdoor View Setting function, which lets you adjust the monitor's brightness to a desired level (±2 steps) according to changes in ambient lighting conditions.

The monitor in sunny condition

Advanced GPS functions and built-in digital compass

The WG-8's built-in GPS module receives signals from GLONASS (Global Navigation Satellite System), as well as ordinary GPS satellites, and automatically records position data and travel log data onto captured images. Since you can synchronize captured images with their position data on a map, or display travel log data on a map, you'll have more fun during the post-shooting stages.

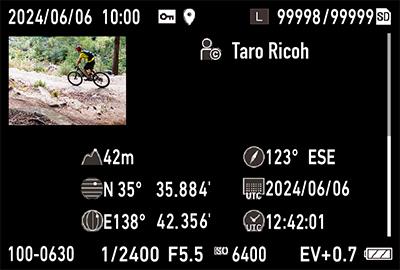

The WG-8 also lets you imprint GPS data and directional data acquired by the digital compass and UTC (Coordinated Universal Time) on the lower right corner of a captured image.

User-selectable shooting modes to accommodate all types of applications

A wide range of shooting modes to capture a variety of scenes and subjects
The WG-8 lets you choose the desired shooting mode from 24 options, including: Auto Picture, which automatically detects the type of a scene and selects the most appropriate shooting mode; Underwater and Underwater Movie, which reproduce the natural colors of the underwater world by optimizing white balance to reduce the bluish color cast; and Depth-of-field Composite, which retains sharp focus from the foreground to the background. You can select the mode that best suits your application or subject.

List of shooting modes
Auto Picture / Program / Scene (HDR; Handheld Night Snap; Night Scene; Underwater; Underwater Movie; Landscape; Flower; Portrait; High Sensitivity; Interval; Interval Movie; High Speed Movie; Surf & Snow; Kids; Pet; Sport; Fireworks; Depth-of-field Composite) / Digital Microscope / Movie / CALS

Note: In addition to the shooting modes above, the Green mode is also provided for an instant recall of default settings, with just a push of the button. Two user modes are also provided to save two sets of user-selected camera settings.

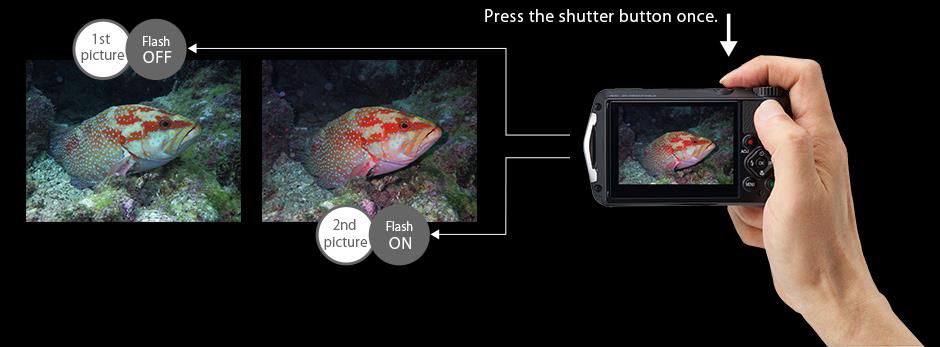

Flash Off + Flash On option for two-image consecutive shooting

In the Underwater mode, this creative option comes in handy when shooting underwater creatures. With a single shutter release, the WG-8 captures two images - one without flash and another with flash - to minimize the time and trouble for camera operation and let you concentrate on the image composition.

* Available in Underwater mode.

A selection of Image Tone modes, identical with those featured in PENTAX digital SLR models

The WG-8 provides five distinctive and creative Image Tone modes to add the desired finishing touch to captured images, depending on the subject or your creative intentions. They include: Vibrant, which applies bright, rich colors; and Slide Film, which creates dynamic, high-contrast images resembling those produced by reversal film.

Slide Film Aperture:F4.2, Shutter Speed: 1/5000sec, Exposure Compensation: 0.0EV, Sensitivity: ISO125, White balance: Auto
Photo by Kiyotaka Kitajima

List of Image Tone modes
Bright / Natural / Vibrant / Slide Film / Monochrome

An array of creative tools to optimize the fun of picture-taking

Two macro modes
The WG-8 provides a choice of two macro modes: The standard Macro mode lets you capture a close-up image of the small subject from 10 centimeters away, while the 1cm Macro mode lets you close in on the subject to just one centimeter. It also features an Auto Macro mode, which automatically shifts the minimum focusing distance to 10cm without the need for switching to the Macro mode from normal shooting.

Macro (Left): Focuses on a subject between 10 cm and 60 cm from the lens surface.
1 cm Macro (Right): Focuses on a subject between 1cm and 30 cm from the lens surface.

High-power, intensity-adjustable Ring Light handy for movie recording and macro shooting

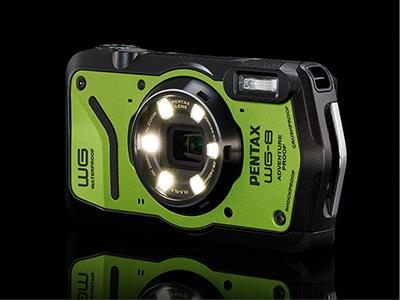

Positioned around the circumference of the lens barrel, the WG-8's six-LED Ring Light unit not only allows you to adjust the light intensity at nine levels, but it also lets you select the desired set of lights. You can turn all LEDs on to light up the entire scene brightly and evenly to eliminate shadows, or select only the horizontally or vertically aligned ones to illuminate the subject more three-dimensionally and emphasize its contours. The Ring Light unit comes in handy for applications demanding delicate lighting adjustment, such as macro shooting.

Possible to use LEDs as subsidiary light for movie recording.

Ring Light: OFF

Ring Light: ON

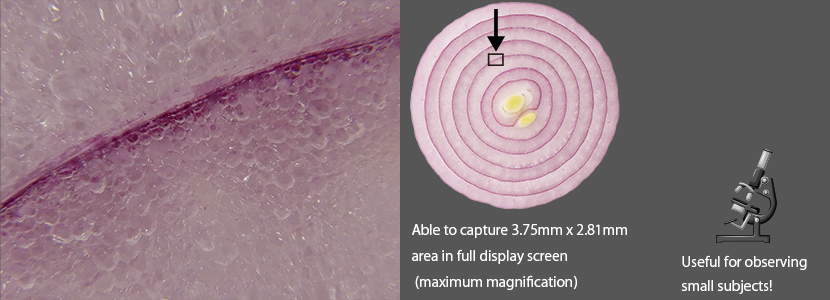

Digital Microscope for effortless capture of the microscopic world

The WG-8's Digital Microscope mode* comes in handy when you want to swiftly switch from normal shooting to macro photography to capture the amazing microscopic world, which is often difficult to observe with the naked eye. The six-LED Ring Light unit allows you to select a faster shutter speed to minimize camera shake.

* When this mode is selected, the image size is fixed at 3M (at 4:3 proportions).

Creative, flexible processing of captured images

The WG-8's Ink Rubbing filter allows you to casually save your catches as eye-catching digital images. It also provides other creative filters to process captured images in a unique, artistic way. They are all designed to personalize captured images and add more fun after shooting, by shifting tones, adding special visual effects, dramatizing images, or creating various types of ambience.

List of filters:
Small Face / Ink Rubbing / Digital (B&W, Sepia, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fish-eye, Brightness, Miniature) / HDR

Copyright Data Imprint setting

Using the WG-8's watermark (credit notice) function, you can imprint a total of up to 32 letters, numbers and/or symbols on a captured image. It even lets you select the position, size and color (from seven options) of imprinted data.

Other features:

- Face Detection AF & AE to capture as many as 30 faces in focus - Auto Tracking AF - AF assist lamp - Continuous shooting - Burst shooting - Multi-image continuous shooting - Single-image continuous shooting - Auto bracketing - Dynamic Range options - Self-timer - Smile Capture - Blink detection - Self-portrait assist - Remote control (using an optional remote controller)

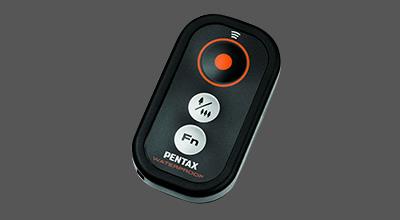

Waterproof Remote Control O-RC1 (option)

Worksite applications

Worksite-friendly, heavy-duty design
Equipped with a durable, rugged body assuring impeccable protection against water, dust, shock and freeze, the WG-8 is designed to assure a firm hold even with a gloved hand, and provide effortless shifting of various modes with a simple turn of the dials.

The lighting-adjustable Ring Light unit comes in handy at poorly illuminated worksites, while the macro modes are useful in recording close-up images of cracks on concrete walls or iron reinforcement bar marks.

Webcam function

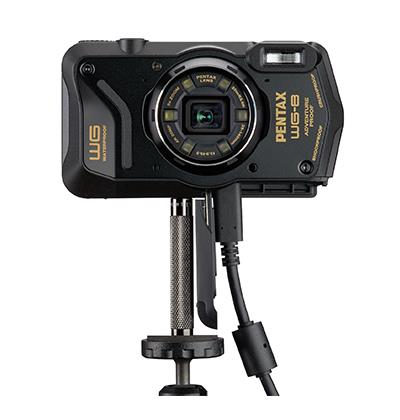

Simply by switching the WG-8 to the UVC (USB Video Class) mode and connecting it to a computer with an USB cable (included as a standard accessory), it can be used as a web camera* for real-time streaming of Full HD-resolution video images at 30 frames per second. By combining its macro shooting capability with the built-in Ring Light unit, you can deliver fine-detailed images during online business meetings or private online communications. You can also use the optical five-times zoom lens to share a distant subject with the audience.

Notes:
- When using a tripod, the optional TE-2 Extension Adapter (available separately) is required to avoid interference with the battery cover.
- The webcam function does not provide audio output. We advise using the computer's built-in mic for audio communications.
- The image resolution is fixed at Full HD at 30 frames per second.
- The LCD monitor is turned off when used as a web camera.
- Camera settings such as the exposure compensation factor and white balance level are not adjustable.
- The duration of webcam usage may be limited due to the camera's battery capacity.
- When the Ring Light unit is used for an extended duration, the camera's power may be automatically turned off to prevent overheating.
