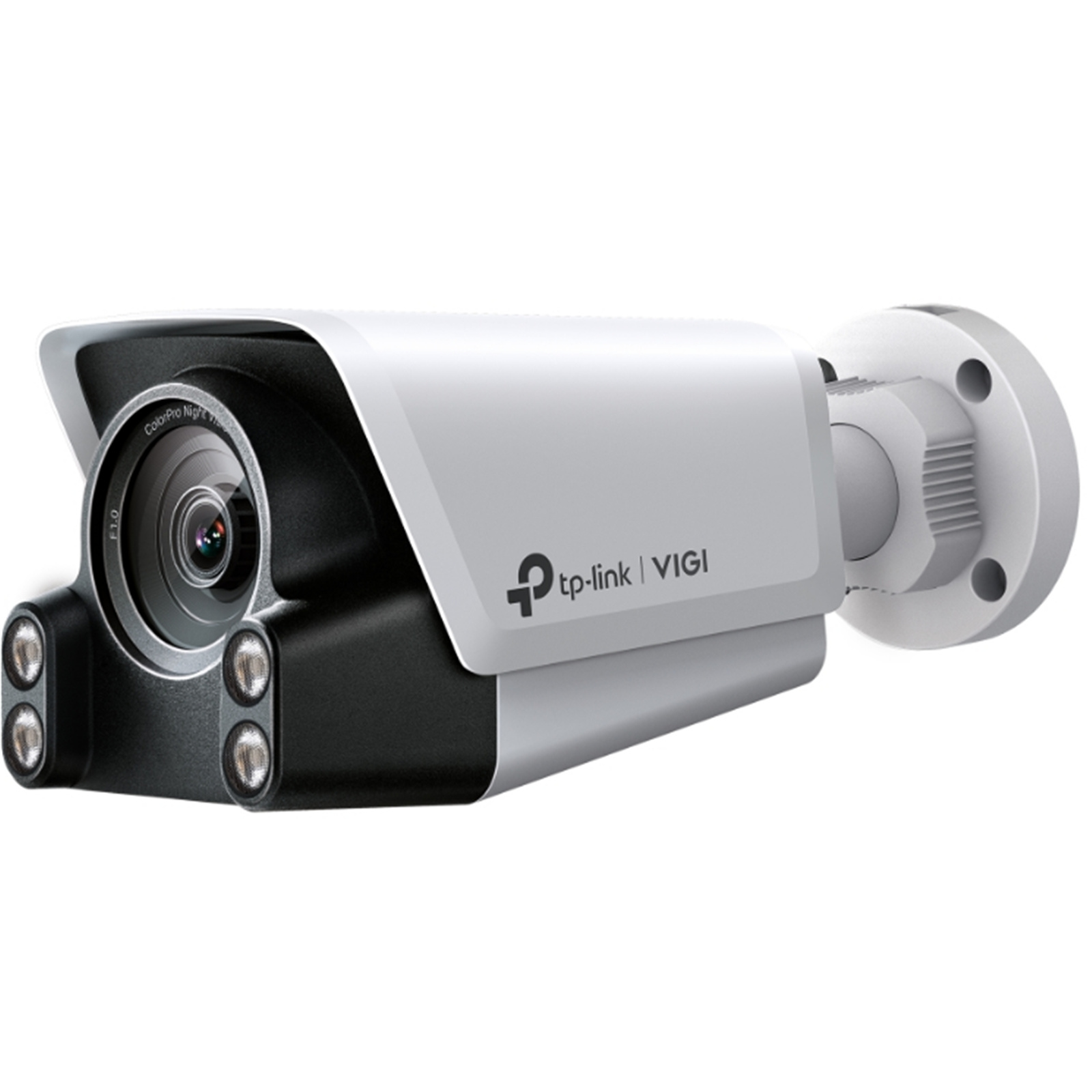

TP-Link VIGI C340S(4mm) VIGI 4MP Outdoor ColourPro Night Vision Bullet Network Camera
TP-Link VIGI C340S(4mm) VIGI 4MP Outdoor ColourPro Night Vision Bullet Network Camera
- Brand: TP-Link
- MPN: VIGI C340S(4mm)
- Part #: CAMTPL0209
- UPC:
- Brand: TP-Link
- MPN: VIGI C340S(4mm)
- Part #: CAMTPL0209
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Hardwired Articles
View All Hardwired Articles
Popular Other Surveillance Accessories
RING Quick Release Battery Pack
Arlo SmartHub VMB4540 with USB Port for External HDD
RING All-new Chime Pro (2nd Gen)
Eufy eufyCam 2C Silicone Case Black - 2 Pack, for eufyCam 2C and...
RING Chime (2022)
TP-Link VIGI C340S(4mm) VIGI 4MP Outdoor ColourPro Night Vision Bullet Network Camera
- Brand: TP-Link
- MPN: VIGI C340S(4mm)
- Part #: CAMTPL0209
Product URL: https://www.pbtech.co.nz/product/CAMTPL0209/TP-Link-VIGI-C340S4mm-VIGI-4MP-Outdoor-ColourPro-N
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
VIGI ColorPro Night Vision
VIGI's industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail.By adopting this best-in-class technology, VIGI C340S can provide 4MP high resolution and capture more vivid full-color images in extreme low-light conditions.
Better than the Naked Eye
Featuring high low-light sensitivity, VIGI's ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in ultra-low light conditions, which can't be achieved with natural eyesight.*
Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI's ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.*
Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
Face Recognition
VIGI's advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.
People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.
Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
PoE & IP67
Outdoor PoE connection makes your wiring remarkably easy. Reliable IP67 enables stable outdoor performance.
Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Specifications
CAMERA
Image Sensor
1/1.8" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Aperture
4 mm: F1.0
6 mm: F1.0
Lens
Fixed focal lens (4 mm / 6 mm)
Lens Mount
M12
Minimum Illumination
Color: 0.0005 Lux; 0 Lux with white light
Day/Night Mechanism
NA
Day/Night Switch
Day/Night/Auto/Schedule-Switch
White LED
Quantity: 4
Digital Noise Reduction
3D DNR
WDR
120dB
Weatherproof Rating
IP67
Illumination Distance
30 m
Viewing Angle
4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
6mm: Horizontal FOV: 57.1°, vertical FOV: 30.2°, Diagonal FOV: 67.2°
LENS
Type
Fixed Focal Lens
Focal Length
4 mm
Aperture
F1.0
FOV
4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
Lens Mount
M16*P 0.5
DORI Distance
4 mm:
Detect: 70 m (231 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: -90° to 90°
Tilt: -90° to 90°
ILLUMINATOR
White LED
Quantity: 4
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2688 x 1520
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement
BLC/3D DNR/HLC
Wide Dynamic Range
120 dB
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Yes
Audio Output
Yes
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage
NAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Output Notification
Message Push
DEEP LEARNING FUNCTION
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture
Support
Face Comparison
Support
Perimeter Protection
Motion, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering.
Supports Alarm Triggering by Specified Target Types (Human and Vehicle)
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input
Built-in Microphone
Audio Output
Built-in Speaker
Reset Button
Yes
Power
DC Power Port
Button
Reset Button
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
GENERAL
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D )
99 × 102 × 236 mm
Material
Front Cover: Mental
Other: Plastic
Material
Front Cover: Metal
Back Cover: Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Consumption
12V DC: Max 10.1W
PoE: Class 0
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection
IP67
Product Dimensions (L x W x H)
102× 236× 99 mm
