DNA AVR010DP VOLTAGE REDUCER 24V TO 12V 10AMPS CONTINUOUS DUAL OUTPUT

PB Tech price
PB Tech price
$ 89 .57
 +GST
$ 103 .01
 inc GST
$89.57  +GST
$103.01

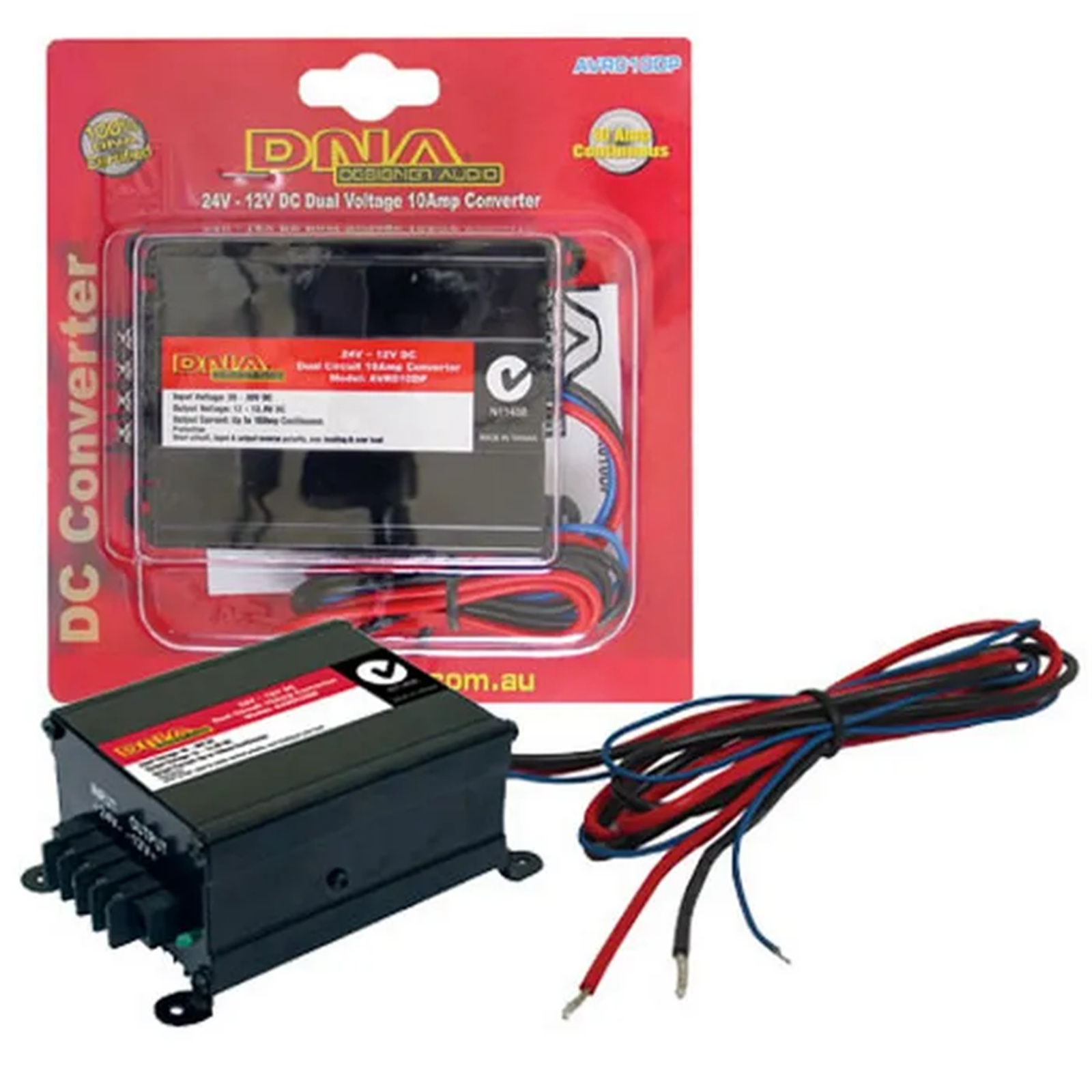

DNA AVR010DP VOLTAGE REDUCER 24V TO 12V 10AMPS CONTINUOUS DUAL OUTPUT

  • Brand: DNA
  • MPN: AVR010DP
  • Part #: CARDNA1043
  • UPC:
PB Tech price
$ 89 .57 $ 103 .01
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 24 Oct When will I receive it?
$89.57  +GST
$103.01

Four payments of $26.01 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.

- Input DC voltage range: DC20~30V DC
- Output voltage range: 12V~13.8V
- Continuous power: 10 Amps
- Peak power: 15 Amps
- No load current draw: 20mA
- Max. power efficency: >90%
- Cooling: Air convection
- Input polarity reverse: Diode protection
- Output polarity reverse: Circuit protection
- Over heating: Circuit protection
- Over load: Circuit protection
- Output short: Circuit protection
- Fuse: 15 Amps
- Dimension (LxWxH): 90 x 73 x 45mm
- Weight: 330g

Specifications

Product name

VOLTAGE REDUCER 24V TO 12V @10AMPS CONTINUOUS DUAL OUTPUT

Input DC voltage range

DC20~30V DC

Output voltage range

12V~13.8V

Continuous power

10 Amps

Peak power

15 Amps

No load current draw

20mA

Max. power efficency

>90%

Cooling

Air convection

Input polarity reverse

Diode protection

Output polarity reverse

Circuit protection

Over heating

Circuit protection

Over load

Circuit protection

Output short

Circuit protection

Fuse

15 Amps

Dimension (LxWxH)

90 x 73 x 45mm

Weight

330g

Manufacturer Part No:
AVR010DP
Brand:
DNA
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
CARDNA1043
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
