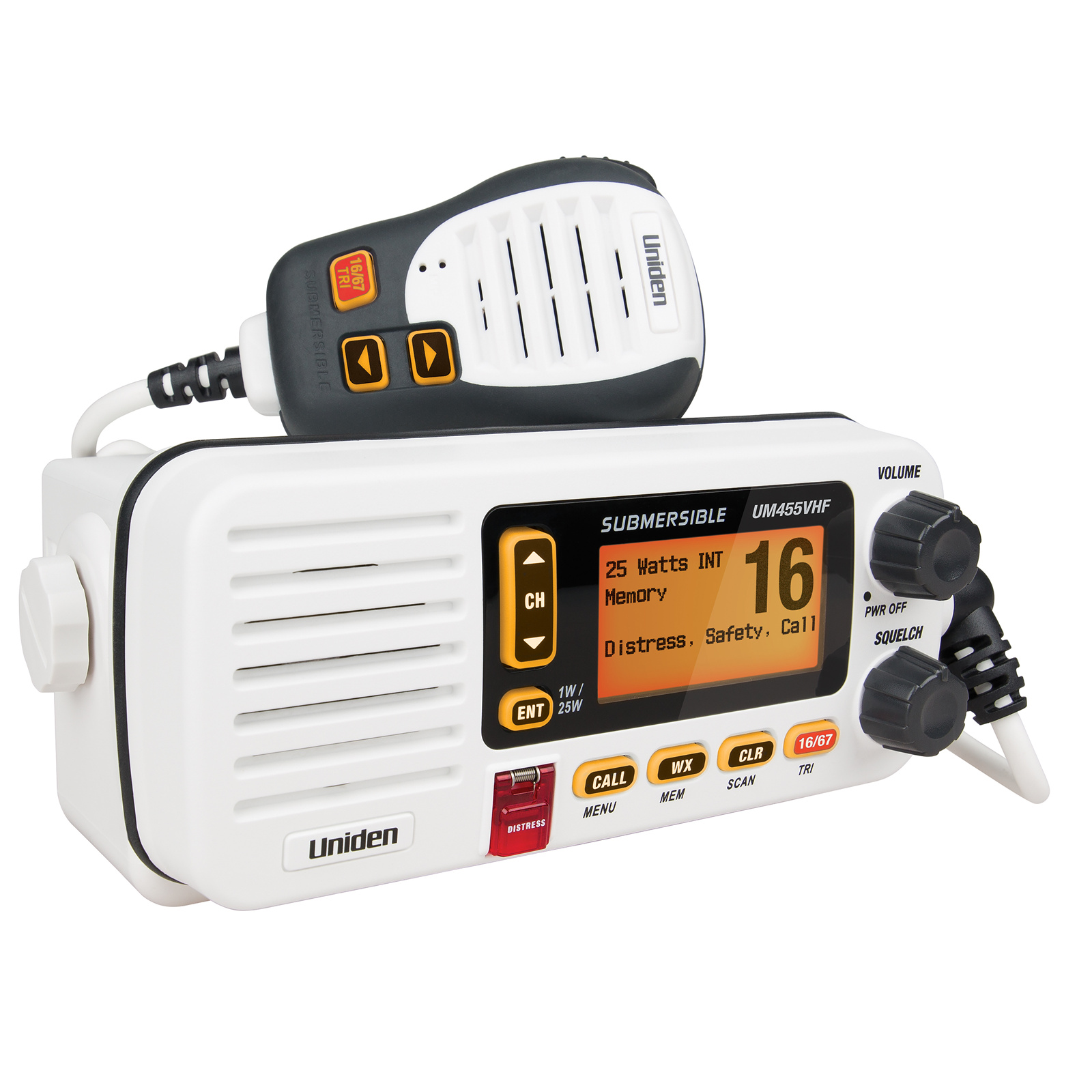

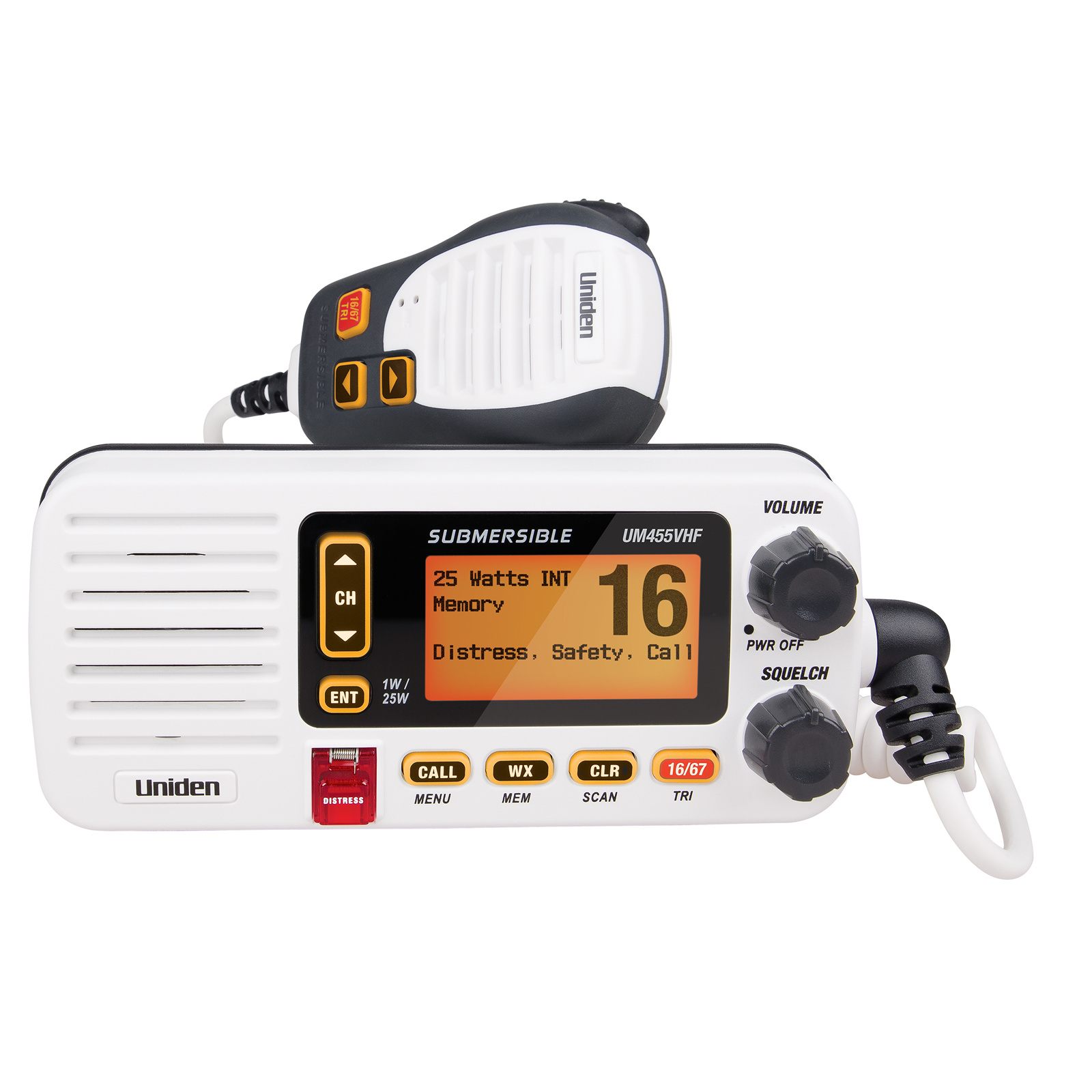

Uniden UM455 25W VHF Marine Radio, DSC, Waterproof, White

PB Tech price
PB Tech price
$ 244 .35
 +GST
$ 281 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Uniden UM455 25W VHF Marine Radio, DSC, Waterproof, White

  • Brand: Uniden
  • MPN: UM455
  • Part #: CARUND0237
  • UPC:
PB Tech price
$ 244 .35 $ 281 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Uniden UM455 25W VHF Marine Radio, DSC, Waterproof - White

Ideal for off-shore communications, this water resistant UM455VHF is the flagship of all VHF marine models. The watertight radio housing is certified to meet the worldwide JIS7 water-resistance specification. It has a rugged waterproof and submersible speaker microphone, meeting the world JIS7 specification^ and includes Channel Select, One-Touch 16/9 and Triple Watch Select Keys.

Equipped with dual speakers for better sound clarity, the UM455VHF has one speaker at the front of the unit and a second speaker built into the microphone handpiece. The UM455VHF has an optional GPS receiver for position input, or output received positions to an optional chart plotter.

The DSC Class D function allows for selective calls to any vessel with a DSC marine radio. Send or display position information with the connection of an optional GPS receiver or optional chart plotter. Send an Emergency Distress signal at the touch of the Red Emergency button; this includes your MMSI number and GPS position.

The UM455VHF allows you to boost the transmission power from 1 watt to 25 watts for maximum transmission distance. The Extra Large LCD Display and Keypad is backlit for easy viewing at night or in low light situations. The microphone and controls are made out of non slip rubberised material making it comfortable and secure to handle.

Designed in Japan to offer outstanding performance in virtually all conditions and situations, this off-shore radio represents the highest level of quality and performance in marine radios. Uniden's UM455VHF is durable and ideal enough for boating, marine, fishermen, commercial use and so much more. With extended range and crystal clear sound, the UM455VHF is the ultimate in VHF marine communications.

- VHF Marine In-Boat Radio
- Submersible Speaker Microphone
- Rugged Waterproof Housing
- DSC (Digital Selective Calling)
- GPS Input / Output
- Dual Speakers
- Full Dot Matrix LCD Display
- 1W / 25 W Transmitter Power Level Select
- Variable Squelch Level Knob
- Volume Control Knob
- Intuitive Menu
- Triple Watch Mode
- One-Touch Channel 16/67
- Programmable Memory & Scan
- International Channels
- Battery Level Display and Tone
- Back-Lit Keys and Display.

Specifications

General

Controls

Volume-Pwr, Squelch

Status Indicators

Transmit power, Scan mode, Triple Watch mode, Battery High, Battery low, USA, CAN, INT, Memory, GPS, Message, Weather band, GPS status and Channel Display

Display

LCD (Full Dot Matrix)

Buttons

ENT-1W/25W, Channel UP, Channel DOWN, CALL-MENU, WX-MEM, CLR-SCAN, 16/67-TRI, DISTRESS, and SCAN/MEM

Connectors and Cables

Antenna, accessory, and DC power

Size

H 75 mm x W 167 mm x L 129 mm (without Heat Sink)
H 2.95 inches x W 6.58 inches x L 5.08 inches

Weight

1 kg

Supply Voltage

Nominal 13.8V DC, negative ground (10.8 VDC to 15.6 VDC)

Antenna Impedance

50 O nominal

Microphone Rugged

2 kO condenser mic element with coiled cord

Speaker

4.49cm, 8 O

Operating Temperature Range

-15 °C to + 55 °C

Shock and Vibration

Meets or exceeds EIA standards, RS152B and RS204C

FCC Approvals

Type accepted under part 80 of the Rules; meets Great Lakes Agreement and party boat requirements

Transmitter

Power Output

1 watt or 25 watt (user selectable)

Power Requirement

25 watts output: 6A @ 13.8V DC

Modulation

±5 kHz deviation

Hum and Noise Signal-to-Noise

45 dB @ 1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal)

Audio Distortion

Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency

Spurious Suppression

-45 dBm @ Hi, -55 dBm @ Lo

Output Power Stabilization

Built-in automatic level control (ALC)

Frequency Range

156 to 158 MHz

Frequency Stability

±1.5kHz @ -15°C to + 55°C

Receiver

Frequency Range

156 to 163 MHz

Sensitivity

0.25 µV for 12 dB SINAD (nominal)

Circuit

Dual Conversion Super Heterodyne PLL (Crystal for DSC)

Squelch Sensitivity

0.2 µV Threshold

Spurious Response

75 dB (nominal)

Adjacent Channel Selectivity

78 dB @ ±25 kHz (nominal)

Audio Output Power

2.5 watts (10% Distortion, 8 O load)

Power Requirement

400mA @ 13.8V DC at squelched, 920 mA @ 13.8V DC at maximum audio output

IF Frequencies

1st 41.925 MHz, 2nd 455 kHz (1st 21.7 MHz, 2nd 455 kHz for DSC)

Manufacturer Part No:
UM455
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
CARUND0237
Product Model:
UM455
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
