BlackVue DR770X-2CH-II FRONT & REAR FACING FULL HD DASHCAM 64 GB
BlackVue DR770X-2CH-II FRONT & REAR FACING FULL HD DASHCAM 64 GB
- Brand: BlackVue
- MPN: DR770X-2CH-II
- Part #: CARVUE1070
- UPC:
- Brand: BlackVue
- MPN: DR770X-2CH-II
- Part #: CARVUE1070
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Front & Rear Dash Cams
BlackVue DR770X-2CH-II FRONT & REAR FACING FULL HD DASHCAM 64 GB
- Brand: BlackVue
- MPN: DR770X-2CH-II
- Part #: CARVUE1070
Product URL: https://www.pbtech.co.nz/product/CARVUE1070/BlackVue-DR770X-2CH-II-FRONT--REAR-FACING-FULL-HD
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The DR770X Series Just Got Better
The next evolution of the BlackVue DR770X series, this upgraded lineup delivers enhanced video quality, faster boot times, and optimized Wi-Fi performance for seamless connectivity. With expanded 1TB microSD support and improved audio recording, every detail is clearer than ever. Experience smarter protection with a dash cam that's ready when you are.

- Enhanced video quality
- 1TB microSD support
- Improved audio recording with reduced noise
- Optimized Wi-Fi performance
- Start up time reduced from 24-36s to ~14s

BlackVue Full HD Cloud Dashcam
Full HD cloud dashcams deliver clear recording performance powered by Sony STARVIS sensors, providing strong visibility in both day and night conditions, while native parking mode keeps your BlackVue monitoring your vehicle around the clock for continuous protection.

Motion Detection Mode
Records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
Time Lapse Mode
Records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.

BlackVue Cloud
Packed With Innovative Features Live View, Emergency Alarm, GPS Tracking,Two-way Voice Communication, Video Backup, Remote Video Playback, the possibilities are endless. BlackVue Over the Cloud is all about using your dashcam to its full potential, so that you and your car are always connected.

Specifications
What's Included?
Front Camera
Rear Camera
Hardwiring Power Cable
USB-C Power Cable
USB-C 12V Adapter
Rear Camera Connection Cable
MicroSD
Double-sided tape for the mounting brackets
Pry tool / Trim Remover
Cable clips (5 EA)
Alcohol Pad
Model Name
DR770X-2CH-II
Channel
2CH
Memory
64GB
Highlights
Highlights
Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions
Black / Length 135.0mm x Width 101.0mm x Height 37.5mm / 209g
Memory Support
microSD card up to 1TB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (hardwiring cable included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Diagonal 139°, Horizontal 116°, Vertical 62°
Resolution Frame Rate
Full HD @60fps
* Frame rate may vary during Wi-Fi streaming
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 50)
SD Card Failure Alert
YES
Scheduled Reboot
YES
Video File Extension
MP4
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
Built-in (Dual Band : GPS, GLONASS)
Specifications
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor

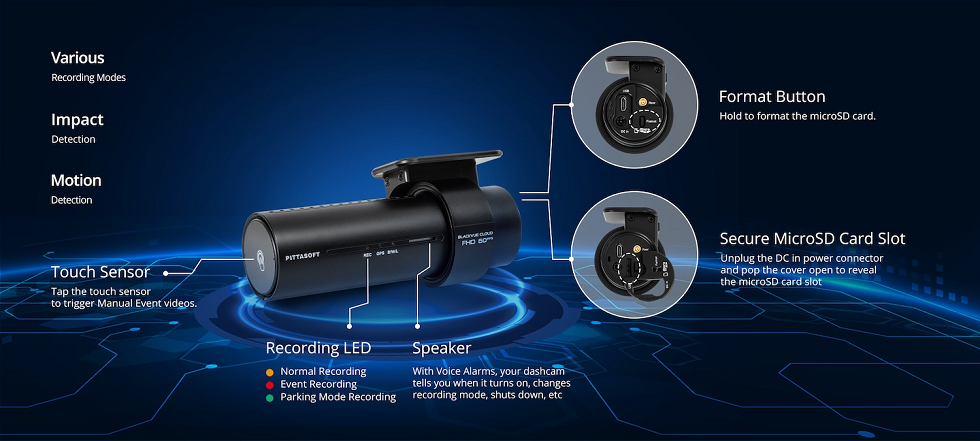

LED Indicators
Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature
-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature
-20 °C − 80 °C (-4 °F − 176 °F)
High Temp Cut Off
Approx. 80 °C (176 °F)
Backup Battery
Built-in supercapacitor
Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
* Actual power consumption may vary depending on use conditions and environment
Certifications
Certifications
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software
BlackVue Viewer
Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
Chrome 71 or higher, Safari 13.0 or higher
Application
BlackVue Application
Android 8.0 or higher, iOS 13.0 or higher
Others
Adaptive Format-Free File Management System
Yes
Bluetooth
Built-in (V2.1+EDR/4.2)
LTE
External (optional)
