BlackVue DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT IR 1080 HD DASHCAM 64 GB

PB Tech price
PB Tech price
$ 808 .36
 +GST
$ 929 .61
 inc GST

Out of stock

BlackVue DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT IR 1080 HD DASHCAM 64 GB

  • Brand: BlackVue
  • MPN: DR770X-BOX-3CH-PRO
  • Part #: CARVUE1071
  • UPC:
PB Tech price
$ 808 .36 $ 929 .61
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Combining stealth and security, the DR770X Box Pro features SONY STARVIS sensors and FHD recording across all cameras for exceptional clarity. Starting with a single-camera setup, the system can be expanded with up to two additional cameras for complete interior and exterior coverage.

Full HD for Everyone

The front, rear and interior cameras feature an upgraded Full HD Sony STARVIS™ image sensor. The back-illuminated image sensors produce the best image quality under any light thanks to high sensitivity and wide dynamic range. Available as a complete system or base 1CH set-up.



Premium features & configurations

The BlackVue DR770X BOX Pro: a compact front camera paired with a secure recording unit that installs safely out of sight. From this foundation, transform it into a complete three-camera system by adding any two cameras from our range - choose from the standard rear, waterproof external, or infrared interior options. This modular design gives you the flexibility to create your perfect surveillance setup, all in FHD 1080P.



Security meets function

Cover all angles with this exclusive three channel offering by BlackVue. Capture all moments and ensure your footage is safe from erasure, with built-in security features and event mode recording.



Triple Channel Vision

A three-channel capable set up lets you capture all of the essential details. Capture crucial moments that happen within and externally to your car in high quality Full HD resolution. Monitor the inside, what's happening in front and anything crucial in the rear.



Intelligent parking mode

With advanced parking mode technology, your dash cam protects your car, recording videos when it detects movement or impact, even when you're not there. Buffered recording even includes the few seconds before and after the triggered event, so you get the complete picture.



BlackVue Cloud™

- Live View: Remote Viewing at your fingertips
- Emergency Alarm: Receive notifications on the go
- Video Backup: Move files from dashcam to cloud
- Video Playback: Watch on your dash cam or smartphone

Specifications

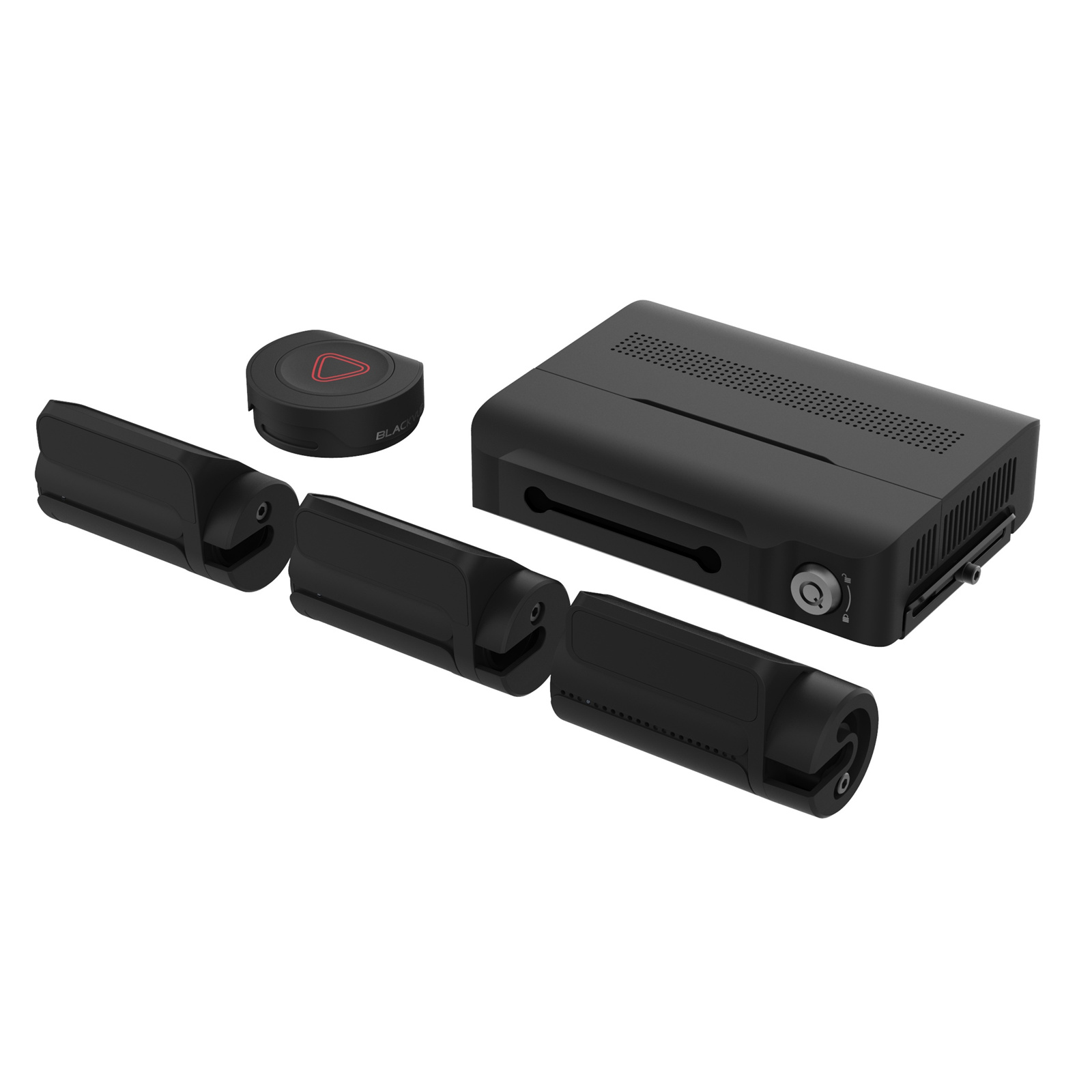

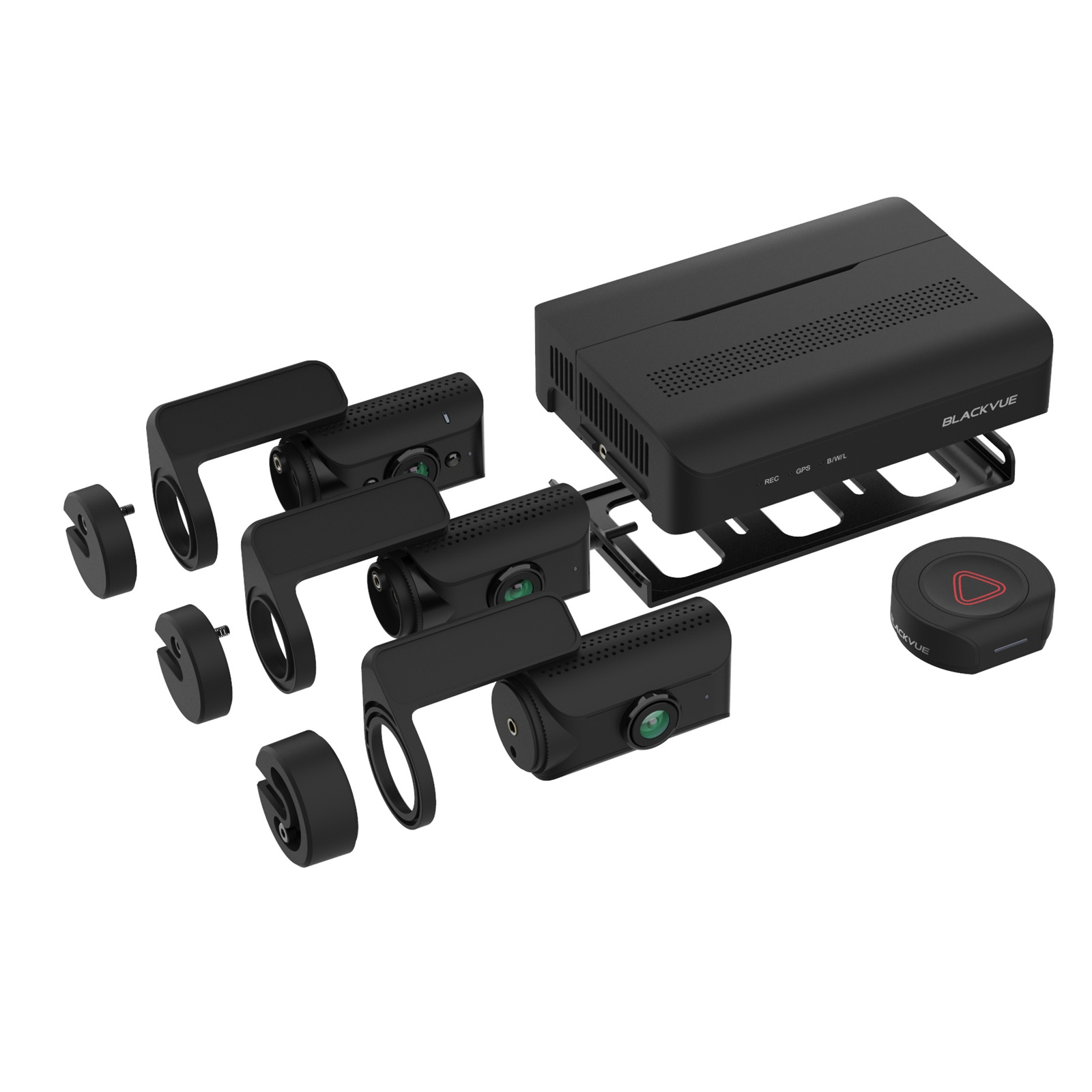

What's Included

Main Unit
Front Camera
Rear Camera
Rear Infrared Camera
SOS Button
Main unit cigarette lighter power cable (4.5M)
Main unit hard wiring power cable (4.5m)
Camera connection cable (6m, 3EA)
Micro SD with Card Reader
Quick start Guide
Mounting Tape and Main unit key

Model Name

DR770X Box-3CH Pro

Channel

3CH

Highlights

Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module

Product Dimensions

Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
Interior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

Rear Camera Connection

Coaxial cable

Memory Support

microSD card up to 512GB

Recording Modes

Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Imaging Sensor

Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle

Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93°

Resolution Frame Rate

Front / Rear / Interior IR
Full HD (1920×1080) @ 60 fps - Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Front / Rear / Interior
Extreme: 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High: 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps

Format Free

YES (Adaptive)

Event File Overwrite Protection

YES (up to 51)

SD Card Failure Alert

YES

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11 b.g.n)

Cloud Compatible

YES

GPS

External (Dual Band : GPS, GLONASS)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Front: Front & Rear Security LED
Rear: Front & Rear Security LED
Interior IR: Front & Rear Security LED
EB-1: Operating / Battery low voltage LED

Rear Camera IR Illumination

Interior IR: 940nm (2 Infrared (IR) LEDs)

Button

EB-1 button : Press the button - manual recording.

Operation Temperature

-20°C - 70°C (-4°F - 158°F )

Storage Temperature

-20°C - 80°C (-4°F - 176°F )

High Temp Cut Off

Approx. 75 °C (167 °F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour

Normal Mode (GPS On/3CH) : Avg. 750mA/12V
Parking Mode (GPS Off/3CH) : Avg. 600mA/12V
* Approx.40mA increase in current when Interior Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.

Certifications

Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC

Software

BLACKVUE Viewer
Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BLACKVUE Web Viewer
Chrome 71 or higher, Safari 13.0 or higher

Application

BLACKVUE Application
Android 8.0 or higher, iOS 13.0 or higher

Others

Adaptive Format Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)

Manufacturer Part No:
DR770X-BOX-3CH-PRO
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
CARVUE1071
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
