Features
1-Port PoE PD EPoC RX Adapter
EPoC (Ethernet & Power over Coax) line is a long-reach solution providing Fast Ethernet and PoE over RG6 coaxial cable up to 1200m(3937ft) for any brand of PoE IP camera. This product line also is often used to upgrade legacy of CCTV to IP surveillance without changing legacy RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber. In addition, the power over coax to remote PoE IP camera is more convenient than optical fiber solution.
- PoE pass through coax to remote PoE IP camera
- Eliminates the need for local site power supply
- Wall-mount installation
- Plug-and-Play installation

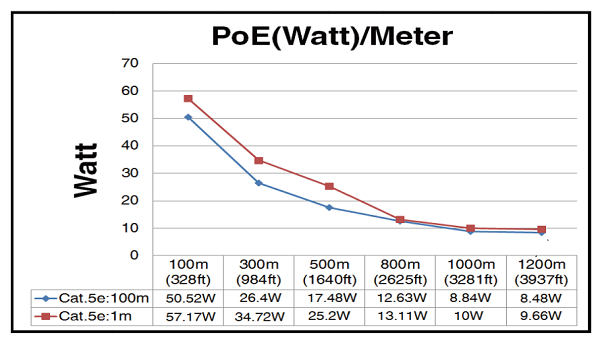

Power / Distance Chart

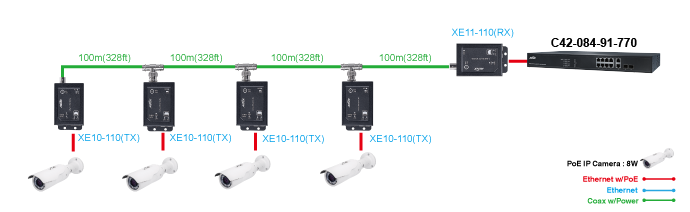

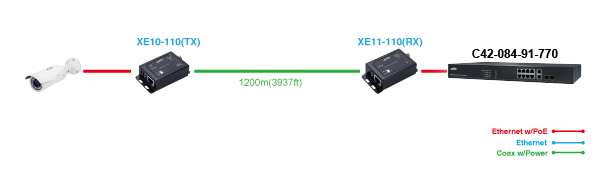

Applications


Specifications
Interface / Distance
75Ω Coaxial BNC Port
1
10/100Mpps Ethernet RJ45 Port
1
Transmission mode
RX mode
MAX.(Power+Data) Distance
9.7W@1200m(3937 ft)
PoE Specifications
PoE PD
30W/60W/90W PoE
PoE Pass Through
v
Mechanical Specifications
Dimensions (L x W x H)
85.4 x 47.1 x 23 mm (3.36x1.85x0.91")
Weight
0.26 kg (0.57 lb)
Connectors
BNCx1 , RJ45x1
Environmental Specifications
Operating Temperature
-20°C ~ 60°C (-28°F ~ 140°F)
Storage Temperature
-20°C ~ 85°C (-28°F ~ 185°F)
Operating Humidity
5% ~ 90% non-condensing
Certifications
EMC
CE, FCC, VCCI, C-Tick
Safety
EN60950-1, IEC60950-1
