Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

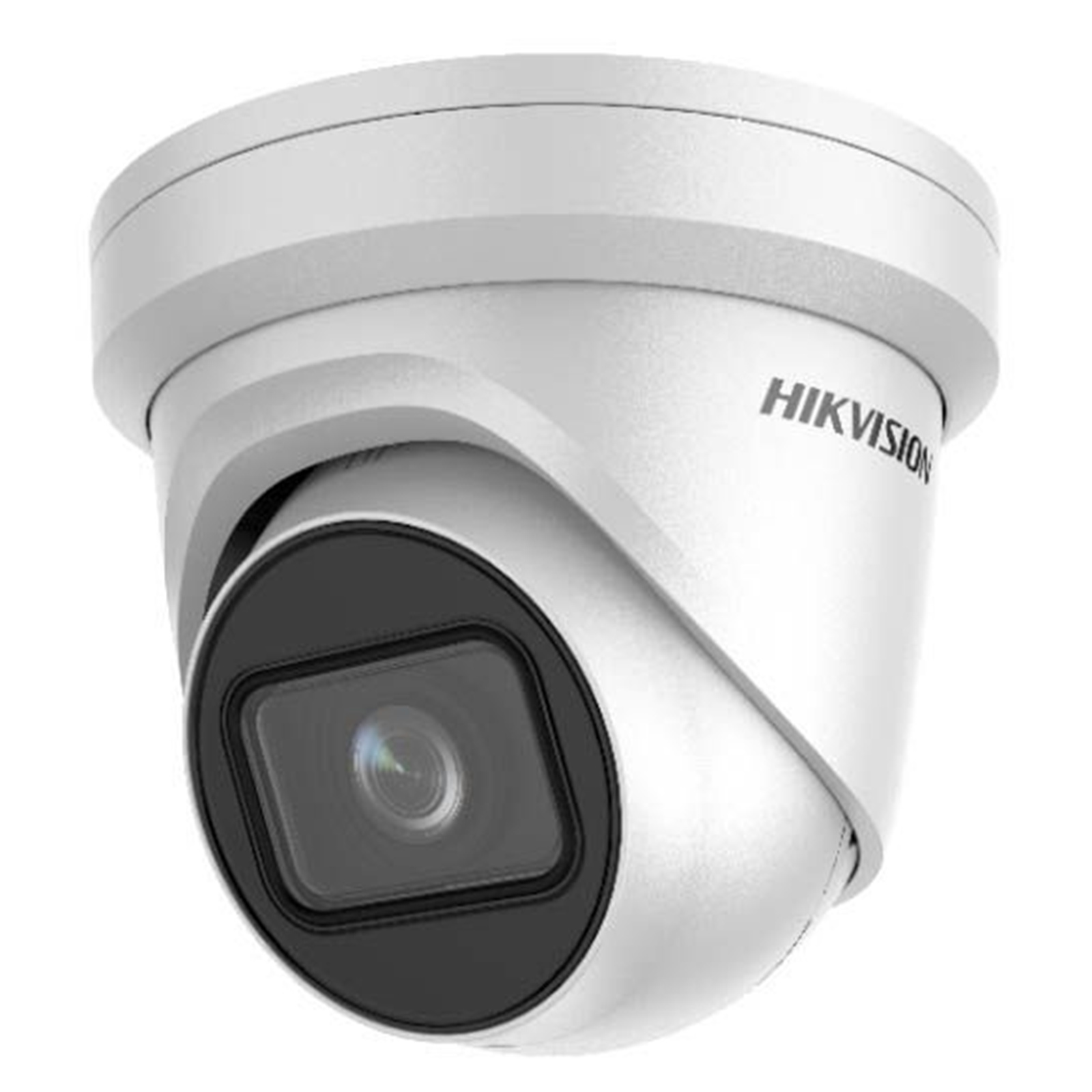

HIKVISION DS-2CD2H83G1-IZS 8MP Varifocal 2.8-12mm Turret IP67

Brand: HIKVISION
MPN: DS-2CD2H83G1-IZS
Part #: CCTHIK0136
UPC:

In stock at PB Tech stores

Check store stock levels

Click & Collect: Available from 1 store.
Select your store to check availability

Delivery: Order now and it ships on 04 Nov When will I receive it?

Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: DS-2CD2H83G1-IZS
Part #: CCTHIK0136
UPC:

Be the first to review this product

Max Video Resolution

3840 x 2160

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 128GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Black & White

Camera Megapixels

8 Megapixels

Indoor/Outdoor Use

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Motorized varifocal lens for easy installation and monitoring
- Robust structure design with full metal materials

Specifications

Camera

Image Sensor

1/2.5" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focus

Auto

Lens Type

2.8 to 12 mm,Motorized

FOV

Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°

Aperture

F1.6

Lens Mount

F14

Aperture Type

Fixed

Illuminator

IR Range

Up to 30 m

Wavelength

850nm

Video

Max. Resolution

3840 × 2160

Main Stream

50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Scalable Video Coding (SVC)

H.264 and H.265 encoding support

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHZ/48kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket,

WebSockets

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

DNR

3D DNR

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

General Function

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, F 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.92 A, max. 11 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W

Camera Dimension

Camera: F 138.3 × 126 mm (F 5.4" × 5.0")

Camera Weight

Camera: Approx. 1.20 kg (2.65 lb.)

Approval

Protection

IP67,IK10

Manufacturer Part No:

DS-2CD2H83G1-IZS

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK0136

Product Model:

DS-2CD2H83G1-IZS

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
