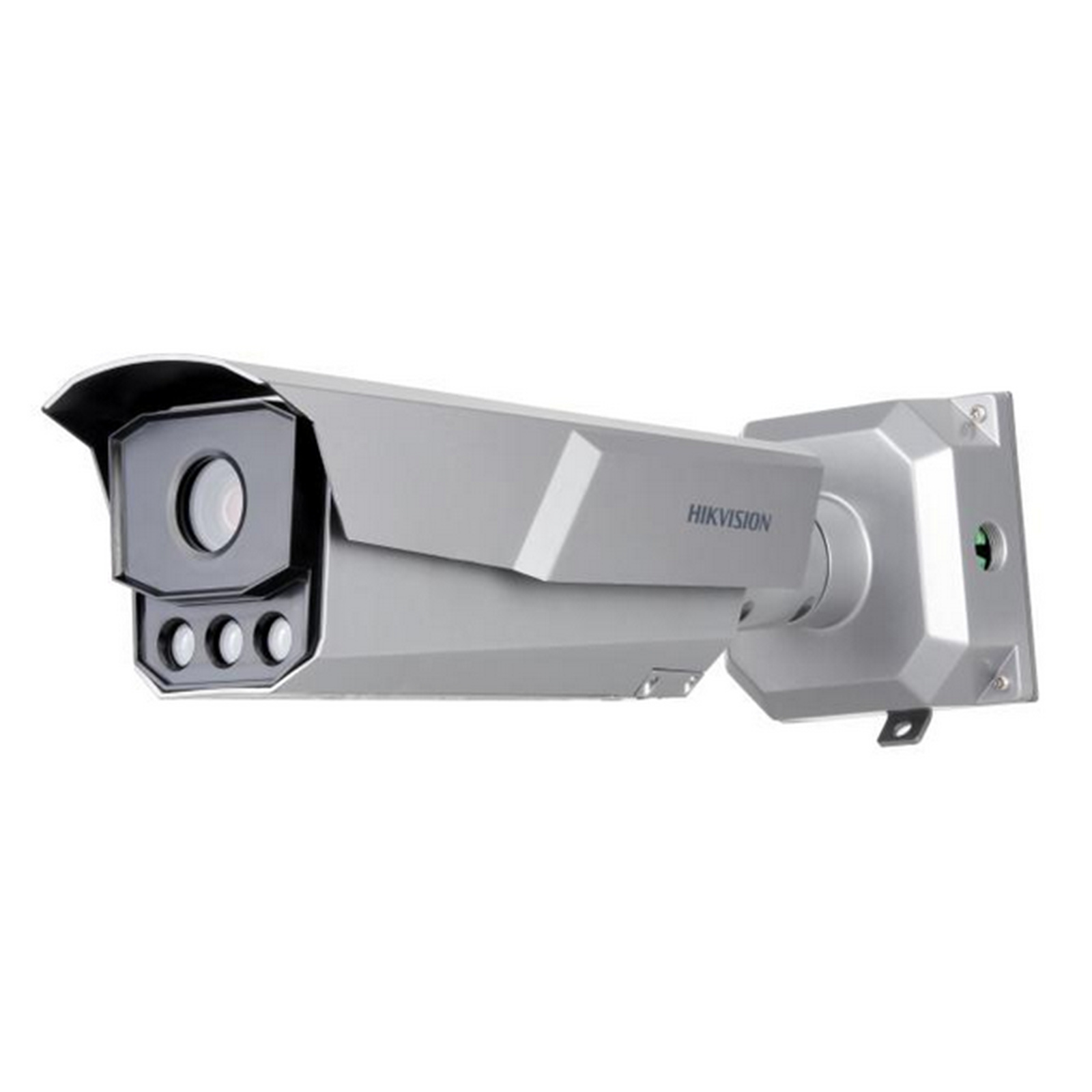

HIKVISION 300904315 Hik iDS-TCW403-BI Container Number Recognition Camera

Brand: HIKVISION
MPN: 300904315
Part #: CCTHIK300904315
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 19 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 300904315
Part #: CCTHIK300904315
UPC:

Be the first to review this product

Max Video Resolution

2688 x 1520

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 512GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Black & White

Camera Megapixels

4 Megapixels

Indoor/Outdoor Use

Outdoor + 1 more

View full specs

Returns & Warranty Bulk Quote Print Page

Features

4 MP IR Container No. Recognition Camera

- High performance Container No. Recognition bullet camera
- Excellent low-light performance with DarkFighter technology
- High quality imaging with 4 MP resolution(1/1.8'' CMOS)
- Clear imaging against strong back light due to 140 dB WDR technology
- Motorized vari-focal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal proof (IK10)

Specialized Container Number Recognition Technology

The HIKVISION iDS-TCW403-BI is a high-performance bullet camera specially designed for container number recognition in logistics and security scenarios. It incorporates advanced container and ISO number recognition functions, providing accurate, automated identification for efficient port, yard, or checkpoint management.

Superior Imaging for Varied Environments

Equipped with 4MP 1/1.8" CMOS sensor and DarkFighter technology, this camera delivers clear, high-resolution images even in extremely low-light settings (color: 0.001 Lux, B/W: 0.0001 Lux with IR). Its 140dB wide dynamic range (WDR) ensures clarity in complex lighting situations, like strong back light or night scenes.

Optimized Hardware for Versatile Deployment

The device features a motorized vari-focal lens (2.8-12mm) with a broad horizontal field of view (113.5° to 39°) and an auto-iris system (F1.38), making installation and real-time monitoring both flexible and precise. Built-in IR illumination (up to 40m, 850nm) supports 24/7 surveillance.

Comprehensive Video, Audio, and Network Protocol Support

The camera supports triple streaming at resolutions up to 2688 x 1520, with H.265, H.264, and MJPEG compression. Audio is handled via G.711 and G.722.1 compression. Network compatibility covers a wide range of protocols and APIs, with simultaneous live viewing (up to 6 channels) and compatibility for up to 32 users.

Robust Security and Data Management Features

It's engineered with advanced security such as HTTPS encryption, 802.1X authentication, IP filtering, and compliance with ONVIF profiles. Storage options include SD/TF card support up to 512GB and compatibility with multiple network storage options (CVR, NVR, ANR).

Durable Construction with High Environmental Protection

The aluminum alloy camera enclosure is IP67 water/dust resistant and IK10 vandal-proof, with NEMA 4X anti-corrosion certification. It functions in harsh conditions between -30°C and 70°C, and meets multiple international certifications for safety, EMC, and environmental standards.

Specifications

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux with IR

Shutter Time

1 s to 1/100000 s

Day & Night

IR cut filter

Lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 113.5° to 39°, vertical FOV 58.4° to 22.7°, diagonal FOV 141.3° to 44.3°

Focus

Auto

Iris Type

Auto-iris: DC drive

Aperture

F1.38

Illuminator

Built-in Supplement Light Type

IR light

Built-in Supplement Light Range

Up to 40 m

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

Sub-Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

Third Stream

50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)

Video Compression

Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Audio

Audio Compression

G.722.1,G.711

Audio Bit Rate

8 Kbps (G.711),16 Kbps (G.722.1)

Network

Protocols

TCP/IP,ICMP,802.1X,IGMP,SNMP,SMTP,NTP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,QoS,IPv4/IPv6,UDP,ARP,ISUP

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP

User/Host

Up to 32 users,3 user levels: administrator, operator, and user

Security

Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP.EAP-LEAP.EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,Host authentication (MAC address),TLS 1.2,1.3,Control timeout settings,Security audit log,RTP/RTSP over HTTPS,WSSE and digest authentication for ONVIF

Network Storage

TF/SD card (512 GB),Local storage,CVR,NVR,ANR

Web Browser

Chrome V61 to Chrome V89, IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge,IE9 to IE11


Image Settings

Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser.,Rotate mode

Day/Night Switch

Schedule,Manual,Auto

Wide Dynamic Range (WDR)

140 dB

Image Enhancement

3D DNR

Interface

Ethernet Interface

1 RJ45 10/100/1000 M self-adaptive Ethernet port(s)

On-Board Storage

Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB

Audio

1 line in and 1 line out

Alarm

1 input T port,1 output F port,2 relay port

RS-485

1 RS-485

Wiegand

1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

Event

Basic Event

Network disconnected,IP address conflict,HDD error

Road Traffic and Vehicle Detection

Smart Function

Container No. Recognition and ISO No. Recognition

General

Operating System

Linux

Power

DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,
PoE: 802.3at, Type 2, Class 4, max. 15 W

Material

Aluminum alloy

Dimension

428.5 mm × 120 mm × 138 mm (16.9" × 4.72" × 5.2") (L × W × H)

Weight

Approx. 3 kg (6.61 lb.)

Operating Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)

Storage Condition

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)

General Function

One-key reset,Three streams,Password protection,Heartbeat

Approval

EMC

CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014

Safety

CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11

Environment

WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: 2011/65/EU

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)

Manufacturer Part No:

300904315

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK300904315

Product Model:

Warranty: 12 months *
