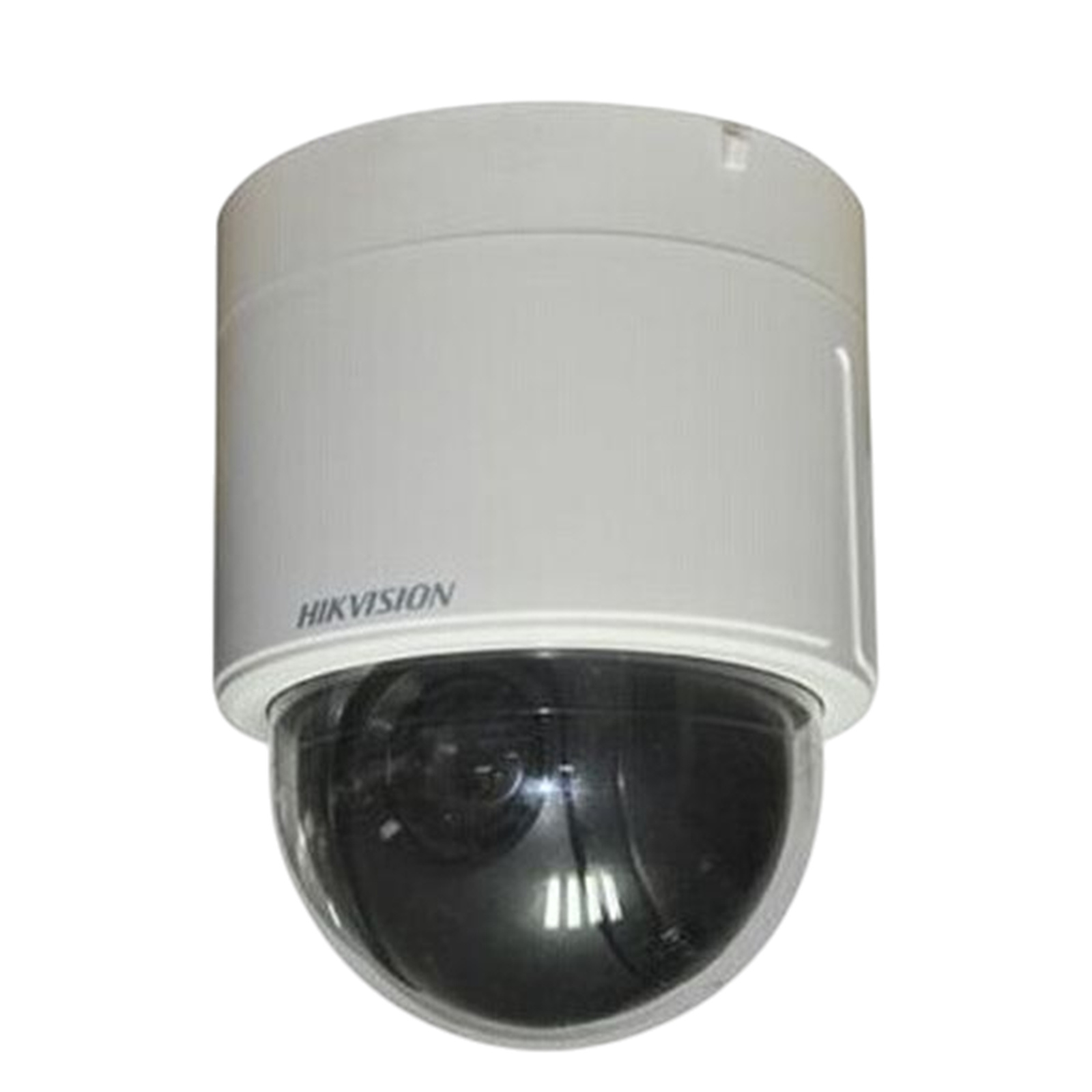

HIKVISION 301306183 Hik DS-2DF5284-AE3 Indoor 2MP PTZ 20x Speed Dome.x
HIKVISION 301306183 Hik DS-2DF5284-AE3 Indoor 2MP PTZ 20x Speed Dome.x
- Brand: HIKVISION
- MPN: 301306183
- Part #: CCTHIK301306183
- UPC:
- Brand: HIKVISION
- MPN: 301306183
- Part #: CCTHIK301306183
- UPC:
Similar in-stock products available at PB Tech right now
Features
- 1/2.8" Progressive Scan CMOS
- 20X optical zoom, 16X digital zoom
- Smart Tracking, ROI encoding
- 3-Streams
- True Day/Night, 3D DNR
- 3D intelligent positioning
- High-PoE / PoE+ / 24VAC power supply
High-Definition Optics for Precise Surveillance
Featuring a 1/2.8" progressive scan CMOS sensor and a 20x optical zoom (4.7 ~ 94mm), the DS-2DF5284-AE3 delivers 2MP (1920x1080) high-definition video. Its ultra-low-light performance provides clear imagery at just 0.05 lux in color and 0.005 lux in black & white, supporting reliable monitoring in various indoor lighting scenarios.
Advanced Video Processing Technologies
The camera integrates smart tracking, 3D digital noise reduction (DNR), and region of interest (ROI) encoding to deliver sharp video with enhanced clarity. True Day/Night performance is achieved via an IR cut filter, and dynamic features like backlight compensation enhance detail in challenging lighting.
Flexible PTZ Functions for Comprehensive Coverage
Equipped with a 360° endless pan and -5° ~ 90° tilt, along with proportional zoom, the device allows for flexible viewing angles and speeds. Up to 256 presets, 8 patrols (with 32 presets each), 4 recorded patterns, and park actions (including preset and scan modes) support automated and complex surveillance routines.
Customizable Privacy and Alarm Management
With up to 24 privacy masking zones and advanced alarm management (7 inputs, 2 relay outputs), the camera enables customized responses like preset movements, patrols, and local SD/SDHC recording upon alarm triggers. Preset freezing and PTZ position display add functionality for event handling.
Robust Network and Integration Features
Supporting triple streaming, up to 10 simultaneous live views, and diverse network protocols, the camera allows flexible integration. It is compatible with open-ended APIs, Onvif, PSIA, CGI, and popular browsers, supporting up to 32 users with different access permissions.
Reliable Operation and Environmental Protection
Designed for stable indoor use, the camera supports 24VAC and PoE+/High-PoE with a maximum power consumption of 20W. It offers protection against lightning and power surges (TVS 4000V) and operates in temperatures from -10°C to 50°C with humidity up to 90%.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
HIKVISION 301306183 Hik DS-2DF5284-AE3 Indoor 2MP PTZ 20x Speed Dome.x
- Brand: HIKVISION
- MPN: 301306183
- Part #: CCTHIK301306183
Product URL: https://www.pbtech.co.nz/product/CCTHIK301306183/HIKVISION-301306183-Hik-DS-2DF5284-AE3-Indoor-2MP
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- 1/2.8" Progressive Scan CMOS
- 20X optical zoom, 16X digital zoom
- Smart Tracking, ROI encoding
- 3-Streams
- True Day/Night, 3D DNR
- 3D intelligent positioning
- High-PoE / PoE+ / 24VAC power supply
High-Definition Optics for Precise Surveillance
Featuring a 1/2.8" progressive scan CMOS sensor and a 20x optical zoom (4.7 ~ 94mm), the DS-2DF5284-AE3 delivers 2MP (1920x1080) high-definition video. Its ultra-low-light performance provides clear imagery at just 0.05 lux in color and 0.005 lux in black & white, supporting reliable monitoring in various indoor lighting scenarios.
Advanced Video Processing Technologies
The camera integrates smart tracking, 3D digital noise reduction (DNR), and region of interest (ROI) encoding to deliver sharp video with enhanced clarity. True Day/Night performance is achieved via an IR cut filter, and dynamic features like backlight compensation enhance detail in challenging lighting.
Flexible PTZ Functions for Comprehensive Coverage
Equipped with a 360° endless pan and -5° ~ 90° tilt, along with proportional zoom, the device allows for flexible viewing angles and speeds. Up to 256 presets, 8 patrols (with 32 presets each), 4 recorded patterns, and park actions (including preset and scan modes) support automated and complex surveillance routines.
Customizable Privacy and Alarm Management
With up to 24 privacy masking zones and advanced alarm management (7 inputs, 2 relay outputs), the camera enables customized responses like preset movements, patrols, and local SD/SDHC recording upon alarm triggers. Preset freezing and PTZ position display add functionality for event handling.
Robust Network and Integration Features
Supporting triple streaming, up to 10 simultaneous live views, and diverse network protocols, the camera allows flexible integration. It is compatible with open-ended APIs, Onvif, PSIA, CGI, and popular browsers, supporting up to 32 users with different access permissions.
Reliable Operation and Environmental Protection
Designed for stable indoor use, the camera supports 24VAC and PoE+/High-PoE with a maximum power consumption of 20W. It offers protection against lightning and power surges (TVS 4000V) and operates in temperatures from -10°C to 50°C with humidity up to 90%.
Specifications
Camera
Image sensor
1/2.8" Progressive Scan CMOS
Effective pixel
2230K pixels
Min. illumination
Color: 0.05 lux (F1.6,1/1 sec, 50 IRE, AGC On); B/W: 0.005 lux (F1.6,1/1 sec, 50 IRE, AGC On)
White balance
Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp
AGC
Auto / Manual
S / N ratio
≥ 50dB
Digital Noise Reduction
3D DNR
Backlight Compensation
BLC
Shutter Speed
50Hz: 1~1/30,000s, 60Hz: 1~1/30,000s
Day & Night
IR Cut Filter
Digital Zoom
16x
Privacy Masking
Up to 24 zones, maximum 8 zones on a same image, multiple colors and mosaics optional
Focus mode
Auto / semiautomatic / manual
Lens
Focal length
4.7 ~ 94mm, 20x
Zoom speed
Approx. 2.7s (Optical Wide-Tele)
Angle of view
58.3 ~ 3.2 degree (Wide-Tele)
Min. working distance
10 ~ 1,500mm (Wide-Tele)
Aperture range
F1.6 ~ F3.5
Pan and tilt
Range
Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip)
Speed
Pan manual speed: 0.1° ~ 300°/s, pan preset speed: 540°/s
Tilt manual speed: 0.1° ~ 240°/s, tilt preset speed: 400°/s
Proportional zoom
Rotation speed can be adjusted automatically according to zoom multiples
Number of preset
256
Patrol
8 patrols, up to 32 presets per patrol
Pattern
4 patterns, with the recording time not less than 10 minutes per pattern
Power-off memory
Support
Park action
Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
PTZ position display
On / off
Preset freezing
Support
Alarm
Alarm input
7
Alarm output
2 relay outputs, alarm response actions configurable
Alarm actions
Preset, patrol, pattern, sd/sdhc card recording, relay output, notification on client
Input/output
Video output
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio input
Audio input (Line input), 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio output
Line level, impedance: 600Ω
Network
Ethernet
10Base-T / 100Base-TX, RJ45 connector
Max.image resolution
1920×1080
Frame rate
50Hz: 25 fps (1920×1080), 25 fps (1280×960), 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×960), 30 fps (1280×720)
Image compression
H.264 / MJPEG / MPEG4
Audio compression
G.711u / G.711a / G.726
Protocols
IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View
Up to 10
Streams
Three Streams
Mini SD memory card
Built-in SD/SDHC Slot, up to 32GB, support manual / alarm recording
User / host level
Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security measures
User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Integration
Application programming
Open-ended API, support Onvif, PSIA and CGI
Web Browser
IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +, support multi-language
General
RS-485 protocols
HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC / PoE+:
Indoor dome: Max. 20W
Working temperature
Indoor dome: -10°C ~ 50°C(14°F ~ 122°F)
Humidity
90% or less
TVS
4,000V lightning protection, surge protection and voltage transient protection
