HIKVISION 4PORT MANAGED POE SWITCH GB 1 GIGA RJ45 PORT
HIKVISION 4PORT MANAGED POE SWITCH GB 1 GIGA RJ45 PORT
- Brand: HIKVISION
- MPN: 301802987
- Part #: CCTHIK301802987
- UPC:
- Brand: HIKVISION
- MPN: 301802987
- Part #: CCTHIK301802987
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch - 1GbE x5
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
HIKVISION 4PORT MANAGED POE SWITCH GB 1 GIGA RJ45 PORT
- Brand: HIKVISION
- MPN: 301802987
- Part #: CCTHIK301802987
Product URL: https://www.pbtech.co.nz/product/CCTHIK301802987/HIKVISION-4PORT-MANAGED-POE-SWITCH-GB-1-GIGA-RJ45
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with the software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
- 4 × Gigabit PoE port,1 × Gigabit RJ45 port
- Total PoE Power Budget 60 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Compact Power and Connectivity-Perfect for Modern Surveillance

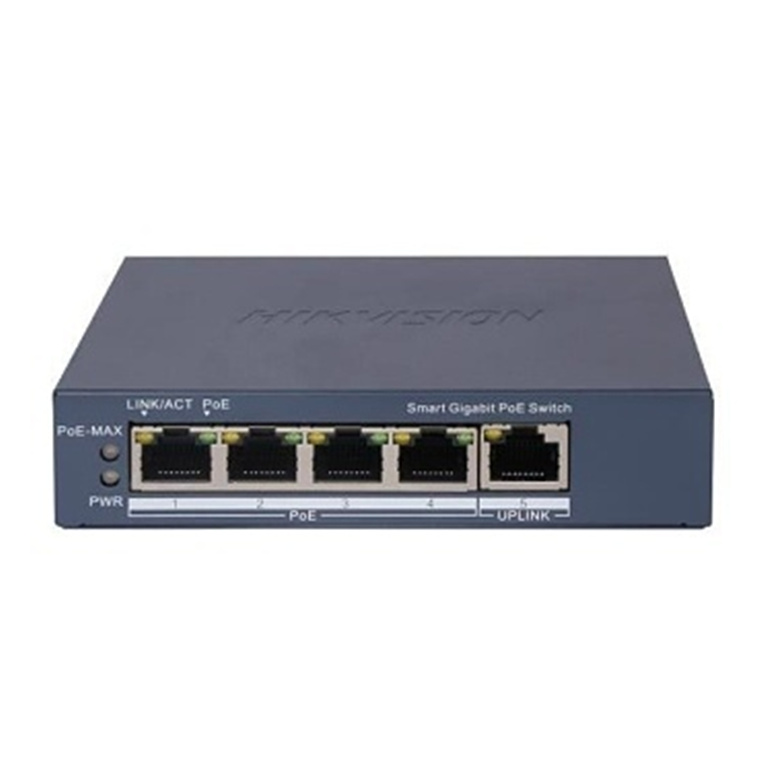

The HIKVISION 4-Port Managed PoE Switch is specifically designed for small to mid-sized surveillance and IP networking environments. Outfitted with 4 Gigabit PoE ports and 1 additional Gigabit RJ45 uplink, this compact unit delivers robust and rapid network connections while providing a total PoE power budget of 60W. The device is housed in a durable metal shell, measures only 121.1 mm x 27.6 mm x 83.1 mm, and can be conveniently wall-mounted or desk-mounted to fit various installation setups.
Smart, Reliable & Secure Networking Features
Engineered with user-friendly smart management, this switch supports plug-and-play configuration as well as advanced network segmentation through 802.1Q VLANs-enabling secure grouping of devices for improved security. Intelligent PoE watchdog automatically detects and reboots unresponsive IP cameras, minimizing downtime in your surveillance system. Additionally, features like STP/RSTP loop prevention, 6 kV surge protection, cable detection for failure tracing, and port isolation add extra layers of reliability and network protection, making it highly suitable for critical CCTV deployments.
Easy Maintenance and Advanced Remote Management
The switch supports remote and local management via web interface, Hik-Central Pro, and Hik-Partner Pro, allowing you to monitor health, manage network topology, and receive device alarms in real time. With remote functions such as port control, device restarts, bandwidth utilization monitoring, and one-click activation, maintaining and expanding your network becomes easy and cost-effective. Long-range PoE capability extends signal and power transmission up to 300 meters for compatible devices-reducing the need for additional network infrastructure in expansive locations.
Performance Optimization and Flexible Operation
A packet forwarding rate of 7.44 Mpps, internal cache of 1 Mbit, and a MAC address table of 2K guarantees seamless operation for numerous simultaneous connections. Static link aggregation offers bandwidth expansion and protection, while support for up to 32 VLANs and 802.1ab LLDP peer discovery gives you the flexibility to design and expand your network for future needs. Port mirroring and cable diagnostics further simplify troubleshooting for IT professionals and security integrators.
Rugged Design and Trusted Compliance
Weighing only 0.26 kg and offering a power supply of 54VDC 1.2A (with a max consumption of 65W), the switch operates reliably in temperatures from 0°C to 40°C and in environments with up to 95% relative humidity. Certified to meet CE-EMC, CE-LVD, RoHS, Reach, and WEEE standards, the HIKVISION 4-Port Managed PoE Switch is a safe and eco-conscious choice for effective, scalable, and easily-managed network or surveillance installations.
Specifications
General
Shell
Metal material
Net Weight
0.26 kg (0.573 lb)
Dimensions (W × H × D)
121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
54VDC, 1.2A
Installation Mode
Desk-Mounted, Wall-Mounted
Max. Power Consumption
65 W
Power Consumption in Idle
0.9 W
Surge Protection
6 KV
Network Parameters
Ports
4 × Gigabit PoE port, 1 × Gigabit RJ45 port
MAC Address Table
2 K
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
Internal Cache
1 Mbits
PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
PoE: Ports 1 to 4
Max. Port Power
30 W
PoE Power Budget
60 W
Software Function
Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CE-LVD (EN 62368-1: 2014+A11: 2017), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition))
Chemistry
CE-RoHS (2011/65/EU), Reach (Regulation (EC) No.1907/2006), WEEE (2012/19/EU)
