HIKVISION 8 PORT MANAGED POE SWITCH
HIKVISION 8 PORT MANAGED POE SWITCH
- Brand: HIKVISION
- MPN: 301803154
- Part #: CCTHIK301803154
- UPC:
- Brand: HIKVISION
- MPN: 301803154
- Part #: CCTHIK301803154
- UPC:
Similar in-stock products available at PB Tech right now
Features
8 Port Fast Ethernet Smart POE Switch
- 8 × 10/100M PoE ports,1 × Gigabit RJ45 port
- Total PoE Power Budget 110 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Eight-Port PoE Switch with Versatile Management Functions
This smart PoE switch provides 8 × 10/100M PoE ports and 1 × gigabit uplink, supporting a total PoE budget of 110W. It efficiently powers cameras and network devices in a range of surveillance and IoT applications.
Long-Distance and High Power: Up to 300m PoE, 30W Per Port
Ports 1-8 support long-range PoE transmission up to 300 meters (model and cable dependent), with each port capable of delivering 30W. The total PoE budget ensures reliable operation for demanding projects such as multi-camera deployments.
Advanced VLAN, Loop Prevention, and Port Isolation Security
The switch offers IEEE 802.1Q VLAN functionality with ID configurable from 1-4094, and supports STP/RSTP loop prevention to safeguard against broadcast storms. Port isolation enhances security by restricting lateral traffic between specified ports.
PoE Watchdog, Cable Diagnostics, and Smart Remote Tools
PoE watchdog actively detects and restarts non-responsive cameras to maintain continuous system operation. Cable testing and diagnostic tools enable administrators to remotely pinpoint and resolve faults, ensuring minimal downtime and streamlined maintenance.
Effortless Web and App Management for Modern Networking
The switch supports web GUI, Hik-Central Pro, and Hik-Partner Pro remote management platforms. Features include topology visualization, real-time power usage, alarm monitoring, port restart, and over-the-air firmware upgrades for future-ready deployments.
Typical Application
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch - 1GbE x5
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
HIKVISION 8 PORT MANAGED POE SWITCH
- Brand: HIKVISION
- MPN: 301803154
- Part #: CCTHIK301803154
Product URL: https://www.pbtech.co.nz/product/CCTHIK301803154/HIKVISION-8-PORT-MANAGED-POE-SWITCH
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
8 Port Fast Ethernet Smart POE Switch
- 8 × 10/100M PoE ports,1 × Gigabit RJ45 port
- Total PoE Power Budget 110 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Eight-Port PoE Switch with Versatile Management Functions
This smart PoE switch provides 8 × 10/100M PoE ports and 1 × gigabit uplink, supporting a total PoE budget of 110W. It efficiently powers cameras and network devices in a range of surveillance and IoT applications.
Long-Distance and High Power: Up to 300m PoE, 30W Per Port
Ports 1-8 support long-range PoE transmission up to 300 meters (model and cable dependent), with each port capable of delivering 30W. The total PoE budget ensures reliable operation for demanding projects such as multi-camera deployments.
Advanced VLAN, Loop Prevention, and Port Isolation Security
The switch offers IEEE 802.1Q VLAN functionality with ID configurable from 1-4094, and supports STP/RSTP loop prevention to safeguard against broadcast storms. Port isolation enhances security by restricting lateral traffic between specified ports.
PoE Watchdog, Cable Diagnostics, and Smart Remote Tools
PoE watchdog actively detects and restarts non-responsive cameras to maintain continuous system operation. Cable testing and diagnostic tools enable administrators to remotely pinpoint and resolve faults, ensuring minimal downtime and streamlined maintenance.
Effortless Web and App Management for Modern Networking
The switch supports web GUI, Hik-Central Pro, and Hik-Partner Pro remote management platforms. Features include topology visualization, real-time power usage, alarm monitoring, port restart, and over-the-air firmware upgrades for future-ready deployments.

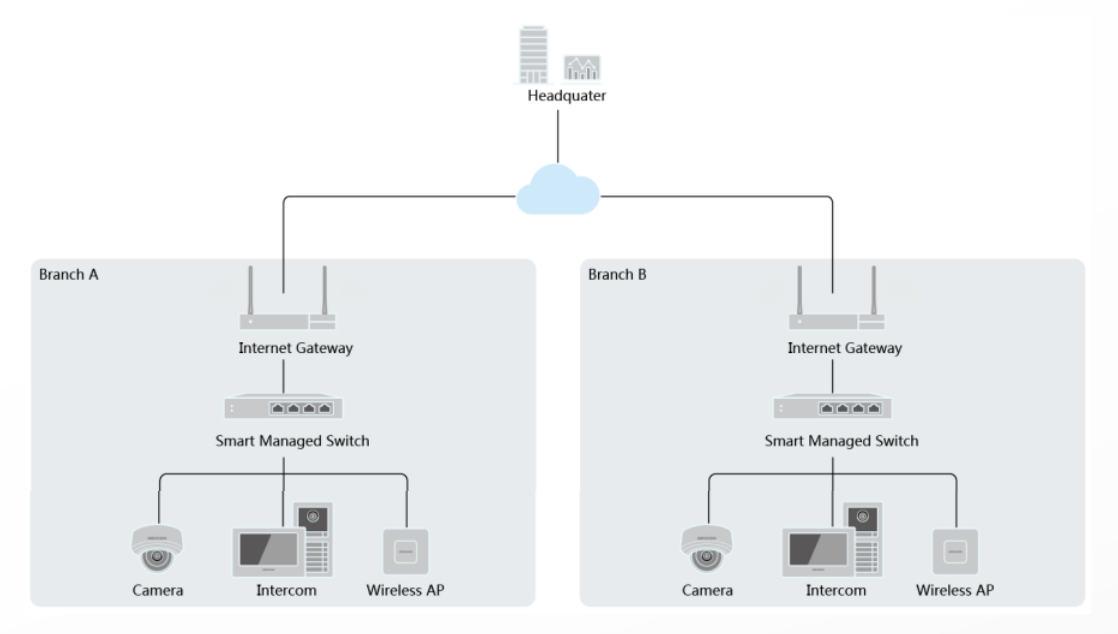

Typical Application
Specifications
General
Shell
Metal material, fan-free design
Net Weight
0.35 kg (0.77 lb)
Dimensions (W × H × D)
170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
54VDC，2.22A
Installation Mode
Desk-Mounted,Wall-Mounted
Max. Power Consumption
120 W
Power Consumption in Idle
10 W
Surge Protection
6 kV
Network Parameters
Ports
8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
MAC Address Table
8 K
Packet Forwarding Rate
Whole-Device Performance: 4.17 Mpps
Port Performance: 2.68 Mpps
Internal Cache
4 Mbits
Switching Capacity
Whole-Device Performance: 5.6 Gbps
Port Performance: 3.6 Gbps
PoE Power Supply
PoE Standard
IEEE 802.3af,IEEE 802.3at
PoE Power Pin
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
110 W
Software Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
VIP Port
\
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 8: auto detect and restart the cameras that do not respond.
QoS
\
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
Port Rate-Limiting
\
ACL
\
IPSG
\
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
