HIKVISION 8PORT SMART GIGABIT INDUSTRIAL POE SWITCH
HIKVISION 8PORT SMART GIGABIT INDUSTRIAL POE SWITCH
- Brand: HIKVISION
- MPN: 301803311
- Part #: CCTHIK301803311
- UPC:
- Brand: HIKVISION
- MPN: 301803311
- Part #: CCTHIK301803311
- UPC:
Similar in-stock products available at PB Tech right now
Features
The 8 Port Gigabit Smart Managed Industrial PoE Switch by Hikvision is designed for industrial and security network environments, combining robust performance with simplified management and maintenance.
- 8 x Gigabit PoE RJ45 ports,4 x Gigabit SFP fiber optical ports
- Support 802.1Q VLAN
- Support 802.3bt Hi-PoE, Max. 90W for one port
- Support STP/RSTP/ERPS Loop prevention, storm control
- Support cable detection to locate failure
- Support SNMP, QoS, DHCP snooping
- 6 kV Surge Protection
- Wider Temperature (-40 °C to 75 °C) Design
- Up to 300 m Long-range Transmission
- Power supply not included
Smart Management and Monitoring
With Hikvision's software platforms, users can easily deploy, monitor, and expand their security network anytime and anywhere. The system allows real-time viewing of network topology, health monitoring, and instant device alarms, reducing operational costs.
Port Configuration and Power
The switch features 8 Gigabit PoE RJ45 ports and 4 Gigabit SFP fiber optic ports, supporting 802.3bt Hi-PoE with a maximum of 90 W per port, allowing high-power devices to operate efficiently.
Advanced Network Features
It supports 802.1Q VLAN for network segmentation, STP/RSTP/ERPS loop prevention, storm control, and cable detection for easy fault location. Additional features include SNMP, QoS, and DHCP snooping for improved network management.
Durability and Long-Range Performance
The switch offers 6 kV surge protection, a wide operating temperature range from -40 °C to 75 °C, and up to 300 meters of long-range transmission, making it ideal for demanding industrial environments.

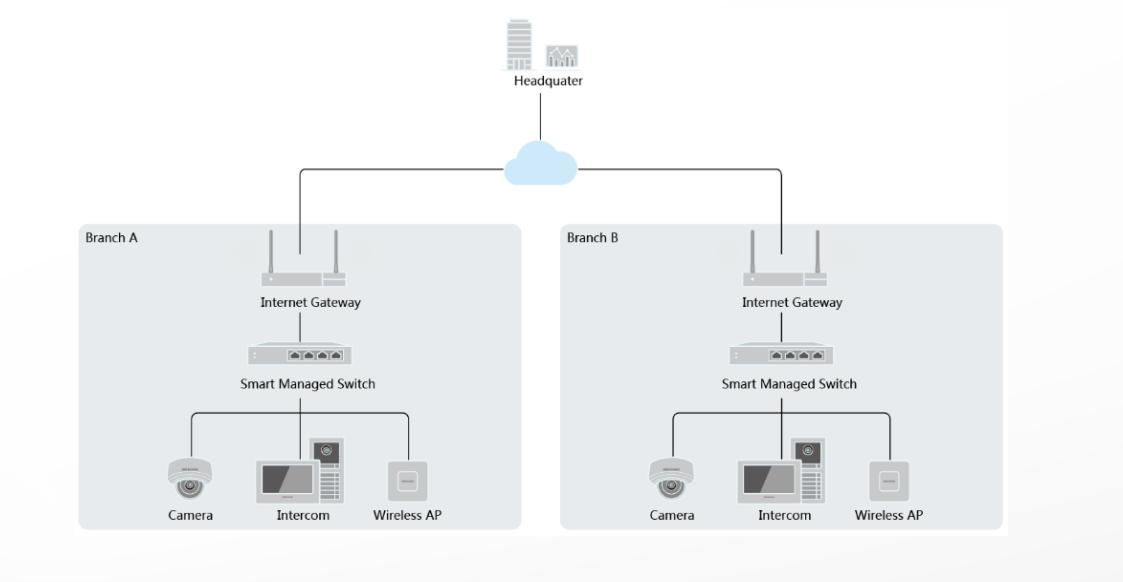

Typical Application
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch - 1GbE x5
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
HIKVISION 8PORT SMART GIGABIT INDUSTRIAL POE SWITCH
- Brand: HIKVISION
- MPN: 301803311
- Part #: CCTHIK301803311
Product URL: https://www.pbtech.co.nz/product/CCTHIK301803311/HIKVISION-8PORT-SMART-GIGABIT-INDUSTRIAL-POE-SWITC
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The 8 Port Gigabit Smart Managed Industrial PoE Switch by Hikvision is designed for industrial and security network environments, combining robust performance with simplified management and maintenance.
- 8 x Gigabit PoE RJ45 ports,4 x Gigabit SFP fiber optical ports
- Support 802.1Q VLAN
- Support 802.3bt Hi-PoE, Max. 90W for one port
- Support STP/RSTP/ERPS Loop prevention, storm control
- Support cable detection to locate failure
- Support SNMP, QoS, DHCP snooping
- 6 kV Surge Protection
- Wider Temperature (-40 °C to 75 °C) Design
- Up to 300 m Long-range Transmission
- Power supply not included
Smart Management and Monitoring
With Hikvision's software platforms, users can easily deploy, monitor, and expand their security network anytime and anywhere. The system allows real-time viewing of network topology, health monitoring, and instant device alarms, reducing operational costs.
Port Configuration and Power
The switch features 8 Gigabit PoE RJ45 ports and 4 Gigabit SFP fiber optic ports, supporting 802.3bt Hi-PoE with a maximum of 90 W per port, allowing high-power devices to operate efficiently.
Advanced Network Features
It supports 802.1Q VLAN for network segmentation, STP/RSTP/ERPS loop prevention, storm control, and cable detection for easy fault location. Additional features include SNMP, QoS, and DHCP snooping for improved network management.
Durability and Long-Range Performance
The switch offers 6 kV surge protection, a wide operating temperature range from -40 °C to 75 °C, and up to 300 meters of long-range transmission, making it ideal for demanding industrial environments.
Typical Application
Specifications
General
Shell
Metal material, IP40
Net Weight
0.84 kg (1.85 lb)
Dimensions (W × H × D)
155.00 mm × 46.00 mm × 130.00 mm (6.10'' × 1.81'' × 5.12'')
Operating Temperature
-40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
48~57 V DC, 7.5 A
52 V~57 V recommended input voltage to ensure stable power supply.
Support dual power inputs and hot backup.
Installation Mode
Desk-Mounted, Rail
Max. Power Consumption
307 W
Power Consumption in Idle
7 W
Surge Protection
6 KV
Network Parameters
Ports
8 × Gigabit PoE port, 4 × Gigabit fiber optical port
MAC Address Table
8 K
Switching Capacity
Whole-Device Performance: 56 Gbps
Port Performance: 24 Gbps
Packet Forwarding Rate
Whole-Device Performance: 41.66 Mpps
Port Performance: 17.86 Mpps
Internal Cache
4.1 Mbits
PoE Power Supply
PoE Standard
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 8: IEEE 802.3af, IEEE 802.3at
PoE Power Pin
Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Ports 5 to 8: End-span: 1/2(-), 3/6(+)
Max. Port Power
Ports 1 to 4: 90 W
Ports 5 to 8: 30 W
PoE Port
Hi-PoE: Ports 1 to 4
PoE: Ports 5 to 8
PoE Power Budget
300 W
Software Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
Support G.8032 ERPS.
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP, WRR priority schedule mode.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
Port Rate-Limiting
Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
DHCP Snooping
DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
ACL
Port security strategy.
Support up to 64 ACL entries.
Support up to 128 configuration rules under all ACL entries.
IPSG
IPSG can control the security of port access device.
Support port, MAC, IP binding.
Support 256 security entries.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
