HIKVISION 4 PORT GIGABIT SMART MANAGED INDUSTRIAL SOLAR POE SWITCH
HIKVISION 4 PORT GIGABIT SMART MANAGED INDUSTRIAL SOLAR POE SWITCH
- Brand: HIKVISION
- MPN: 301803431
- Part #: CCTHIK301803431
- UPC:
- Brand: HIKVISION
- MPN: 301803431
- Part #: CCTHIK301803431
- UPC:
Similar in-stock products available at PB Tech right now
Features
4 Port Gigabit Smart Managed Industrial Solar POE Switch
- 4 x Gigabit PoE Ports, 2 × Gigabit SFP
- Support 802.3bt Hi-PoE, Max. 90 W for one port
- Support 24 V passive PoE output for wireless bridge, etc.
- Support 12 V to 24 V solar power input, DC 54 V input
- Wider Temperature (-40 °C to 75 °C) Design
- Support battery health monitoring via Hik-Partner Pro and Hik-Connect
- Support power consumption schedule
- 6 kV Surge Protection
Solar-Ready Networking for Remote Industrial Applications
This smart managed switch supports direct solar power input (12-24V), DC 54V, and enables cost-effective deployment in remote or off-grid sites. Integrated battery health monitoring provides real-time insights through Hik-Partner Pro and Hik-Connect.
Versatile PoE Output and Flexible Device Support
The switch features four gigabit PoE ports (one Hi-PoE, three PoE), two SFP fiber uplinks, and supports both 24V passive and standard 802.3bt PoE outputs-suitable for a variety of wireless bridges, cameras, and network devices.
Extreme Operating Environment and Robust Build
A metal IP30 shell and design for -40°C to 75°C and up to 95% non-condensing humidity ensure reliable performance in tough outdoor or industrial conditions. The device features 6kV surge protection for added durability.
Managed Functions for Industrial Networks
Includes port isolation for security, PoE watchdog for automatic recovery, long-range up to 300m per port, VLAN capabilities, cable diagnostics, link aggregation, STP/RSTP/ERPS loop prevention, and digital diagnostic optical module monitoring.
Easy Intelligent Management and Remote Monitoring
The switch supports intuitive web management, SNMP, DHCP Snooping, advanced event logging, and full compatibility with Hikvision's Hik-Partner Pro and Hik-Central Pro systems for device health, power scheduling, and remote configuration.

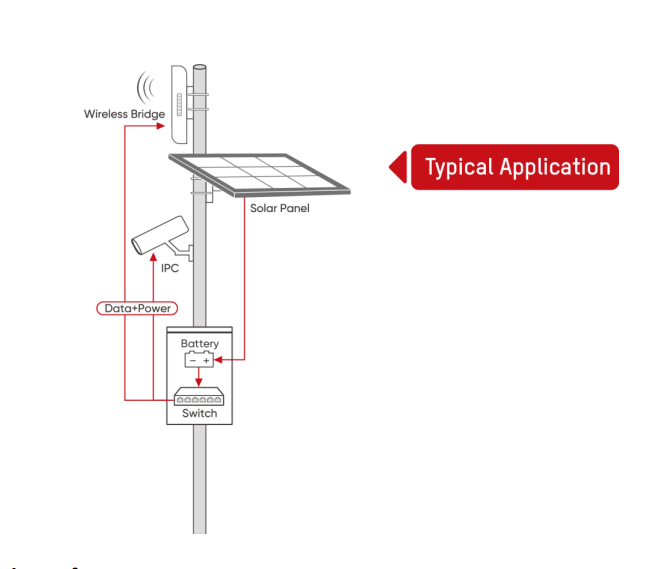

Typical Application
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch - 1GbE x5
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
HIKVISION 4 PORT GIGABIT SMART MANAGED INDUSTRIAL SOLAR POE SWITCH
- Brand: HIKVISION
- MPN: 301803431
- Part #: CCTHIK301803431
Product URL: https://www.pbtech.co.nz/product/CCTHIK301803431/HIKVISION-4-PORT-GIGABIT-SMART-MANAGED-INDUSTRIAL
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
4 Port Gigabit Smart Managed Industrial Solar POE Switch
- 4 x Gigabit PoE Ports, 2 × Gigabit SFP
- Support 802.3bt Hi-PoE, Max. 90 W for one port
- Support 24 V passive PoE output for wireless bridge, etc.
- Support 12 V to 24 V solar power input, DC 54 V input
- Wider Temperature (-40 °C to 75 °C) Design
- Support battery health monitoring via Hik-Partner Pro and Hik-Connect
- Support power consumption schedule
- 6 kV Surge Protection
Solar-Ready Networking for Remote Industrial Applications
This smart managed switch supports direct solar power input (12-24V), DC 54V, and enables cost-effective deployment in remote or off-grid sites. Integrated battery health monitoring provides real-time insights through Hik-Partner Pro and Hik-Connect.
Versatile PoE Output and Flexible Device Support
The switch features four gigabit PoE ports (one Hi-PoE, three PoE), two SFP fiber uplinks, and supports both 24V passive and standard 802.3bt PoE outputs-suitable for a variety of wireless bridges, cameras, and network devices.
Extreme Operating Environment and Robust Build
A metal IP30 shell and design for -40°C to 75°C and up to 95% non-condensing humidity ensure reliable performance in tough outdoor or industrial conditions. The device features 6kV surge protection for added durability.
Managed Functions for Industrial Networks
Includes port isolation for security, PoE watchdog for automatic recovery, long-range up to 300m per port, VLAN capabilities, cable diagnostics, link aggregation, STP/RSTP/ERPS loop prevention, and digital diagnostic optical module monitoring.
Easy Intelligent Management and Remote Monitoring
The switch supports intuitive web management, SNMP, DHCP Snooping, advanced event logging, and full compatibility with Hikvision's Hik-Partner Pro and Hik-Central Pro systems for device health, power scheduling, and remote configuration.
Typical Application
Specifications
General
Net Weight
0.7 kg (1.54 lb)
Dimensions (W × H × D)
158.00 mm × 44.00 mm × 130.00 mm (6.22'' × 1.73'' × 5.12'')
Operating Temperature
-40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
12V DC, 10A or 24V DC, 5A; 54V 2.22A
Installation Mode
Desk-Mounted, Rail, Wall-Mounted
Max. Power Consumption
120 W
Power Consumption in Idle
2 W
Surge Protection
6 kV
Shell
Metal material, IP30
Network Parameters
Ports
4 × Gigabit PoE port, 2 × Gigabit fiber optical port, 1 x RS485 port
MAC Address Table
2 K
Switching Capacity
Whole-Device Performance: 14 Gbps
Port Performance: 12 Gbps
Packet Forwarding Rate
Whole-Device Performance: 10.42 Mpps
Port Performance: 8.93 Mpps
Internal Cache
1 Mbits
PoE Power Supply
PoE Standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
Ports 3 to 4: support passive PoE, 24 V or 54 V output depending on DIP switch settings
PoE Power Pin
Port 1: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Port 2: End-span: 1/2(-), 3/6(+)
Ports 3 to 4: 8-pin power: 1/2(-), 3/6(+), 54 V output ; 4/5(+), 7/8(-), 24 V output
PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
Max. Port Power
Port 1: 90 W
Ports 2 to 4: 30 W
PoE Power Budget
DC 54 V input: 110 W
DC 12 V~24 V input: 60 W
Software Function
Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 6: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 2 aggregation group(s).
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
Support G.8032 ERPS.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
DHCP Snooping
DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
DDM (Digital Diagnostic Monitoring)
Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
