Features

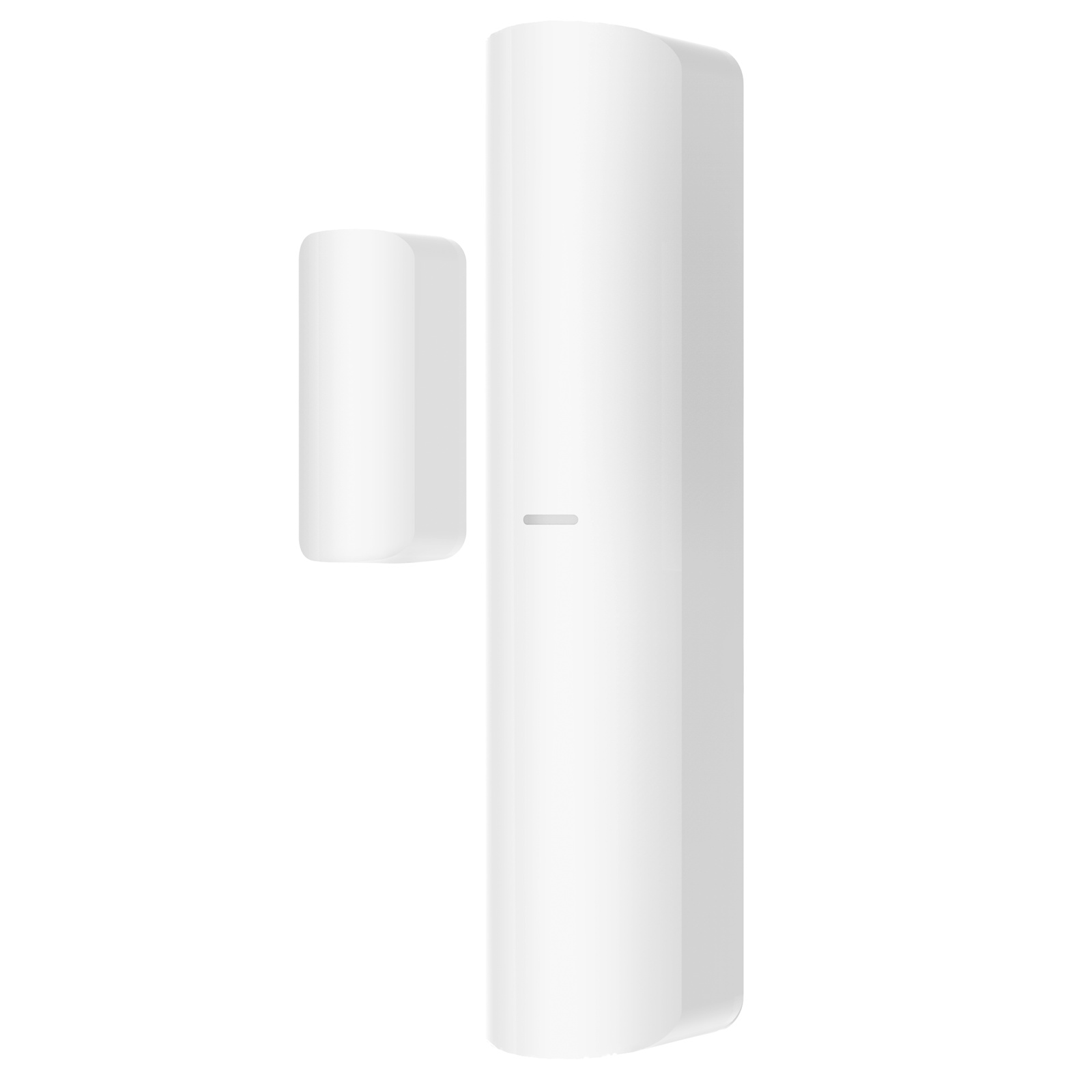

Wireless Magnet Shock Detector
- Magnetic contact combined with shock and tilt detection
- 2 wired inputs extension
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Comprehensive Triple Detection in One Device
This wireless detector uniquely integrates magnetic contact with both shock and tilt sensing, monitoring for door/window opening, forced vibration, and angle changes (tilt up to 25°). This provides all-round protection for valuables, entry points, and vulnerable targets in one compact indoor sensor.
Flexible System Expansion with Wired Inputs
In addition to robust wireless technology, the detector supports two wired input extensions. This allows integrators or users to connect external sensors and broaden the protection area, making it ideal for scenarios with complex or multi-point security needs.
Easy Installation & Full Remote Configurability
With multiple enrollment (power up, remote ID, QR code), the detector is installed quickly and easily. All operational parameters-including sensitivity levels-can be fully configured remotely through a dedicated app, greatly reducing installation and maintenance effort on site.
Secure and Reliable Communication with Tri-X Wireless
The device operates on 433MHz Tri-X wireless with two-way communication, frequency hopping, and AES-128 encryption. Communication is reliable and interference-resistant, delivering stable transmission up to 1km in open space-perfect for both home and commercial environments.
Smart Indicators, Long Battery Life, and Indoor Durability
Incorporating LED indicators for every alarm/type (magnetic, tilt, shock, overall alarm), the device offers intuitive feedback at a glance. Its single CR123A battery provides up to 3 years of standby operation, and the unit performs reliably between -10°C and 55°C, making it suitable for nearly all indoor scenarios.
Specifications
Detection Performance
Detection Method
Opening Contact; Shock Sensor
Detection Gap
43mm Max
Sensitivity
Shock Detection: 8 levels
Tilt Detection: Up to 25°
Feature
Digital Processing
Support
Tamper Protection
Front; Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed; Normally Open; Impulse Count
Power Switch
Power Up Enrolling
LED Indicator
Green (MC), Orange (tilt), Red (shock), Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
433MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1Km
Frequency Hopping
Support
Enrolling Method
Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life
Up to 3 years (standby time)
Power Supply
Battery Powered
Battery Type
CR123A x 1
Typical Voltage
3V
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
24 × 104 ×24.4 mm
13 × 34.4 × 11.4 mm
Weight
60g
Application Scenario
Indoor
