HIKVISION 302918167 HIK DS-K1T673TDWX Face Recogniion Terminal 7" LCD cwReader

This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

HIKVISION 302918167 HIK DS-K1T673TDWX Face Recogniion Terminal 7" LCD cwReader

  • Brand: HIKVISION
  • MPN: 302918167
  • Part #: CCTHIK302918167
  • UPC:
NEW ARRIVAL
No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 20 Feb When will I receive it?
Sign in to your commercial account or apply online now to view the price and order this product

Features

Ultra Series Face Access Terminal

- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration < 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition

Versatile Face Access Terminal for Modern Facilities

The Ultra Series Face Access Terminal delivers advanced access control covering enterprises, stations, dwellings, factories, and campuses with multi-modal authentication and robust performance.

High-Precision and Rapid Face Recognition

Featuring a 7-inch touchscreen and dual 2MP wide-angle lenses, this terminal recognizes faces at 0.3 to 3 meters in under 0.2 seconds per user, with an accuracy rate of 99% or higher-even for groups of up to five people simultaneously.

Multi-Card and Mask-Aware Authentication

Built-in support for M1, Felica, and DESfire card modules allows swift contactless entry, while face mask detection enhances safety and operational compliance.

Extensive Capacity for High-Traffic Applications

Stores up to 100,000 faces, 10,000 fingerprints (optional), 500,000 cards, and 150,000 event logs-meeting the demands of complex, high-volume environments.

Adaptive Networking and Broad Integration Support

Compatible with ISAPI, ISUP 5.0, IPv4/IPv6, Wi-Fi, and Gigabit Ethernet, the terminal easily integrates into existing security networks and supports remote monitoring and management.

Robust Construction and Comprehensive Access Features

IP65 protection, -30°C to 60°C operating range, audio prompts, anti-spoofing, live video preview, and a wide array of access interfaces make this device suitable for demanding indoor and outdoor deployments.

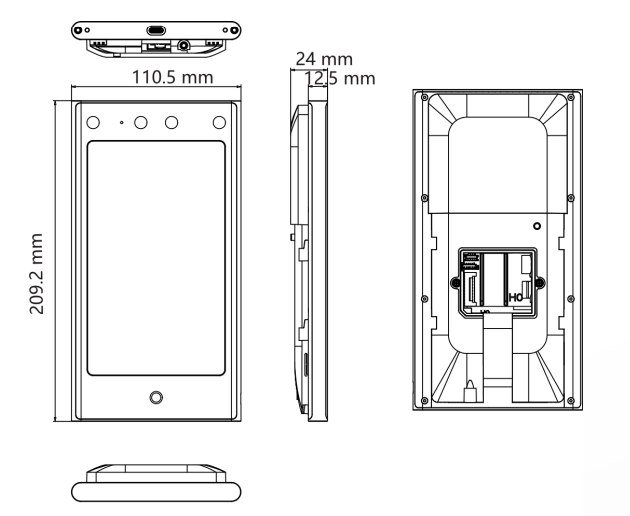

Dimension

Specifications

System

Operation system

Linux

Display

Size

7-inch

Type

Touch screen

Video

FOV

HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°

Pixel

2 MP

Lens

Dual-lens

Video standard

PAL (Default)/NTSC

Network

Wi-Fi

Support, 2.4 G, 802.11b/g/n

Wired network

Support 10/100/1000 Mbps self-adaptive

Interface

Alarm input

2

Alarm output

1

USB

1 (For Module)

Audio Output Interface

1 (3.5 mm)

Network interface

1

RS-485

1

Wiegand

1

Lock output

1

Exit button

1

Door contact input

1

TAMPER

1

Capacity

Card capacity

500,000

Face capacity

100,000

Event capacity

150,000

Authentication

Face recognition accuracy rate

≥ 99%

Card type

M1 card;DESfire card;Felica card

Card reading distance

0 to 3 cm

Card reading duration

< 1 s

Face recognition duration

< 0.2 s per person

Face recognition distance

0.3 to 3 m

General

Power supply

12 VDC to 24 VDC/2 A

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

0 to 90% (no condensing)

Protective level

IP65

Dimensions

110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish

Net Weight

0.57 kg (1.26 lb)

Function

Two-way audio

Support

Time synchronization

Support

Face anti-spoofing

Support

Live view

Support

Audio prompt

Support

Manufacturer Part No:
302918167
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
CCTHIK302918167
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
