HIKVISION iDS-9664NXI-M16/X 8K 64-Channel 3U 16-Bay NVR

Support up to 16 x 16 TB Storage

Brand: HIKVISION
MPN: 303617093
Part #: CCTHIK303617093
UPC:

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 20 Feb When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 303617093
Part #: CCTHIK303617093
UPC:

Be the first to review this product

HDD Bays

Max Camera Resolution

32 MP

Max Cameras Supported

Video Recorder Type

NVR

View full specs

Returns & Warranty Bulk Quote Print Page

Features

DeepinMind M Series NVR

- Up to 2-ch@ 32 MP/2-ch@ 24 MP/4-ch@ 12 MP/8-ch@ 8 MP/16- ch@ 4 MP/32-ch@ 1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 64-ch IP cameras can be connected
- Intelligent analytics based on deep learning algorithm
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 12-ch video structuralization

Profession and Reliability

- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
- ANR (Automatic Network Replenishment) technology ensures network camera video storage reliability

HD Video Output

- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution or dual 4K resolution

Storage and Playback

- Up to 16 SATA interfaces for HDD connection
- Up to 16-ch synchronous playback

Smart & POS Function

- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR (Automatic Number-Plate Recognition), and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

- 2 self-adaptive 10M/100M/1000M Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in

Typical Application

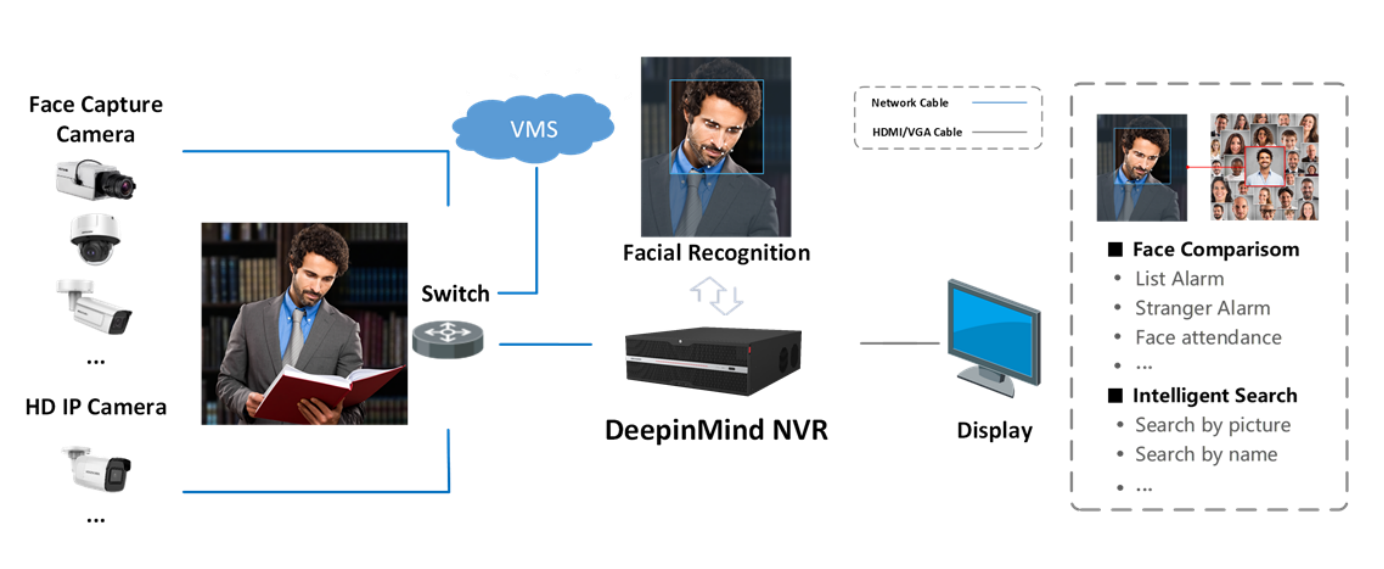

Facial Recognition and Face Picture Comparison
Modeling and analyzing face pictures captured by cameras. Realize list alarm and stranger alarm via face picture library. Search target people by picture and name features.

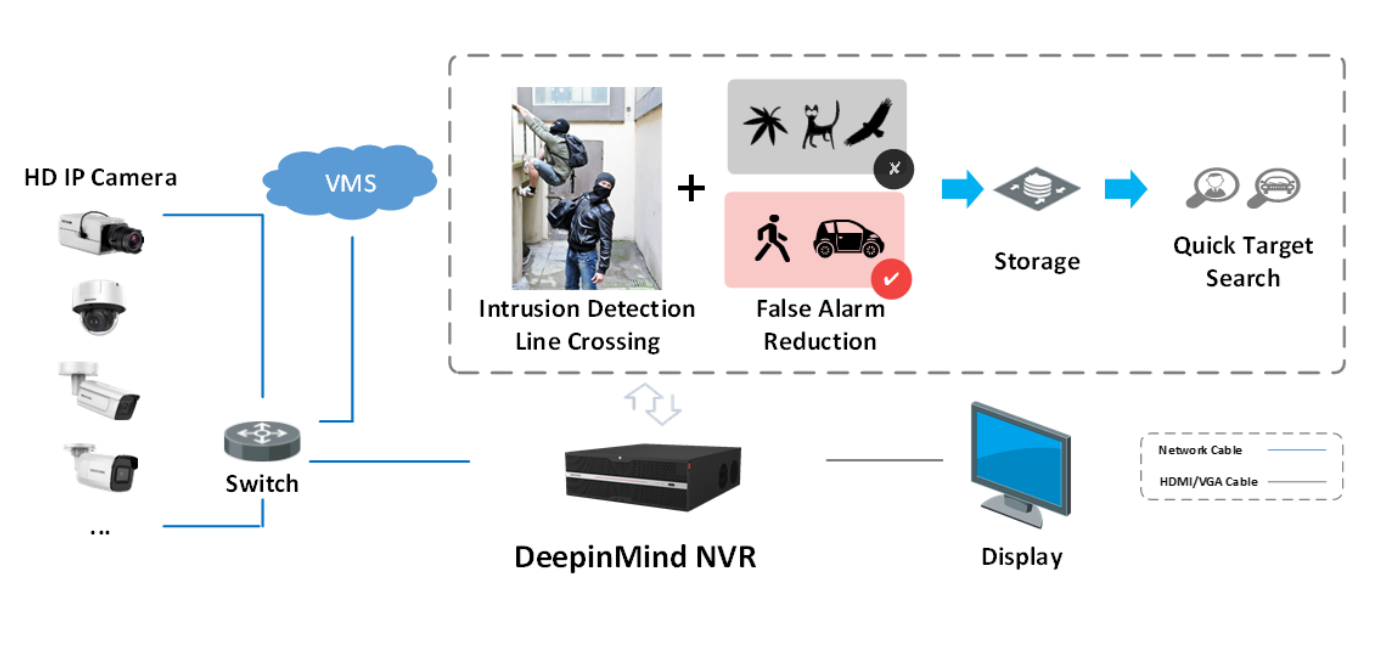

Perimeter Protection
Adopt deep learning algorithm to reduce false alarm, effectively reduces the false alarm caused by tree branches, leaves, shadow, light, vehicles, small animals, etc.

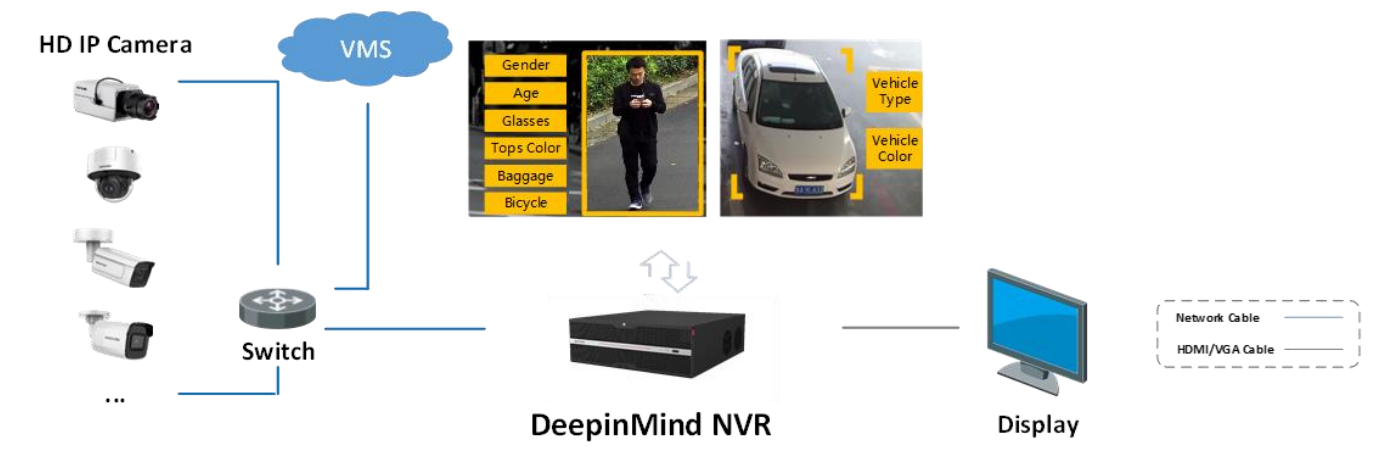

Video Structuralization
Extracting the face picture, human body and vehicle features from live videos, which is used for the tracking and retrieval of human and vehicles.

Specifications

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA

Engine

2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera): 48-ch (24-ch for each engine); Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance: 16-ch 2 MP (8-ch for each engine), up to 8 MP

AcuSearch

By Camera: All channels, up to 691,200 targets/day (Camera must enable AcuSearch function)
By NVR: up to 8-ch, up to 691,200 targets/day

Perimeter Protection

By NVR: perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP; perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
By Camera: perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis: 12-ch 2 MP (6-ch for each engine), up to 8 MP
Face Picture Library: Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison: 16-ch; Comparison speed: 32 pictures per second

ANPR

By Camera: All channels
Plate Attributes: Plate number, license plate color, license plate type
Vehicle Attributes: Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

64-ch (Up to 32 MP resolution)

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
* When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.

Incoming Bandwidth (RAID Mode)

400 Mbps

Outgoing Bandwidth (RAID Mode)

400 Mbps

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps) / 2-ch@24 MP (30fps) / 4-ch@16 MP (30fps) / 8-ch@8 MP (30fps) / 16-ch@4 MP (30fps) / 32-ch@2 MP (30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

SATA

16 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 16 TB capacity for each HDD

Serial Interface

1 RS-232, 1 RS-485 (full-duplex)

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Alarm In/Out

16/9

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 to 55°C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

442× 494× 150 mm (17.4"× 19.5" × 5.9")

Weight

≤ 13 kg (without HDD, 28.7 lb.)

Certification

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Manufacturer Part No:

303617093

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK303617093

Product Model:

iDS-9664NXI-M16/X

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
