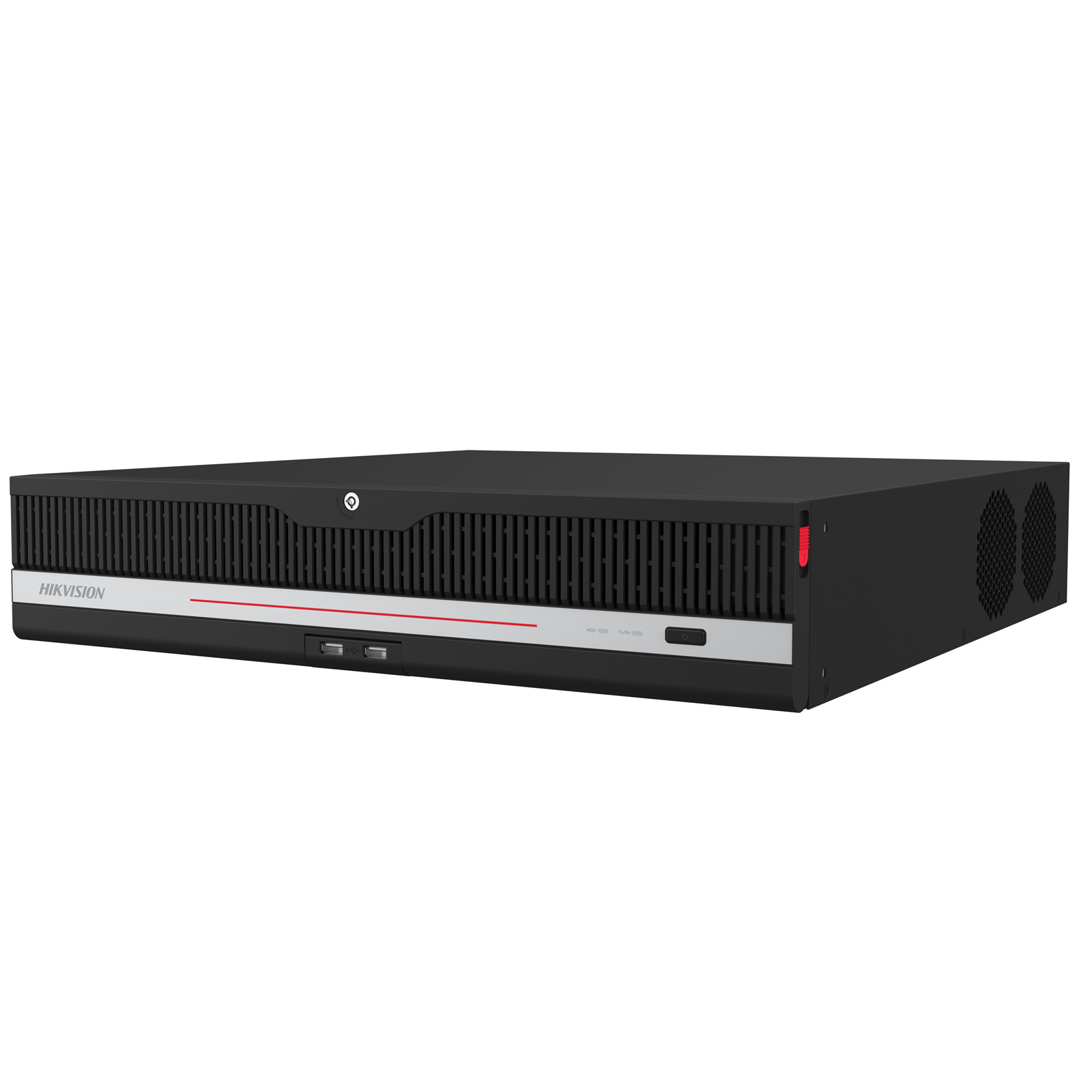

HIKVISION 32ch 8HDD DeepInMind Pro NVR

Brand: HIKVISION
MPN: 303623799
Part #: CCTHIK303623799
UPC:

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 20 Feb When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 303623799
Part #: CCTHIK303623799
UPC:

Be the first to review this product

HDD Bays

Max Camera Resolution

32 MP

Max Cameras Supported

Video Recorder Type

View full specs

Returns & Warranty Bulk Quote Print Page

Features

DeepinMind Pro NVR

The HIKVISION 32‑ch 8HDD DeepinMind Pro NVR is a high-performance network video recorder designed for large-scale AI-driven surveillance applications. It supports up to 32 IP camera inputs and offers advanced intelligent analytics for enhanced security management.

- Up to 2-ch@ 32 MP/2-ch@ 24 MP/4-ch@ 12 MP/8-ch@ 8 MP/16-ch@ 4 MP/32-ch@ 1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on Guanlan Large-Scale AI Models
- Up to 32-ch IP cameras can be connected
- Up to 32-ch AcuSeek and AcuSearch function
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 16-ch video structuralization
- Up to 8-ch IP speakers can be connected

Decoding and Video Capacity

This NVR supports a wide range of decoding capabilities, including 2‑ch at 32 MP, 2‑ch at 24 MP, 4‑ch at 12 MP, 8‑ch at 8 MP, 16‑ch at 4 MP, and 32‑ch at 1080p. It accommodates H.265+/H.265/H.264+/H.264 video formats to optimize storage and bandwidth usage.

Intelligent Analytics

Equipped with Guanlan Large-Scale AI Models, the system provides up to 32‑ch AcuSeek and AcuSearch functions, up to 24‑ch perimeter protection, 16‑ch video structuralization, and facial recognition for up to 16 video streams or 32 face pictures. It can also connect up to 8 IP speakers for audio management.

IP Video Input

The NVR supports 32‑channel IP video input, with a maximum resolution of 32 MP. Note that the device allows up to 8‑ch 32 MP/24 MP IP video inputs when ultra HD resolution mode is enabled.

Bandwidth and Video Output

It offers 320 Mbps incoming and 400 Mbps outgoing bandwidth. HDMI 1 supports up to 8K resolution at 30 Hz, while HDMI 2 can output up to 4K. Two VGA outputs are available at 1920 × 1080/60Hz. HDMI1/VGA1 and HDMI2/VGA2 can be used simultaneously, with one CVBS output for legacy systems.

Audio and Decoding

The NVR provides 2‑channel audio output via RCA and 1‑channel two-way audio. Synchronous playback supports 16 channels. Decoding formats include H.265, H.265+, H.264, and H.264+, with recording resolutions ranging from 32 MP down to QCIF.

Network Connectivity

Remote connection supports up to 128 devices. Network protocols include TCP/IP, DHCP, IPv4/IPv6, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTP/HTTPS, ONVIF, and OTAP. It also provides ONVIF API, SDK, and ISAPI support for integration with compatible software.

Ethernet and Browser Support

The NVR features two RJ‑45 10/100/1000 Mbps self-adaptive Ethernet interfaces. Compatible browsers include IE11, Chrome V57, Firefox V52, Safari V12, and Edge V89 or higher, ensuring flexible network access and management.

Specifications

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch, AcuSeek

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Engine

1 GPU Engine, only for AcuSeek and OVD

2 GPU Engines, each GPU engine can run an intelligent algorithm, engine mode is adjustable, performance of each GPU engine (choose 1 from 4):
Facial recognition: 8-ch (4MP) video target capture or 32-ch image comparison
Perimeter prevention: 12-ch (2MP) video analysis or 32-ch image analysis
Video Structuralization: 8-ch (2MP) video structured analysis
AcuSearch: support 16-ch (2MP) by NVR

Note: To enable AcuSeek, at least one engine must be enabled in AcuSearch mode.

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 32 face picture libraries, up to 100,000 face pictures in list library

Face Picture Comparison (Captured from Camera)

32-ch; (32-ch for each engine);
Comparison speed: 32 pictures per second

Facial Detection and Analytics Performance

16-ch(2MP-8ch./4MP-8ch./8MP-4ch. for each engine face pictures captured by NVR)

AcuSearch

By Camera

All channels, up to 600,000 targets/day
The camera should enable AcuSearch function

By NVR

Up to 16ch-2MP/8ch-4MP/4ch-8MP normal IP camera access to achieve AcuSearch. (1 GPU engines for target capture, 1 GPU engine for AcuSearch modeling)

AcuSeek

Performance

The NVR supports 16ch-2MP/8ch-4MP/4ch-8MP normal IP camera access to achieve AcuSeek. (1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling, 1 GPU engine for AcuSeek modeling)

If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 600,000 targets/day.

Search Language

English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish

Perimeter Protection

By NVR

Perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP (1 GPU engine for live video analysis, 1 GPU engine for lager model algorithm secondary analysis, capable of secondary analysis is 2 events/s)
Perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP

By Camera

Perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

16-ch 2 MP
12-ch 4 MP
6-ch 8 MP

ANPR

By Camera

All channels

Support Countries & Regions

Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia
Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, The United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein
Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia, Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon
Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya

Plate Attributes

Plate number, license plate color, license plate type

Vehicle Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

32-ch

Up to 32 MP resolution

*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

SATA

8 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 20 TB capacity for each HDD

Serial Interface

1 RS-232, 1 RS-485 (full-duplex)

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Alarm In/Out

16/9

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian, Hebrew, Farsi, Azeri, Burmese

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 to 55°C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

442 × 540 × 88 mm ( 17.4"× 18.0" × 3.5")

Weight

≤ 8 kg (without HDD, 17.6 lb.)

Certification

Obtained Certification

CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Manufacturer Part No:

303623799

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK303623799

Product Model:

Warranty: 12 months *
