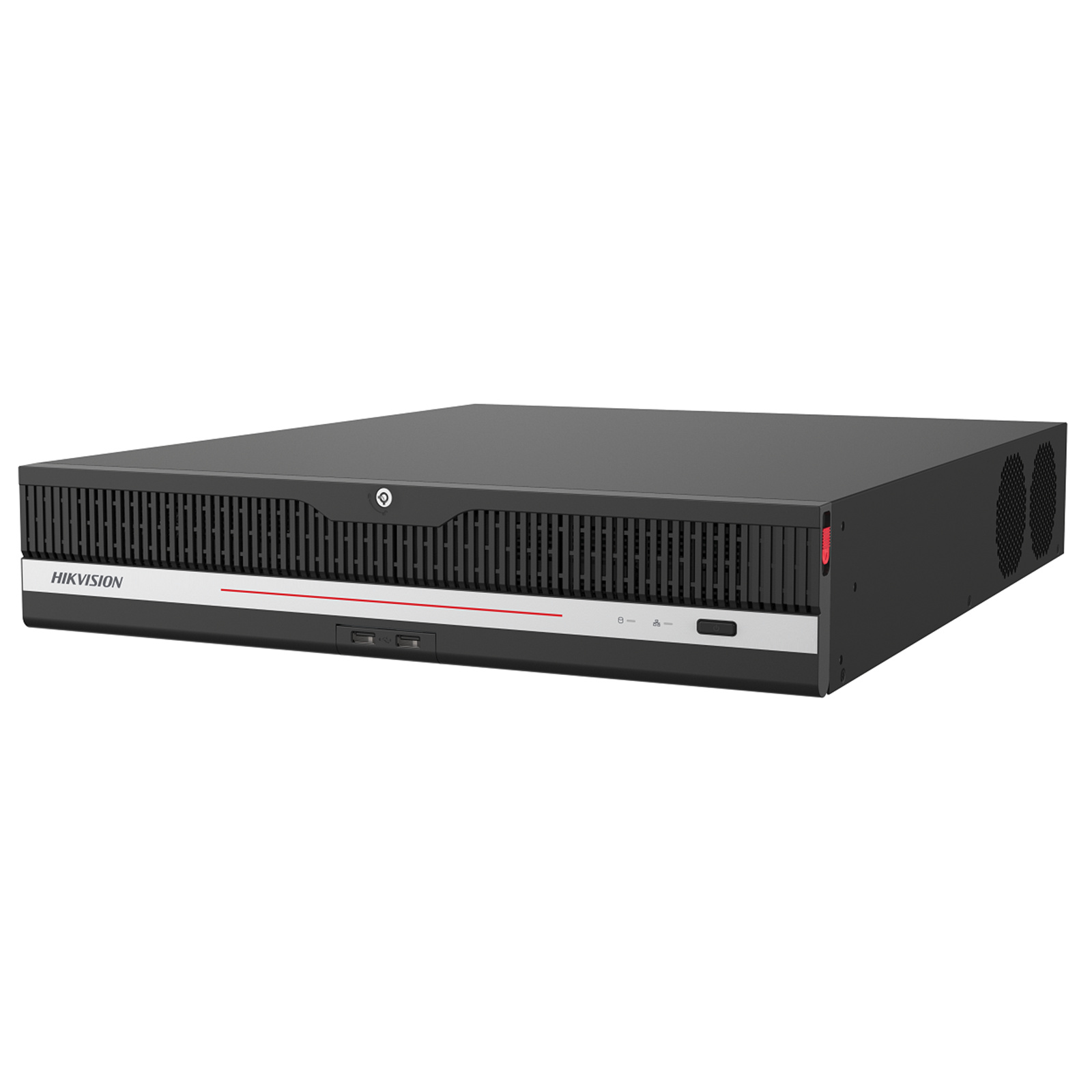

HIKVISION iDS-9664NXI-P8 8K 64-Channel 2U 8-Bay NVR

Support up to 8 x 20 TB Storage

Brand: HIKVISION
MPN: 303623801
Part #: CCTHIK303623801
UPC:

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 20 Feb When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 303623801
Part #: CCTHIK303623801
UPC:

Be the first to review this product

HDD Bays

Max Camera Resolution

32 MP

Max Cameras Supported

Video Recorder Type

NVR

View full specs

Returns & Warranty Bulk Quote Print Page

Features

DeepinMind Pro NVR

- Up to 2-ch@ 32 MP/2-ch@ 24 MP/4-ch@ 12 MP/8-ch@ 8 MP/16-ch@ 4 MP/32-ch@ 1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on Guanlan Large-Scale AI Models
- Up to 64-ch IP cameras can be connected
- Up to 64-ch AcuSeek and AcuSearch function
- Up to 36-ch perimeter protection
- Up to 24-ch facial recognition for video stream, or up to 64-ch facial recognition for face picture
- Up to 24-ch video structuralization

Exceptional Channel and Decoding Capability

The DeepInMind Pro NVR supports up to 64 IP camera connections and offers flexible decoding capacity-extending from 2-ch at ultra-high 32MP resolution to 32-ch at 1080p. Multiple video formats are supported, including H.265+/H.265/H.264+/H.264, ensuring comprehensive compatibility with new and existing camera networks.

Industry-Leading AI Analytics With Scalable GPU Engines

Utilizing up to three GPU engines and "Guanlan" large-scale AI models, the NVR delivers advanced analytics such as facial recognition, video structuralization, and perimeter protection. Each engine can be individually assigned for video target capture, image analysis, or structured data computation, giving unparalleled adaptability for complex security needs.

High-Capacity Facial and Event Data Management

The system can manage up to 32 face picture libraries, holding 100,000 images for rapid retrieval, comparison, and searching. Facial analytics support up to 24 channels for video streaming and 64 channels for image-based recognition, making it suitable for large venues and critical infrastructures.

Multi-Function Intelligent Search and Video Structuring

With AcuSeek and AcuSearch functions available for all channels, the NVR enables precise video and event search across massive datasets (up to 600,000 targets/day with AcuSense cameras). Video structuralization and ANPR recognize and classify vehicles, license plates, and associated attributes, supporting robust forensic investigations.

Robust Interface, Storage, and RAID Data Protection

Equipped with 8 SATA interfaces (each up to 20TB), RAID0/1/5/6/10 for storage security, dual HDMI/VGA monitor outputs, serial, eSATA, extensive audio and alarm I/O ports, and dual LAN connections, the unit is engineered for scalable, high-availability deployments across diverse site requirements.

Global Certification and Flexible Environmental Adaptability

Certified to major standards such as CE, CB, RoHS, and REACH, the DeepInMind Pro NVR features a sturdy chassis, wide operating temperature and humidity ranges, and multi-language support, making it ideal for global enterprise, industrial, and high-reliability applications.

Specifications

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Engine

1 GPU Engine, only for AcuSeek and OVD

3 GPU Engines, each engine can run an intelligent algorithm, engine mode is adjustable, performance of each engine (choose 1 from 4):
Facial recognition: 8-ch (4MP) video target capture or 32-ch image comparison
Perimeter prevention: 12-ch (2MP) video analysis or 32-ch image analysis
Video Structuralization: 8-ch (2MP) video structured analysis
AcuSearch: support 16-ch (2MP) by NVR

Note: To enable AcuSeek, at least one engine must be enabled in AcuSearch mode.

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 32 face picture libraries, up to 100,000 face pictures in list library

Face Picture Comparison (Captured from Camera)

64-ch; (32-ch for each engine);
Comparison speed: 32 pictures per second

Facial Detection and Analytics Performance

24-ch (2MP-8ch./4MP-8ch./8MP-4ch. face pictures captured by NVR)

AcuSearch

By Camera

All channels, up to 600,000 targets/day
The camera should enable AcuSearch function

By NVR

Up to 32ch-2MP/16ch-4MP/8ch-8MP normal IP camera access to achieve AcuSearch. (2 GPU engines for target capture, 1 GPU engine for AcuSearch modeling)

AcuSeek

Performance

The NVR supports 32ch-2MP/16ch-4MP/8ch-8MP normal IP camera access to achieve AcuSeek. (2 GPU engines for target capture, 1 GPU engine for AcuSearch modeling, 1 GPU engine for AcuSeek modeling)

If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 600,000 targets/day.

Search Language

English

Perimeter Protection

By NVR

Perimeter protection powered by Large Model: 24-ch 2 MP or 16-ch 4MP or 8-ch 8MP. (2 GPU engines for live video analysis, 1 GPU engine for lager model algorithm secondary analysis, capable of secondary analysis is 2 events/s)

Perimeter protection without Large Model: 36-ch 2 MP or 24ch-4MP or 12-ch 8MP

By Camera

Perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

24-ch 2 MP
18-ch 4 MP
9-ch 8 MP

ANPR

By Camera

All channels

Plate Attributes

Plate number, license plate color, license plate type

Vehicle Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

64-ch
Up to 32 MP resolution
*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

SATA

8 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 20 TB capacity for each HDD

Serial Interface

1 RS-232, 1 RS-485 (full-duplex)

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Alarm In/Out

16/9

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian, Hebrew, Farsi, Azeri, Burmese

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 to 55°C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

442 × 540 × 88 mm (17.4" × 18.0" × 3.5")

Weight

≤ 8 kg (without HDD, 17.6 lb.)

Certification

Obtained Certification

CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Manufacturer Part No:

303623801

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK303623801

Product Model:

iDS-9664NXI-P8

Warranty: 12 months *
