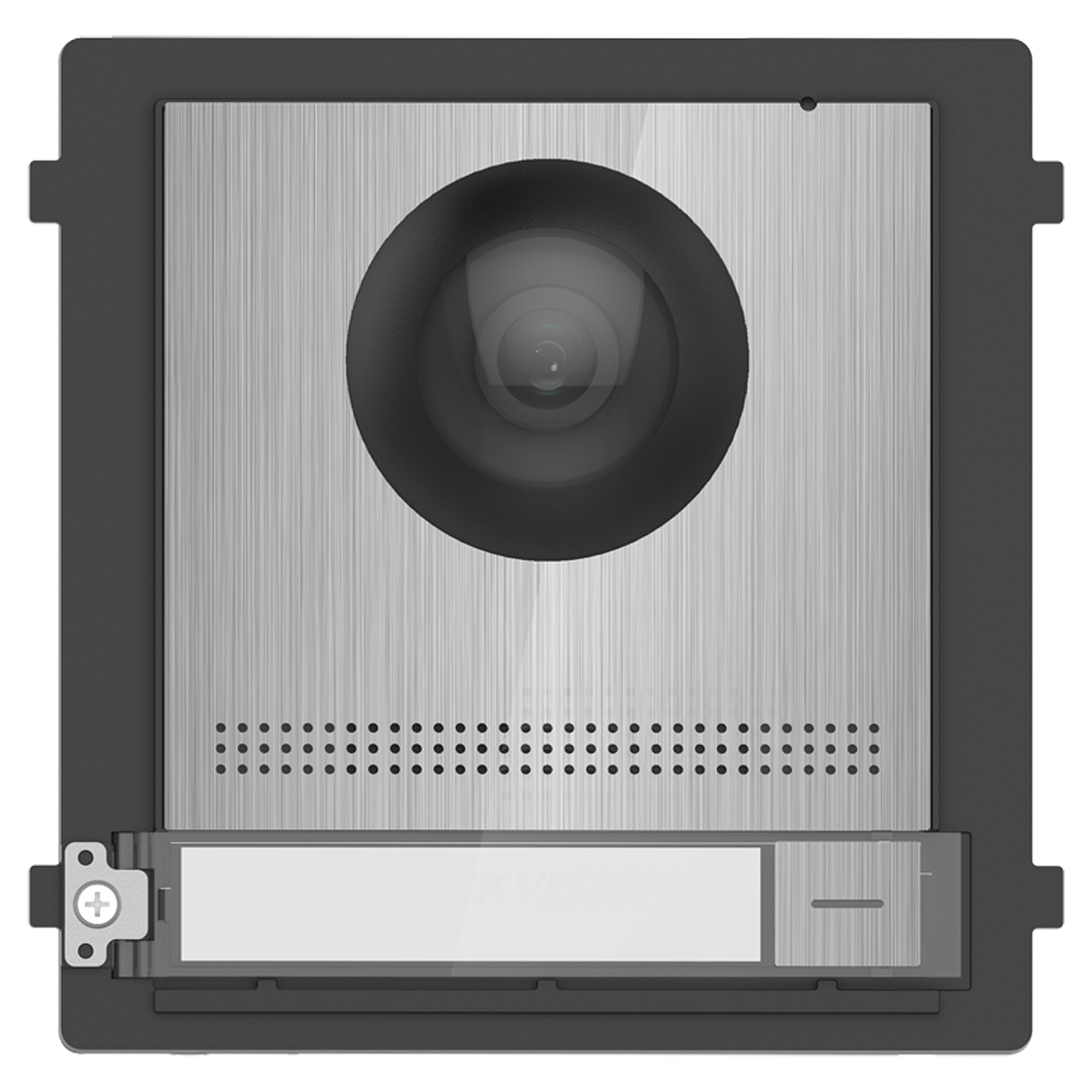

HIKVISION INTERCOM KD8003-IME1-S 2MP G2 MODULAR DOOR STATION, STAINLESS STEEL, IP65
Out of stock
HIKVISION INTERCOM KD8003-IME1-S 2MP G2 MODULAR DOOR STATION, STAINLESS STEEL, IP65
- Brand: HIKVISION
- MPN: 305303047
- Part #: CCTHIK305303047
- UPC:
- Brand: HIKVISION
- MPN: 305303047
- Part #: CCTHIK305303047
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Intercom Systems
HIKVISION INTERCOM KD8003-IME1-S 2MP G2 MODULAR DOOR STATION, STAINLESS STEEL, IP65
- Brand: HIKVISION
- MPN: 305303047
- Part #: CCTHIK305303047
Product URL: https://www.pbtech.co.nz/product/CCTHIK305303047/HIKVISION-INTERCOM-KD8003-IME1-S-2MP-G2-MODULAR-DO
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
KD8 Series Pro Modular Door Station
- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- IP65, 12 VDC or standard POE
- Video intercom to indoor station and main station
Modular Stainless Steel Door Station for Flexible Deployment
The KD8 Series Pro Modular Door Station features a robust stainless steel body and modular design, supporting simple flush or surface installations. The main unit requires a mounting bracket, meeting the aesthetic and durability demands of modern building entrances.
2MP Fisheye Camera with Advanced IR for Wide Coverage
Equipped with a 2MP low-illumination fisheye camera and IR supplement, the station provides an exceptionally wide 180° horizontal and 96° vertical field of view. High-definition video ensures every visitor is clearly captured both day and night.
Integrated Call Button, Dual Lock Control, and Alarm Inputs
A single, easy-access physical call button is complemented by support for two door locks and four alarm input channels, allowing property owners to control access and security devices efficiently-suitable for complex or multi-entry environments.
Reliable Video Intercom Over Secure IP Network
Supporting both indoor and main station video intercom, the KD8003-IME1-S employs TCP/IP and RTSP protocols for stable, wired network communication, enabling clear video calls, real-time monitoring, and remote unlocking.
Industry-Leading Weather Resistance and Temperature Range
Rated IP65 for dust and water protection, and operable from -40°C to +55°C, this device is built for outdoor performance in harsh climatic conditions, making it ideal for entrances in apartments, offices, and gated communities.
POE/12VDC Power and Multilingual Operation
Flexible IEEE802.3af PoE or 12VDC power supply options enable convenient deployments. The system supports 20+ language interfaces, addressing global needs in residential and commercial security applications.
Typical Application

Specifications
Video parameters
Supplement light
IR supplement
Lens
Low Illumination 2 MP HD IR Camera
FOV
Horizontal: 180°, Vertical: 96°
Pixel
Main stream : 1920 × 1080
Sub stream : 720 × 480
Audio parameters
Audio quality
Noise suppression and echo cancellation
Capacity
Linked indoor station
500
Sub door station capacity
16
Network parameters
Communication protocol
TCP/IP, RTSP
Wired network
Support
Wi-Fi
/
Bluetooth
/
Device interfaces
Network interface
1 10/100M self-adaptive Ethenet
Exit button
2
Lock control
2
Door contact input
2
Power interface
1
General
Button
/
Installation
Flush mounting, surface mounting
Indicator
/
Weight
Without package: 415 g
Protective level
IP65
Working temperature
-40° C to +55° C(-40° F to 131° F)
Working humidity
10% to 95%
Dimensions
98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
Battery
/
Power supply
IEEE802.3af, standard PoE
12 VDC, 1 A
Application environment
Outdoor
Power consumption
4 W
Language
English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
