HIKVISION INTERCOM DS-KV8213-WME1(C) 2MP, 2 BUTTON DOOR STATION, WIFI, IP65
HIKVISION INTERCOM DS-KV8213-WME1(C) 2MP, 2 BUTTON DOOR STATION, WIFI, IP65
- Brand: HIKVISION
- MPN: 305303623
- Part #: CCTHIK305303623
- UPC:
- Brand: HIKVISION
- MPN: 305303623
- Part #: CCTHIK305303623
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Access Control
HIKVISION INTERCOM DS-KV8213-WME1(C) 2MP, 2 BUTTON DOOR STATION, WIFI, IP65
- Brand: HIKVISION
- MPN: 305303623
- Part #: CCTHIK305303623
Product URL: https://www.pbtech.co.nz/product/CCTHIK305303623/HIKVISION-INTERCOM-DS-KV8213-WME1C-2MP-2-BUTTON-DO
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

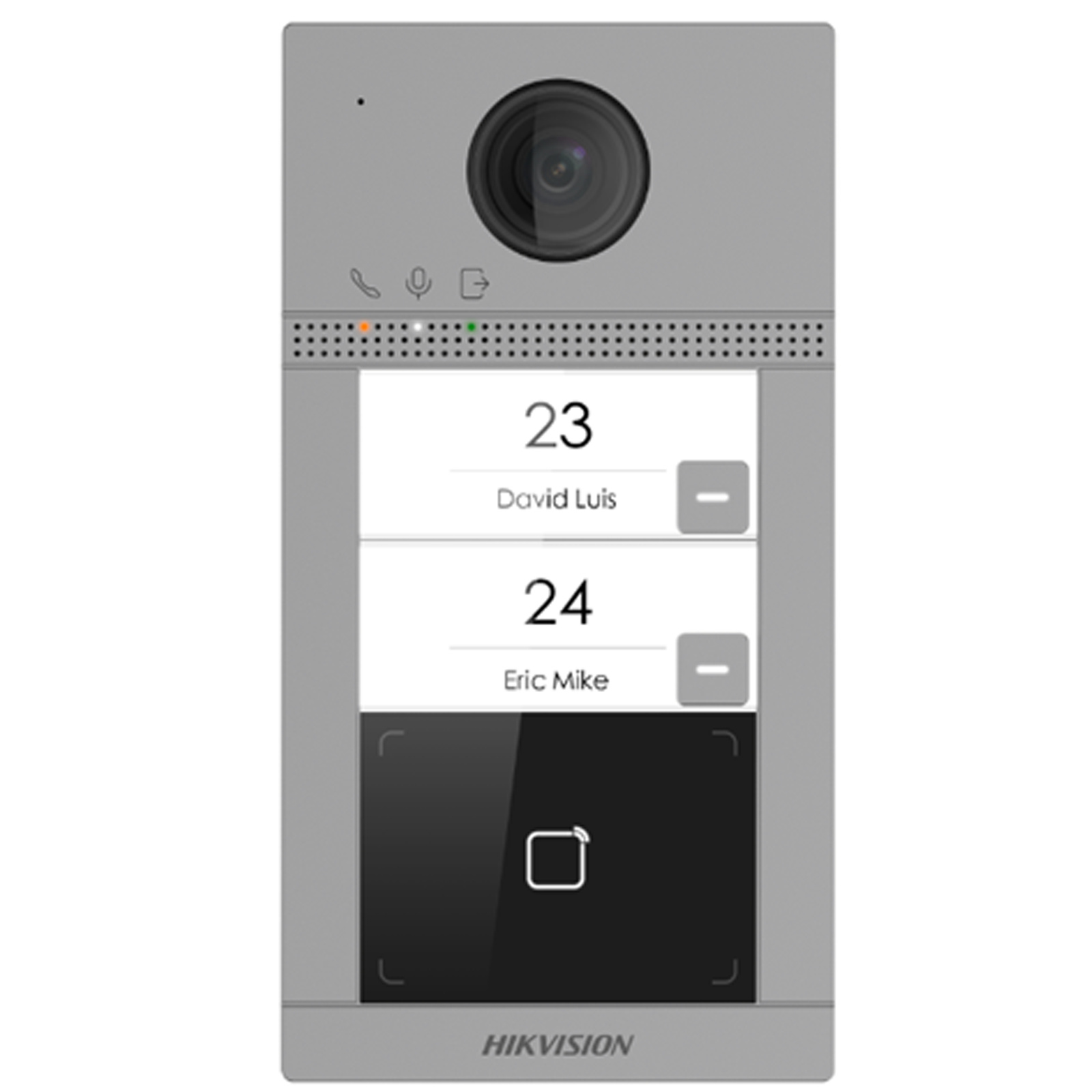

2 Buttons Metal Villa Door Station
- 2 MP camera with IR supplement
- Two nametag buttons calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IK08 & IP65 higher protection level with aluminum alloy material
- Convenient Hik-Connect APP mobile control
Specifications
System parameters
Operation system
Linux
ROM
32 MB
RAM
256 MB
Processor
Embeded high performance processor
Video parameters
Lens
1
Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 640 × 480p
FOV
Horizontal: 124° Vertical: 75°
Wide dynamic range (WDR)
Digital WDR/76.9 dB
Supplement light
IR light, up to 3 m
Video compression standard
H.264; H.265; MJPEG
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
User capacity
2000
Card capacity
10000
Linked indoor station capacity
2 (main indoor station)
Sub door station capacity
16
Network parameters
Network protocol
TCP/IP, RTSP, IPV6, ONVIF
Wi-Fi
IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
/
3G/4G
/
Received frequency
2.4 to 2.4835 GHz
Transmitted frequency
2.4 to 2.4835 GHz
Bandwidth
20/40 MHz
Frequency power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
Authentication
Card reading frequency
13.56 MHz
Device interfaces
Alarm input
4
Network interface
1 RJ-45,10/100 Mbps self-adaptive
TAMPER
1
Exit button
2
RS-485
1
USB
/
Wiegand
/
TF card
Reserved
Alarm output
/
Lock control
2 relays, Max. 30 VDC 2 A
Door contact input
2
General
Button
2 physical buttons
Installation
Surface mounting
Indicator
3
Net weight
0.370 kg
Protective level
IP65, IK08
Working temperature
-40 °C to 53 °C(-40 °F to 127.4 °F)
Working humidity
10% to 95% (no-condensing)
Dimension (W × H × D)
174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
Battery
/
Application environment
Outdoor
Power consumption
< 10 W
Language
English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
