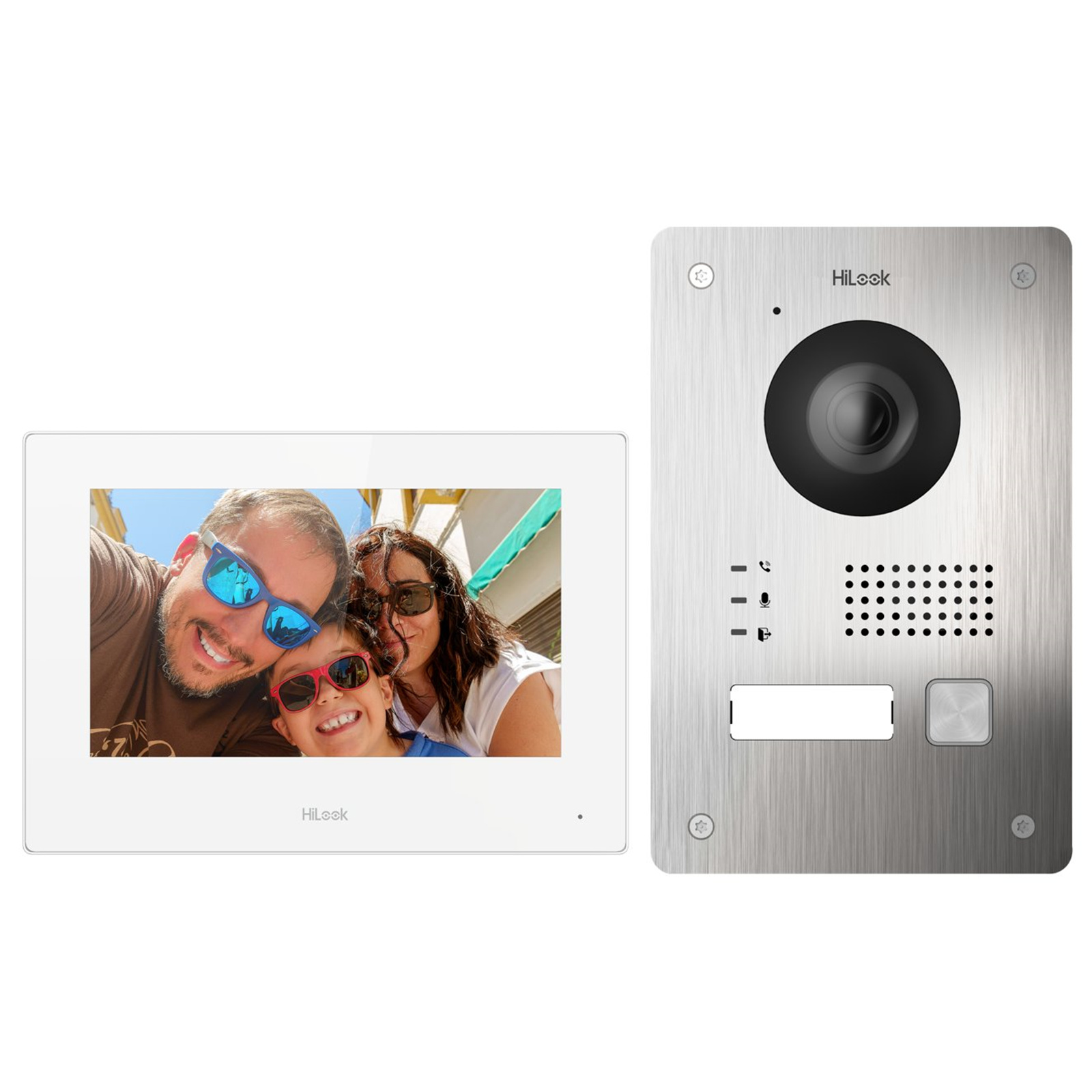

HIKVISION HILOOK HA-KIT-PY2 2-WIRE INTERCOM KIT WITH 7" COLOUR TOUCH SCREEN & 2MP CAMERA
HIKVISION HILOOK HA-KIT-PY2 2-WIRE INTERCOM KIT WITH 7" COLOUR TOUCH SCREEN & 2MP CAMERA
- Brand: HIKVISION
- MPN: 305304853
- Part #: CCTHIK305304853
- UPC:
- Brand: HIKVISION
- MPN: 305304853
- Part #: CCTHIK305304853
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Access Control
HIKVISION HILOOK HA-KIT-PY2 2-WIRE INTERCOM KIT WITH 7" COLOUR TOUCH SCREEN & 2MP CAMERA
- Brand: HIKVISION
- MPN: 305304853
- Part #: CCTHIK305304853
Product URL: https://www.pbtech.co.nz/product/CCTHIK305304853/HIKVISION-HILOOK-HA-KIT-PY2-2-WIRE-INTERCOM-KIT-WI
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

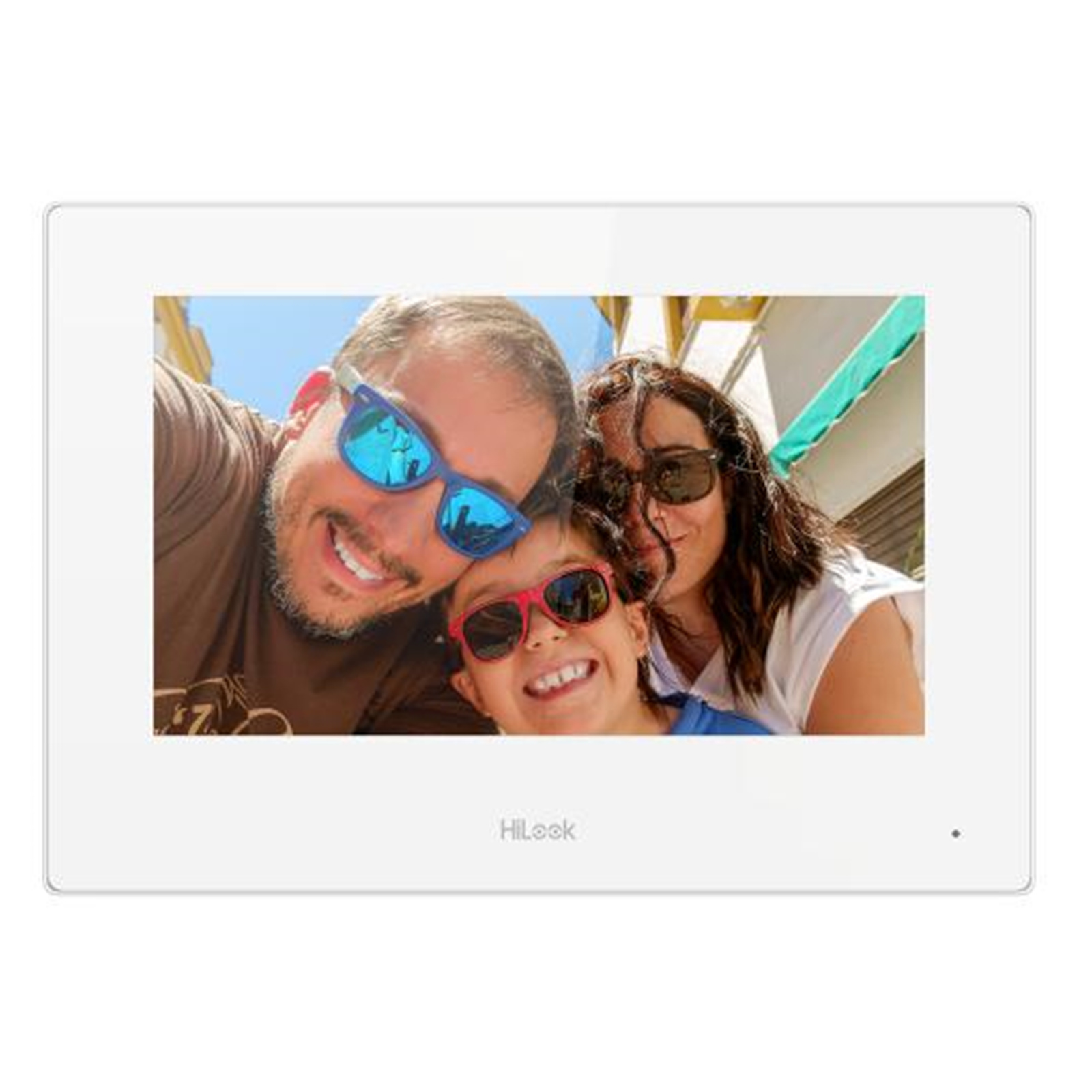

Indoor Station
- 7' touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely
- Easy wizard for quick set up
- Live-view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station

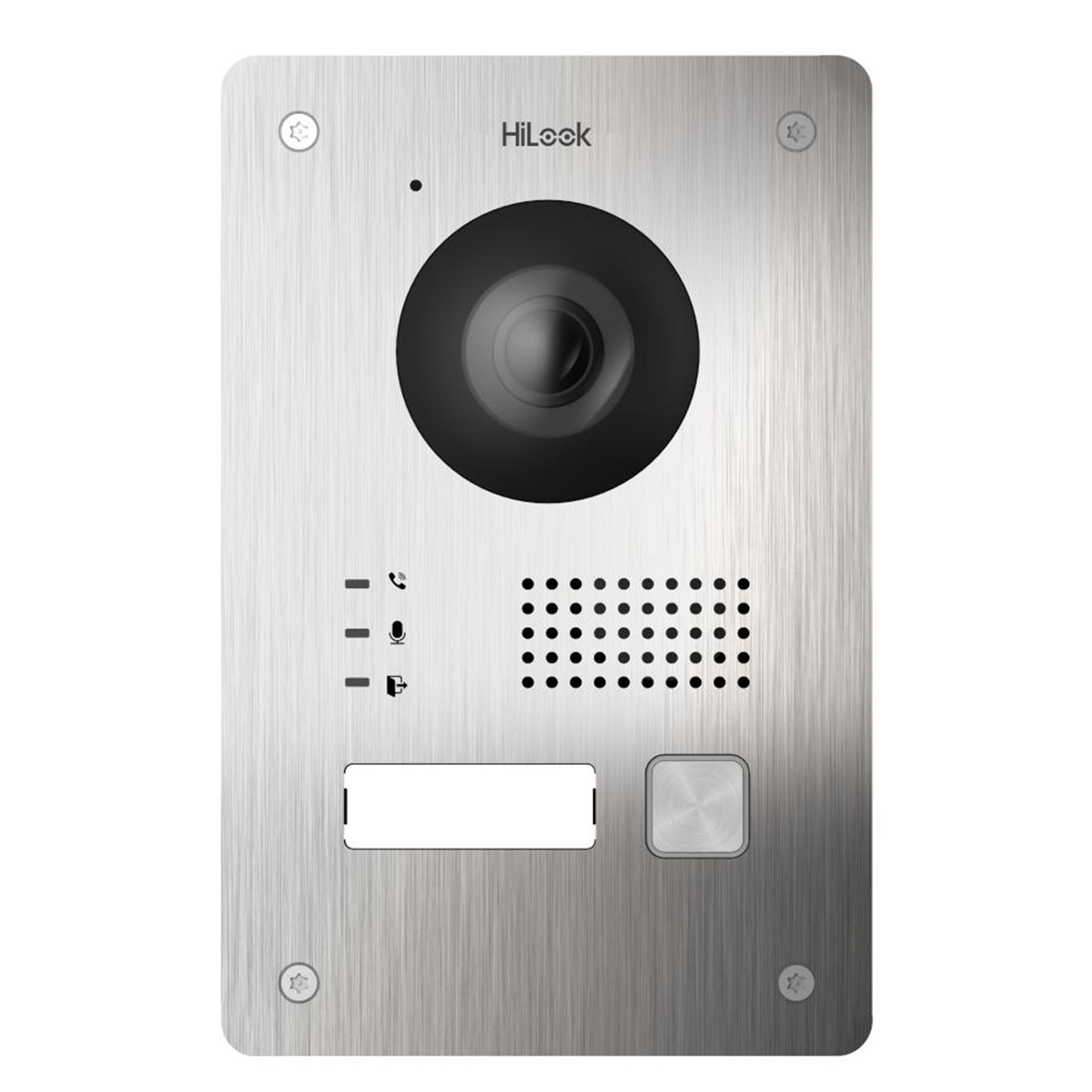

Door Station
- High quality imaging with 2 MP resolution
- One call physical button for easier calls
- Two-lock control
- IP65 protection level
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
- High-quality stainless steel panel
Specifications
Door station/System parameters
Operation system
Embedded Linux operation system
Operation mode
Single-button
Flash
32 MB
RAM
256 MB
Door station/Video parameters
Camera
2MP HD camera
Resolution
Main stream: 1280*720P, 1920*1080p
Sub stream: 640*480
Night vision
Low illumination IR supplement distance: 3 m
WDR
Support
Field of view
Horizontal: 140° Vertical: 85°
Video Compression Standard
H.264
Door station/Audio parameters
Audio input
Built-in 1*omnidirectional microphone
Audio output
Built-in 1*loudspeaker, 8Ω
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U, G.711 A
Audio compression Rate
64 Kbps
Door station/Network parameters
Network protocol
TCP/IP, RSTP, SIP2.0
Wired network
Support, 2-Wire wiring
Door station/Device interfaces
RS-485
/
Alarm input
2( Exit button or door contact)
Output
1*12 V/500 mA output
Two-wire interface
1
TAMPER switch
1
Door station/General
Power consumption
< 10 W
Working temperature
-40° C to +60° C(-40° F to 140° F)
Working humidity
10% to 95%
Installation
Surface mounting, flush mounting
Protection level
IP65
Indicator
3
Power supply
From indoor station
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch TFT touch screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Brightness
Adjustable
Indoor station/Audio parameters
Audio input
Built-in 1*omnidirectional microphone
Audio output
Built-in 1*loudspeaker, 8Ω
Audio quality
Noise suppression and echo cancellation
Volume
Local adjustable
Audio compression standard
G.711 U, G.711 A
Indoor station/Network parameters
Wired network
1*10 Mbps through 2-wire interface
Wireless network
Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz
Indoor station/Device interfaces
RS-485
1
Alarm input
8
Two-wire (output)
1
Two-wire (input)
1
Power input
24VDC/1.5A
Indoor station/General
Power supply
24VDC/1.5A
Power consumption
≤ 8 W
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90%
