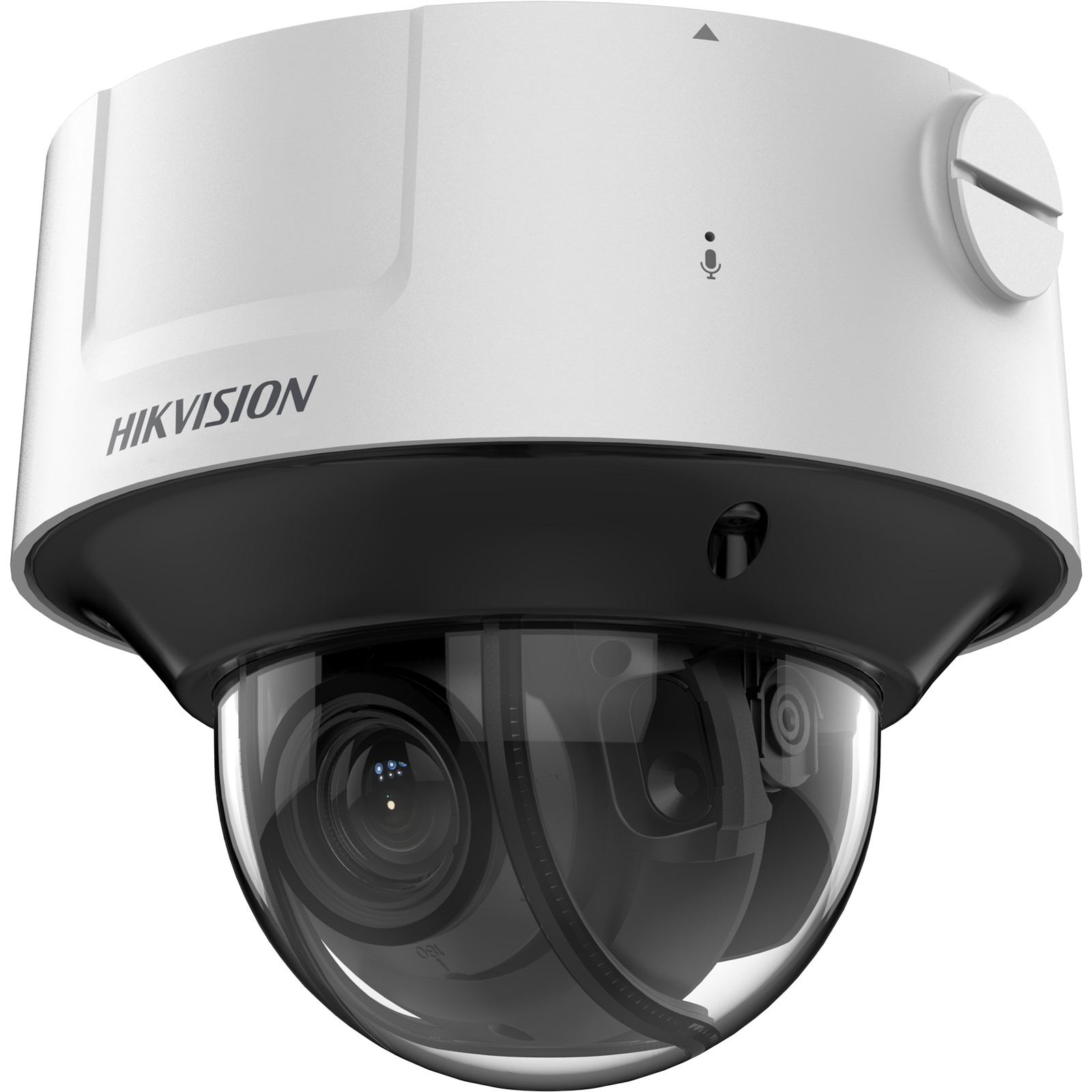

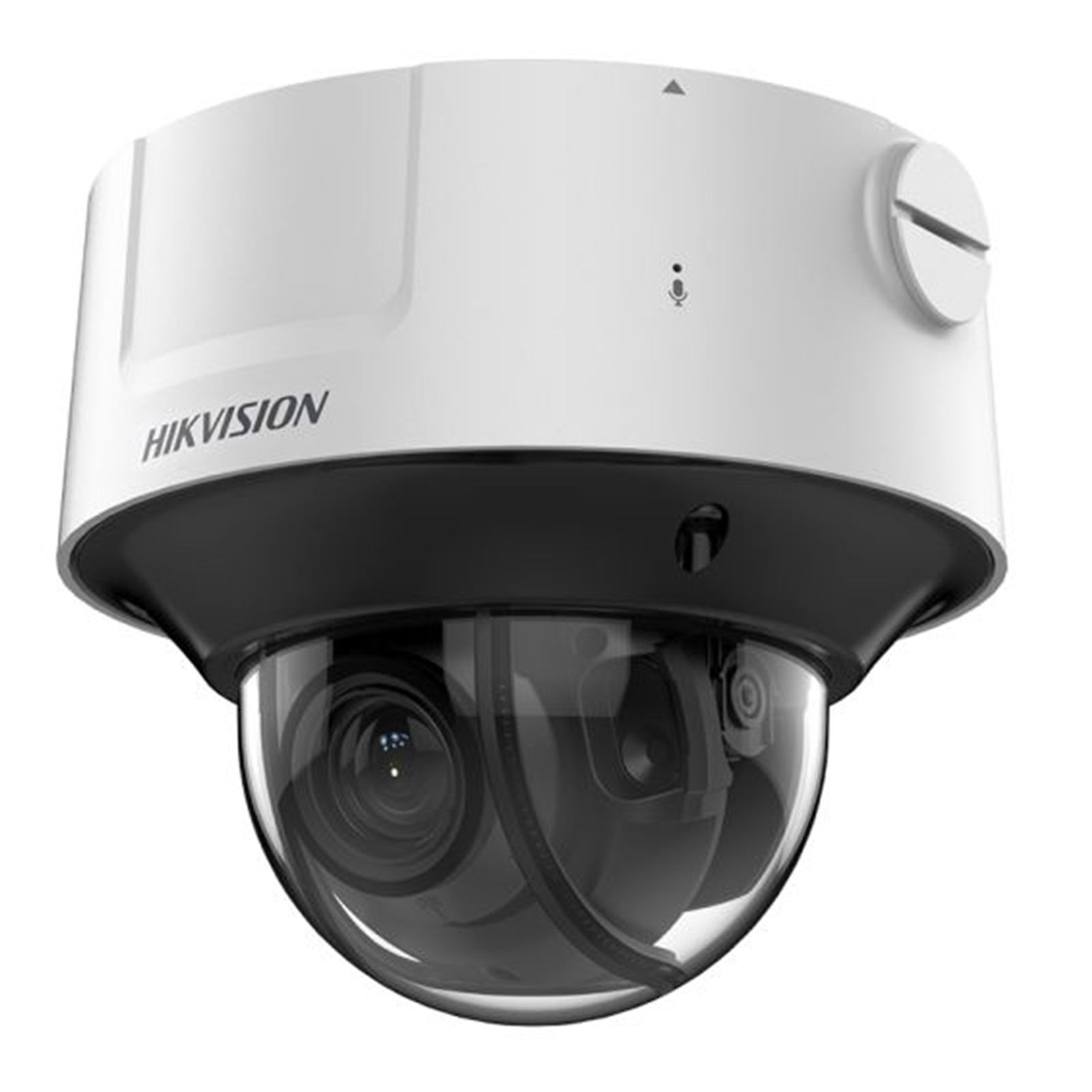

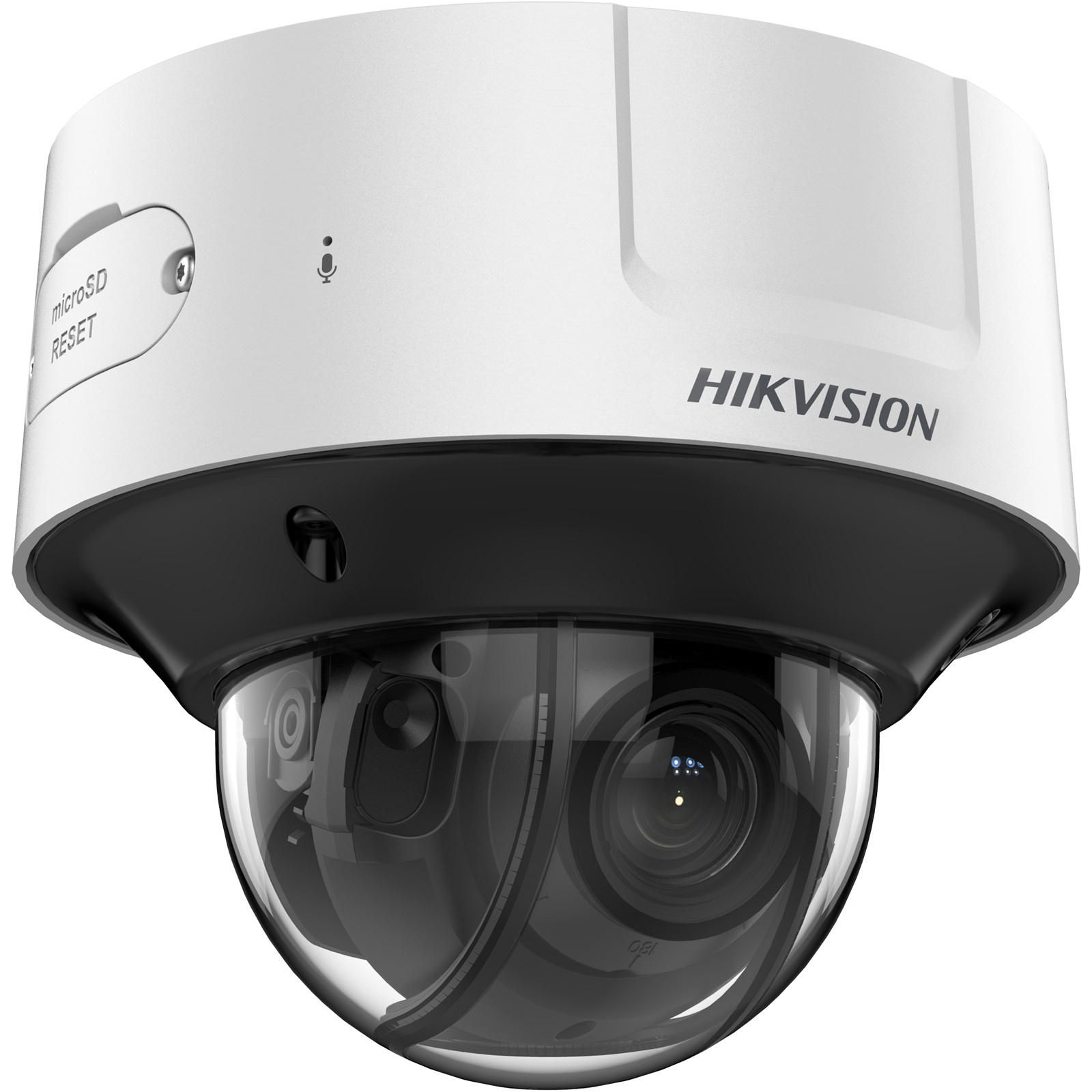

HIKVISION 311316526 Hik iDS-2CD7586G0-IZHSY 8MP 2.8-12m Dome NEMA 4x IK10 IP67.x
HIKVISION 311316526 Hik iDS-2CD7586G0-IZHSY 8MP 2.8-12m Dome NEMA 4x IK10 IP67.x
- Brand: HIKVISION
- MPN: 311316526
- Part #: CCTHIK311316526
- UPC:
- Brand: HIKVISION
- MPN: 311316526
- Part #: CCTHIK311316526
- UPC:
Similar in-stock products available at PB Tech right now
Features
8MP DeepinView Indoor Motorised Varifocal P iris 2.8-12mm 30m IR Dome Camera 120 dB WDR technology 5 streams and up to 5 custom streams Smart Events Perimeter Detection Counting Face Recognition Queue Management Anti-Corrosion Coating
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- 5 streams and up to 5 custom streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Anti-IR reflection bubble guarantees image quality
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate.
Anti-Corrosion Coating
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anti-corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
HIKVISION 311316526 Hik iDS-2CD7586G0-IZHSY 8MP 2.8-12m Dome NEMA 4x IK10 IP67.x
- Brand: HIKVISION
- MPN: 311316526
- Part #: CCTHIK311316526
Product URL: https://www.pbtech.co.nz/product/CCTHIK311316526/HIKVISION-311316526-Hik-iDS-2CD7586G0-IZHSY-8MP-28
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
8MP DeepinView Indoor Motorised Varifocal P iris 2.8-12mm 30m IR Dome Camera 120 dB WDR technology 5 streams and up to 5 custom streams Smart Events Perimeter Detection Counting Face Recognition Queue Management Anti-Corrosion Coating
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- 5 streams and up to 5 custom streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Anti-IR reflection bubble guarantees image quality
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate.
Anti-Corrosion Coating
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anti-corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
Specifications
Camera
Image Sensor
1/2″ Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Power-off Memory
Yes
Lens
Focus
Auto, semi-auto, manual
Lens Type & FOV
2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58° to 23.1°, diagonal FOV 137.3° to 47.3°
Aperture
2.8 to 12mm: F1.2 to F2.5
Lens Mount
Integrated
Blue Glass Module
Blue glass module to reduce ghost phenomenon.
P-Iris
Yes
Illuminator
IR Range
2.8 to 12 mm: 30 m
Wavelength
850 nm
Smart Supplement Light
Yes
Video
Max. Resolution
3840 × 2160
Main Stream
50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+ / H.265+
Main Stream supports
Bit Rate Control
CBR/VBR
Stream Type
Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
Scalable Video Coding (SVC)
H.265 and H.264 support
Region of Interest (ROI)
4 fixed regions for each stream
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
Audio Type
mono sound
Network
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming
Yes
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
Smart IR
The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
Day/Night Switch
Day, Night, Auto, Schedule, Triggered by Alarm In
Target Cropping
Yes
Distortion Correction
Distortion Yes
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR
≥52dB
Interface
Alarm
1 input, 1 output (max. 24 VDC, 1 A)
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound; 2 built-in microphones
RS-485
1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Video Output
1 Vp-p Composite Output(75 Ω/CVBS) (For debugging only)
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power Output
12 VDC, max. 200 mA (supported by all power supply types)
Heater
Yes
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection
Counting
Yes
Intelligent (Deep Learning Algorithm)
Hard Hat Detection: Detects up to 30 human targets simultaneously; Supports up to 4 shield regions
Premier Protection: Line crossing, intrusion, region entrance, region exiting - support alarm triggering by specified target types (human and vehicle); filtering out mistaken alarm caused by target types such as leaf, light, animal, flag, etc.
Queue Management: Detects queuing-up people number, and waiting time of each person; generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; supports raw data export for further analysis
General
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture; trigger recording: memory card, network storage, pre-record and post-record; trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email; trigger notification: HTTP, ISAPI, alarm output, Email
Online Upgrade
Yes
Dual Backup
Yes
Firmware Version
V5.5.121
Web Client Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset
Yes
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 20%, three-core terminal block, reverse polarity protection; 24 VAC ± 20%, three-core terminal block, reverse polarity protection; PoE: 802.3at, Type 2, Class 4
Power Consumption and Current
With extra load: 12 VDC, 1.16 A, max. 13.9 W; PoE (802.3at, 42.5 V to 57 V), 0.33 A to 0.25 A, class 4;
Without extra load: 12 VDC, 0.98 A, max. 12.5 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.22 A, class 4;
"with extra load" means that an extra device is connected to and powered by the camera.
Power Interface
Three-core terminal block
Camera Material
Aluminum alloy body
Camera Dimension
Ø162 × 141.8 mm (Ø6.4″ × 5.6″)
Camera Weight
1550 g (3.4 lb.)
Anti-IR reflection bubble
Yes
Metadata
Metadata
Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, and queue management are supported.
Approval
Class
Class B
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
