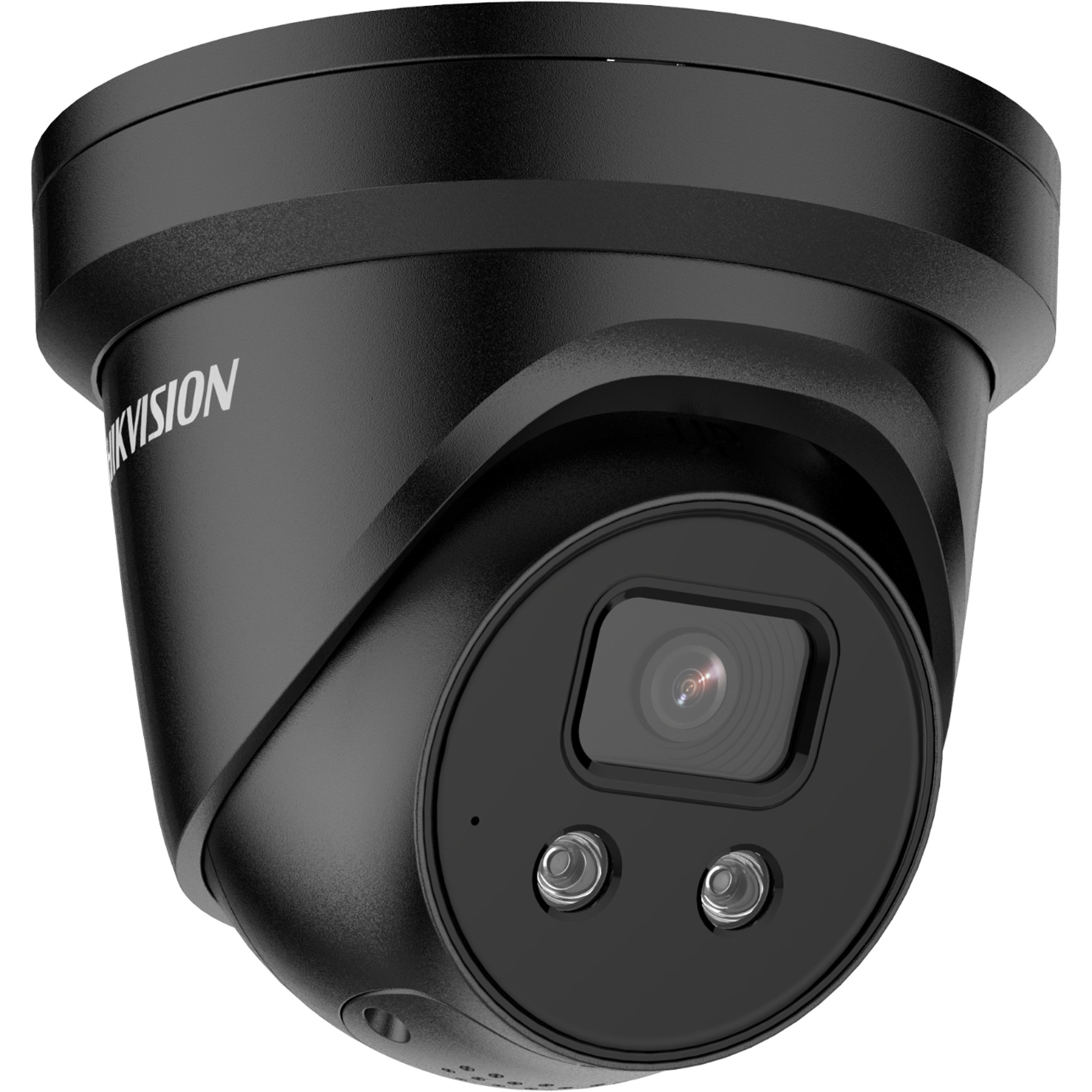

HIKVISION 8MP ACU TURRET 2.8MM SPEAKER MIC STROBE - BLACK
HIKVISION 8MP ACU TURRET 2.8MM SPEAKER MIC STROBE - BLACK
- Brand: HIKVISION
- MPN: 311316755
- Part #: CCTHIK311316755
- UPC:
- Brand: HIKVISION
- MPN: 311316755
- Part #: CCTHIK311316755
- UPC:
Similar in-stock products available at PB Tech right now
Features
4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
8MP Ultra-HD Imaging and DarkFighter Night Vision
Featuring a 1/1.8" CMOS sensor and 2.8mm fixed lens, the camera produces 3840×2160 resolution. DarkFighter technology captures vivid color images in extremely low light (0.003Lux), delivering 24/7 detail clarity.
Deep Learning for Accurate Human and Vehicle Alerts
Built-in AcuSense algorithms automatically distinguish and filter human and vehicle movement, significantly reducing false alarms and ensuring timely, intelligent alerts for critical areas.
Active Strobe and Two-Way Audio for Proactive Defense
Equipped with a strobe warning light and high-decibel audio alarm, the camera deters intruders with immediate audible and visual intervention. The built-in microphone and speaker enable real-time bi-directional communication.
HDR Wide Dynamic Range and Advanced Image Optimization
With 120dB true WDR, 3D digital noise reduction, and BLC/HLC image enhancement, the camera delivers clear, detailed images in strong light, backlight, and other complex conditions.
Flexible System Integration and Robust Remote/Local Management
Supports H.265+ compression and triple-stream output, offers 256GB on-board storage, is compatible with major VMS platforms, ONVIF, and various APIs. Enhanced multi-level security, user management, and efficient remote operation.
Industrial-Grade Build for Extreme Environments
Metal body, IP67 protection, and -30°C to 60°C operating range ensure durability and reliability for indoor and outdoor use. The unit meets key international certifications and is ready for wide-area deployment.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Swann AdvancedX Series NVR-8ADVANX / 1TB / 4x NHD-ADVANXD 4K...
HIKVISION 8MP ACU TURRET 2.8MM SPEAKER MIC STROBE - BLACK
- Brand: HIKVISION
- MPN: 311316755
- Part #: CCTHIK311316755
Product URL: https://www.pbtech.co.nz/product/CCTHIK311316755/HIKVISION-8MP-ACU-TURRET-28MM-SPEAKER-MIC-STROBE
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
8MP Ultra-HD Imaging and DarkFighter Night Vision
Featuring a 1/1.8" CMOS sensor and 2.8mm fixed lens, the camera produces 3840×2160 resolution. DarkFighter technology captures vivid color images in extremely low light (0.003Lux), delivering 24/7 detail clarity.
Deep Learning for Accurate Human and Vehicle Alerts
Built-in AcuSense algorithms automatically distinguish and filter human and vehicle movement, significantly reducing false alarms and ensuring timely, intelligent alerts for critical areas.
Active Strobe and Two-Way Audio for Proactive Defense
Equipped with a strobe warning light and high-decibel audio alarm, the camera deters intruders with immediate audible and visual intervention. The built-in microphone and speaker enable real-time bi-directional communication.
HDR Wide Dynamic Range and Advanced Image Optimization
With 120dB true WDR, 3D digital noise reduction, and BLC/HLC image enhancement, the camera delivers clear, detailed images in strong light, backlight, and other complex conditions.
Flexible System Integration and Robust Remote/Local Management
Supports H.265+ compression and triple-stream output, offers 256GB on-board storage, is compatible with major VMS platforms, ONVIF, and various APIs. Enhanced multi-level security, user management, and efficient remote operation.
Industrial-Grade Build for Extreme Environments
Metal body, IP67 protection, and -30°C to 60°C operating range ensure durability and reliability for indoor and outdoor use. The unit meets key international certifications and is ready for wide-area deployment.
Specifications
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Max. Resolution
3840 × 2160
Lens
Lens Type
Fixed focal lens, 2.8 mm
Iris Type
Fixed
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
Aperture
F1.6
Lens Mount
M12
DORI
DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Illuminator
Supplement Light Type
IR
IR Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Visual Alarm
Yes
Supplement Light Range
Up to 30 m
Video
Max. Resolution
3840 × 2160
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR
≥ 52 dB
Target Cropping
Yes
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Interface
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
Built-in Microphone
Yes
Built-in Speaker
Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Deep Learning Function
Face Capture
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
General
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software Reset
Yes
Firmware Version
V5.5.112
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.75 A, max. 9 W
PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
Power Interface
Ø5.5 mm coaxial power plug
Camera Material
Metal except for trim ring
Camera Dimension
Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9")
Camera Weight
Approx. 840 g (1.9 lb.)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
