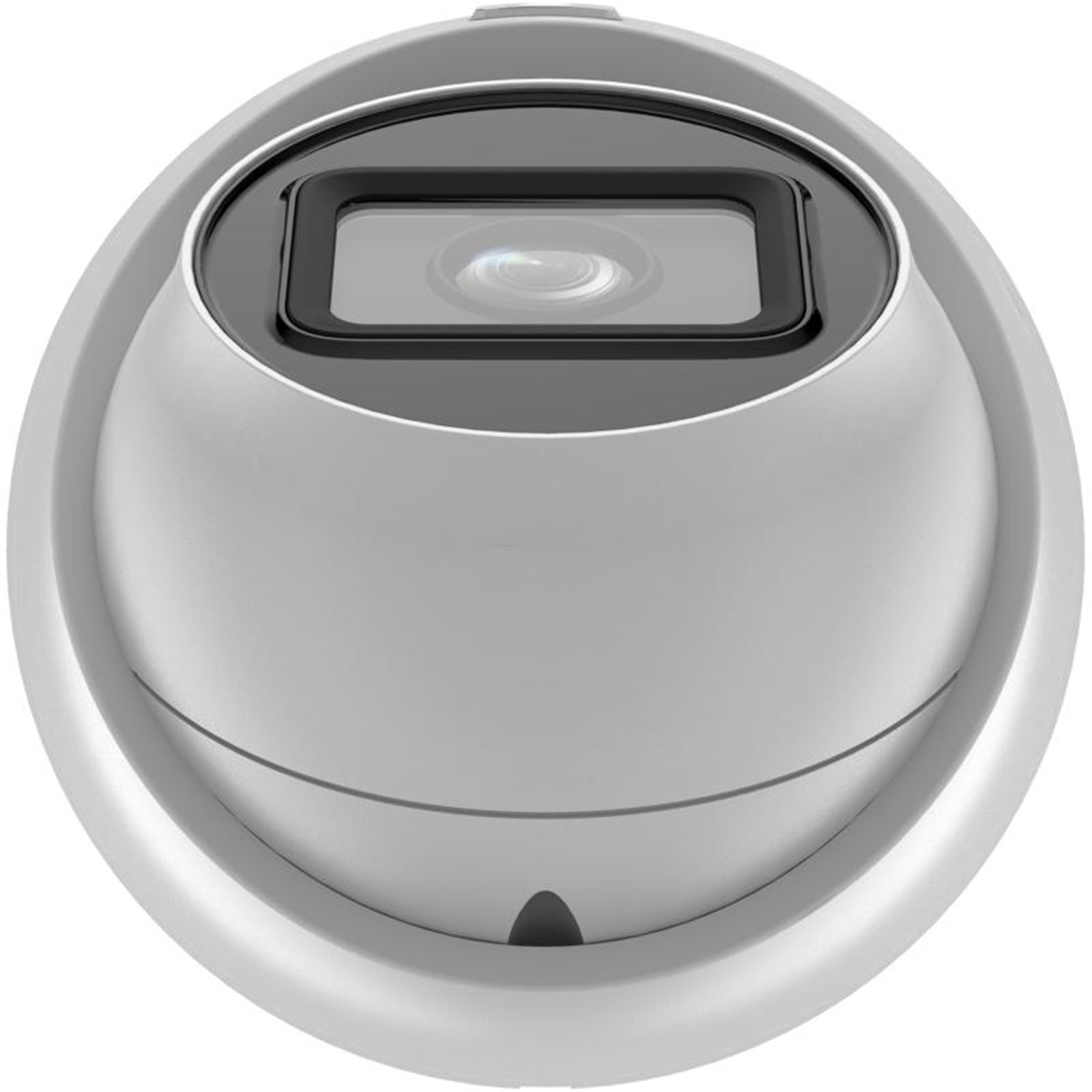

HIKVISION 311317486 Hik DS-2CD1H53G0-IZS 5MP Varifocal 2.8-12mm IR Turret
HIKVISION 311317486 Hik DS-2CD1H53G0-IZS 5MP Varifocal 2.8-12mm IR Turret
- Brand: HIKVISION
- MPN: 311317486
- Part #: CCTHIK311317486
- UPC:
- Brand: HIKVISION
- MPN: 311317486
- Part #: CCTHIK311317486
- UPC:
Similar in-stock products available at PB Tech right now
Features
5 MP Motorized Varifocal Turret Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 256 GB memory card slot for storage
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
5MP Ultra HD Imaging with Motorized Varifocal Lens
A 1/2.7" CMOS and a 2.8-12mm motorized lens provide crisp, high-resolution monitoring and easy remote zoom/focus adjustment for versatile site coverage.
Advanced H.265+ Compression and Up to 256GB Local Storage
Efficient recording and streaming combined with a 256GB microSD slot allow for long-term, bandwidth-optimized, and reliable edge storage.
Strong Performance under Challenging Light with 120 dB WDR
True 120 dB WDR, EXIR 2.0 infrared, and low-light color down to 0.005 Lux ensure usable video around the clock, even against strong backlight or night darkness.
All-Weather, Vandal-Proof Design for Durable Installations
IP67-rated, metal body, and robust environmental protections ensure dependable outdoor/indoor operation in harsh or dynamic environments.
Integrated Audio, Alarms, and Smart Event Detection
Each camera supports audio in/out, alarm in/out, and rich event detection (motion, video/scene tamper, exception) with flexible linkage to recording, alert, or FTP uploads.
Secure Networking and Universal Compatibility
Multi-protocol support, up to 32 users, full encryption, multi-browser/client compatibility, remote playback, and real-time admin features enable seamless integration into enterprise security systems.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
HIKVISION 311317486 Hik DS-2CD1H53G0-IZS 5MP Varifocal 2.8-12mm IR Turret
- Brand: HIKVISION
- MPN: 311317486
- Part #: CCTHIK311317486
Product URL: https://www.pbtech.co.nz/product/CCTHIK311317486/HIKVISION-311317486-Hik-DS-2CD1H53G0-IZS-5MP-Varif
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
5 MP Motorized Varifocal Turret Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 256 GB memory card slot for storage
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
5MP Ultra HD Imaging with Motorized Varifocal Lens
A 1/2.7" CMOS and a 2.8-12mm motorized lens provide crisp, high-resolution monitoring and easy remote zoom/focus adjustment for versatile site coverage.
Advanced H.265+ Compression and Up to 256GB Local Storage
Efficient recording and streaming combined with a 256GB microSD slot allow for long-term, bandwidth-optimized, and reliable edge storage.
Strong Performance under Challenging Light with 120 dB WDR
True 120 dB WDR, EXIR 2.0 infrared, and low-light color down to 0.005 Lux ensure usable video around the clock, even against strong backlight or night darkness.
All-Weather, Vandal-Proof Design for Durable Installations
IP67-rated, metal body, and robust environmental protections ensure dependable outdoor/indoor operation in harsh or dynamic environments.
Integrated Audio, Alarms, and Smart Event Detection
Each camera supports audio in/out, alarm in/out, and rich event detection (motion, video/scene tamper, exception) with flexible linkage to recording, alert, or FTP uploads.
Secure Networking and Universal Compatibility
Multi-protocol support, up to 32 users, full encryption, multi-browser/client compatibility, remote playback, and real-time admin features enable seamless integration into enterprise security systems.
Specifications
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
2560 × 1920
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
F1.6
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1920)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1920)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input,1 output (max. 12 VDC, 30 mA)
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Material
Cover: plastic, main body: metal
Dimension
Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Approx. 590 g (1.3 lb.)
With Package Weight
Approx. 900 g (2.0 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
