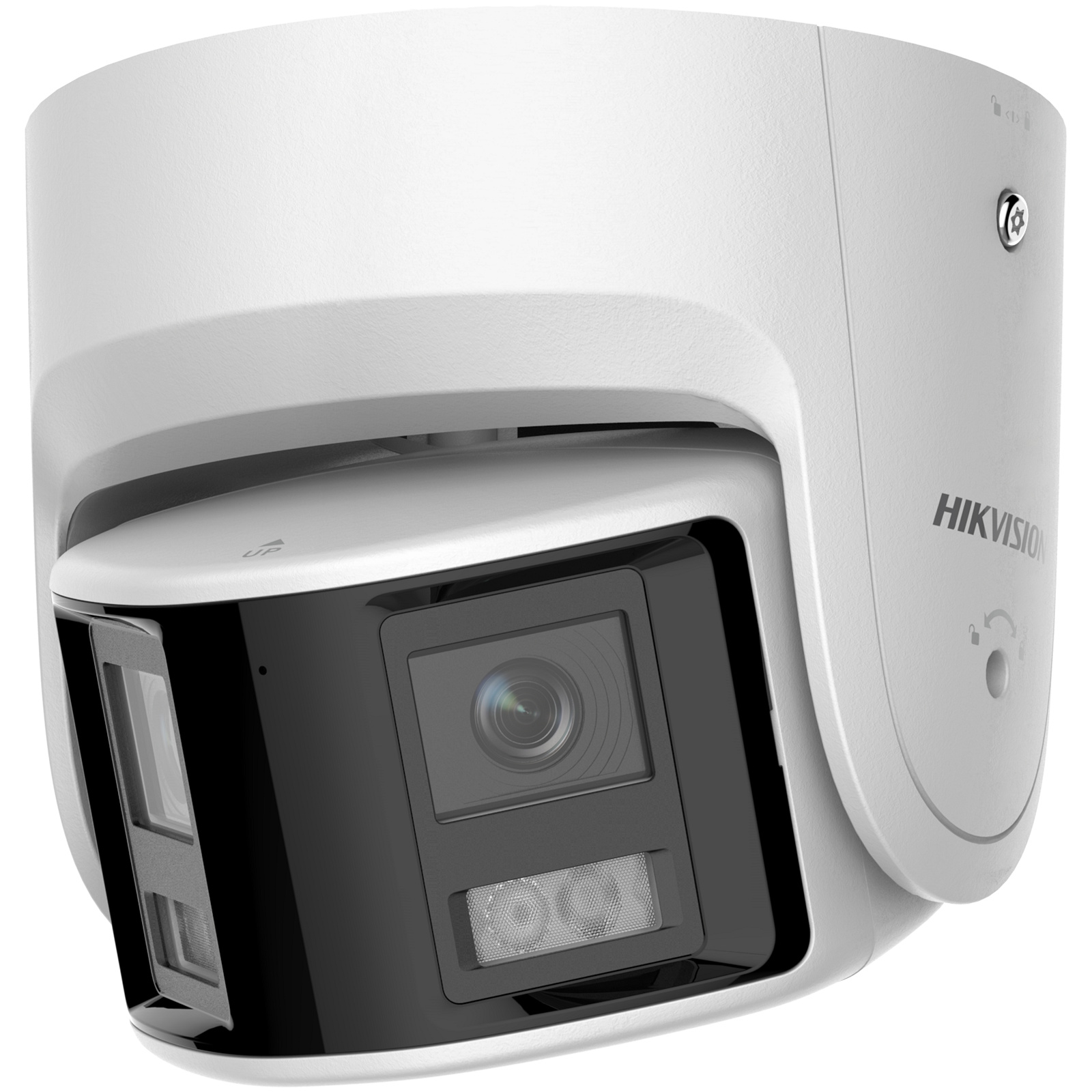

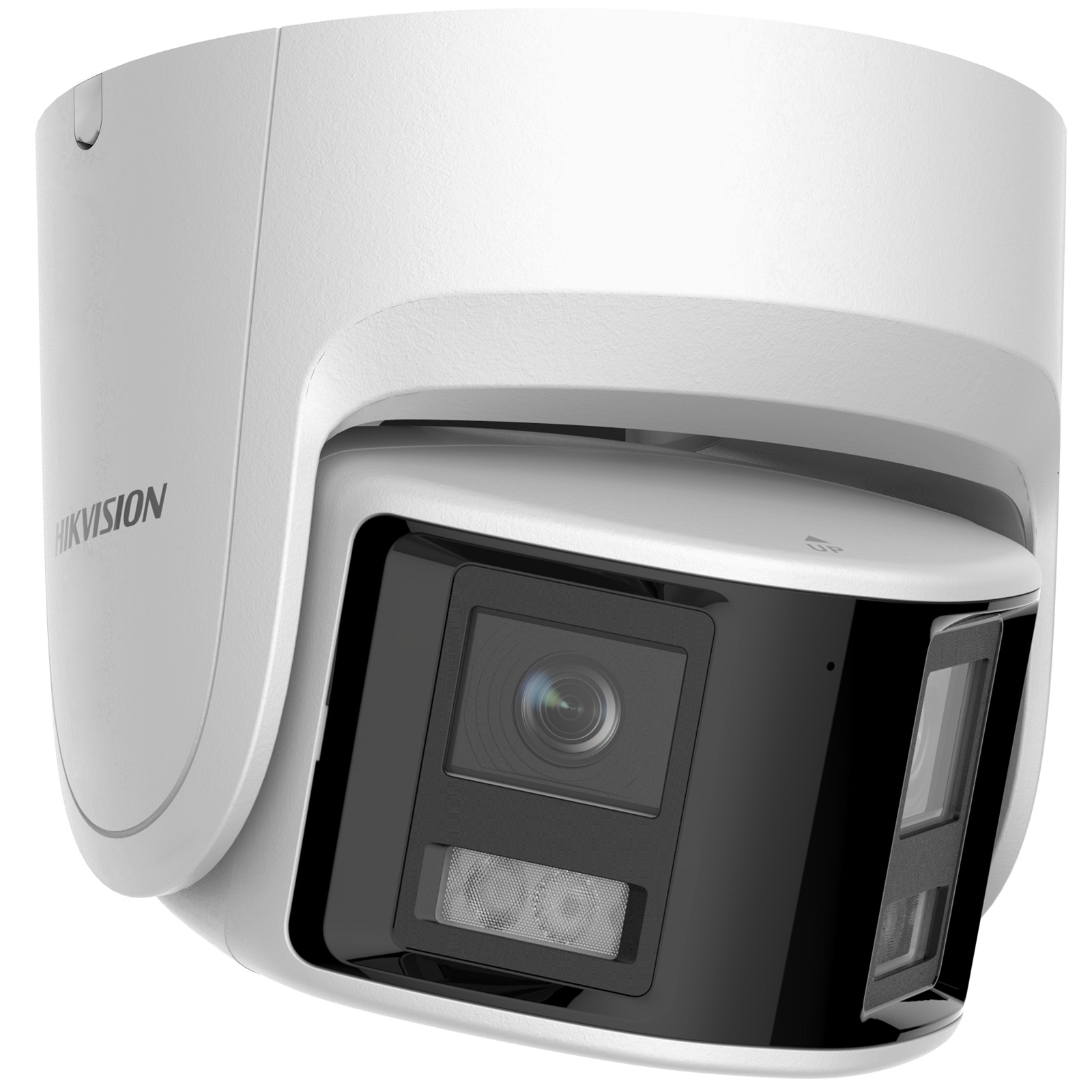

HIKVISION 4MP ACU TURRET 180 DEGREE PANORAMIC - SPEAKE MC
HIKVISION 4MP ACU TURRET 180 DEGREE PANORAMIC - SPEAKE MC
- Brand: HIKVISION
- MPN: 311320488
- Part #: CCTHIK311320488
- UPC:
- Brand: HIKVISION
- MPN: 311320488
- Part #: CCTHIK311320488
- UPC:
Similar in-stock products available at PB Tech right now
Features
4 MP Panoramic AcuSense Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
180° Panoramic Imaging with True 4MP Quality
Dual 2.8mm lenses merge to produce a single seamless panoramic image (3040×1368), capturing every corner of wide spaces and entrances with true-to-life 4MP clarity.
Color in Low Light-DarkFighter and Smart IR Excellence
Superior sensitivity, F1.6 lens, and 30m IR range allow vibrant color detail at 0.003 Lux, making ColorVu's night and low-light surveillance as effective as daytime.
Deep Learning-Powered Human and Vehicle Classification
AcuSense AI technology enables dynamic, real-time detection and discrimination between human and vehicle activity to reduce false alarms and optimize incident response.
Active Strobe and Audio Alarm for Real-Time Deterrence
Built-in flashing strobe and up to 95dB loudspeaker issue visual and audio warnings, providing proactive, on-site event deterrence via dual-way audio.
Smart Storage and Security in Harsh Environments
512GB microSD ready, H.265+ efficient compression, robust NAS/ANR options, and full data encryption protect footage-while IP67 metal design withstands variable weather.
Global Certification, Multilingual Support, and Versatile Management
EMC/UL/CE certification, operation down to -30°C, 33-language menus, and compatibility with Hikvision's iVMS-4200, Hik-Connect, and Hik-Central enable seamless deployment worldwide.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Reolink Duo 2 PoE 8MP/4K Dual-Lens Outdoor PoE Camera with...
HIKVISION 4MP ACU TURRET 180 DEGREE PANORAMIC - SPEAKE MC
- Brand: HIKVISION
- MPN: 311320488
- Part #: CCTHIK311320488
Product URL: https://www.pbtech.co.nz/product/CCTHIK311320488/HIKVISION-4MP-ACU-TURRET-180-DEGREE-PANORAMIC---SP
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
4 MP Panoramic AcuSense Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
180° Panoramic Imaging with True 4MP Quality
Dual 2.8mm lenses merge to produce a single seamless panoramic image (3040×1368), capturing every corner of wide spaces and entrances with true-to-life 4MP clarity.
Color in Low Light-DarkFighter and Smart IR Excellence
Superior sensitivity, F1.6 lens, and 30m IR range allow vibrant color detail at 0.003 Lux, making ColorVu's night and low-light surveillance as effective as daytime.
Deep Learning-Powered Human and Vehicle Classification
AcuSense AI technology enables dynamic, real-time detection and discrimination between human and vehicle activity to reduce false alarms and optimize incident response.
Active Strobe and Audio Alarm for Real-Time Deterrence
Built-in flashing strobe and up to 95dB loudspeaker issue visual and audio warnings, providing proactive, on-site event deterrence via dual-way audio.
Smart Storage and Security in Harsh Environments
512GB microSD ready, H.265+ efficient compression, robust NAS/ANR options, and full data encryption protect footage-while IP67 metal design withstands variable weather.
Global Certification, Multilingual Support, and Versatile Management
EMC/UL/CE certification, operation down to -30°C, 33-language menus, and compatibility with Hikvision's iVMS-4200, Hik-Connect, and Hik-Central enable seamless deployment worldwide.
Specifications
Camera
Image Sensor
2 × 1/2.5" Progressive Scan CMOS
Max. Resolution
3040 × 1368
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 30°, tilt: -75° to 75°
Lens
Lens Type
Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
Sub-Stream
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 rectangular privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes
Built-in Speaker
Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 24 VDC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Base: metal, cover: metal
Dimension
Ø140 mm × 145.6 mm (Ø5.5 × 5.7")
Approx. 940 g (2.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, flash log, pixel counter
Flashing Light
Yes
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
