HIKVISION SOLAR 2XS6K01-C36S80 KIT WITHOUT CAMERA, 80W PANEL,360W BATTERY, BRACKET, 12V
HIKVISION SOLAR 2XS6K01-C36S80 KIT WITHOUT CAMERA, 80W PANEL,360W BATTERY, BRACKET, 12V
- Brand: HIKVISION
- MPN: 311322842
- Part #: CCTHIK311322842
- UPC:
- Brand: HIKVISION
- MPN: 311322842
- Part #: CCTHIK311322842
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Solar Panels
HIKVISION SOLAR 2XS6K01-C36S80 KIT WITHOUT CAMERA, 80W PANEL,360W BATTERY, BRACKET, 12V
- Brand: HIKVISION
- MPN: 311322842
- Part #: CCTHIK311322842
Product URL: https://www.pbtech.co.nz/product/CCTHIK311322842/HIKVISION-SOLAR-2XS6K01-C36S80-KIT-WITHOUT-CAMERA
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

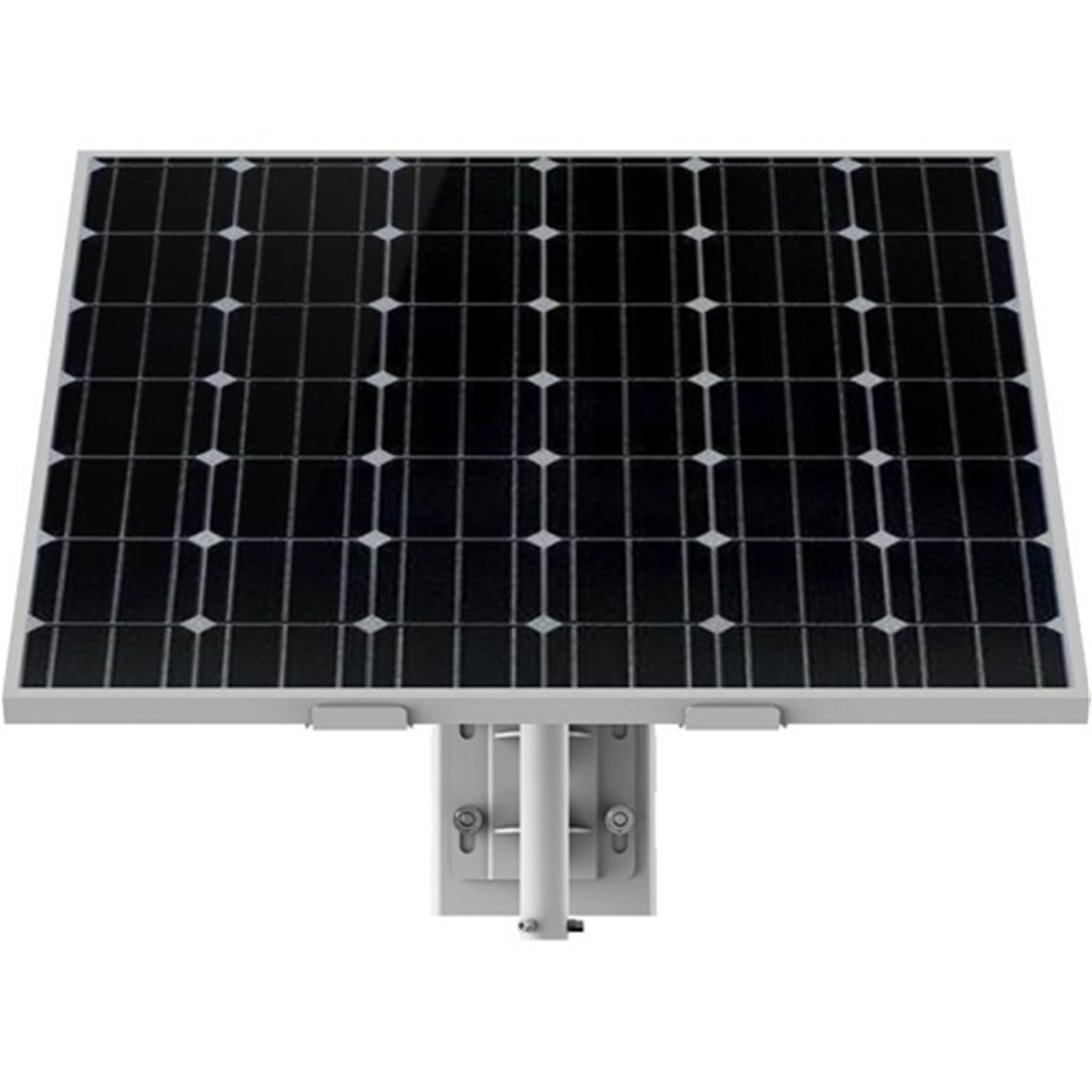

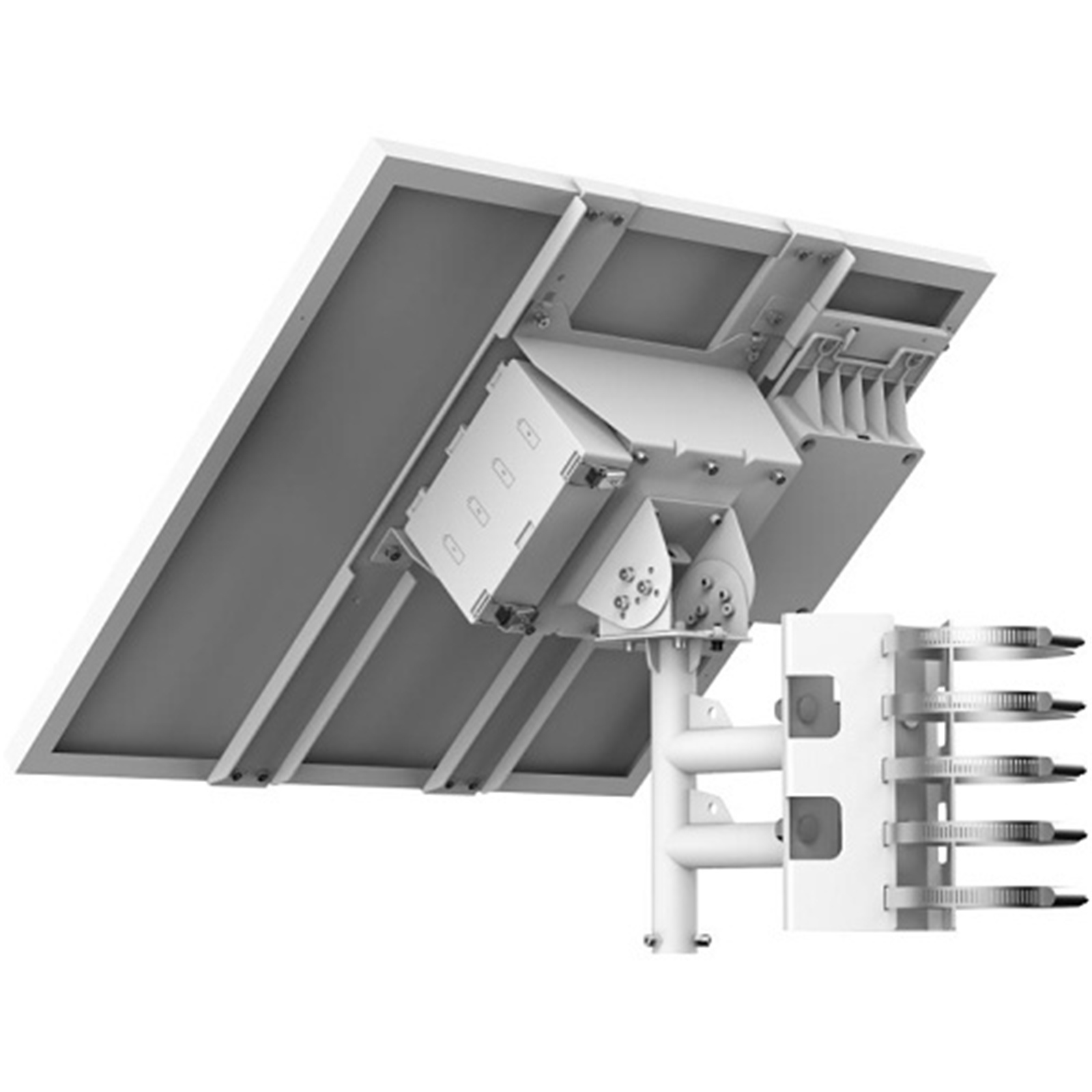

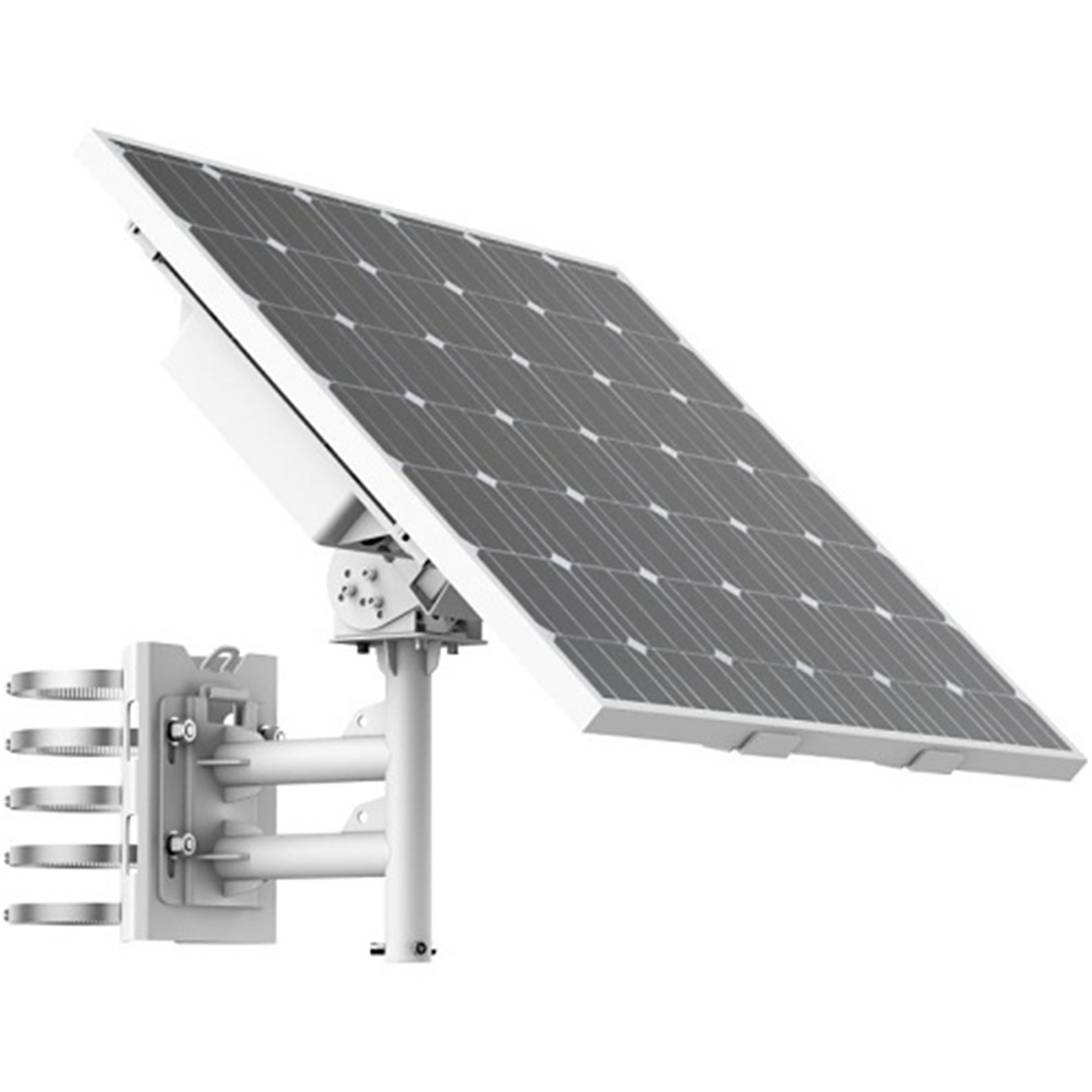

DS-2XS6K01-C36S80 Solar Power Modules
- 80 W photovoltaic panel, 360 Wh chargeable lithium battery
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- Water and dust resistant (IP66)
Professional Solar Power Solution for Remote Surveillance
Features an 80W photovoltaic panel and 360Wh high-performance lithium battery for robust, renewable power in off-grid or temporary site deployments.
Smart Battery Protection and Remote Maintenance Functions
Advanced battery management offers clear power display, high/low temperature protection, overcharge/discharge safeguarding, low-battery sleep mode, and remote wakeup for system reliability.
All-Weather, All-Season Outdoor Durability
Ensures continuous performance with IP66 weatherproofing and wind resistance up to 40 m/s (Level 12), supporting year-round operation in rainy, sandy, or severe conditions.
Versatile Power Output for a Range of Security Devices
Provides 9-12.6VDC output and up to 30W power with dual Ø5.5mm co-axial connectors, supporting various 4G solar camera integrations and auxiliary devices.
Integrated RS-485 Communication for System Expansion
Includes a standard RS-485 interface for easy linking with solar-powered 4G camera kits, enabling seamless data and control transmission.
Certified for Global Projects with Rugged Engineering
Meets CE, CB, EMC, RoHS, WEEE, Reach, and RCM safety/environmental standards; lightweight aluminum bracket and secure design enhance international project adaptability.
Specifications
Interface
RS-485
1 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
Power Output
9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs
General
Dimension
640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)
Weight
Approx. 24 kg (52.9 lb.)
Battery
Battery Type
Lithium
Capacity
360 Wh (90 Wh for each battery)
Battery Voltage
10.8 V
Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery Life
More than 500 cycles
Battery Weight
Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
Approval
EMC
CE-EMC (EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
Safety
CB (IEC 62368-1:2014+A11)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
Camera: IP66 (IEC 60529-2013)
Wind resistance
12 level, up to 40 m/s wind speed resistance
