HIKVISION 311322889 HIK DS-2XS6A46G1-IZS/C36S80 4MP ACU VF Solar Camera 1TB

Brand: HIKVISION
MPN: 311322889
Part #: CCTHIK311322889
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 25 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 311322889
Part #: CCTHIK311322889
UPC:

Be the first to review this product

Max Video Resolution

2560 x 1440

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 1TB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Camera Megapixels

4 Megapixels

Indoor/Outdoor Use

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

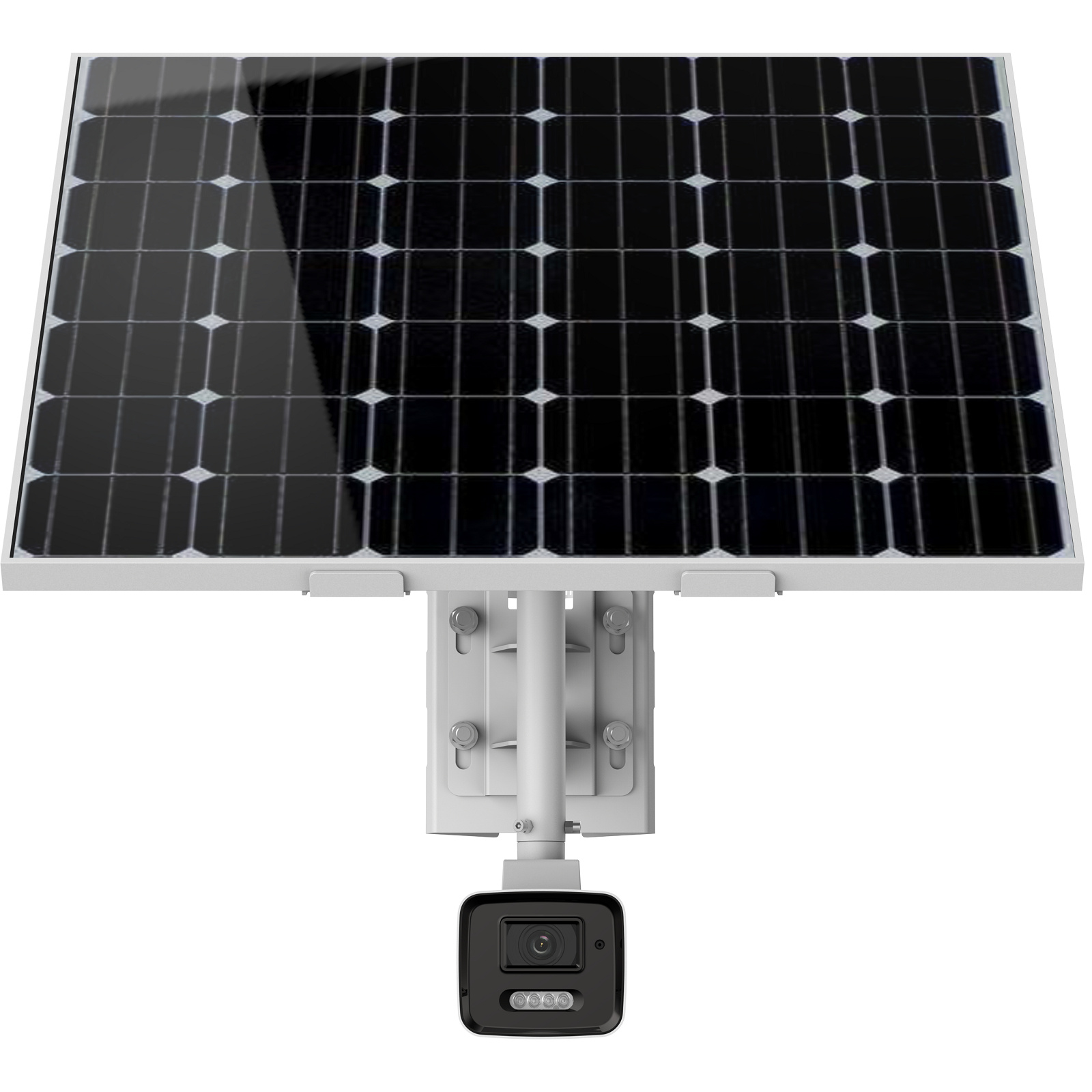

4MP Motorized Varifocal Bullet Solar Power 4G Network Camera Kit

- 80 W photovoltaic panel, 360 Wh chargeable lithium battery
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Water and dust resistant (IP66)
- Built-in high-capacity eMMC or SSD storage

Intelligent Solar Power with Advanced Battery Management

Equipped with an 80W PV panel and a 360Wh high-capacity lithium battery, the system offers round-the-clock green power supply and advanced battery features like on-screen display, temperature, charge/discharge, and sleep protection, enabling stable operation in off-grid locations.

Motorized Zoom and HD Imaging for Versatile Surveillance

Featuring a 1/1.8" CMOS sensor with up to 4MP resolution and a 2.8-12mm motorized zoom lens with auto/semi-auto/manual focus, the camera delivers sharp images in all lighting conditions, with IR night vision up to 30 meters.

Deep Learning Target Detection and Intelligent Alarming

Utilizing 120dB WDR and deep learning, the camera precisely identifies humans and vehicles, minimizing false alarms and enhancing monitoring accuracy.

Global 4G Wireless Connectivity for Remote Access

With LTE-TDD/LTE-FDD/WCDMA/GSM 4G support and Micro SIM compatibility, the camera ensures remote streaming, alerts, and management from anywhere, without cabling.

Flexible Local/Cloud Storage and Enterprise-Grade Data Security

On-board eMMC/SSD/SD storage, plus NAS/ANR/cloud backup and encryption, supports secure and continuous video retention, backed by multi-user management and extensive security protocols.

Industrial-Grade Metal Build and Extreme Environment Endurance

A full-metal, IP66 weatherproof housing withstands up to level 12 winds; operates reliably from -20°C to 60°C, ideal for outdoor/industrial/transport use, and meets stringent global safety and eco standards.

Specifications

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light

Shutter Time

1 s to 1/100,000 s

Lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°

Lens Type

Auto, Semi-auto, Manual

Iris Type

Auto-iris

Aperture

2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6

Lens Mount

All In One Lens

DORI

2.8 to 12 mm:
Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

Illuminator

Supplement Light Type

Supplement Light Range

2.8 to 12 mm: Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

Performance mode:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Proactive mode:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

Performance mode:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Proactive mode:
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)

Video Compression

Main stream: H.264/H.265
Sub-stream: H.264/H.265/MJPEG
Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for main stream

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

Hik-Connect (proactive mode also supports), Hik-central Professional

Web Browser

Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

SIM Card Type

MicroSIM

Frequency

DS-2XS6A46G1-IZS/C36S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800 MHz
DS-2XS6A46G1-IZS/C36S80(US):
LTE-FDD: Band2/4/5/12/13/66/71
WCDMA: Band2/4/5
DS-2XS6A46G1-IZS/C36S80(LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900 MHz
DS-2XS6A46G1-IZS/C36S80(JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/6/8/19

Standard

DS-2XS6A46G1-IZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A46G1-IZS/C36S80 (US): LTE-FDD/WCDMA
DS-2XS6A46G1-IZS/C36S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A46G1-IZS/C36S80 (JP): LTE-TDD/LTE-FDD/WCDMA


Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR, Defog

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Satellite Positioning

Satellite Positioning Detection: GPS

Interface

Audio

1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 12 VDC, 1 A)

On-Board Storage

Built-in 1 TB SSD storage (1 TB device model supports)

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Power Output

12 VDC, max. 1000 mA

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General

Power

12 VDC ± 20%, 4-pin M8 waterproof connector

1 TB/512 GB device model:
1. Standby power consumption: 45 mW
2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W
3. The max. power consumption: 20 W (6 W if without 12 V load)

Other device model:
1. Standby power consumption: 45 mW
2. The average power consumption of 24 hours (4G transmission is excluded): 3 W
3. The max. power consumption: 18 W (6 W if without 12 V load)

Material

Front cover: metal, body: metal, bracket: metal

Dimension

816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)

Storage Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Battery

Battery Type

Lithium

Capacity

360 Wh (90 Wh for each battery)

Battery Voltage

10.8 V

Max. Output Voltage

12.6 V

Operating Temperature

Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Battery Life

More than 500 cycles

Cycle Lifetime

Proactive mode: 5 days, Standby mode: 80 days
*in cloudy/rainy days (25 °C)

Battery Weight

Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

EMC

CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)

CE-RED/UKCA (EN 301908-1, EN 301908-2, EN 301908-13, EN 301511, EN 301489-1, EN 301489-52, EN 62133);
ICASA: same as CE-RED;
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

Safety

CB (IEC 62368-1:2014+A11)
CE-LVD/UKCA (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Protection

Camera: IP66 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance

Manufacturer Part No:

311322889

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK311322889

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
