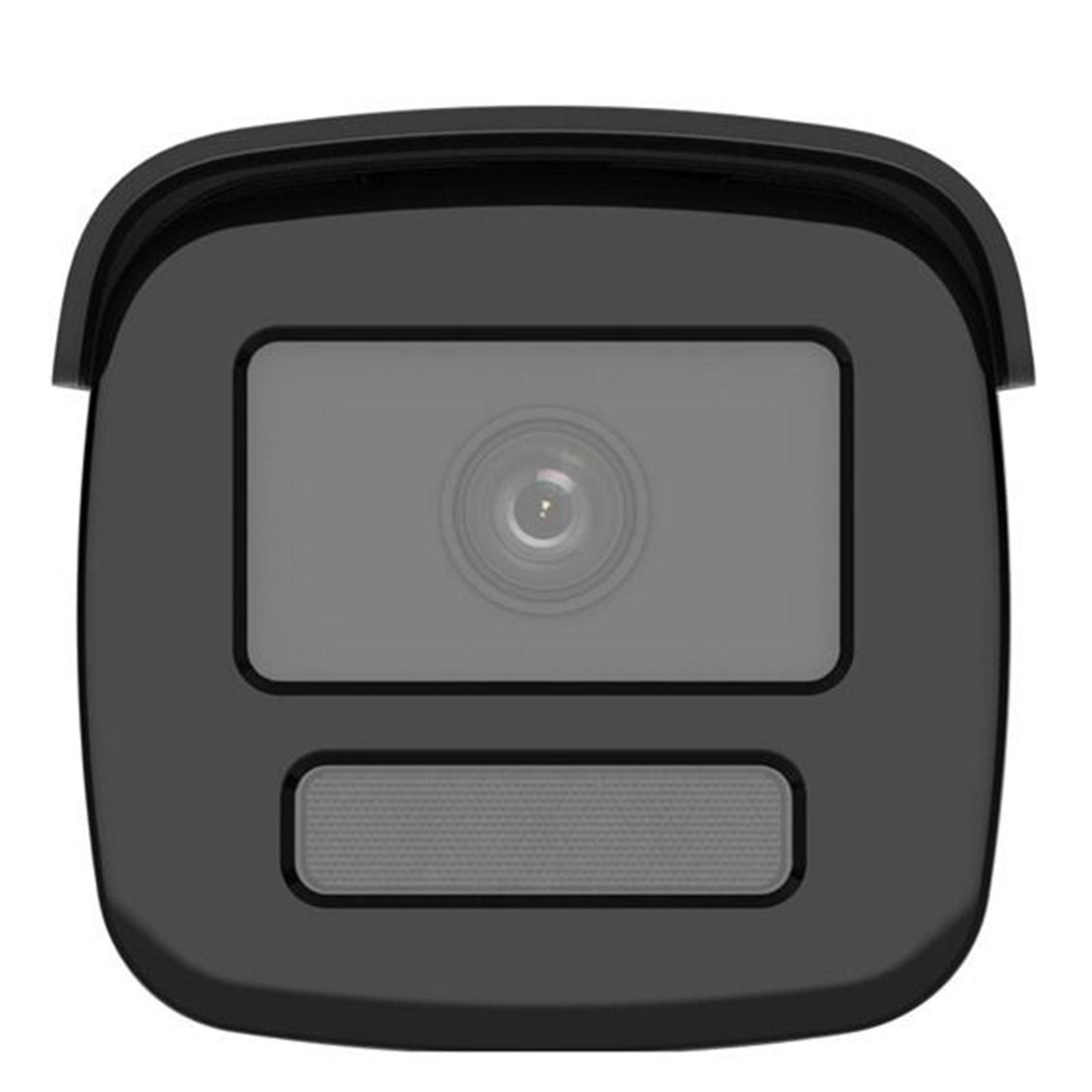

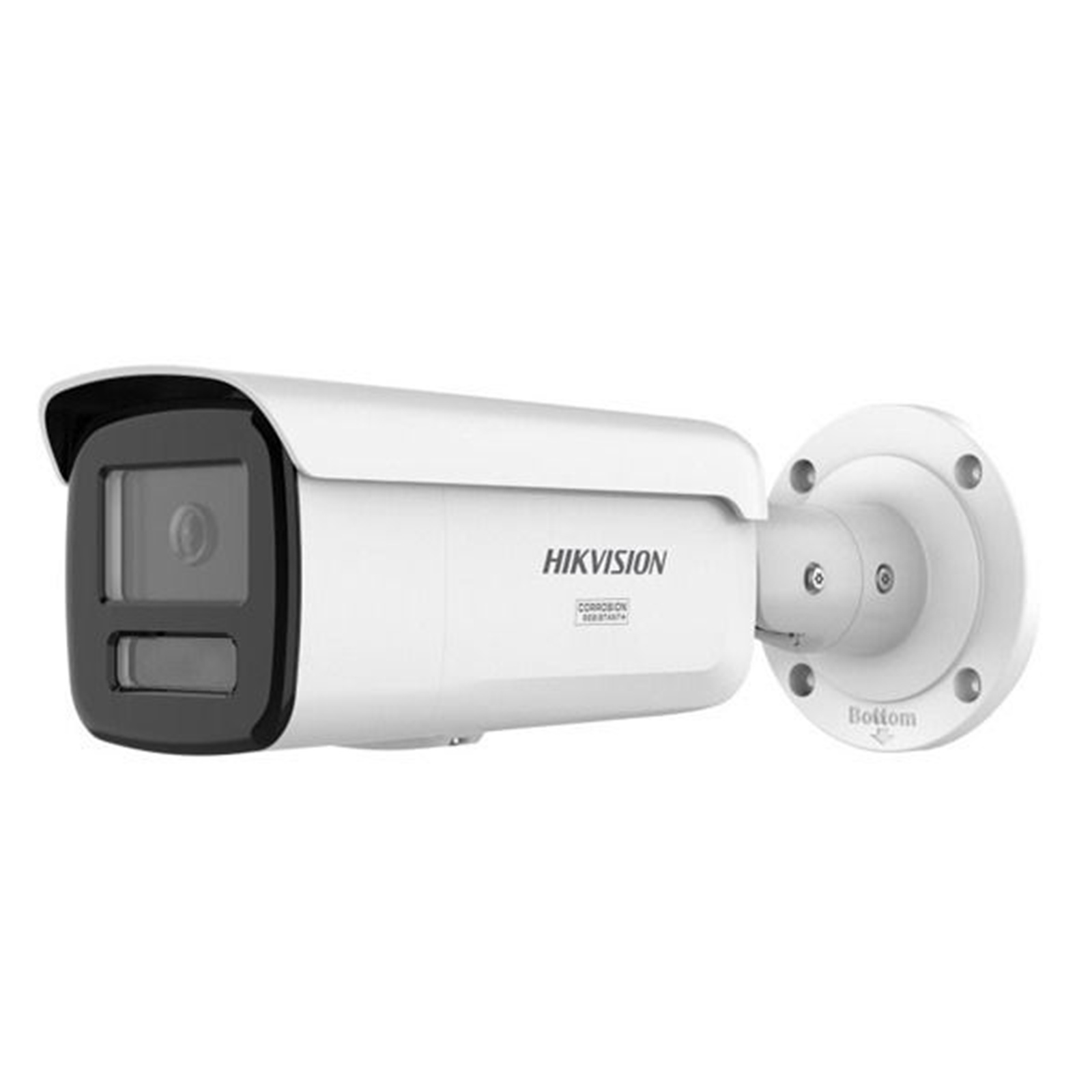

HIKVISION 311328146 Hik DS-2CD2T87G3-LIY 8MP ColorVu3 Fixed Bullet 4mm
HIKVISION 311328146 Hik DS-2CD2T87G3-LIY 8MP ColorVu3 Fixed Bullet 4mm
- Brand: HIKVISION
- MPN: 311328146
- Part #: CCTHIK311328146
- UPC:
- Brand: HIKVISION
- MPN: 311328146
- Part #: CCTHIK311328146
- UPC:
Features
8 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67)
Vivid 24/7 Surveillance with ColorVu Technology
Hikvision DS-2CD2T87G3-LIY utilizes advanced ColorVu technology, offering vivid, real-time color images at all hours. Its F1.0 super-aperture lens and high-performance sensors ensure bright, detailed footage even in extremely low light. Scene-adaptive WDR and HikAI-ISP noise reduction further enhance clarity, making this camera an industry choice for continuous, high-definition observation.
Precision Imaging and Flexible Lens Design
Equipped with a 1/1.8" Progressive Scan CMOS sensor and 4 mm fixed lens, the camera supports up to 8 MP (3840 × 2160) resolution. Its wide field of view (horizontal 93.3°, vertical 47.2°, diagonal 114.2°) and precise depth-of-field make it suitable for various environments. Angle adjustment on three axes and DORI (Detect, Observe, Recognize, Identify) metrics ensure optimized coverage and detailed surveillance data.
Versatile Lighting and Supplementary Features
The smart hybrid illumination system integrates IR and white light with a 60 m range, automatically adapting to environmental changes. This ensures reliable imaging day and night, regardless of lighting conditions. Programmable supplemental lighting modes and IR wavelength of 850 nm optimize clarity while supporting efficient identification.
Efficient Video Processing and Security
Supporting main, sub, and third video streams at up to 4K, the camera uses advanced compression formats including H.265/H.264 for optimal bandwidth use. Multiple user levels, encrypted protocols, and comprehensive authentication mechanisms safeguard data and system integrity. Up to 32 users can access the device, which is ONVIF-compliant for broad compatibility.
Deep Learning-Powered Smart Surveillance
The DS-2CD2T87G3-LIY leverages deep learning to enhance perimeter protection, including person and vehicle identification, line crossing, and intrusion detection. Face capture and programmable privacy masks meet modern surveillance requirements for privacy and security. Flexible event linkage enables timely alerts and automated responses.
Industrial Design, Durability, and Regulatory Compliance
Engineered for harsh environments, the camera boasts metal construction, NEMA 4X anti-corrosion protection, and IP67-rated water/dust resistance. It operates in temperatures from -30°C to 60°C and supports up to 95% non-condensing humidity. Certified to international EMC, safety, and environmental standards, it meets the demands of industrial and commercial installations.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
HIKVISION 311328146 Hik DS-2CD2T87G3-LIY 8MP ColorVu3 Fixed Bullet 4mm
- Brand: HIKVISION
- MPN: 311328146
- Part #: CCTHIK311328146
Product URL: https://www.pbtech.co.nz/product/CCTHIK311328146/HIKVISION-311328146-Hik-DS-2CD2T87G3-LIY-8MP-Color
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
8 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67)
Vivid 24/7 Surveillance with ColorVu Technology
Hikvision DS-2CD2T87G3-LIY utilizes advanced ColorVu technology, offering vivid, real-time color images at all hours. Its F1.0 super-aperture lens and high-performance sensors ensure bright, detailed footage even in extremely low light. Scene-adaptive WDR and HikAI-ISP noise reduction further enhance clarity, making this camera an industry choice for continuous, high-definition observation.
Precision Imaging and Flexible Lens Design
Equipped with a 1/1.8" Progressive Scan CMOS sensor and 4 mm fixed lens, the camera supports up to 8 MP (3840 × 2160) resolution. Its wide field of view (horizontal 93.3°, vertical 47.2°, diagonal 114.2°) and precise depth-of-field make it suitable for various environments. Angle adjustment on three axes and DORI (Detect, Observe, Recognize, Identify) metrics ensure optimized coverage and detailed surveillance data.
Versatile Lighting and Supplementary Features
The smart hybrid illumination system integrates IR and white light with a 60 m range, automatically adapting to environmental changes. This ensures reliable imaging day and night, regardless of lighting conditions. Programmable supplemental lighting modes and IR wavelength of 850 nm optimize clarity while supporting efficient identification.
Efficient Video Processing and Security
Supporting main, sub, and third video streams at up to 4K, the camera uses advanced compression formats including H.265/H.264 for optimal bandwidth use. Multiple user levels, encrypted protocols, and comprehensive authentication mechanisms safeguard data and system integrity. Up to 32 users can access the device, which is ONVIF-compliant for broad compatibility.
Deep Learning-Powered Smart Surveillance
The DS-2CD2T87G3-LIY leverages deep learning to enhance perimeter protection, including person and vehicle identification, line crossing, and intrusion detection. Face capture and programmable privacy masks meet modern surveillance requirements for privacy and security. Flexible event linkage enables timely alerts and automated responses.
Industrial Design, Durability, and Regulatory Compliance
Engineered for harsh environments, the camera boasts metal construction, NEMA 4X anti-corrosion protection, and IP67-rated water/dust resistance. It operates in temperatures from -30°C to 60°C and supports up to 95% non-condensing humidity. Certified to international EMC, safety, and environmental standards, it meets the demands of industrial and commercial installations.
Specifications
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens,4 mm
Focal Length & FOV
4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
4 mm: 3.8 m to ∞
DORI
DORI
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Illuminator
Supplement Light Type
White Light, IR
Supplement Light Range
Up to 60 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Image Stabilization
EIS
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material
Front cover: Metal, body: Metal, bracket: Metal
Dimension
286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Weight
Approx. 1200 g (2.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU
Protection
IP67: IEC 60529-2013
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
