HIKVISION 4MP TANDEMVU ANPR BULLET 2CD8A86G2-XZHSY 10-50MM + 4MP CV 4MM BULLET

Brand: HIKVISION
MPN: 311332264
Part #: CCTHIK311332264
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 30 Oct When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 311332264
Part #: CCTHIK311332264
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

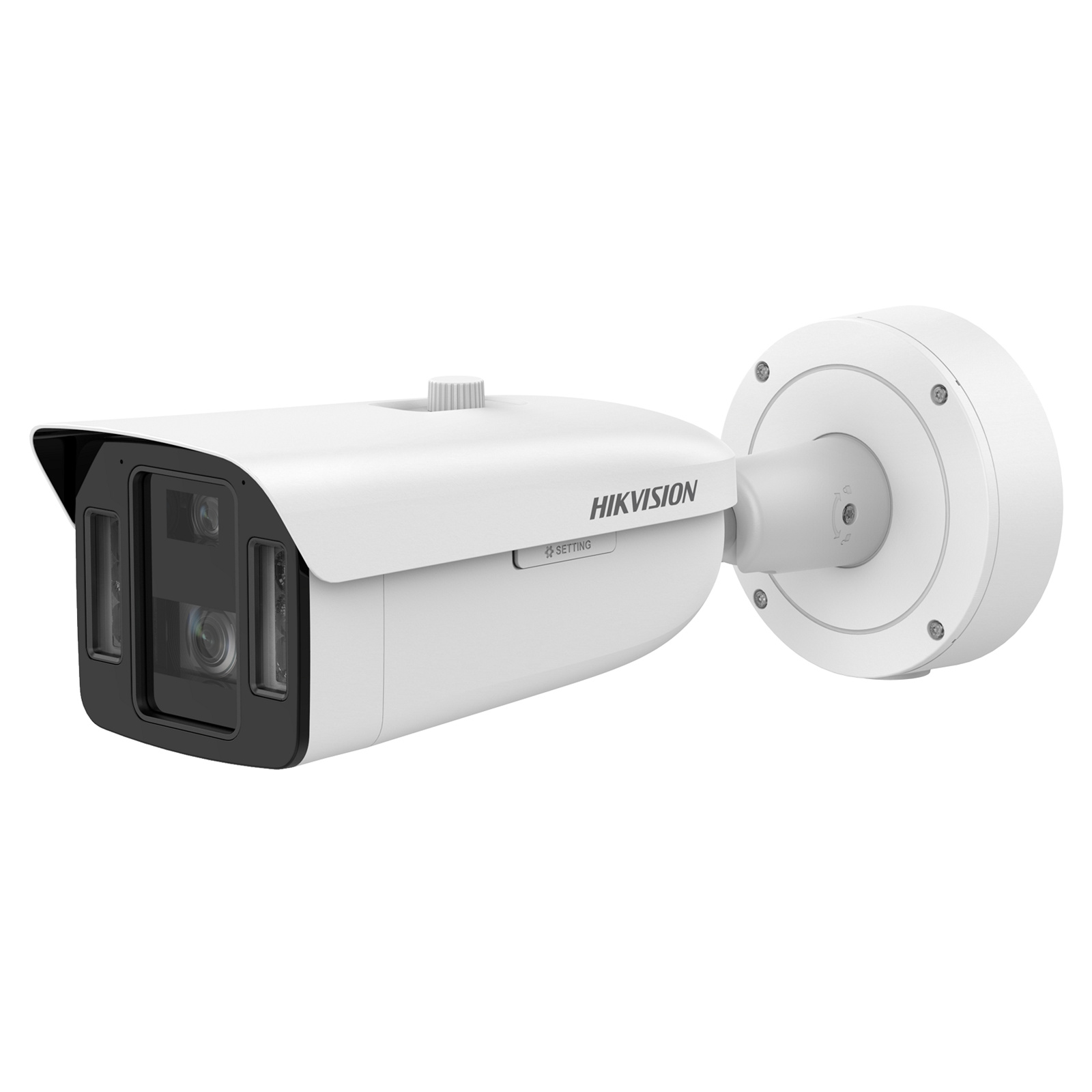

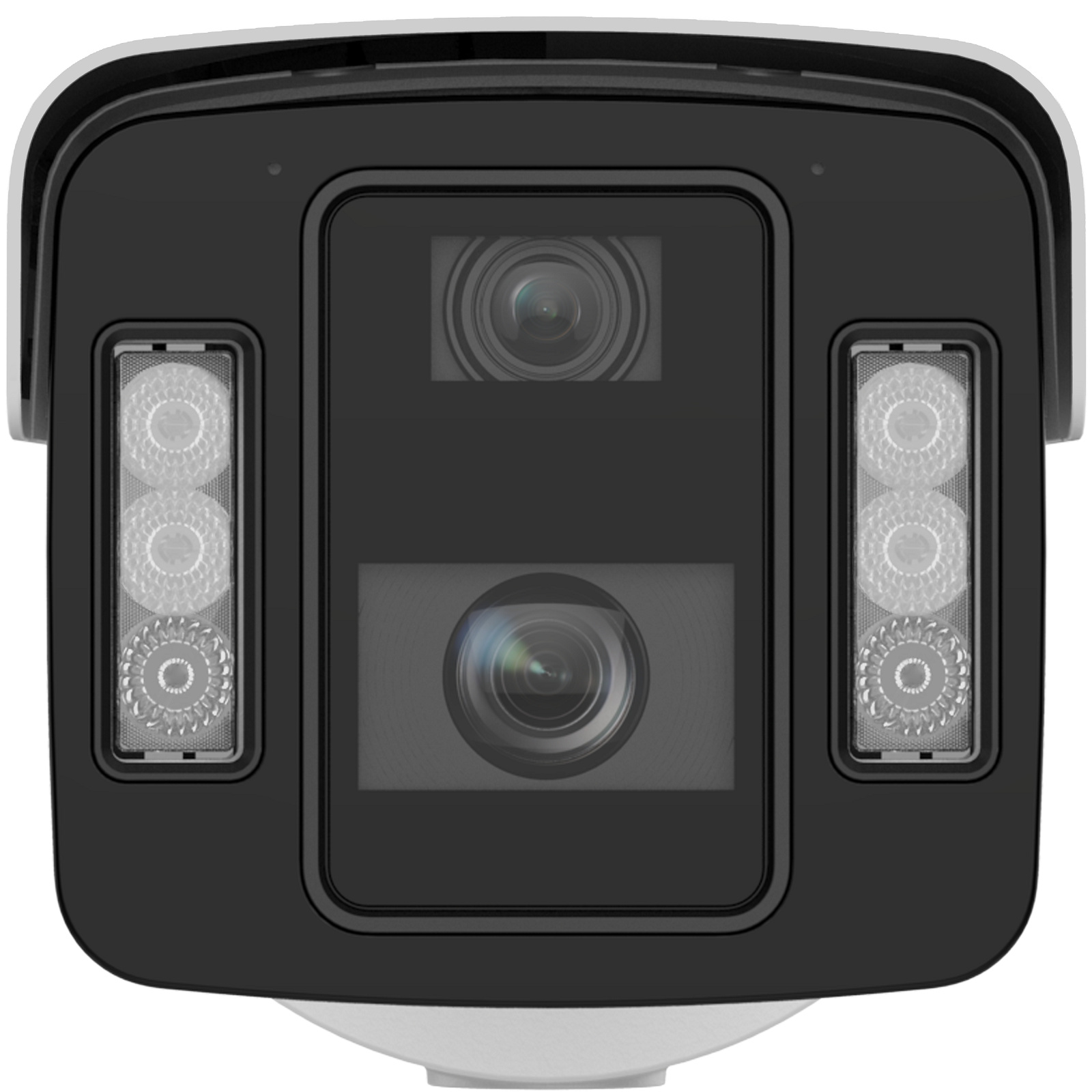

8MP DeepinView Multi-Sensor Bullet Camera

- High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
- Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology;
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Built-in heater to ensure clear image under rainy or snowy weather;
- Built-in G-sensor for vibration detection;
- Built-in power meter for historical power statistics;

Specifications

Camera

Image Sensor

Channel 1: 1/1.2" Progressive Scan CMOS,
Channel 2: 1/1.8 Progressive Scan CMOS"

Max. Resolution

Channel 1: 3840 × 2160, channel 2: 2688 × 1520

Min. Illumination

Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,
Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter,
Blue glass module (less ghost phenomenon)

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Focal Length & FOV

Channel 1: 10 to 50 mm: horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9°
Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°

Focus

Channel 1: Auto, semi-auto, manual

Iris Type

Channel 1: P-iris,
Channel 2: Fixed

Aperture

Channel 1: Constant F1.6 throughout the zoom range,
Channel 2: F1.0

DORI

Channel 1:
Wide: D:241.4 m, O: 95.8 m, R: 48.3 m, I: 24.1 m
Tele: D: 620.7 m, O: 246.3 m, R:124.1 m, I: 62.1 m
Channel 2:
D:77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator

Supplement Light Type

Hybrid (IR and White Light)

Supplement Light Range

Channel 1: up to 120 m,
Channel 2: up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

Channel 1:
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Channel 2:
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

Channel 1:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

Channel 1:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 15 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 15 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

Channel 1:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

Channel 1:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 2:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour,
SSL/TLS, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser

Day/Night Switch

Channel 1: Day, Night, Auto, Schedule, Alarm Trigger,
Channel 2: Day, Night, Auto, Schedule, Alarm Trigger

Wide Dynamic Range (WDR)

140 dB

Image Enhancement

Channel 1: BLC, HLC, 3D DNR, Defog, EIS,
Channel 2: BLC, HLC, 3D DNR, Defog

Privacy Mask

8 programmable polygon privacy masks

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

Video Output

1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Built-in Microphone

2 built-in microphones

Alarm

2 inputs, 2 outputs (max. 24 VDC, 1 A)

Built-in Speaker

1 built-in speaker

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Power Output

12 VDC, max. 50 mA

Wiegand

1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Event

Basic Event

Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),video quality diagnosis,vibration detection

Smart Event

Unattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General

Power

Three-core terminal block,

12 VDC ± 20%, 1.89A, max. 22.6 W,
24 VAC ± 20%, 1.48 A, max. 22.2 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W

Material

Aluminum alloy body

Dimension

Ø140 mm × 410.1 mm (Ø5.5" × 16.1")

Weight

Approx. 2630 g (5.80 lb.)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,one-key reset,mirror,password protection,flash log,anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Heater

Yes

Demist

Yes

Storage Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Integrated Connector Panel

-Y: No

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

-Y model: NEMA 4X (NEMA 250-2018)

Automotive and Railway

EN50121-4

Other

PVC FREE
