Features

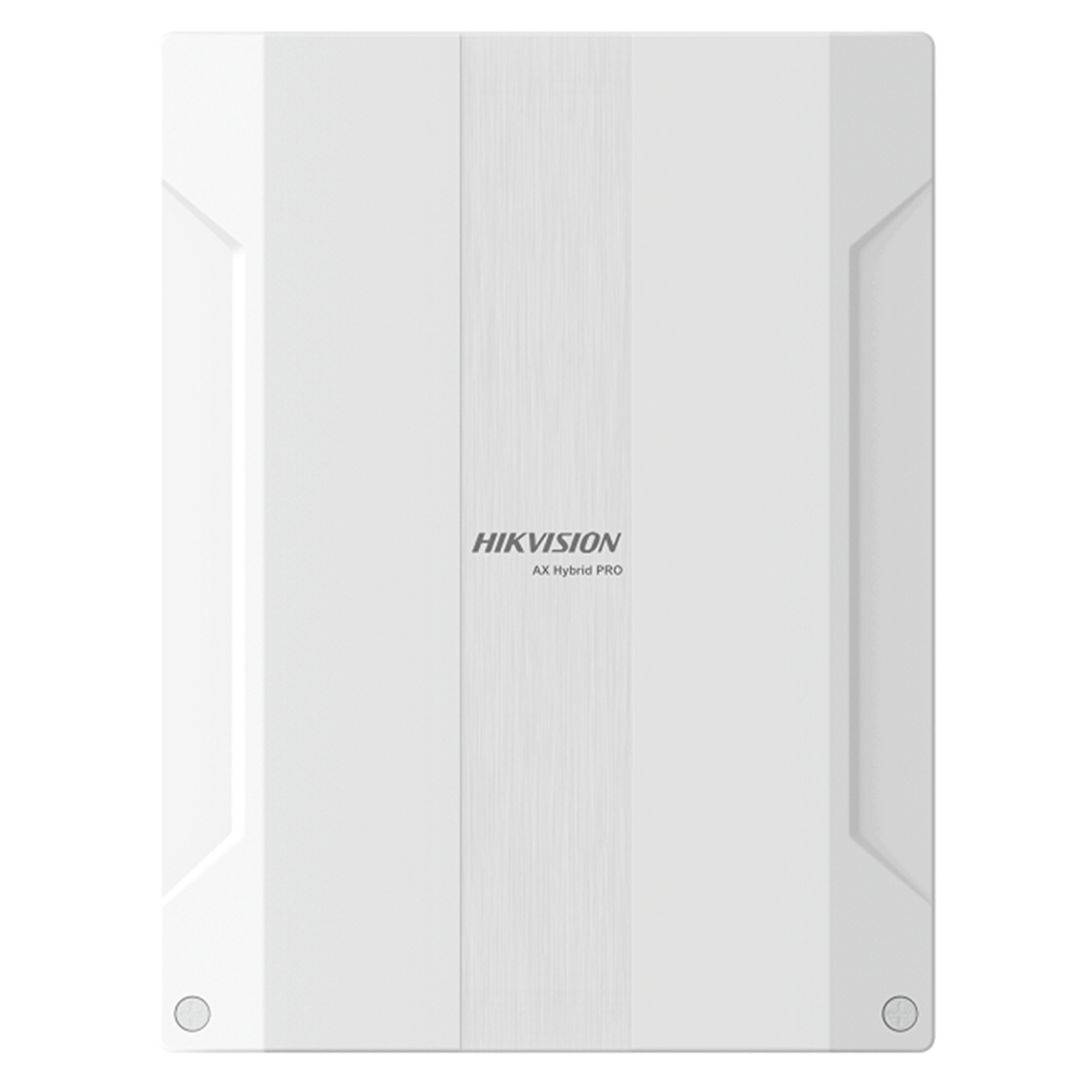

AX HYBRID PRO
AX Hybrid Pro control panel is a wired intrusion control panel with wireless detectors & peripherals access capability. It is the first control panel that supports Speed-X bus, which is a creative technology and is used to transmit verification video/picture from PIR-CAM. Besides, this hybrid control panel supports customized voice library, which is designed for users to upload customized voice files. These voice files will be played via alarm phone call when alarm triggered. As for basic functions, it supports Wi-Fi, TCP/IP and GPRS/3G/4G communication methods. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central, which is applicable to the scenarios of market, hotel, supermarket, warehouse, office, house (especially with cables pre-installed), etc.
- Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable;4 on-board outputs(2 relay outputs & 2 I/O outputs) and 60 wired/wireless outputs expandable
- Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notification via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
Professional Hybrid Alarm Panel with Flexible Wired and Wireless Expansion
The AX Hybrid Pro panel delivers secure, scalable intrusion protection with native support for 8 onboard zones (expandable to 64 with wired/wireless integration) and up to 64 configurable alarm outputs. Designed for installations where pre-existing cabling can be leveraged but future wireless is also required.
Innovative Speed-X Bus for Rapid PIR-CAM Video Verification
As the industry's first controller to support Speed-X bus, the panel enables instant transmission of images and video from PIR-CAM detectors, providing fast and reliable alarm verification in real installations.
Custom Voice Library and Multiple Communication Paths
Users may upload customized voice files that will play over alarm phone calls when an incident occurs. Connectivity is highly redundant with Wi-Fi, TCP/IP, PSTN, GPRS, 3G, and 4G options, using dual communication paths with priority settings for main and backup.
IP Camera Integration and Flexible Reporting Functions
Up to 4 IP cameras are supported for visual alarm verification direct to receiving emails or mobile clients (includes pre/post-alarm video). Full arming/disarming via keypad, keyfob, mobile app, iVMS-4200, SMS, or RFID tag ensures convenient and secure operation.
Advanced Protocol Support for Open, Centralized Management
Built for professional environments, the panel features full support for ISAPI, cloud P2P, ISUP, CSV-IP and DC-09 protocols, and integrates with Hik-ProConnect, Hik-Connect, HikCentral and third-party ARC platforms for seamless central monitoring.
Secure and Intelligent for Modern Facility Applications
The panel's robust anti-tamper design, multi-layer supervision, LED indicators and multi-user management are ideal for markets, hotels, warehouses, offices, or any residential and commercial site demanding secure, reliable, and scalable alarm monitoring.
Specifications
Software features
Zones
64(8 On-board zones, max 8 wired PIRCAM)
Area
32
User
Installer: 1
Administrator: 1
Operator: 62
SMS notification
Support (with GPRS/3G/4G module)
Onboard video clips
4
ARC protocol
ISAPI: Supports iVMS-4200 client software and web client
Cloud P2P: Supports cloud P2P privacy protocol
DC-09: ARC accessible(ADM-CID/SIA-DCS )
CSV-IP: Supports CSV-IP
ISUP: Supports ISUP 5.0
Programming tools
Web/iVMS-4200/Hik-ProConnect/Keypad
Firmware upgrade
Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect
End of Line Resistance
Support 2.2K,5.6K,8.2K
Hardware features
Alarm input
64(Including 8 on-board zones)
Alarm output
64(Including 2 on-board relay outputs and 2 on-board I/O outputs)
Power Output
12V 1.5A
3/4G on board
Optional
GPRS on board
Optional
Wi-Fi
802.11b/g/n (2.4GHz)
Bus
1 Speed-X bus
Sounder output
1 Wired on-board sounder output
Tamper-Proof
1 switch to detect removal from mounting
1 switch to detect front cover open
Netowrk interface
1 RJ45 10M/100M Ethernet interface
Display
Indicator
4 On-board LEDs
1. 1 AC power LED indicator(Green)
2. 1 System status LED indicator(Green/Red)
3. 1 PSTN status LED indicator(Green/Red)
4. 1 Mobile communication status LED indicator(Green/Red)
Electrical characteristics
Power interface
12 - 15V DC
Power Consumption
1. 220V power supply
With an alarm: 2A, 32W
Without an alarm: 250mA, 4W
2. 13.5V battery supply
With an alarm: 1.7A, 25W
Without an alarm: 200mA, 2.7W
Battery type
Lead acid battery(12V 7Ah, battery is not included by default)
Storage temperature
-10°C to 40°C
Battery life span
Up to 36hrs
General
Operation temperature
-10℃ to 40℃
Operation humidity
10% to 90%
Shell material
Plastic
Color
White
Dimension(WxHxD)
261 mm × 199 mm × 86.4 mm
Weight
997 g
Device management
Tag
64
Keyfob
64
Keypad
8
Wireless sounder
16
