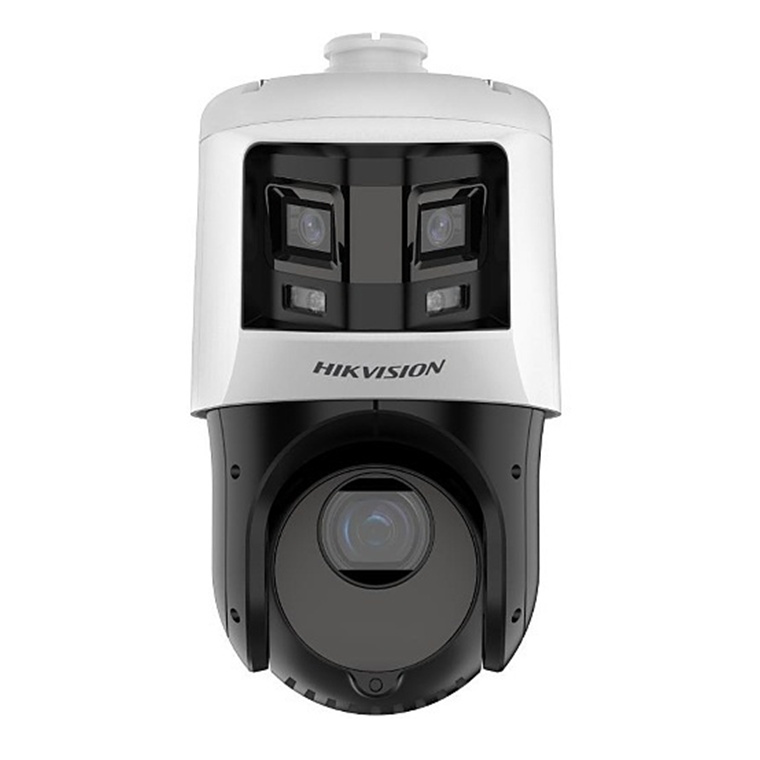

HIKVISION 4MP 25X TANDEMVU PTZ -WALL BRACKET INCLUDED
HIKVISION 4MP 25X TANDEMVU PTZ -WALL BRACKET INCLUDED
- Brand: HIKVISION
- MPN: 327001138
- Part #: CCTHIK327001138
- UPC:
- Brand: HIKVISION
- MPN: 327001138
- Part #: CCTHIK327001138
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
EZVIZ H9c 5MP/3K Dual-Lens Outdoor Wireless PT Camera with...
HIKVISION 4MP 25X TANDEMVU PTZ -WALL BRACKET INCLUDED
- Brand: HIKVISION
- MPN: 327001138
- Part #: CCTHIK327001138
Product URL: https://www.pbtech.co.nz/product/CCTHIK327001138/HIKVISION-4MP-25X-TANDEMVU-PTZ--WALL-BRACKET-INCLU
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome
Hikvision DS-2SE4C425MWG-E/26(F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
- Captures a large area and great details at the same time
- High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Expansive night view with up to 100 m IR distance & 30 m white light
- Supports 12V DC & PoE+
- Focuses on human and vehicle targets classification based on deep learning
Dual-Channel Panoramic and PTZ Design
This camera features both a 6MP panoramic channel for broad area overviews and a 4MP PTZ channel with 25× optical zoom for capturing fine details-effectively combining wide scene coverage with focused inspection.
Superior Imaging for Challenging Environments
Thanks to DarkFighter and ColorVu technologies, the camera delivers vivid, color-accurate video in ultra-low-light settings and maintains clarity in scenes with moving vehicles or people.
Wide-Area Coverage with Powerful Zoom
The PTZ channel offers unlimited 360° panning, -15° to 90° tilt, and rapid zooming, securing expansive zones such as large outdoor venues, transport hubs, and open public areas.
All-Day, All-Weather Surveillance Reliability
Up to 100 m IR and 30 m white light support detailed night vision, while IP66-rated protection and -30°C ~ 65°C operating range ensure 24/7 performance in demanding outdoor scenarios.
Intelligent Deep Learning for Target Identification
The system applies deep learning algorithms to classify humans and vehicles, and supports intelligent face capture, regional people counting, and a range of programmable smart detection events.
Specifications
Camera
Image Sensor
[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution
[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/30,000 s
Day & Night
ICR
Zoom
[PTZ channel] 25 × optical, 16 × digital
Slow Shutter
Yes
Lens
[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV
[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focus
semi-auto | manual | auto
Aperture
[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed
[PTZ channel]: approx. 3.6 s
Illuminator
Supplement Light Type
[PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range
[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
Configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
Configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan
yes
Presets
300
Preset Freezing
yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Park Action
preset | pattern scan | patrol scan | auto scan | tilt scan | random scan | frame scan | panorama scan
3D Positioning
yes
PTZ Status Display
yes
Scheduled Task
preset | pattern scan | patrol scan | auto scan | tilt scan | random scan | frame scan | panorama scan | dome reboot | dome adjust | aux output
Power-off Memory
yes
Video
Main Stream
[Bullet channel] 50 Hz：25 fps（3632 × 1632，3680 × 1656）；60 Hz：30 fps（3632 × 1632，3680 × 1656）
[PTZ channel] 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）；60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream
[Bullet channel] 50 Hz：25 fps（1200 × 536，960 × 432）；60 Hz：30 fps（1200 × 536，960 × 432）
[PTZ channel] 50 Hz：25 fps（704 × 576，640 × 480，352 × 288）；60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
Third Stream
[Bullet channel] No
[PTZ channel] 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）；60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
Video Compression
H.265 | H.264 | MJPEG
Video Bit Rate
32 kbps to 16384 kbps
H.264 Type
baseline profile | main profile | high profile
H.265 Type
main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio Bit Rate
MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Audio Sampling Rate
MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps, MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
Environment Noise Filtering
yes
Network
Protocols
IPv4/IPv6 | HTTP | HTTPS | 802.1x | Qos | FTP | SMTP | UPnP | SNMP | DNS | DDNS | NTP | RTSP | RTCP | RTP | TCP/IP | UDP | IGMP | ICMP | DHCP | PPPoE | Bonjour | WebSocket | WebSockets
Simultaneous Live View
20
API
ISAPI, SDK, ISUP, ONVIF
User/Host
32
Security
Authenticated username and password | MAC address binding | HTTPS encryption | 802.1X authenticated access | IP address filter
Network Storage
NAS (NFS, SMB/ CIFS)| ANR
Client
iVMS-4200 | Hik-Connect
Web Browser
IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+
Image Parameters Switch
Yes
Image Settings
sharpness, saturation, brightness, contrast
Day/Night Switch
day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Defog
Digital defog
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focus
Yes
Regional Exposure
Yes
Interface
Ethernet Interface
RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage
Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm
1 alarm input, 1 alarm output
Reset
yes
Event
Basic Event
[PTZ channel] motion detection, video tampering alarm, [PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
Smart Event
[PTZ channel & bullet channel] audio exception detection, [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Linkage
Panorama Linkage
Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously, supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Regional People Counting
Yes
General
Power
12VDC, PoE+
Dimension
Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Weight
Approx. 2.4 kg (13.2 lb.)
Material
ADC12
Operating Condition
-30℃ to 65℃ (-22°F to 149°F) | humidity lower than 90%RH
General Function
mirror, watermark, password protection
Demist
Demist by heating the glass
Power Consumption and Current
Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
Approval
Protection
IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
