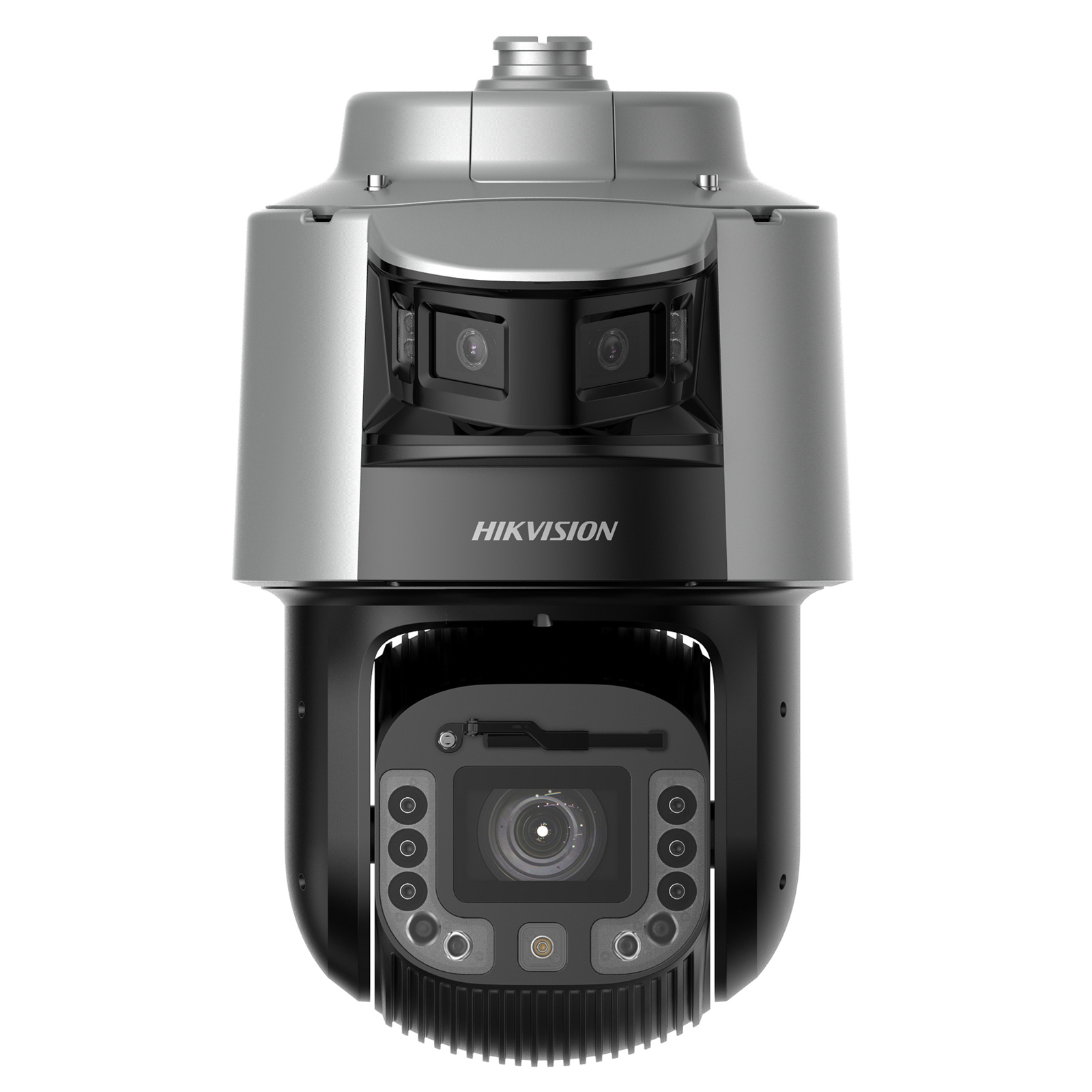

HIKVISION TANDEMVU 8C SERIES PANORAMIC 4MP 42 X DARKFIGHTER NETWORK SPEED DOME

Brand: HIKVISION
MPN: 327001904
Part #: CCTHIK327001904
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 17 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 327001904
Part #: CCTHIK327001904
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Specifications

Camera

Image Sensor

[Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
[PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR

Shutter Speed

1 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Panoramic channel] Day,Night,Schedule,Auto
[PTZ channel] Day,Night,Schedule,Auto

Zoom

[PTZ channel] 42 × optical, 16 × digital

Max. Resolution

[Panoramic channel] 3680 × 1656
[PTZ channel] 2688 × 1520

Lens

FOV

[Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 80°±5°
[PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 11°, diagonal field of view: 67.1° to 2.3°

Focus

Auto, semi-auto, manual

Zoom Speed

[Panoramic channel] No
[PTZ channel] approx. 5.6 s

Focal Length

[Panoramic channel] 2.8 mm
[PTZ channel] 6 to 252 mm

Aperture

[Panoramic channel] F1.0
[PTZ channel] F1.3

Illuminator

Supplement Light Range

[Panoramic channel] white light: up to 30 m
[PTZ channel] IR: up to 300 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360° endless

Movement Range (Tilt)

[Panoramic channel] 12° to 24°
[PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[PTZ channel] configurable from 0.1° to 120°/s, preset speed 200°/s,
[Panoramic channel] tilt speed configurable

Proportional Pan

[Panoramic channel] No
[PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Panoramic channel] 50 Hz: 25 fps (3680 × 1656, 3632 × 1632), 60 Hz: 30 fps (3680 × 1656, 3632 × 1632)
[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288)
[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960x432), 60 Hz: 30 fps (1200 × 536, 960x432)

Third Stream

[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[Panoramic channel] No

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile, Main profile, High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Audio Bit Rate

32 to 192 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC), 64 Kbps (G.711), 16 Kbps (G.726), 16 Kbps (G.722.1), 8-48 Kbps (PCM)

Audio Sampling Rate

8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

Yes

Network

API

ONVIF (Profile S, Profile G, Profile T, Profile M), ISUP, ISAPI, SDK, OTAP

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2)

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+


Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 150 dB

Day/Night Switch

Day, night, auto, schedule

Image Enhancement

HLC, 3D DNR

Privacy Mask

[Panoramic channel] 8 programmable polygon privacy masks
[PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Defog

Optical defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Panoramic channel] No
[PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

Built-in Speaker

1 built-in speaker

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%
1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Basic Event

[PTZ channel & panoramic channel] alarm input and output, exception, [PTZ channel] motion detection, video tampering alarm

Smart Event

[Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage

[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing
[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture

Detects up to 30 faces simultaneously, uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries.
30000 faces for each library.
150000 faces in total.
Recognizes face identity via face modeling, grading and comparing to those in face library, supports face library encryption

Road Traffic and Vehicle Detection

License plate recognition of vehicles and motorcycles (only in checkpoint scenario), vehicle attribute detection (type, color, brand, driving direction, etc.), vehicle and non-vehicle counting, blocklist/allowlist (up to 10,000 records), LPR supported for 4 areas (Europe, Middle East, Asia-Pacific, Africa), ≥98% recognition, ≥99% capture, ≥98% direction accuracy, up to 120 km/h (front), up to 80 km/h (side)

Multi-Target-Type Detection

Simultaneous detection and capture of human body, face and vehicle, gets 7 face features, 14 body features, 8 vehicle features

Perimeter Protection

Line crossing, region entrance, intrusion, region exiting detection

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, tracking takeover, linked tracking capture

Smart Linkage

Person or vehicle arming for alert and tracking

General

General Function

mirror, password protection

Power

36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), for speaker: -30 °C to 55°C (-22°F to 131°F)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø290 mm × 453.2 mm (Ø11.42" × 17.84")

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7)

Safety

CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection, IK10 (IEC 62262:2002, excluding glass window)

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)

Manufacturer Part No:

327001904

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK327001904

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
